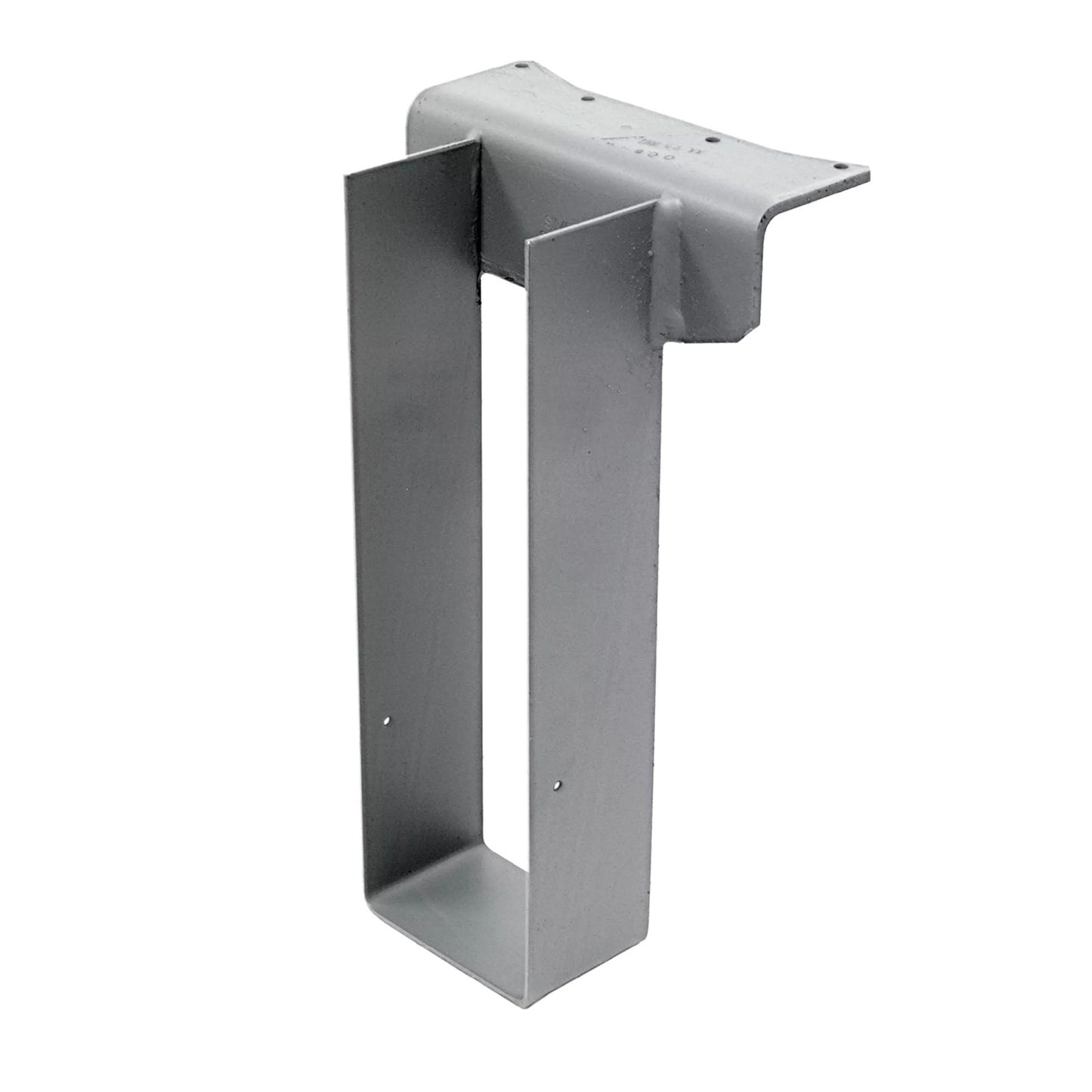

Simpson Strong-Tie WP212-2 Welded Purlin Hanger
Sizes
Description
Description
The Simpson WP Welded Purlin Hangers are designed to provide robust support for joists connecting to purlins or beams in a variety of construction applications. These top-flange hangers accommodate both wood-to-wood and wood-to-steel connections, ensuring superior load capacity and structural integrity.
Key Features:
- Design Flexibility: Can be skewed up to 84° and sloped up to 45° for versatile installation in complex framing applications.
- Heavy-Duty Construction: Manufactured from 12-gauge steel for enhanced strength and durability.
- Corrosion-Resistant Finish: Simpson Strong-Tie gray paint provides protection against environmental factors.
- Customizable Styles: Available in Type A (bevel-cut) or Type B (square-cut) to accommodate solid sawn and engineered wood applications.
Applications:
- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

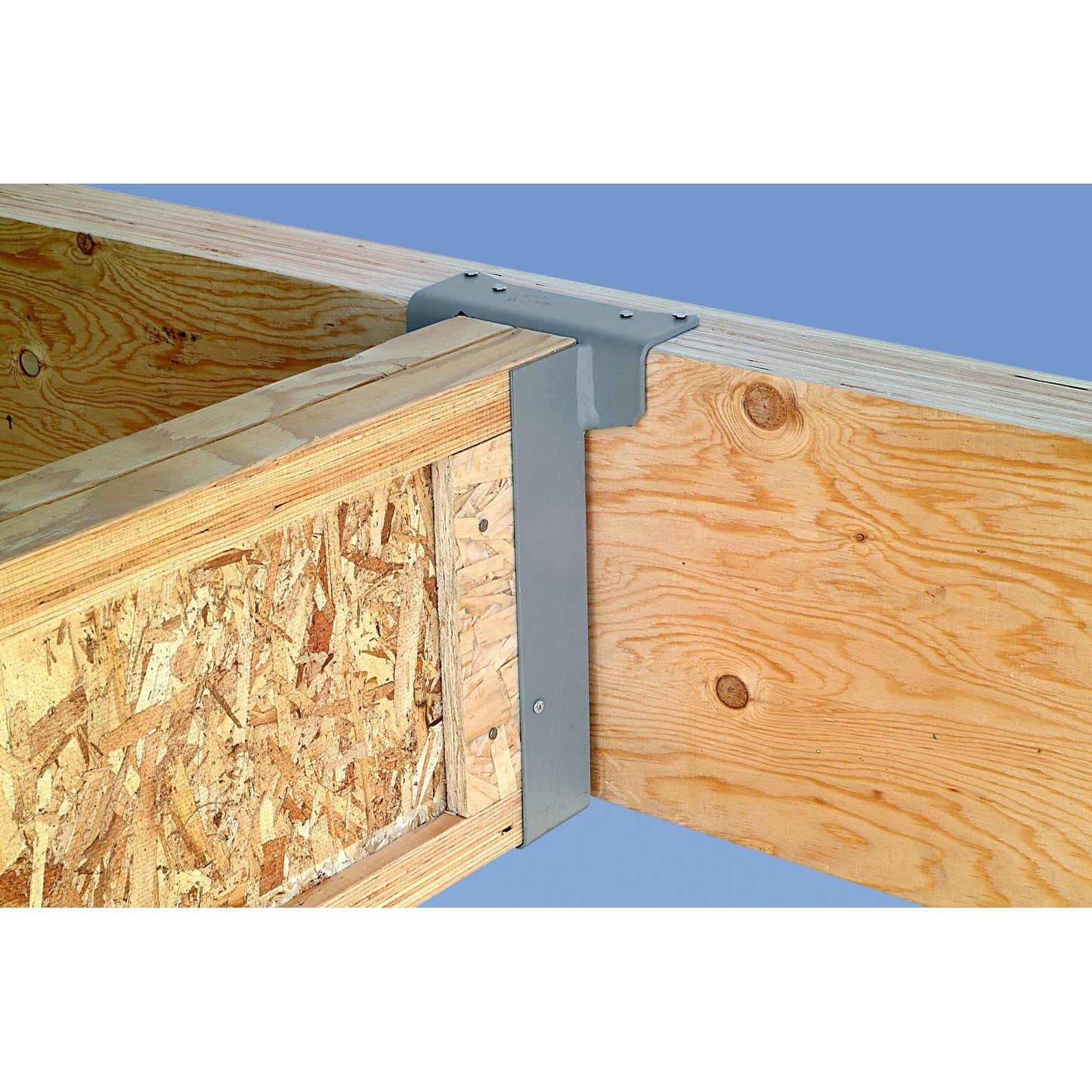

- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Installation:
- Welding: For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2"-long fillet weld on each side of the top flange, ensuring the weld size matches the hanger material thickness.
- Joist Compatibility: Ensure joist dimensions align with hanger specifications for a secure and stable connection.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
