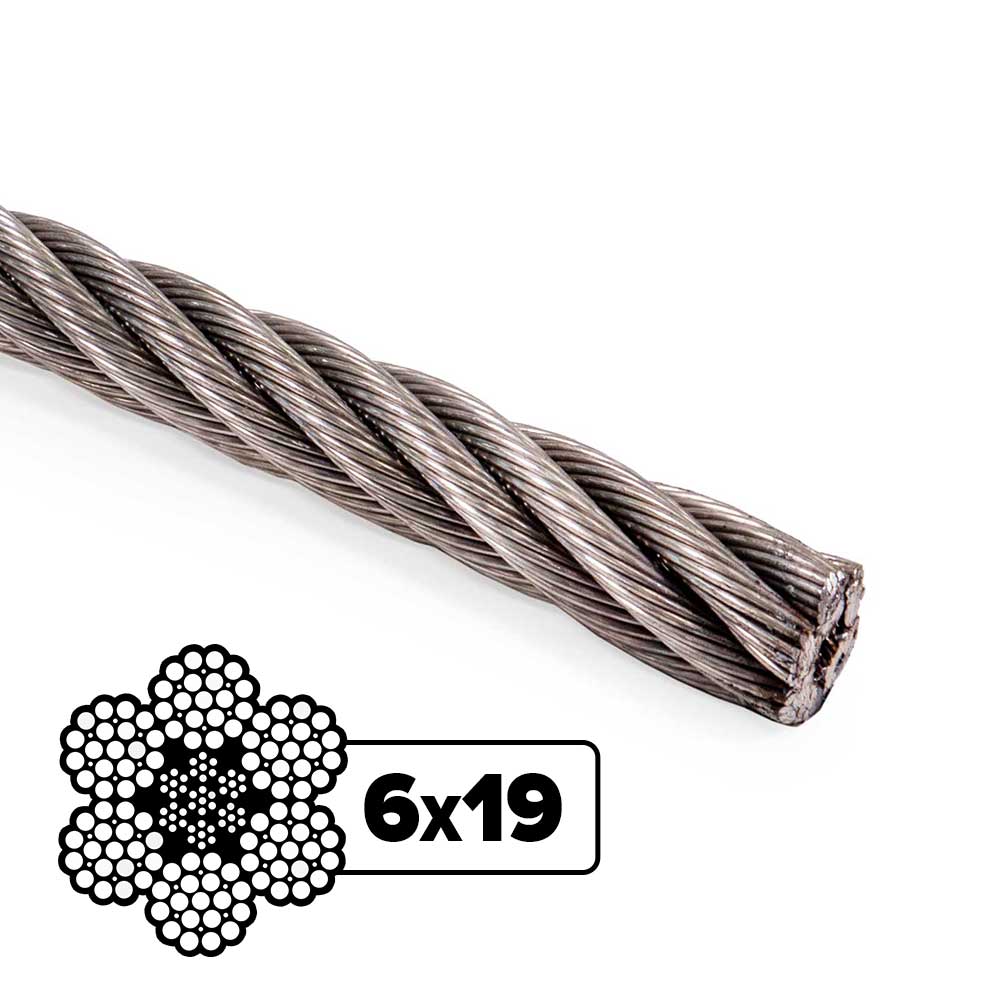

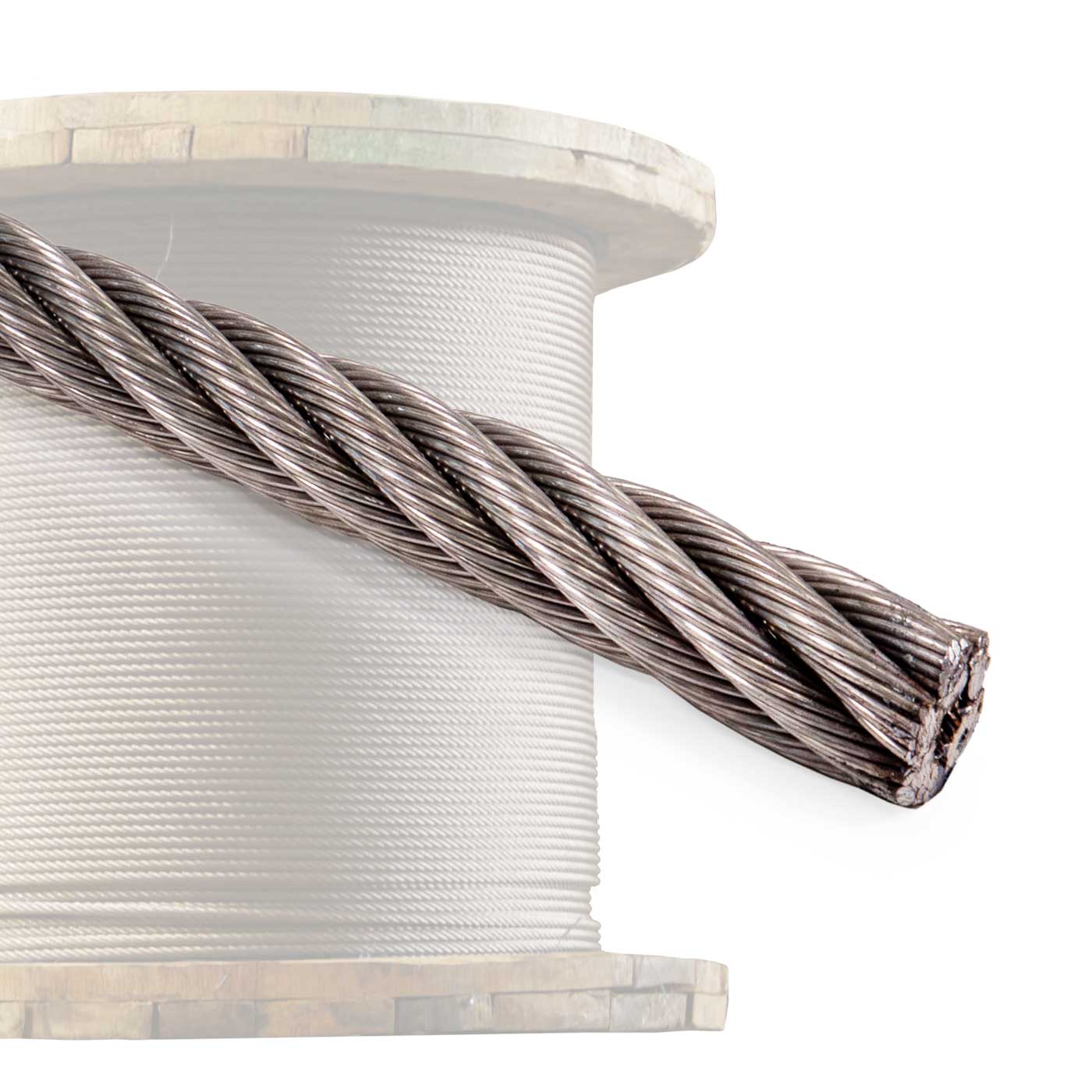

7/16" 6x19 Wire Rope Cable | 304 Stainless

This 7/16" Type 304 stainless steel wire rope features a versatile 6x19 class construction, making it an excellent choice for general-purpose lifting, rigging, suspension, and winching applications. Combining good flexibility with strong abrasion resistance, it performs well in environments where both durability and corrosion protection are important.

Corrosion-Resistant Stainless Steel Wire Rope for Rigging & Hoisting

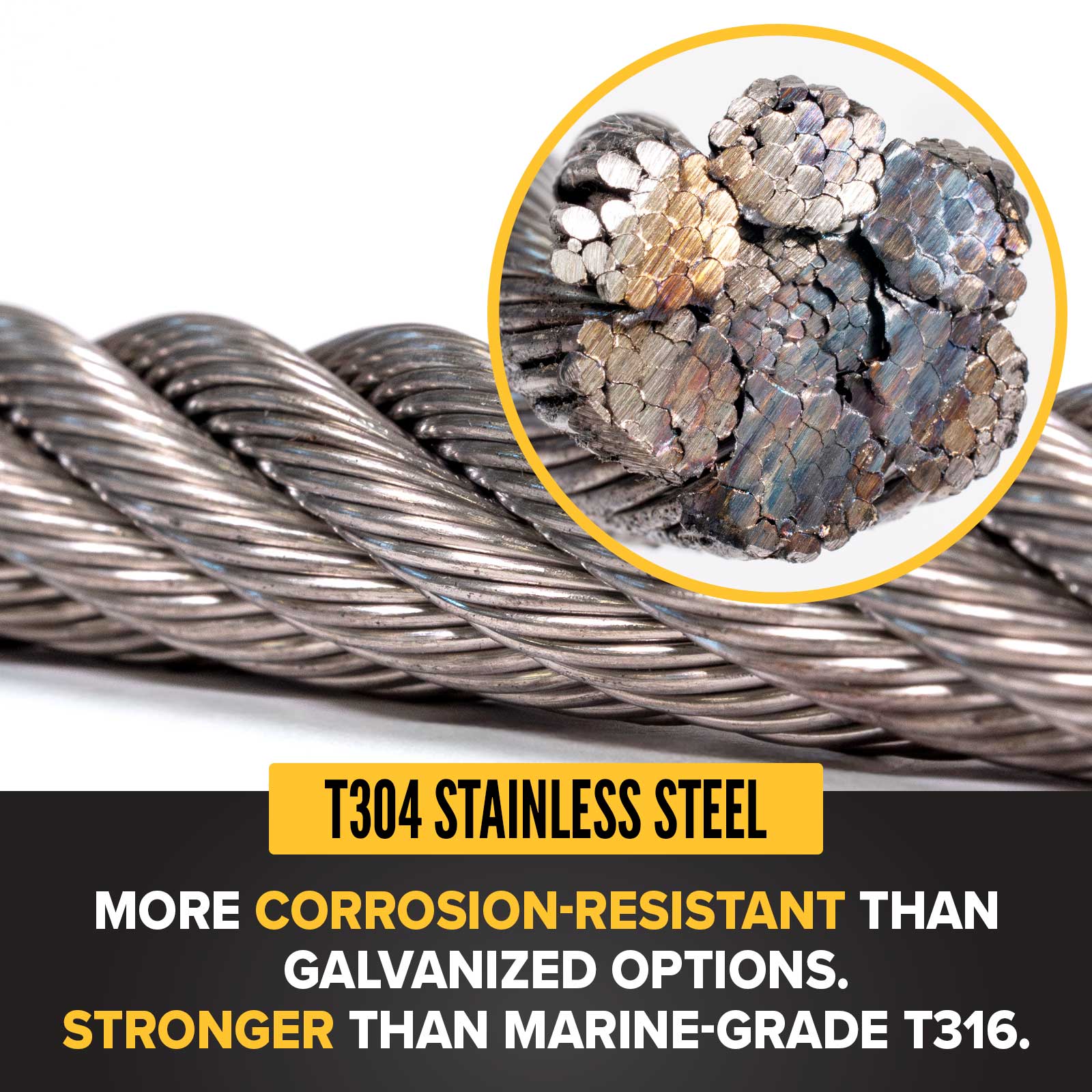

Type 304 stainless steel offers greater corrosion resistance than galvanized wire rope while providing higher strength and a more economical price point than Type 316 stainless steel. This makes it a popular choice for construction, industrial, architectural, and outdoor applications where reliable rust protection is required.

The 6x19 construction delivers enhanced abrasion resistance compared to a 6x37 wire rope, making it ideal for applications involving regular contact with drums, sheaves, and other wear surfaces. While slightly less flexible than a 6x37 construction, it provides excellent durability and service life in demanding environments.

6x19 Wire Rope Configuration

This wire rope is manufactured from Type 304 stainless steel, offering an excellent combination of strength, corrosion resistance, and long-term performance. It is well-suited for applications exposed to weather, moisture, and other corrosive conditions where standard carbon steel wire rope may not be appropriate.

The class of this wire rope is 6x19. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires making up each strand. This construction creates a balance of flexibility, strength, and abrasion resistance for a wide variety of applications.

IWRC Construction

The Independent Wire Rope Core (IWRC) provides greater support than fiber core constructions. IWRC wire rope offers improved crush resistance, enhanced load stability, and dependable performance in temperatures ranging from -40°F to 400°F.

Compared to a 6x37 wire rope, the 6x19 construction offers greater abrasion resistance but less flexibility and fatigue resistance, making it ideal for applications where wear resistance is the primary concern.

Key Features

• Type 304 stainless steel provides excellent corrosion resistance and strength
• 6x19 construction offers an ideal balance of flexibility and abrasion resistance
• More wear-resistant than comparable 6x37 wire rope constructions
• More corrosion-resistant than galvanized wire rope
• Cost-effective alternative to Type 316 stainless steel
• IWRC core improves crushing resistance and load support
• Ideal for hoisting, suspension systems, winch lines, and general rigging applications
• Suitable for outdoor, industrial, and moisture-prone environments
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements

Accessories & More

Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
