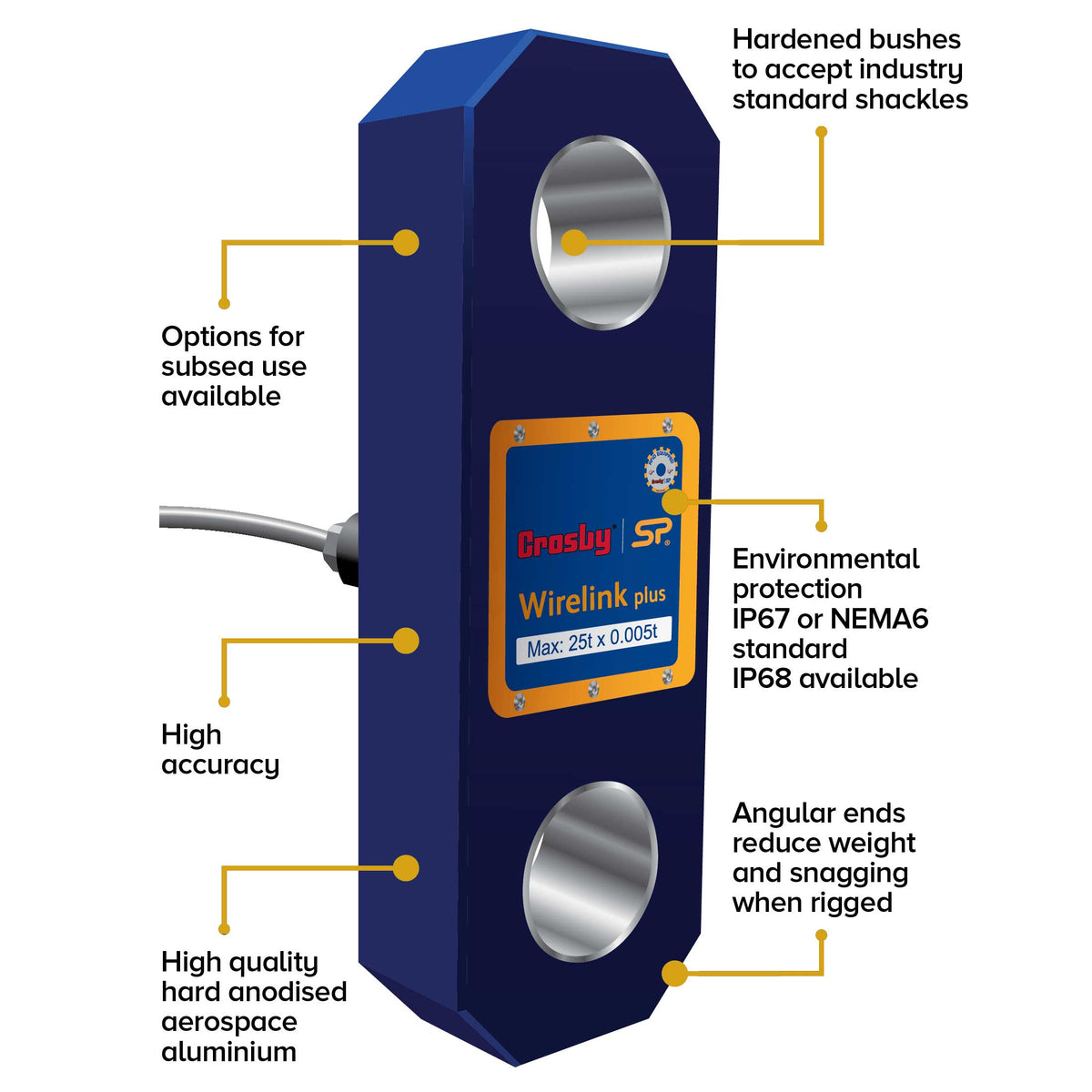

Straightpoint® 1 T Wirelink Plus - WLP1T
Specifications
The Straightpoint Wirelink Plus uses a 32-foot wired cable, included with the unit, to send tension readings straight to a digital display or data system. It's configured for a range of digital output formats and communication protocols, including ASCII, MODBUS RTU, and CAN-BUS, and works with Straightpoint's HHP Handheld Plus, PLCs, and data acquisition systems.
Key Features
- 1-ton tension load cell with a 32-foot wired cable included
- Configured for a range of digital output formats, including mV/V and RS-422
- Supports ASCII, MODBUS RTU, and CAN-BUS protocols
- Compatible with the HHP Handheld Plus, PLCs, and data acquisition systems
- Hard-anodized, aerospace-grade aluminum construction
- Available with IP68 protection and a sub-sea use option
- RFID-tagged and ASME B30.26 compliant, with a 2-year warranty
- Includes a calibration and proof test certificate, multilingual user manual, and carrying case
- Some kits include a pair of Crosby shackles; check your specific kit configuration
Applications
- Overhead weighing and general load testing
- Bollard pulling, tug testing, and cable tensioning
- Heavy lifting jobs needing a direct-wired data connection to PLCs or DAQ systems
