SKU: WNI-BLE-500-TC

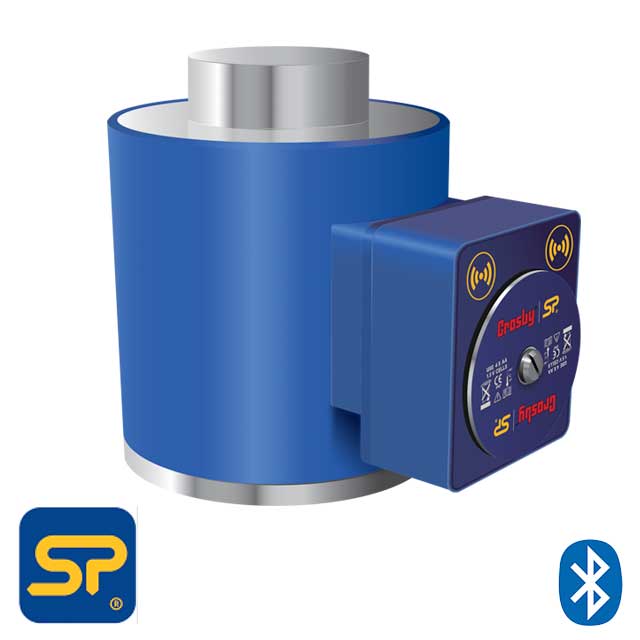

Straightpoint® 500 T LoadSafe Compression Load Cell - Bluetooth Enabled - WNI500TC-BLE

Straightpoint® 500 T LoadSafe Compression Load Cell - Bluetooth Enabled - WNI500TC-BLE!

1 5

Continue Browsing

Rigging Supplies & Rigging Hardware
SKU: WNI-BLE-500-TC

Straightpoint® 500 T LoadSafe Compression Load Cell - Bluetooth Enabled - WNI500TC-BLE

$16,139.59
Request Bulk Pricing
Request Bulk Pricing
Ships FREE in 14-21 business days.
Fill out the form below or give our sales consultants a call at 888-794-1590.

Output:

Handheld Bluetooth

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Safety Factor: 3:1
Load capacity: 1,100,000 lbs.
Output: Bluetooth
Power Source: 4 x AA Alkaline Batteries
Accuracy: +/- 0.1% of Full Scale
Resolution: 500 lbs.
Range: 328'
Data Rate: 3Hz - Configurable to 200Hz
Operating Temperature: -10° to +50°C | 14° to 122° F
Battery Life: 500 hours continuous
Item Weight: 143 lbs.
Standards: IP67
Manufacturer Name: Crosby Straightpoint
Manufacturer Part Number: WNI500TC-BLE / 2789215
Description

The 500-ton LoadSafe wireless compression load cell is rated through a physical calibration to 350 tonnes with readings extrapolated up to 500 tonnes, a spec detail worth confirming before specifying it for a top-end lift. It transmits to the SW-HHP handheld or INSIGHT software over an internal antenna, with the same stainless steel construction and IP67/NEMA 6 sealing as the rest of the LoadSafe line.

Key Features

  • 500-ton rated capacity, physically calibrated to 350 tonnes with readings extrapolated to 500 tonnes
  • Machined from high-grade stainless steel
  • Internal antenna transmits readings up to 3,280 feet without cables
  • Works with Straightpoint's SW-HHP handheld device or INSIGHT software
  • Sealed to IP67/NEMA 6 for demanding environments

Applications

  • Top-end wireless load verification where the extrapolated calibration range is acceptable
  • Heavy industrial and structural lifts needing wireless convenience
  • Facilities running Straightpoint's LoadSafe line at the highest capacities
