SKU: SCUF-1-EG

U Fitting For 1" Channel Height - Electro-Galvanized

Made in USA
$649
Ships Nov 16 when you order now

Description

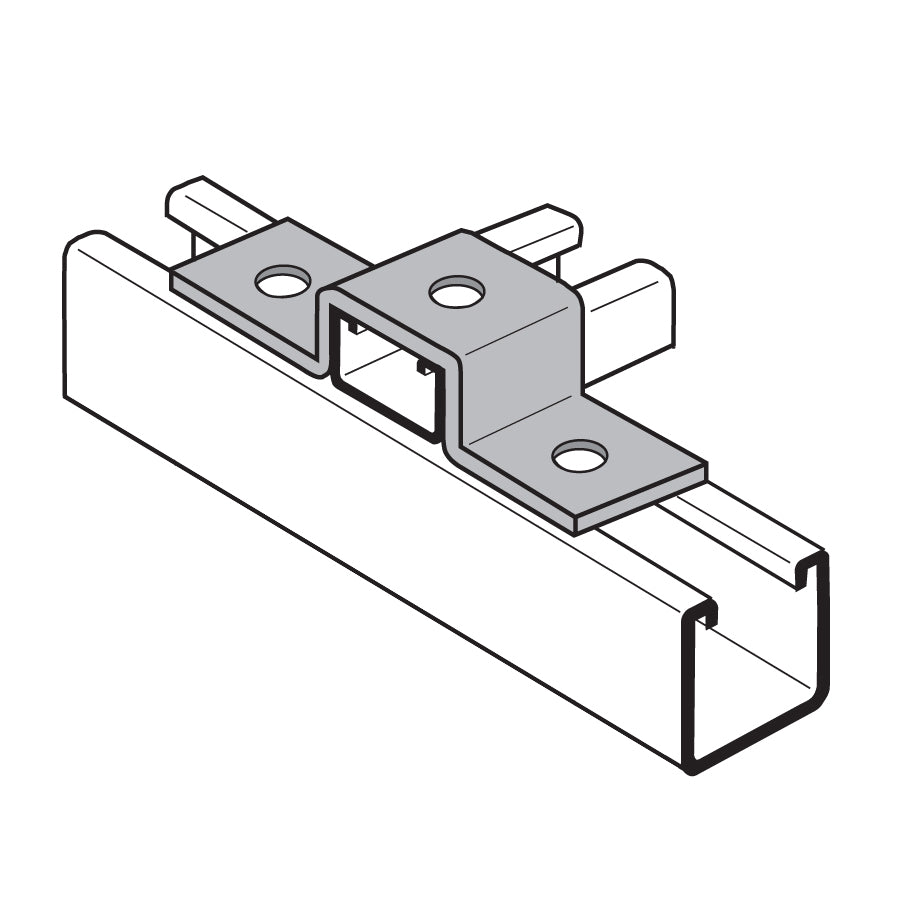

U Fitting For 1" Channel Height - Electro-Galvanized are U-Shaped Connectors that join perpendicular channels that are stacked on top of each other. These connectors fit FS-400 Strut Channel Use Like Metal Hardware for your application so the material lasts up to its optimal timeline. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

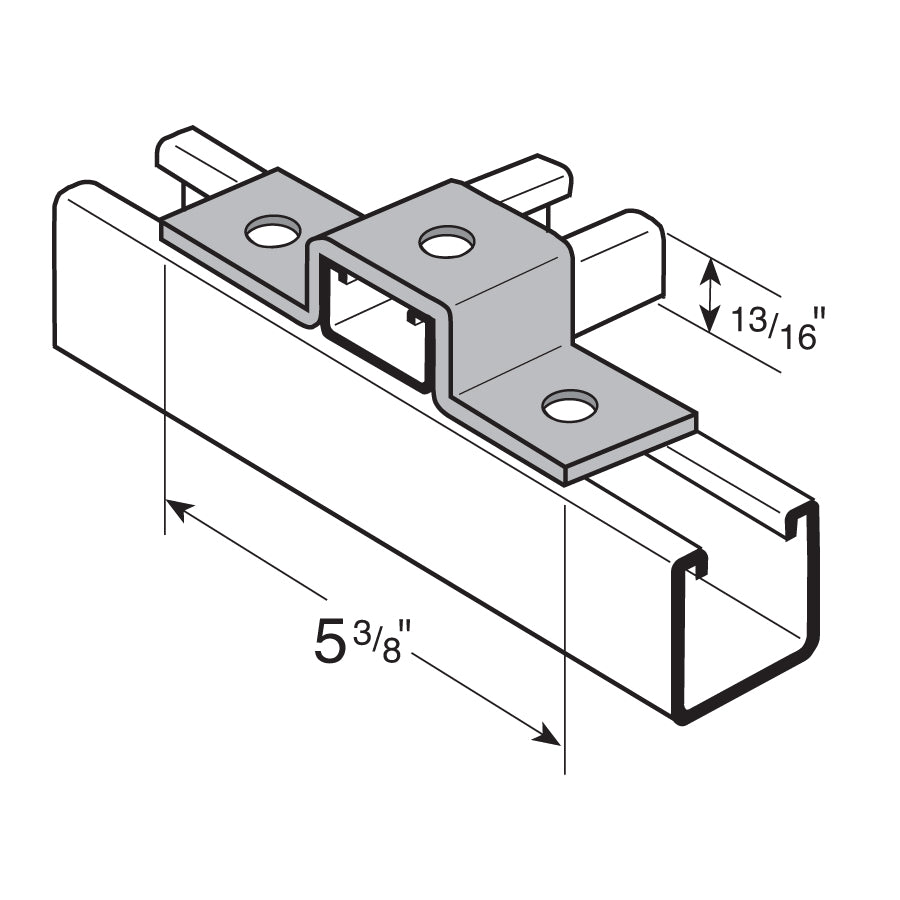

Specifications
Width: 1-5/8"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Electro-Galvanized
Standards: Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33
Manufacturer Name: Flex-Strut
