SKU: SDWS16312Q

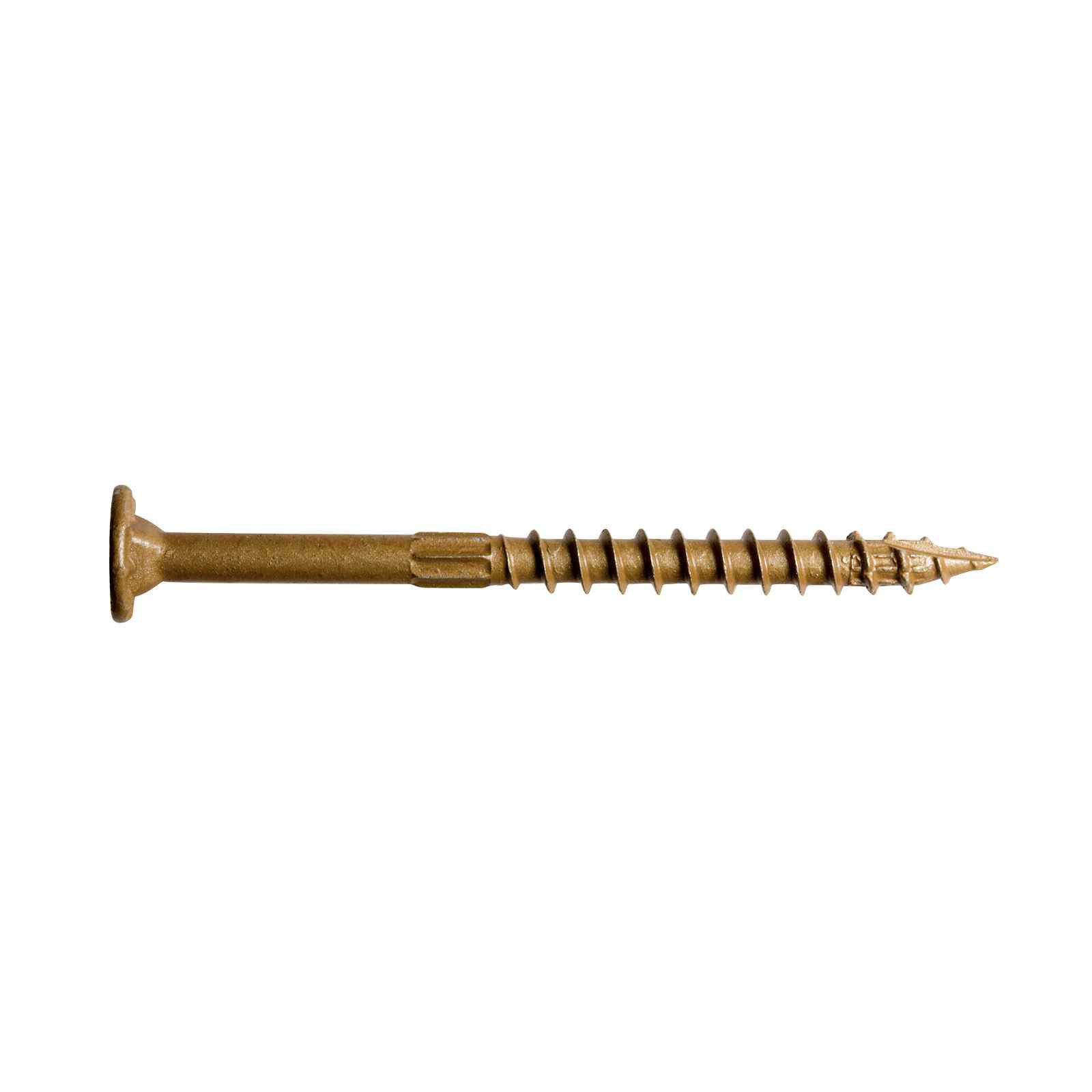

0.160" x 3-1/2" Strong-Tie SDWS16312Q Framing Screw, Quik Guard Coating, Pkg 750

0.160" x 3-1/2" Strong-Tie SDWS16312Q Framing Screw, Quik Guard Coating, Pkg 750!

Skip to product information
$190.42

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 2 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

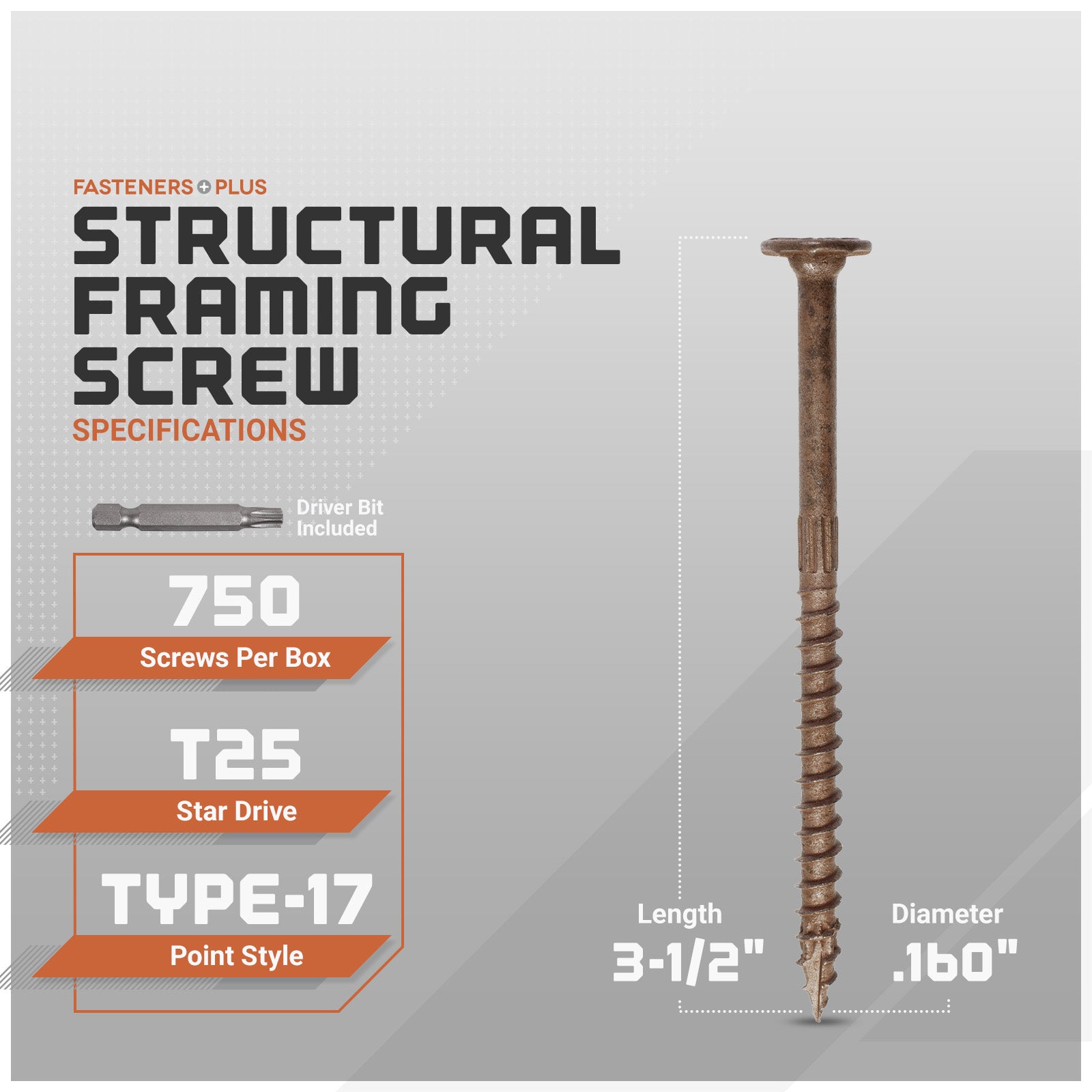

Specifications

Diameter: 0.160"
Finish: Quik Guard Coating
Length: 3-1/2"
Material: Carbon Steel
Drive type: T25 Star Drive
For Treated Lumber: Yes
Head type: Low Profile Head
Manufacturer name: Simpson Strong-Tie
Point type: Sawtooth Type 17 Point
Quantity: 750
Thread type: Serrated Threads
Description

The Simpson Strong-Tie Strong-Drive line of structural fasteners now includes the SDWS Framing screw, designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160" in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2009 and 2012 IRC and IBC code requirements for several common wood framing applications. The screw has a SawTooth Type-17 tip with serrated threads that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly, reducing cam-out and head stripping.
