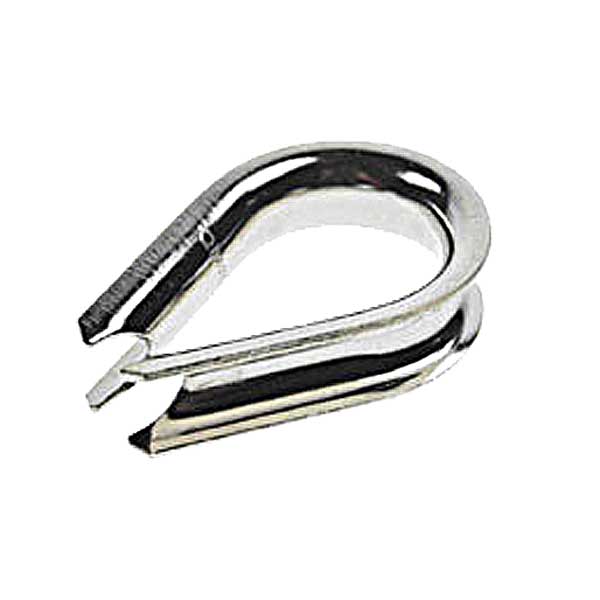

1/8" Light Duty Stainless Steel Thimbles | Type 316
1/8" Light Duty Stainless Steel Thimbles | Type 316!
1/8" Light Duty Stainless Steel Thimbles | Type 316
Specifications
Light Duty Stainless Steel Thimbles | Type 316
These Type 316 stainless steel wire rope thimbles provide reliable protection for wire rope eyes and loops in environments where corrosion resistance is critical. Manufactured from marine-grade 316 stainless steel, they help maintain proper rope shape, reduce wear at connection points, and extend the service life of wire rope and synthetic rope assemblies exposed to moisture, saltwater, and outdoor conditions.
Marine-Grade Protection for Wire Rope Eyes
Wire rope thimbles are designed to provide structural support to wire rope loops and eyes by maintaining the proper bend radius and reducing abrasion from hooks, shackles, rings, and other hardware. These light-duty thimbles offer an economical solution for applications where loads remain relatively static and extreme deformation resistance is not required.
Type 316 stainless steel contains molybdenum, which significantly improves corrosion resistance compared to Type 304 stainless steel. This added protection makes these thimbles a popular choice for marine rigging, coastal installations, dock systems, and other environments exposed to saltwater or high chloride levels.
Light-Duty Design for General Rigging Applications
Sometimes referred to as standard-duty or regular-duty thimbles, these fittings feature a slimmer profile than heavy-duty alternatives while still providing essential wire rope protection. Their lighter construction makes them easy to handle and install while delivering dependable performance in light-duty and static applications.
Key Features
- Manufactured from marine-grade Type 316 stainless steel
- Superior corrosion resistance for marine, coastal, and outdoor environments
- Molybdenum-enhanced stainless steel outperforms Type 304 in high-chloride conditions
- Provides structural support for wire rope eyes and loops
- Helps maintain proper bend radius to reduce rope wear
- Extends the service life of wire rope and synthetic rope assemblies
- Light-duty construction ideal for static and lower-load applications
- Popular choice for marine rigging and outdoor installations
- Lightweight design allows for easy handling and installation
- Suitable for wire rope, cable, and synthetic line applications
- Helps protect against abrasion at connection points
- Heavy-duty Type 316 stainless steel thimbles are also available for higher-capacity applications
