SKU: X34B1016-5K

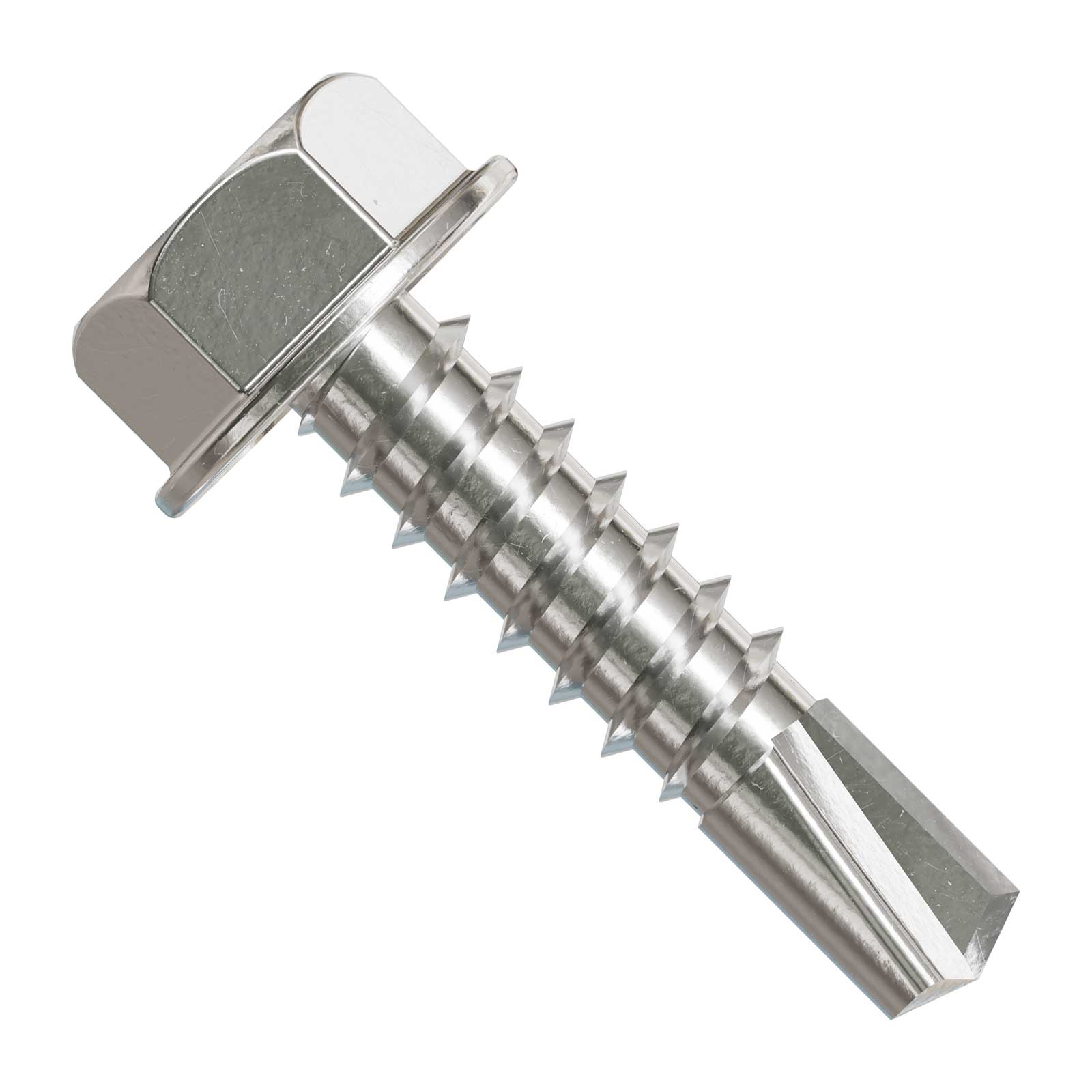

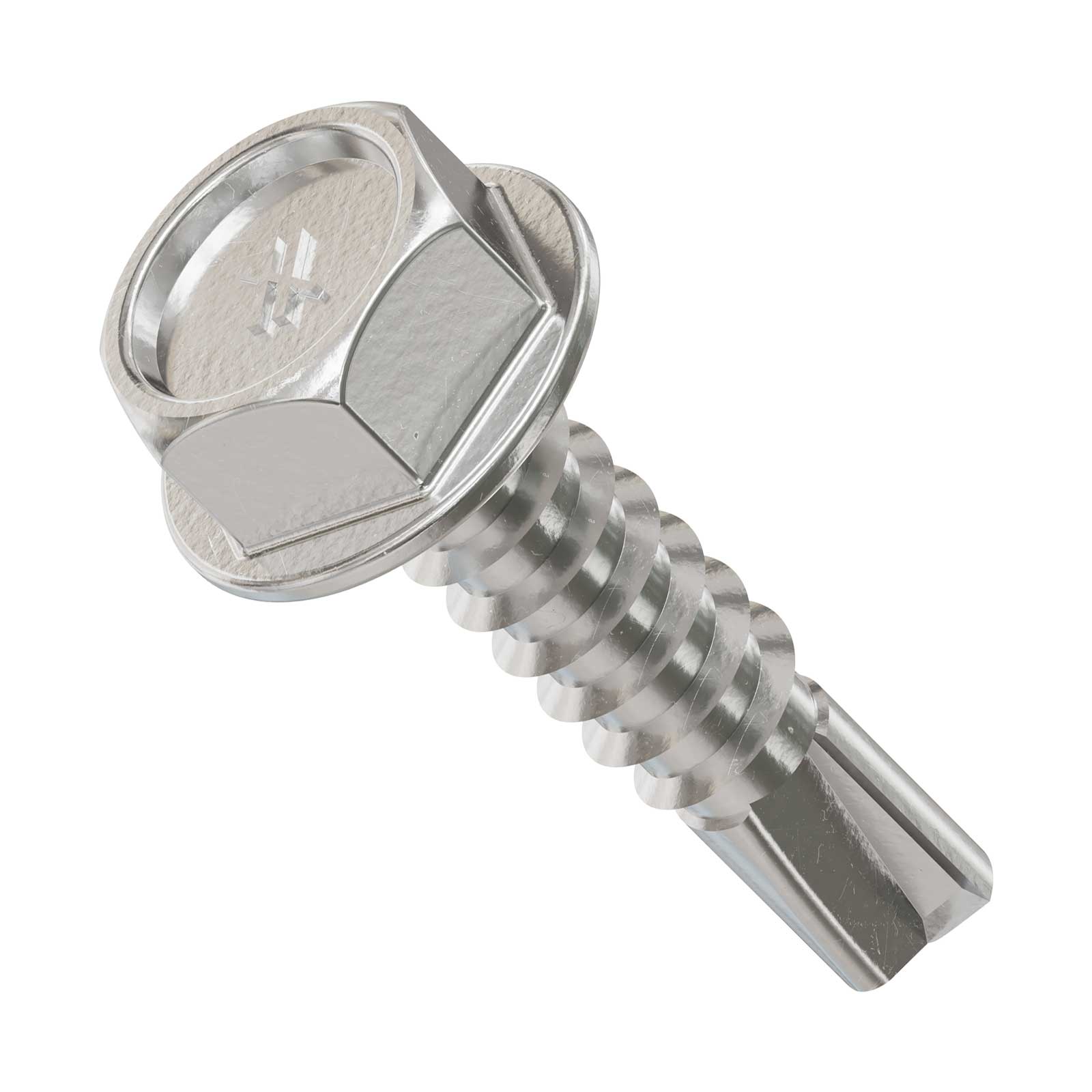

Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000

Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000!

  • Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000
  • Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000

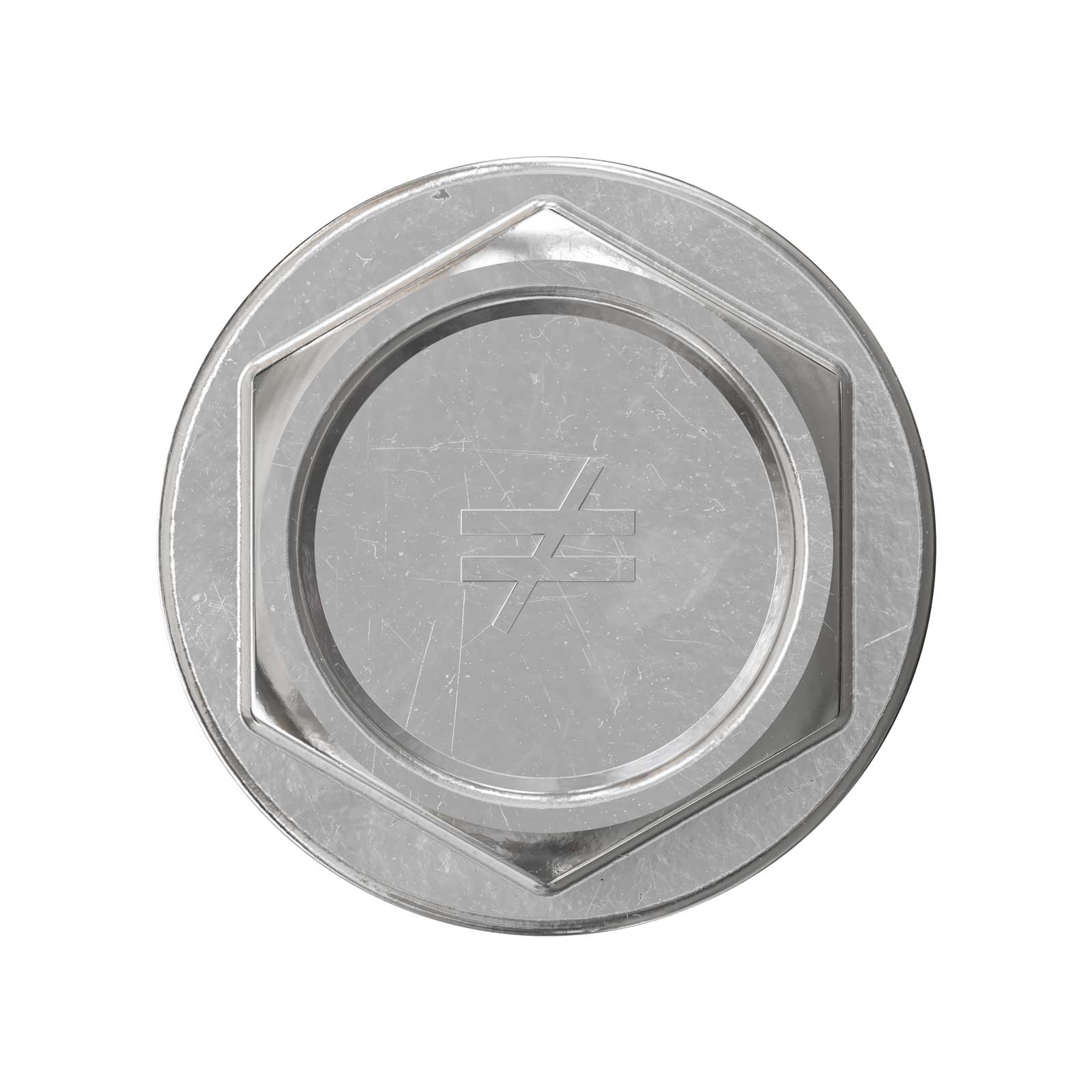

  • Head type: Hex Washer

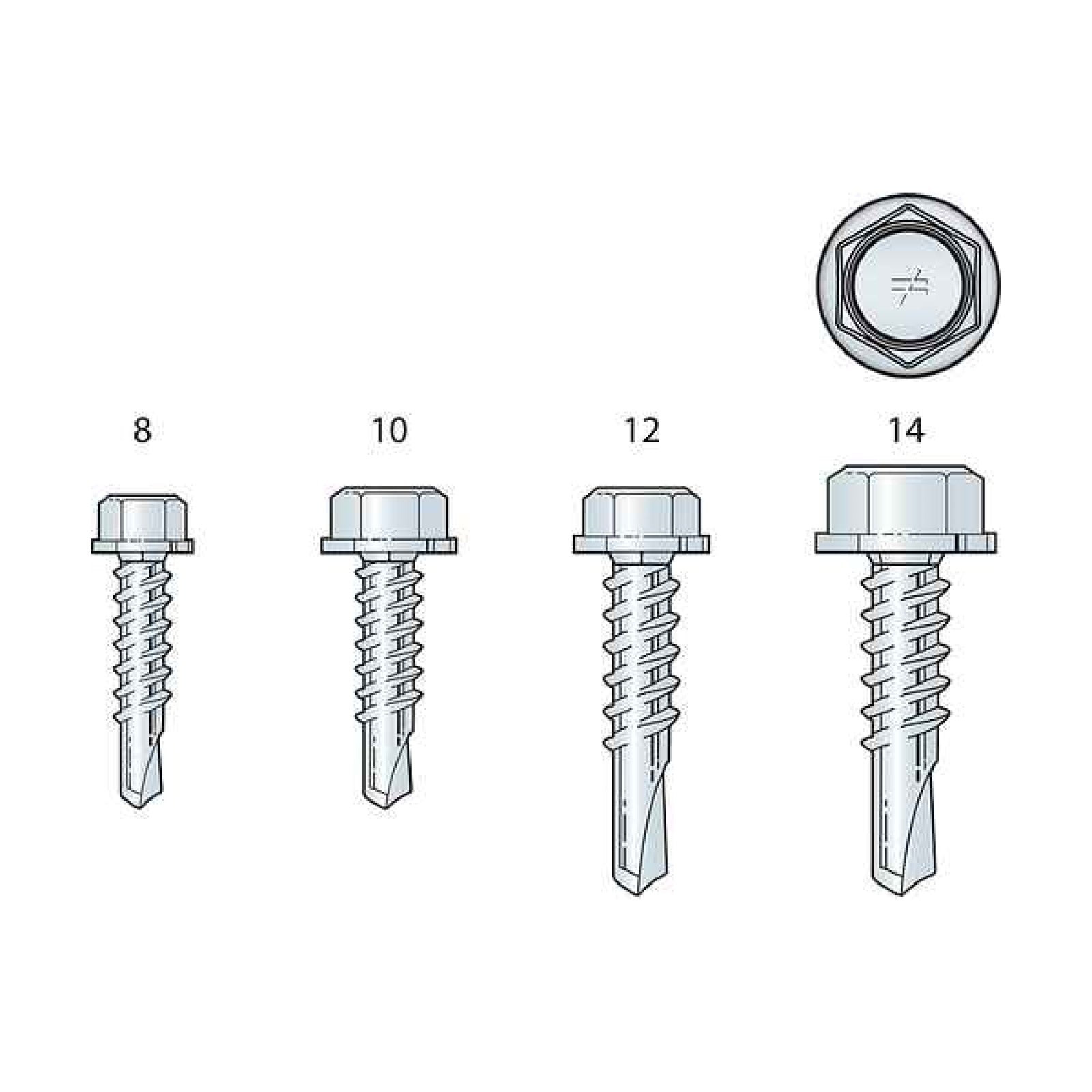

  • Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000 sizing chart

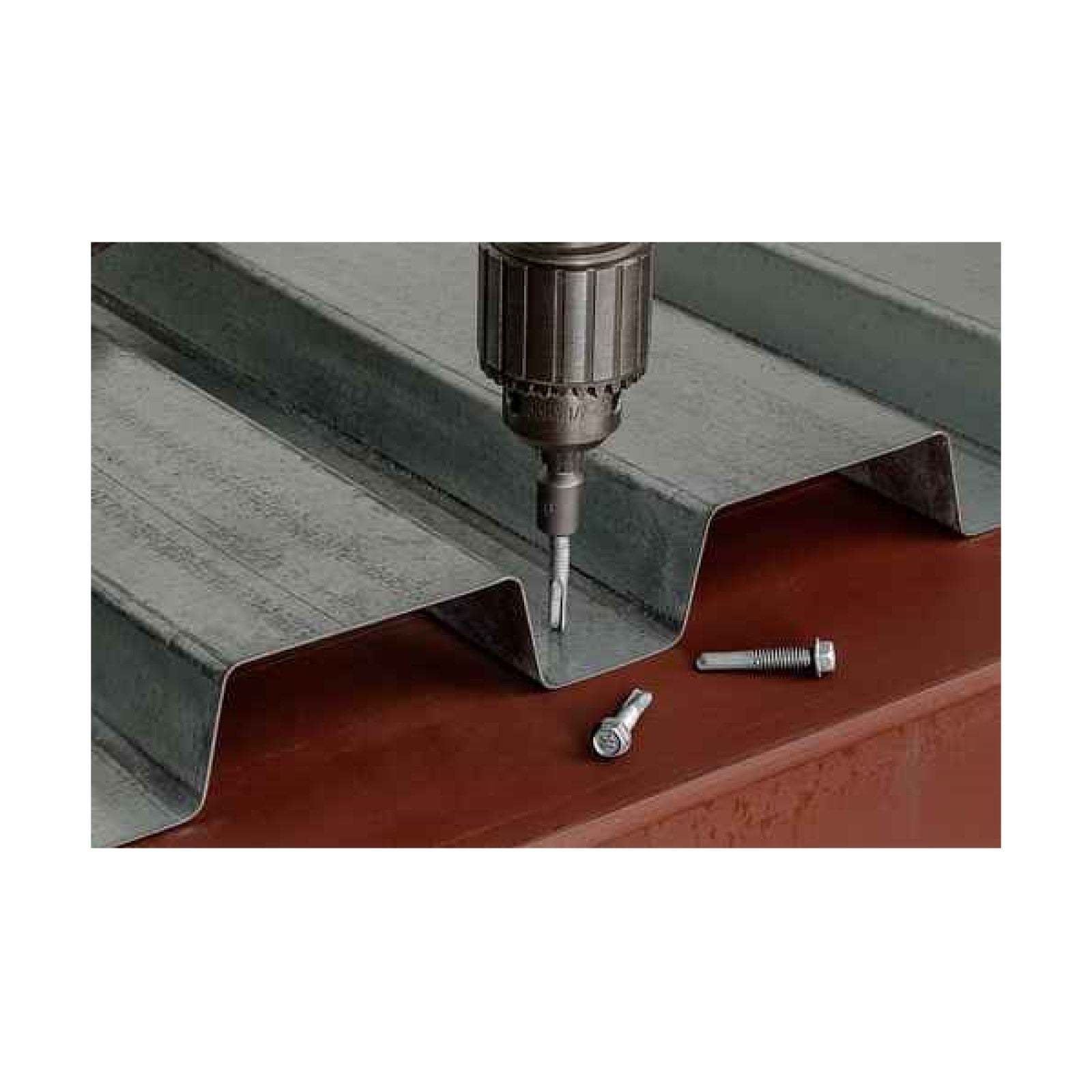

  • Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000 installation

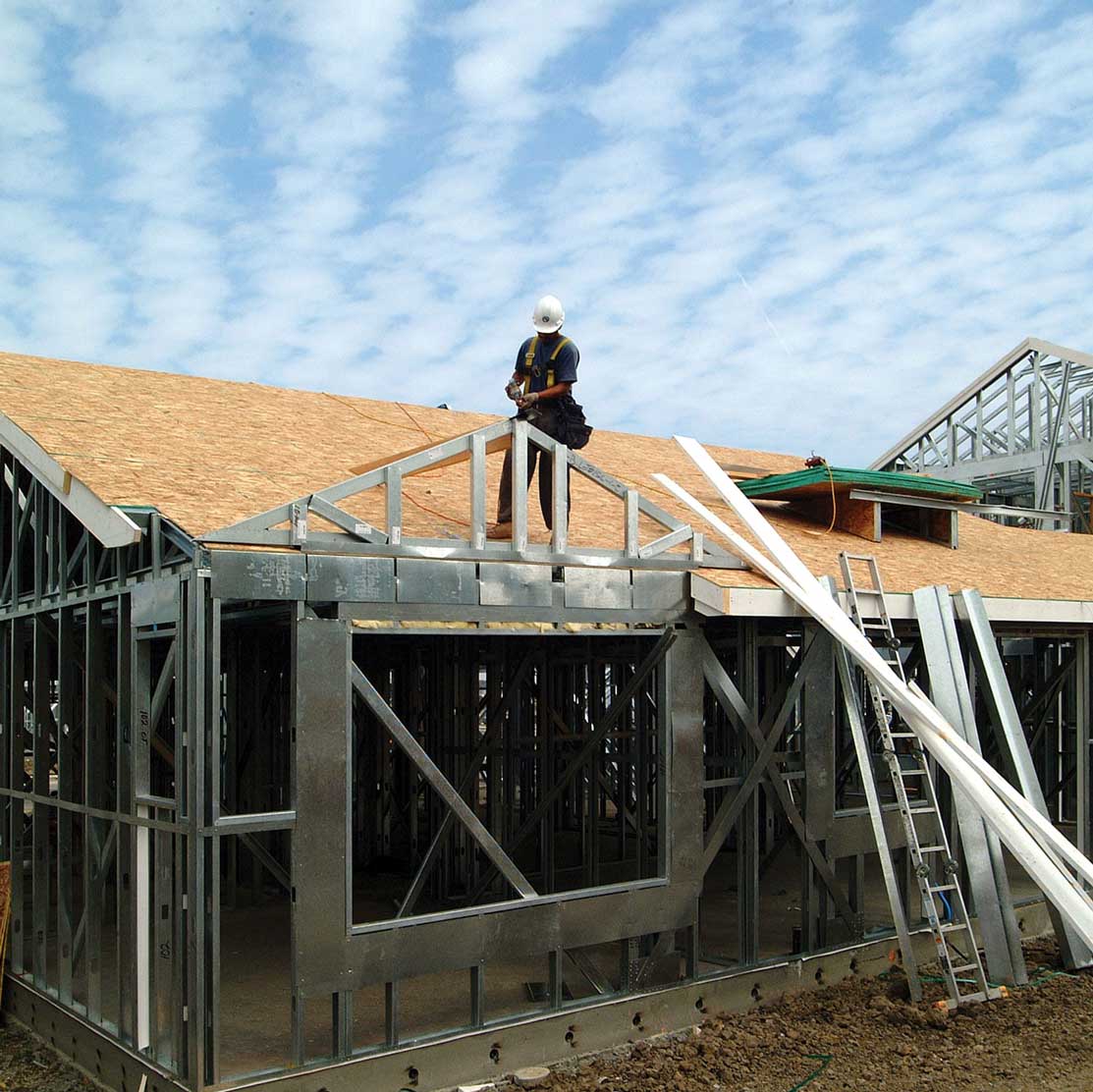

  • Construction site with a partially built house and a worker on the roof.
1 6

Continue Browsing

Bulk Loose Self-Drilling Screws
SKU: X34B1016-5K

Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screw - Clear Zinc Coating - Loose - Pkg 5,000

$142.69

Request Bulk Pricing
Request Bulk Pricing
Ships today when you order in the next 9 hours 9 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Diameters:

#10 #12

Lengths:

3/4" 1"

Quantities:

100 5,000 4,000 3,500

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Apple Pay
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

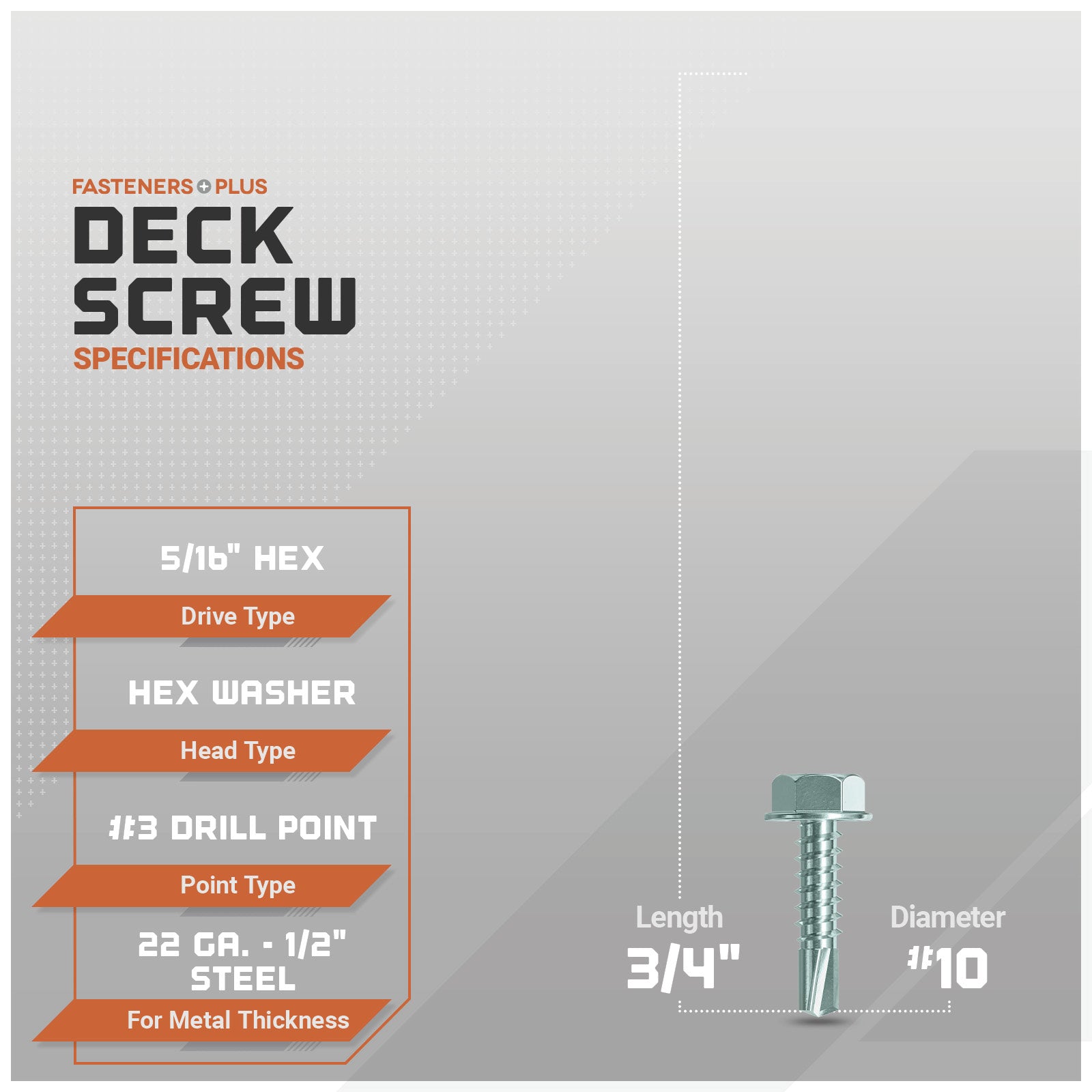

Specifications

Diameter: #10
Finish: Zinc
Length: 3/4"
Material: Carbon Steel
Drive type: 5/16" Hex
Head diameter: 0.420"
Head type: Hex Washer
Manufacturer name: Simpson Strong-Tie
Point type: #3 Drill Point
Quantity: 5,000
Thread type: Machine Threads
Threads per inch: 16
Description
Suitable for fastening steel decking, steel stitching in side-lap configuration, and cold-formed steel framing, Simpson X34B1016-5K #10 x 3/4" Strong-Drive Self-Drilling Screws offer a clear zinc coating and are packaged in 5,000-ct. bundles.


  • 5/16" hex head (replacement driver bit — BITHEXR516-R1)
  • Drill point
  • Hex-washer head
More
View full details
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Continue Browsing

Bulk Loose Self-Drilling Screws

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
  • metal screws installed into metal

    Self-Drilling Screws for Fastening Metal to Metal

    Built for speed and precision, these self-drilling screws are designed to fasten metal to metal without the need for pre-drilling. With fine threads, hardened tips, and corrosion-resistant finishes, they deliver strong, lasting holds in structural steel, light-gauge framing, and more, all while increasing your efficiency on the job.

  • metal hex head screw installed into metal

    Self-Drilling Screws with Seemingly Unlimited Options

    Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.

  • Close-up of a screw being driven into metal with a drill bit.

    The Right Point for Every Project

    Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
0%
(0)
0%
(0)
50%
(1)
J
J.
These screws can really skate! They walk off when drilling at even a slight angle

(This review is to apply the correct star rating intended for the previous review)

I'll preface this review with the information that I'm a fan of the other Strong-Tie products we've purchased for this owner-build house project. We are currently building a steel frame residence (cold formed steel with metal studs ranging from 20 to 16 gauge).

Because of the open C channel design of the metal studs it is not possible, in most cases, to hold the screw at a perfect 90 degree angle. These self-drilling screws have a propensity to skate when held at even a small angle of attack - as little as 75 degrees.

Prior to ordering these Simpson Strong-Tie screws, we were using identical size Grabber self-drilling #10 x 3/4" screws that performed much better when coming into the work surface at an angle.

Had I known these Strong-Tie screws have this tendency to wander off from the intended target point, I would have stayed with the Grabber product. I now regret this purchase.

Thank you for taking the time to provide us feedback and we are sorry to hear you are not satisfied with this product. Quality of our products is very important to us and customer reviews help us to improve our processes. If you wish to discuss this further or have any questions, please email customerservice@fastnersplus.com and we would be happy to look into this for you.

J
James
These screws can really skate!

I'll preface this review with the information that I'm a fan of the other Strong-Tie products we've purchased for this owner-build house project. We are currently building a steel frame residence (cold formed steel with metal studs ranging from 20 to 16 gauge).

Because of the open C channel design of the metal studs it is not possible, in most cases, to hold the screw at a perfect 90 degree angle. These self-drilling screws have a propensity to skate when held at even a small angle of attack - as little as 75 degrees.

Prior to ordering these Simpson Strong-Tie screws, we were using identical size Grabber self-drilling #10 x 3/4" screws that performed much better when coming into the work surface at an angle.

Had I known these Strong-Tie screws have this tendency to wander off from the intended target point, I would have stayed with the Grabber product. I now regret this purchase.
