SKU: FS-5525-E/G

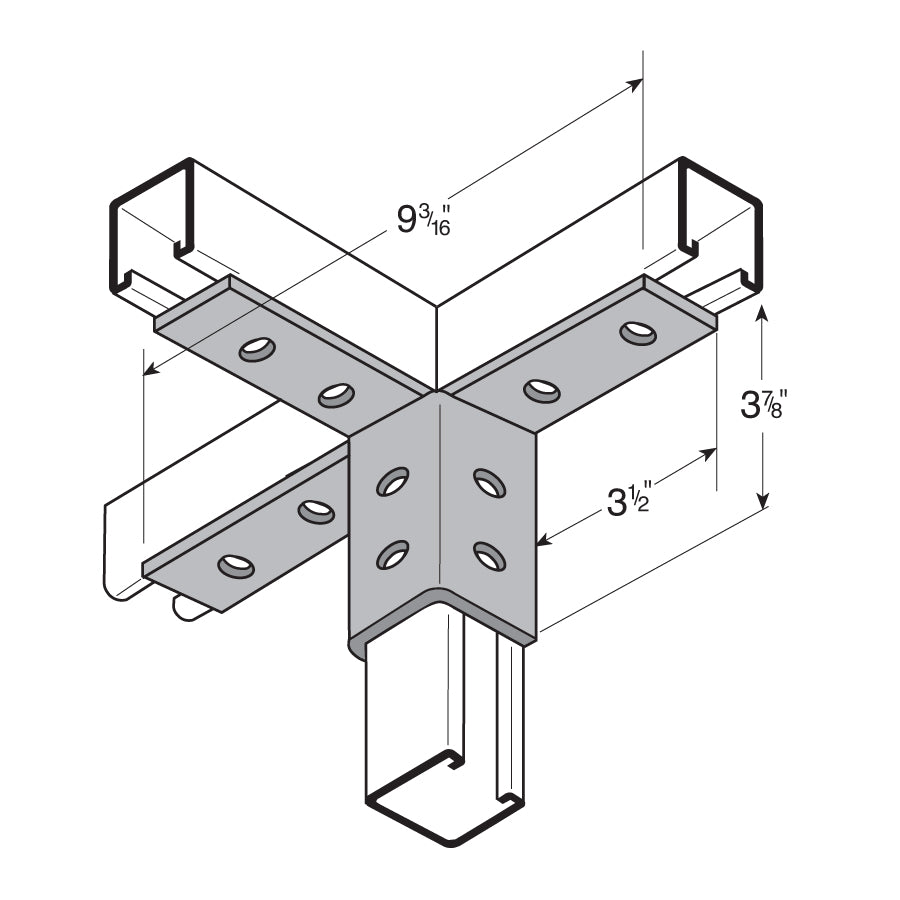

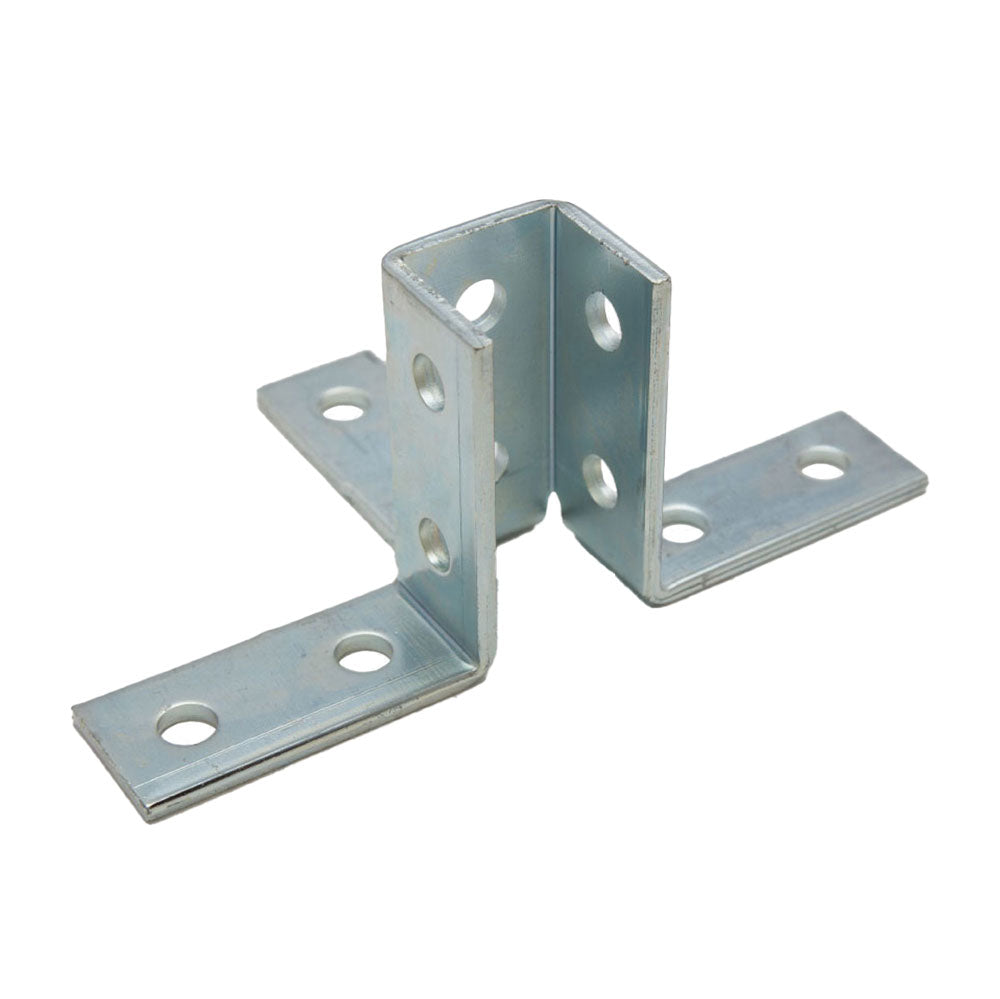

12-Hole 3-Way Channel Wing Connector - Electro-Galvanized
12-Hole 3-Way Channel Wing Connector - Electro-Galvanized
Regular price
$22.61
Sale price
$22.61
Regular price
Unit price
per
0% off
min. order qty: 5
Description:
Description:
12-Hole 3-Way Channel Wing Connector - Electro-Galvanized allows channels to be connected perpendicularly and can be used to create joints along a vertical piece of strut. 12-Hole 3 Way Wing Fittings allow for 3 arms to be created from the corner wing fitting. These Corner Connectors have 9/16" punched holes and should be used with like metals. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 GR33
Finish Specification: ASTM B633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 GR33
Finish Specification: ASTM B633 (Type III SC1 (0.2 mil thickness))
