Simpson Strong-Tie #12 x 1-1/4" Self-Drilling Strong-Drive XM Metal Screw, Medium Hex-Washer Head - Quik Guard Coating, Collated, Qty. 1,500
Specifications

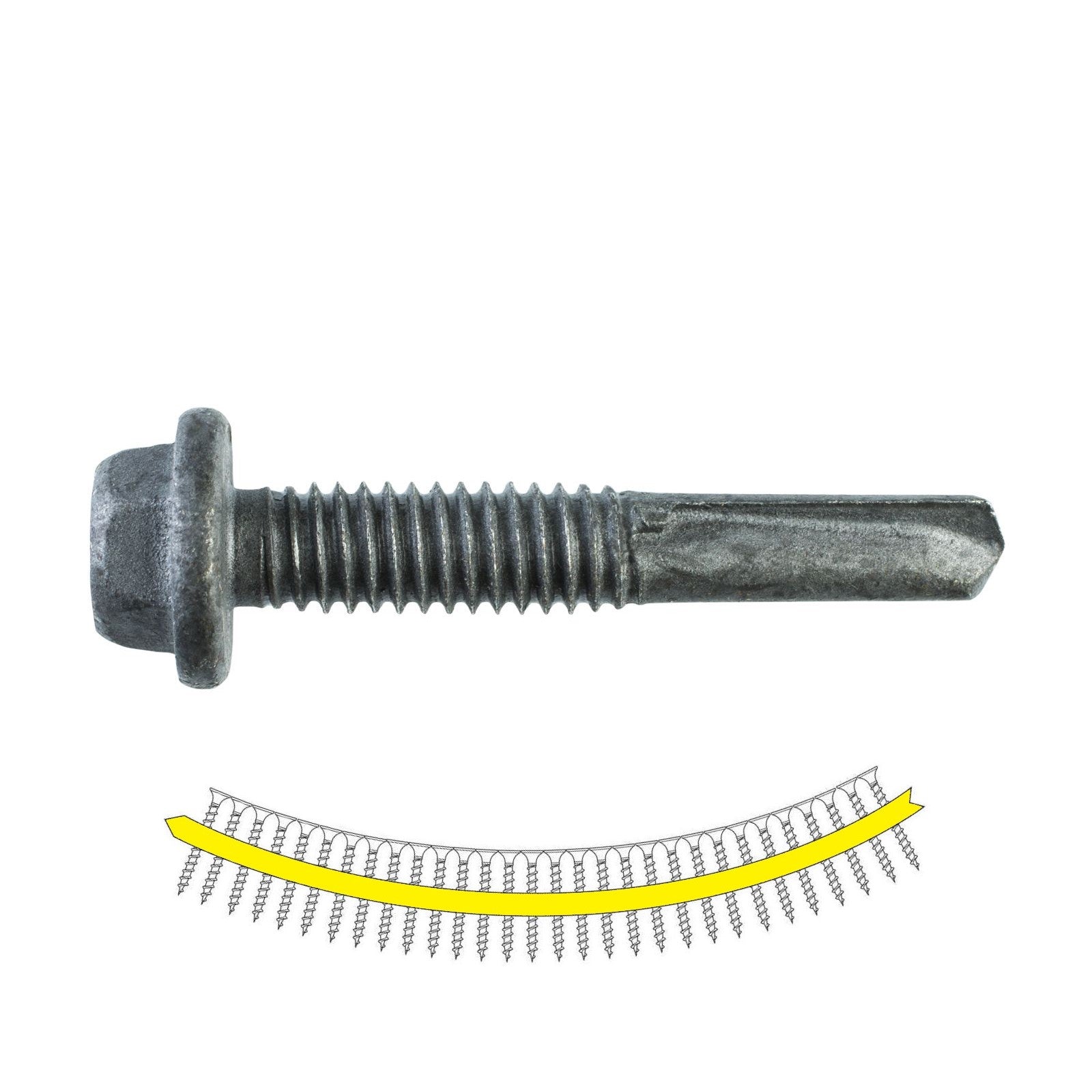

The Simpson Strong-Tie XMQ114S1224 Strong-Drive Collated XM Medium-Head Metal Screw is engineered for fast, efficient installation in steel-to-steel applications. Designed to be used with collated screw tools, this structural fastener is ideal for high-volume jobs like cold-formed steel framing, steel decking, and other heavy-duty metal connections.
Its optimized drill point provides quick starts and consistent driving performance without predrilling, while the medium-diameter pancake-style head offers a low-profile finish and wide bearing surface. Built to handle steel up to 12 gauge, the XM screw is a go-to solution for contractors looking to maximize speed and precision on the job site.
Key Features:

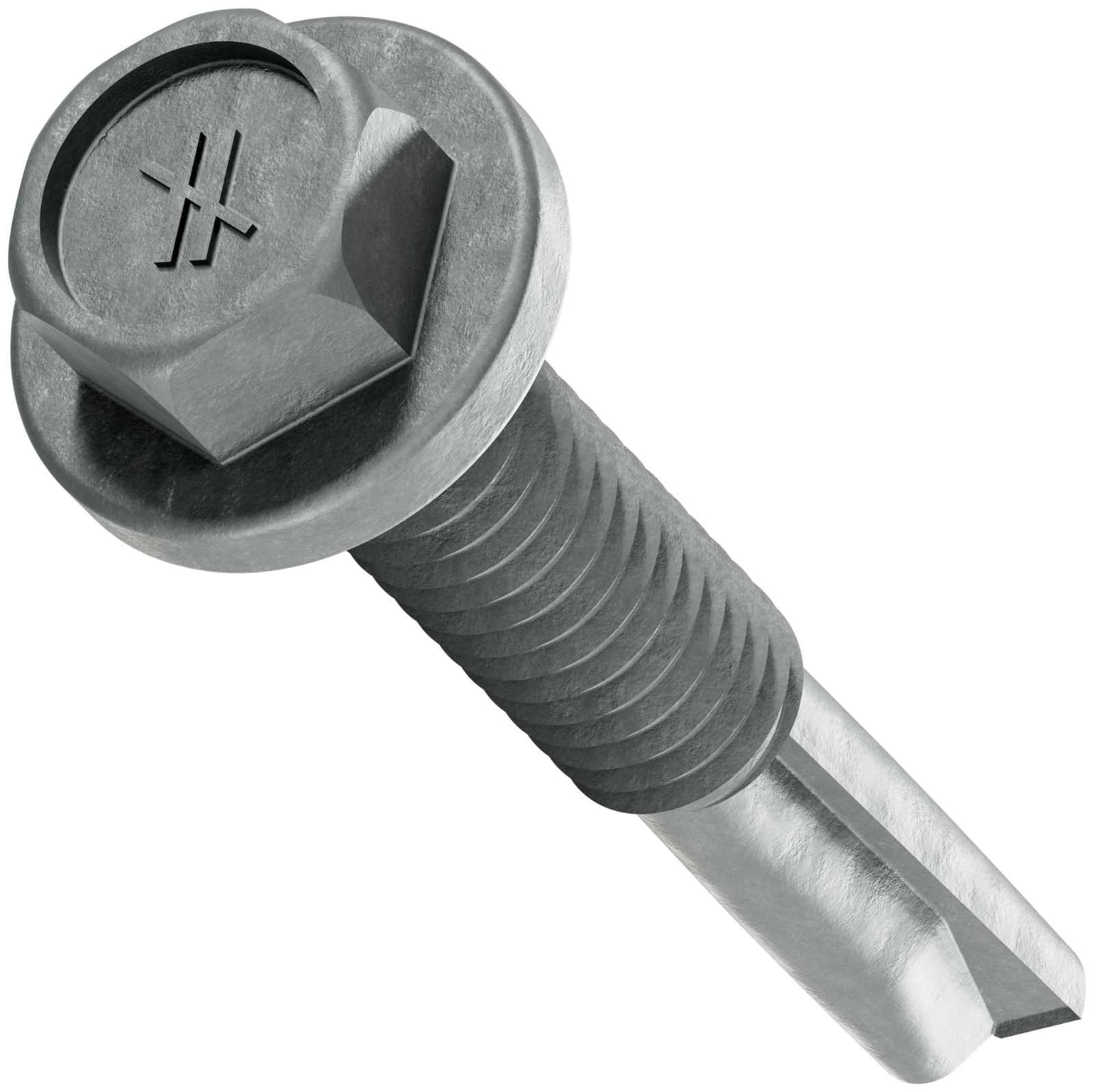

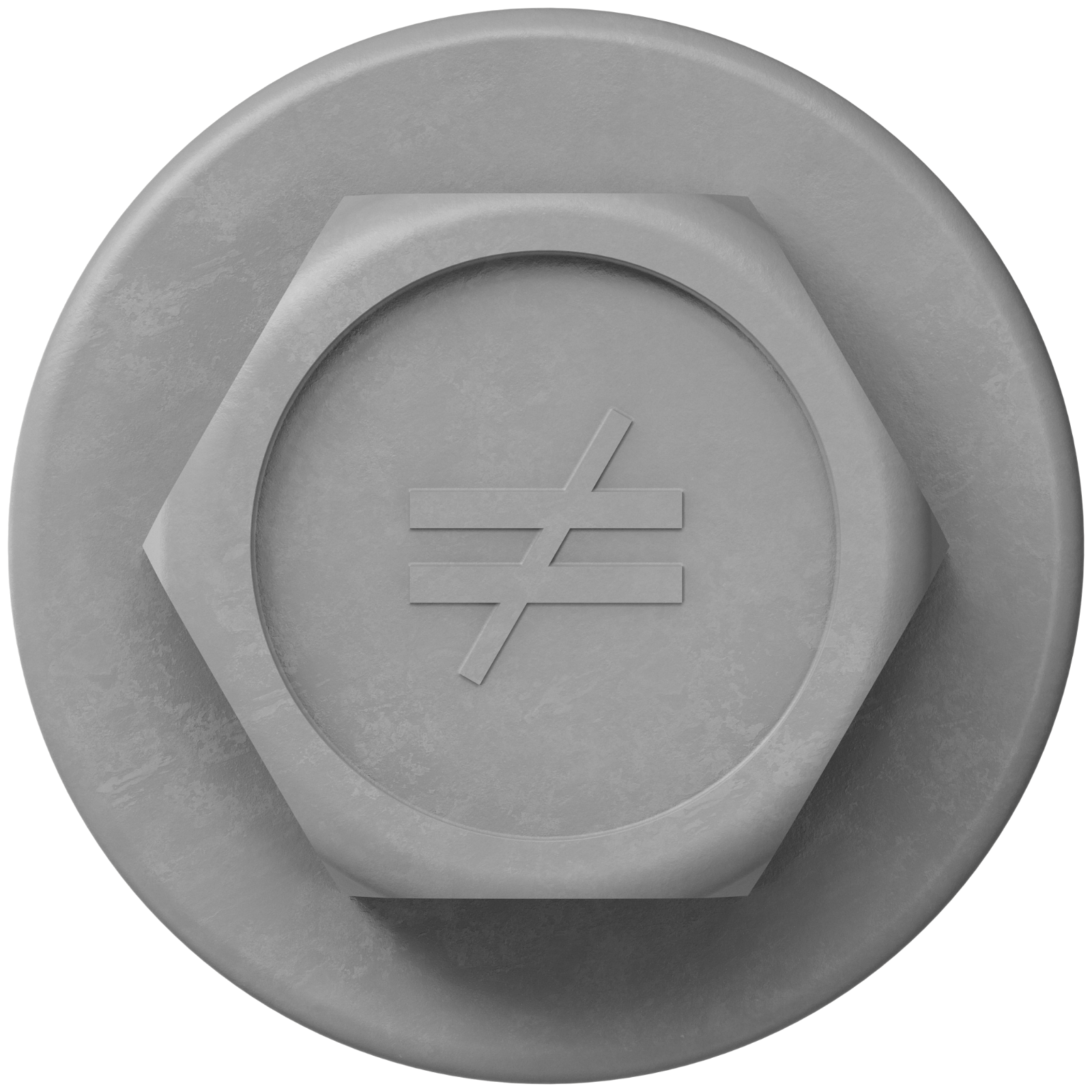

- Medium pancake-style head offers clean, low-profile finish

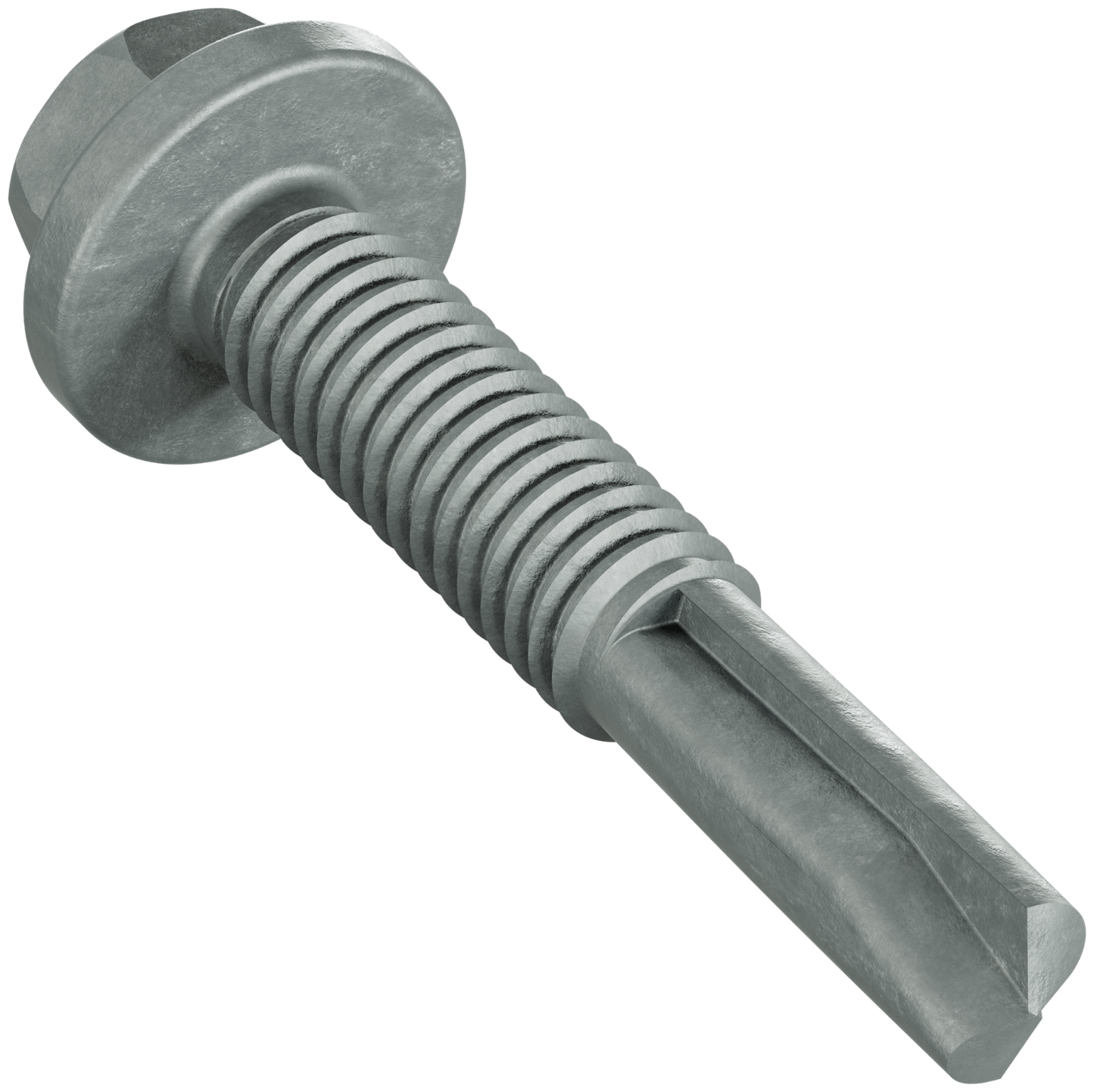

- Engineered drill point provides fast starts with no predrilling required

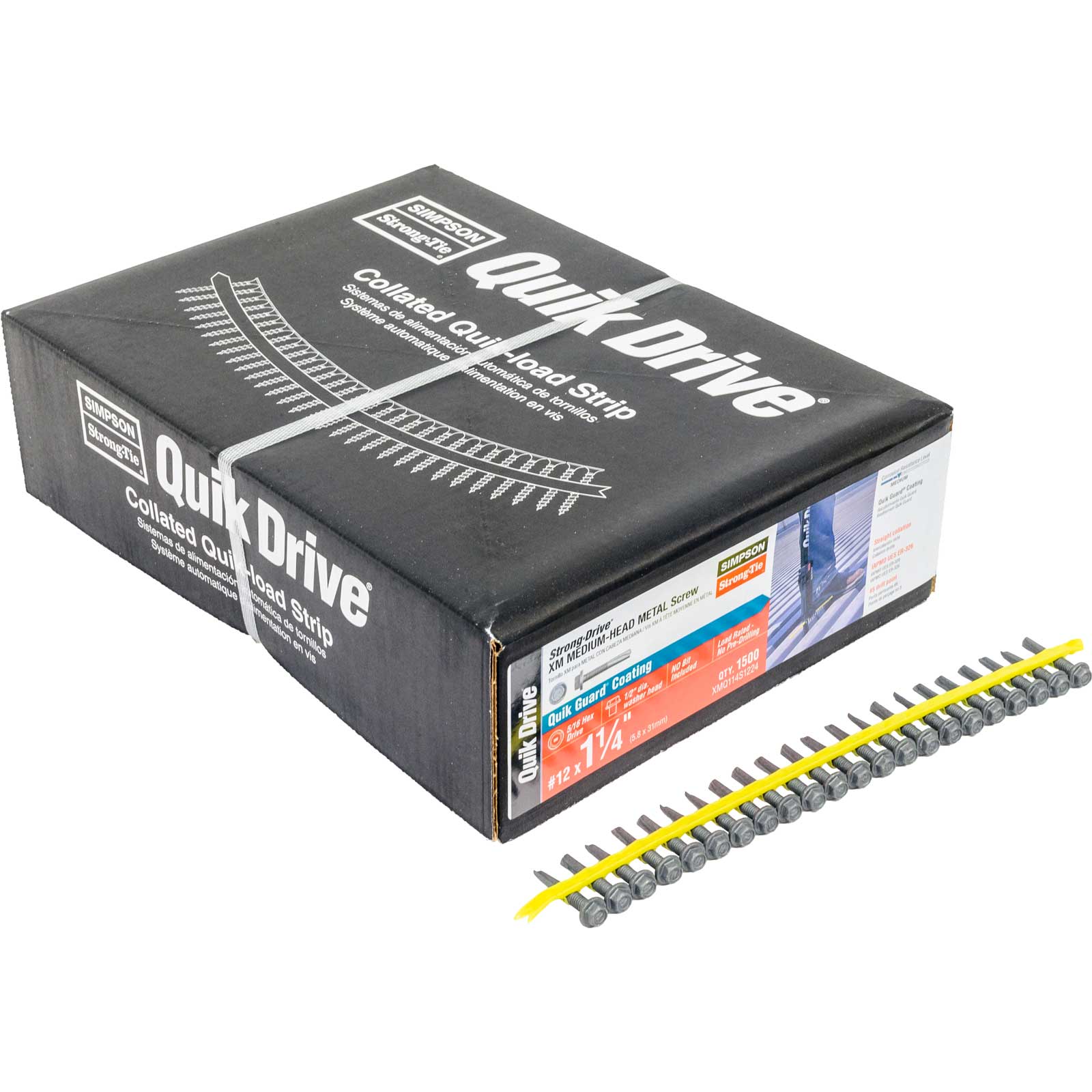

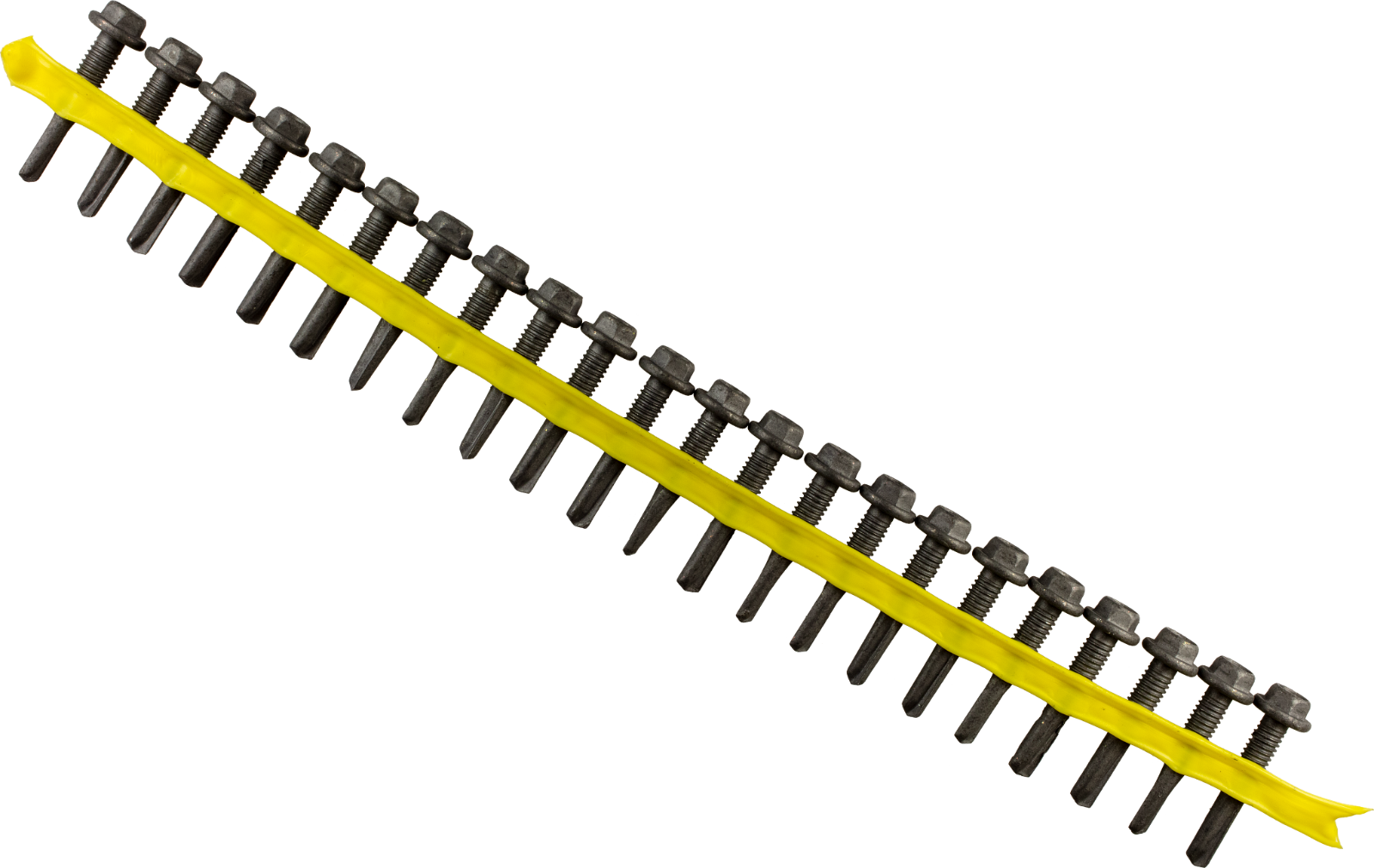

- Collated for use with auto-feed screw systems

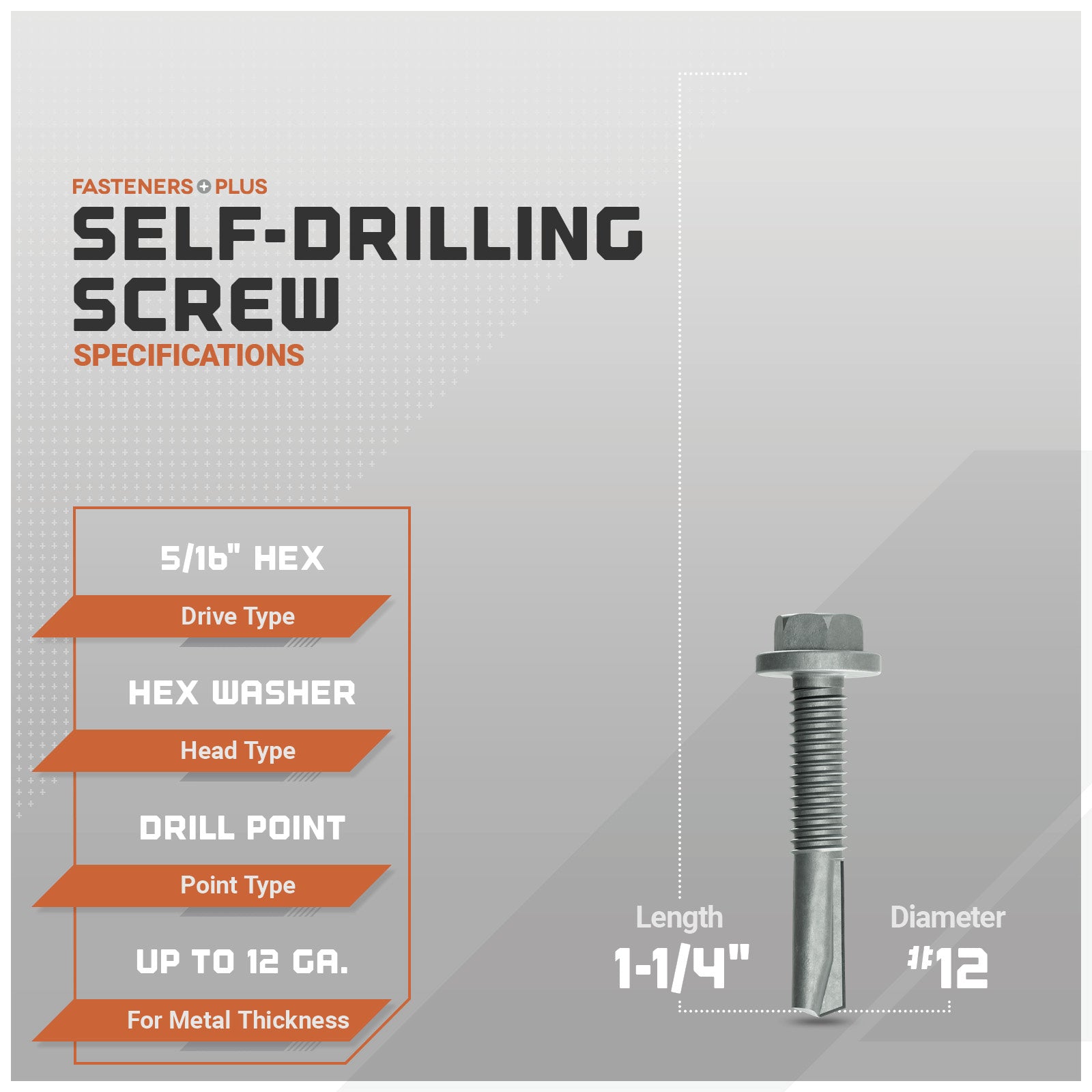

- Designed for steel-to-steel fastening up to 12 gauge
- Compatible with Quik Drive PROPP150G2 tool for consistent drive depth
Applications:
- Steel decking to structural steel
- Cold-formed steel framing
- Metal stud connections
- Mechanical attachment of prepunched metal track
- Mid- to high-volume commercial construction
Installation Notes:
- Use with compatible Quik Drive auto-feed systems for best performance
- No predrilling needed for standard applications
- Drive screws until the head is flush with the surface
- Avoid overtightening to maintain thread engagement
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #12 x 1-1/4" Self-Drilling Strong-Drive XM Metal Screw, Medium Hex-Washer Head - Quik Guard Coating, Collated, Qty. 1,500
My Cart:
Continue Browsing
Collated Self-Drilling Screws
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #12 x 1-1/4" Self-Drilling Strong-Drive XM Metal Screw, Medium Hex-Washer Head - Quik Guard Coating, Collated, Qty. 1,500
My Cart:
-
Self-Drilling Screws for Efficient Fastening
By combining drilling, tapping and fastening into a single step, self-drilling screws eliminate the need for pre-drilling and increase efficiency on the job. Ideal for a wide range of applications, from attaching metal roofing and siding to fastening materials to metal substrates.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
