SKU: SCKB-18-PG

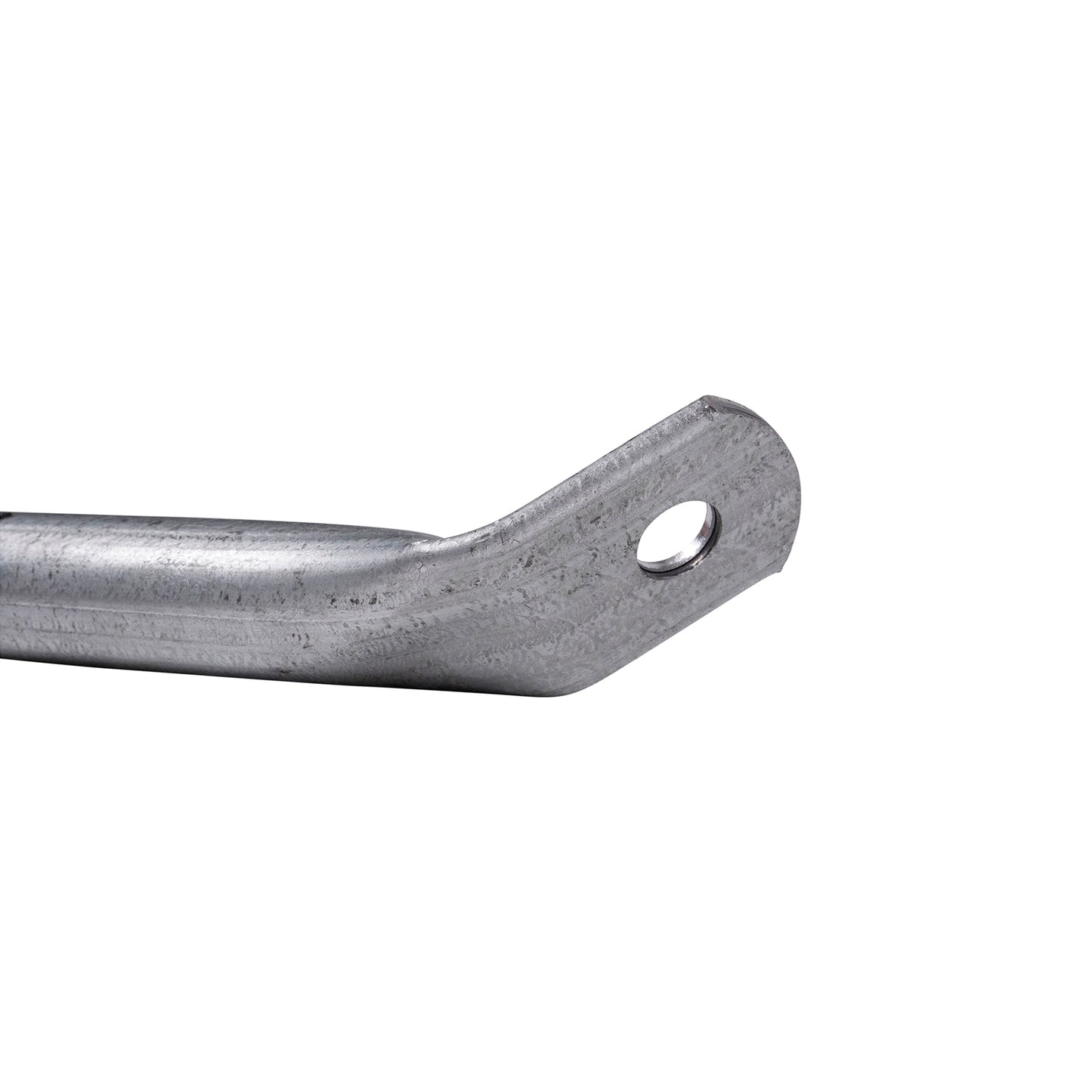

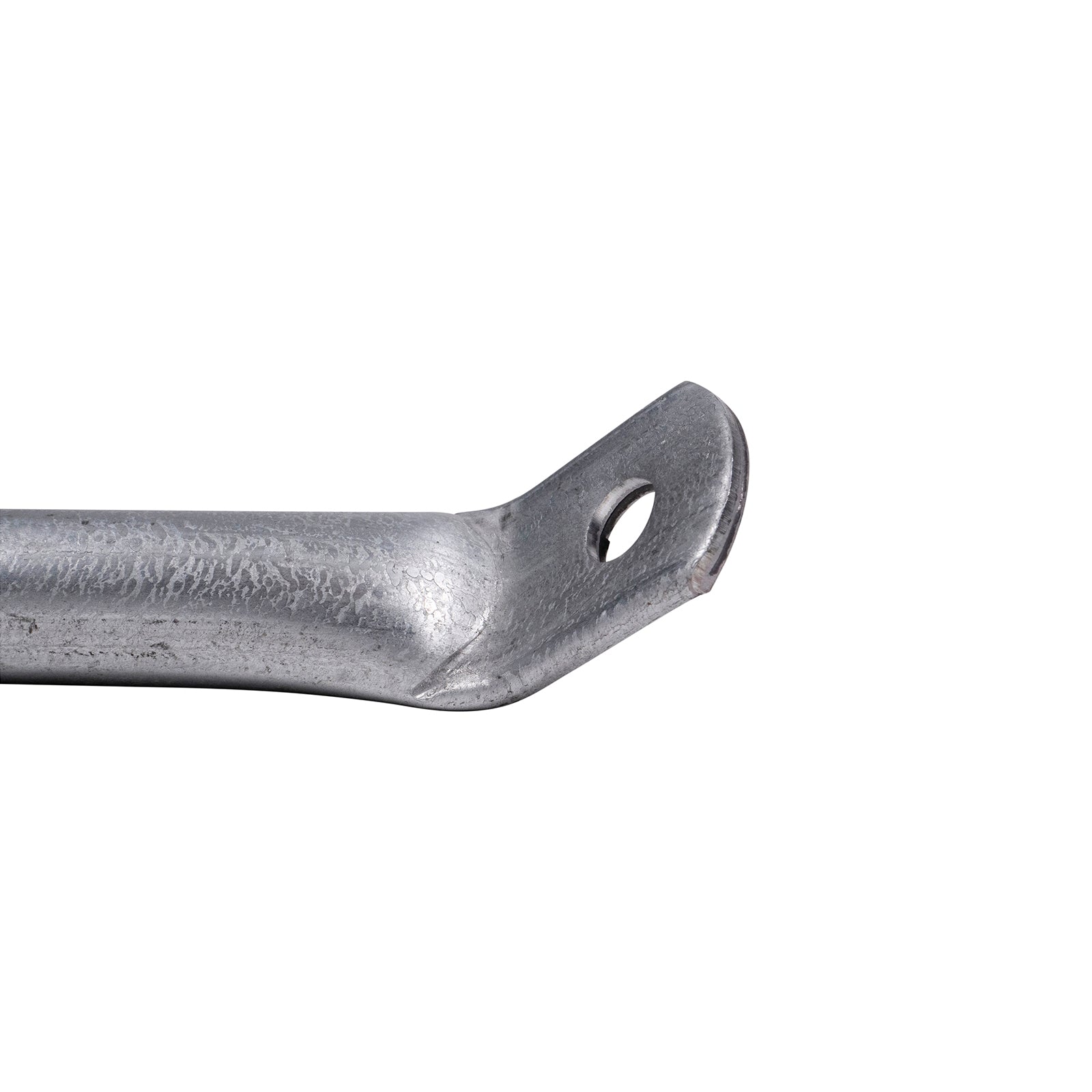

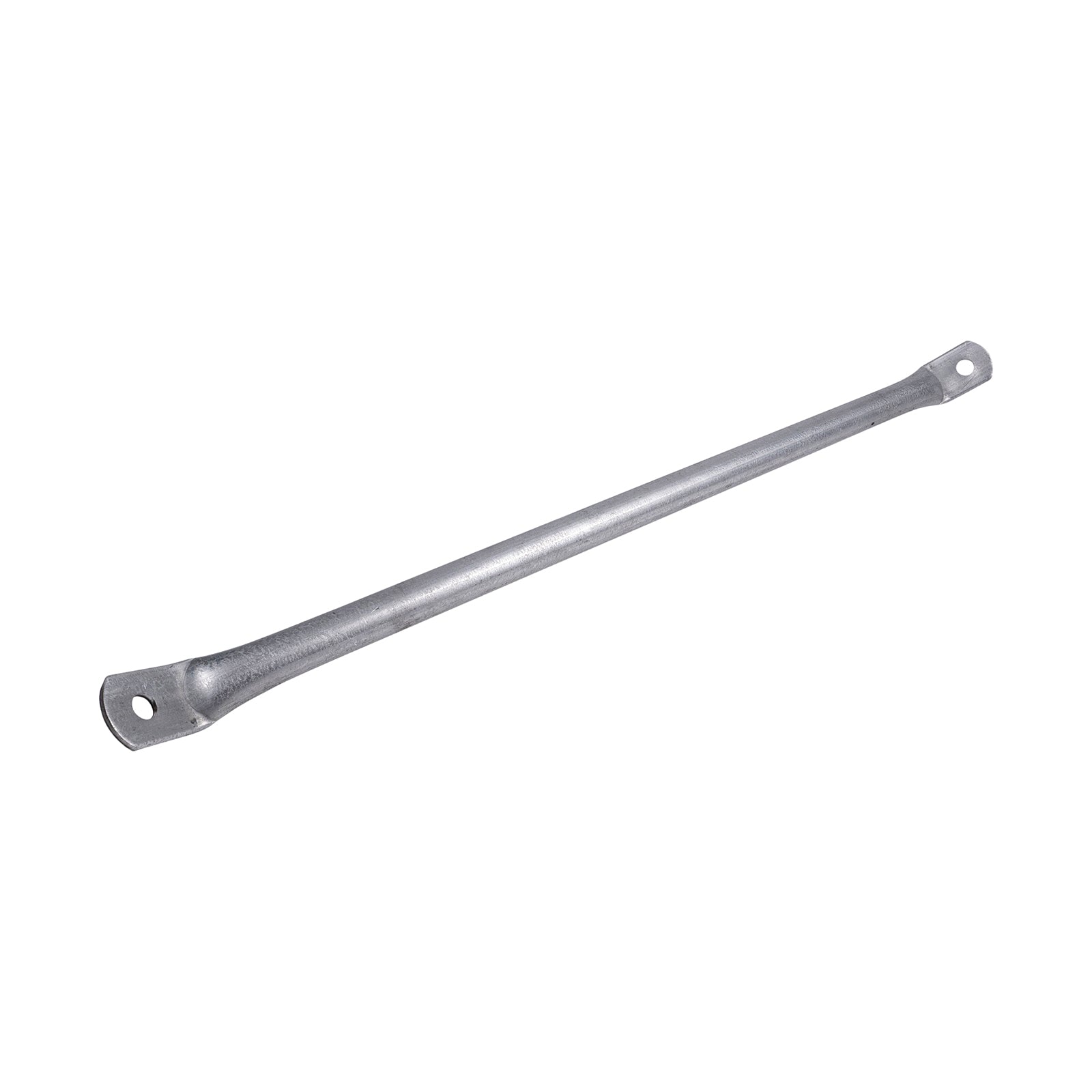

18" 45 Degree Tube Knee Brace - Pre-Galvanized

Made in USA

Lengths

18" 24" 30" 36"
$2799

Minimum order quantity: 4
Ships in 7-14 business days.

Description

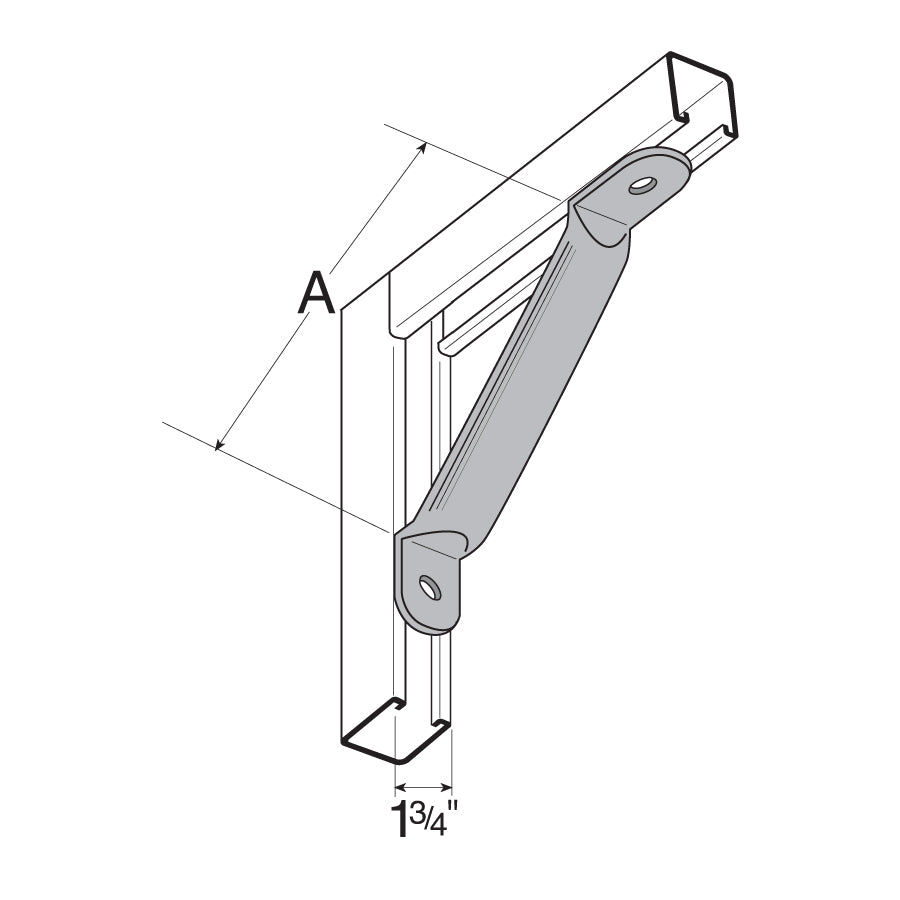

18" 45 Degree Tube Knee Brace - Pre-Galvanized provides added strength and stability to strut channel framing systems. The two hole channel brace connects two channels together at the corners at the top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

Specifications
Width: 1-5/8"
Length: 18"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Pre-Galvanized
Type: Pre-Galvanized Carbon Steel
Standards: Finish = ASTM A1011 (Meets the physical requirements of Grade 33)
Manufacturer Name: Flex-Strut
