36" 45 Degree Tube Knee Brace - Pre-Galvanized
36" 45 Degree Tube Knee Brace - Pre-Galvanized
Regular price
$36.99
Sale price
$36.99
Regular price
Unit price
per
0% off
min. order qty: 3
Description:
Description:

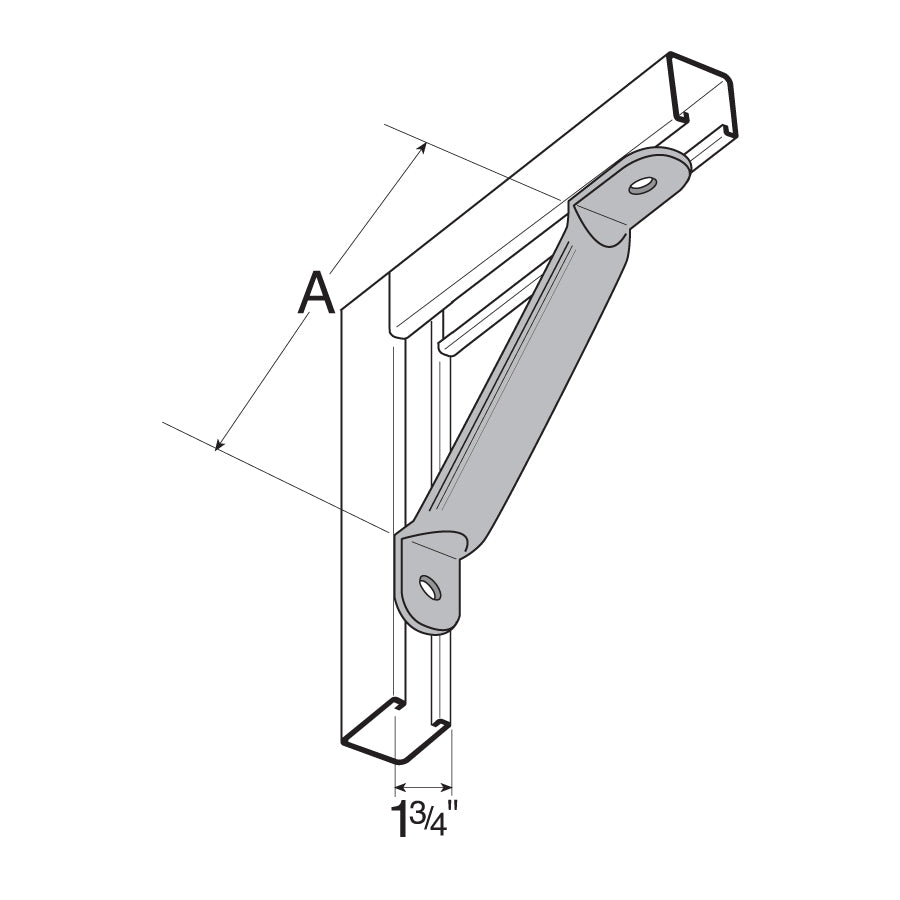

36" 45 Degree Tube Knee Brace - Pre-Galvanized provides added strength and stability to strut channel framing systems. The two hole channel brace connects two channels together at the corners at the top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Pre-Galvanized
Length: 36"
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Finish Specification: ASTM A1011 (Meets the physical requirements of Grade 33)
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Pre-Galvanized
Length: 36"
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Finish Specification: ASTM A1011 (Meets the physical requirements of Grade 33)
