SKU: FS-5638-18-E/G

18" Channel Bracket - Electro-Galvanized

18" Channel Bracket - Electro-Galvanized!

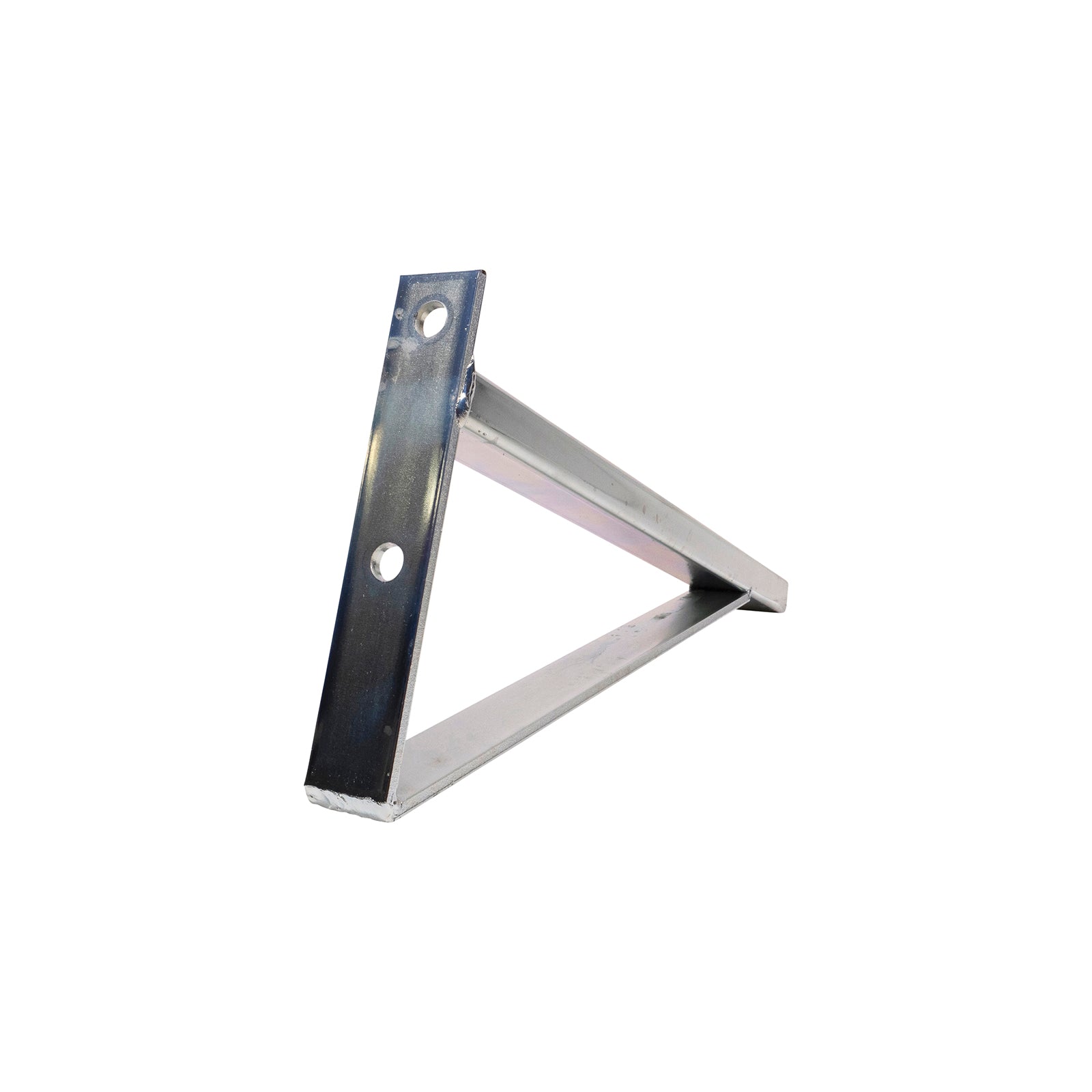

  • 18" Channel Bracket

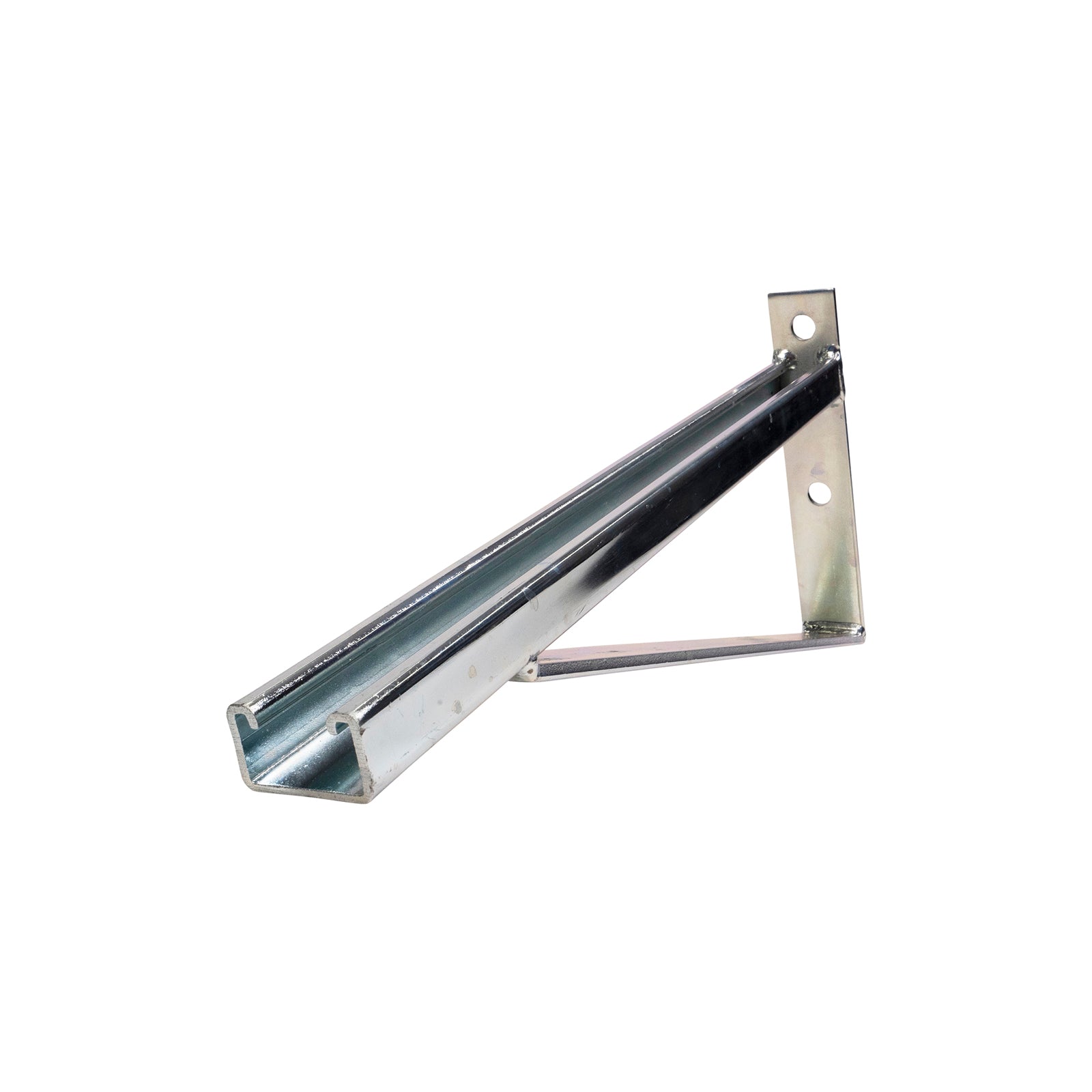

  • 18" Channel Bracket

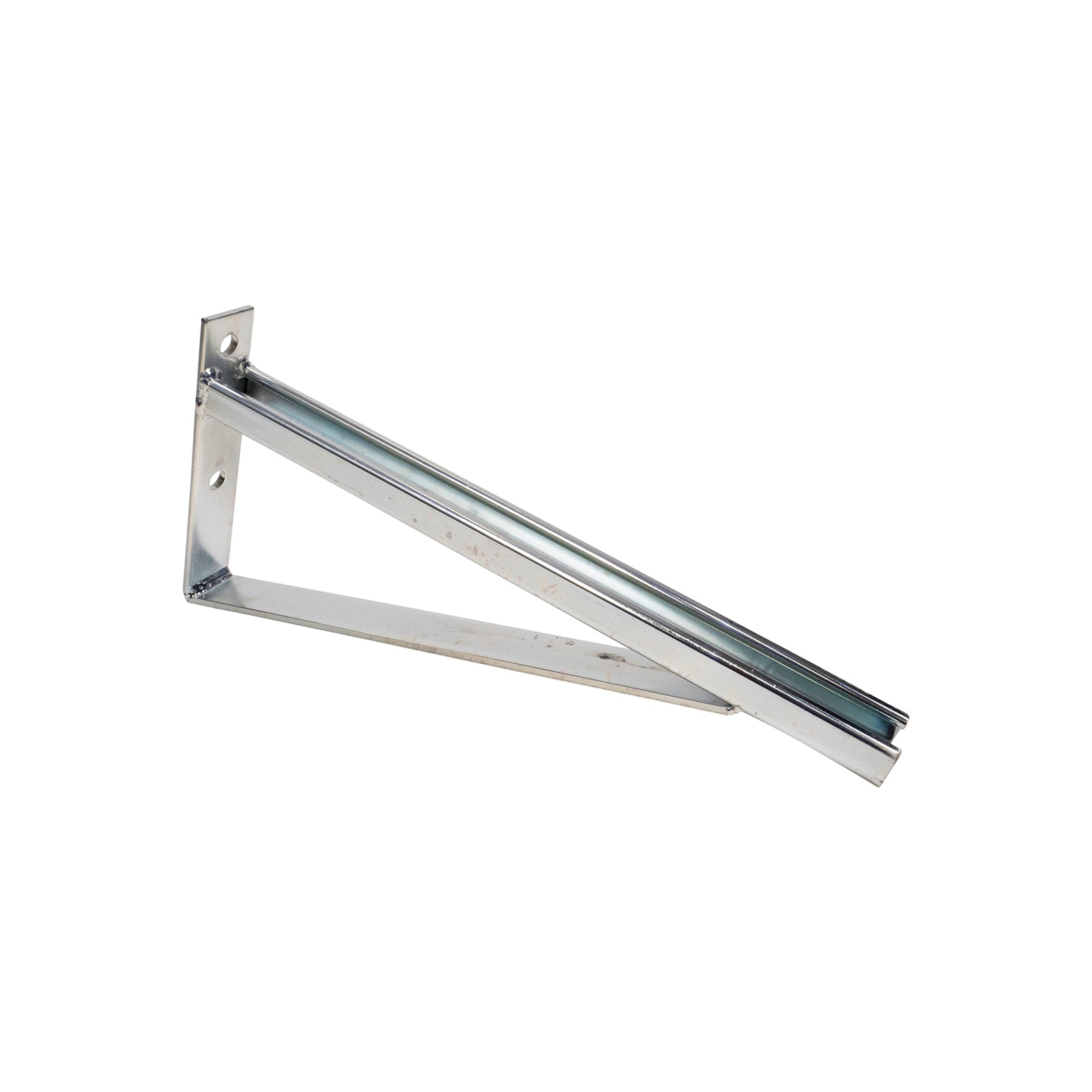

  • 18" Channel Bracket

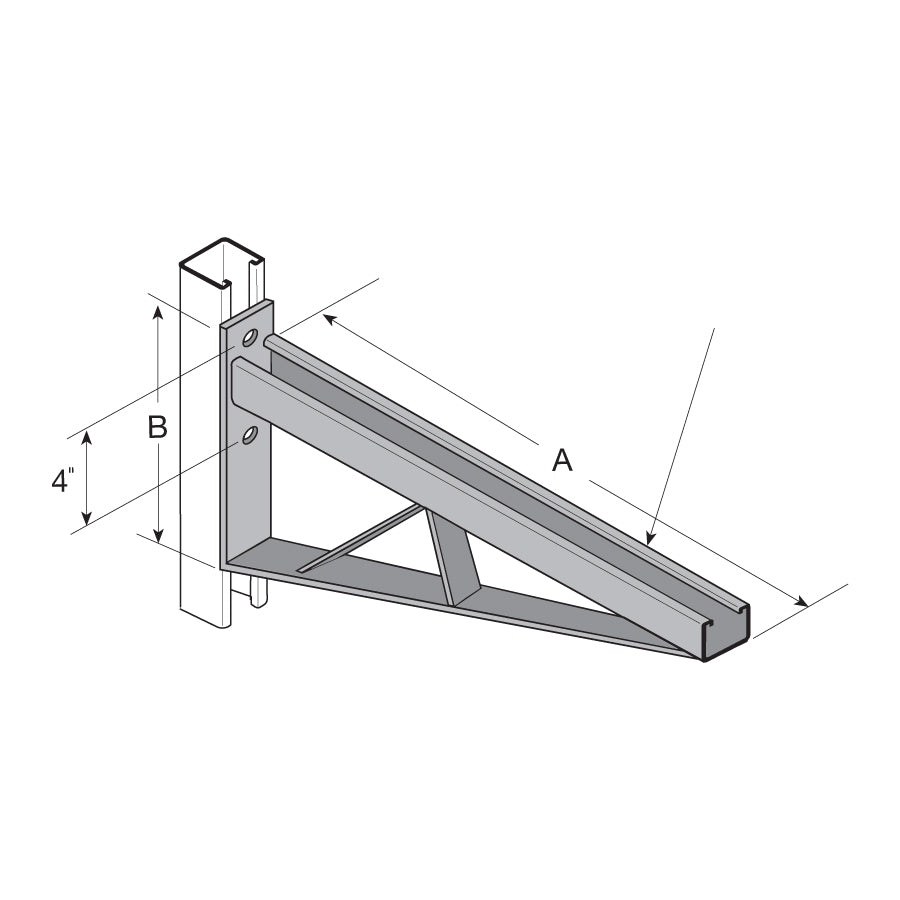

  • Flexstrut FS-5638 Channel Bracket Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Channel Brackets
SKU: FS-5638-18-E/G

18" Channel Bracket - Electro-Galvanized

$29.36

Request Bulk Pricing
Request Bulk Pricing
Ships Feb 9 when you order now
Fill out the form below or give our sales consultants a call at 888-794-1590.

Lengths:

12" 18" 24" 30" 36"

Specifications

Finish: Electro-Galvanized
Length: 18"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=1,000#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Type: Electro-Galvanized Carbon Steel
Width: 1-5/8"
Description

18" Channel Bracket - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. The additional bracing at the bottom of the bracket gives more support than traditional channel brackets. With the slots of the bracket facing up, it allows for connections to be made on top of the bracket. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

More
View full details
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Continue Browsing

Channel Brackets

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 7 reviews
100%
(7)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Right bracket for the right job

Terrific product, well made, good solid welds, and strong load characteristics. Fast shipping, professional service. and highly recommended.

T
T.D.

Super sturdy and great construction.

J
James

They worked very good for my installation

B
Bryce nuel

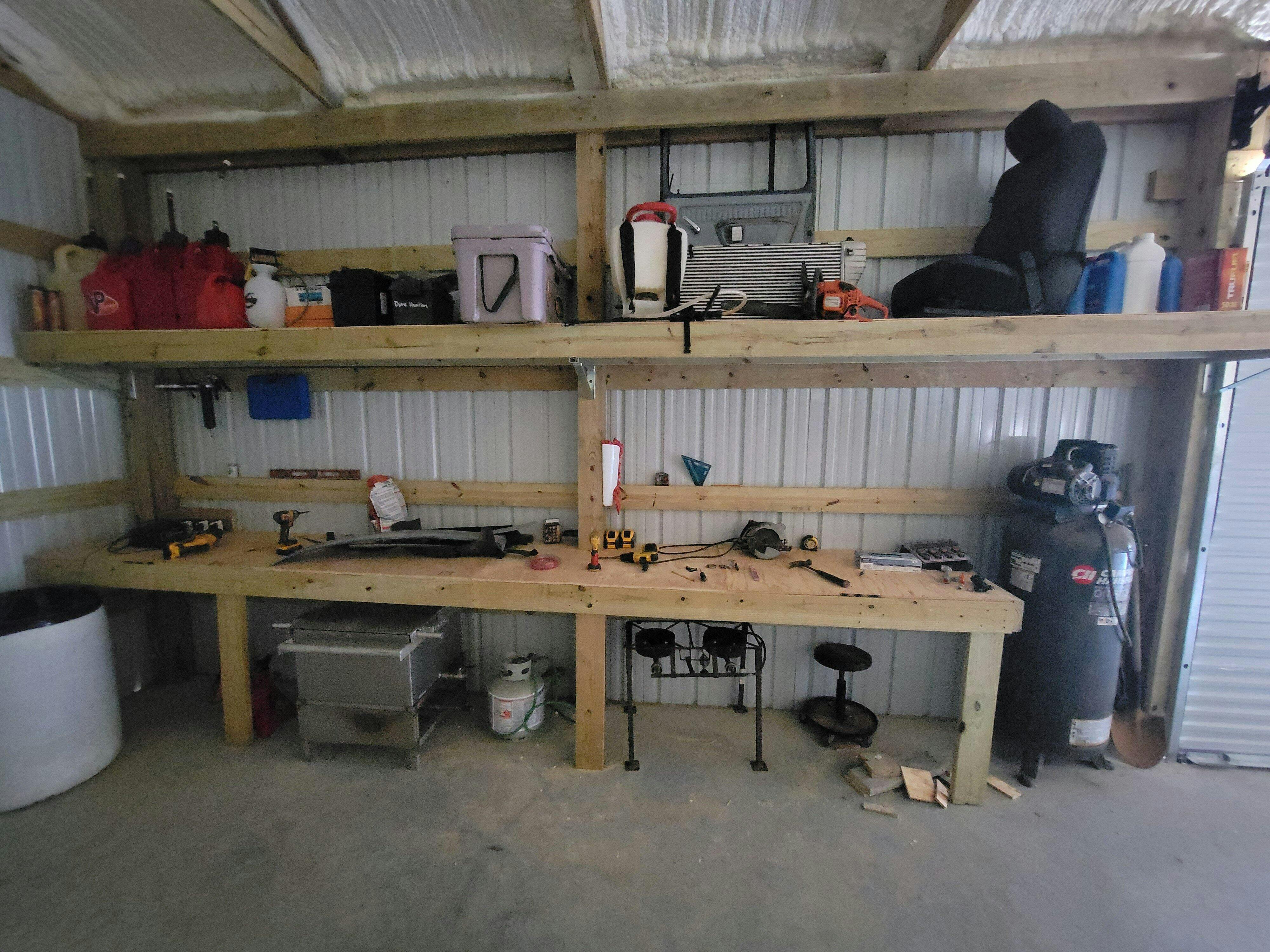

Shelf
