SKU: FS-5638-36-E/G

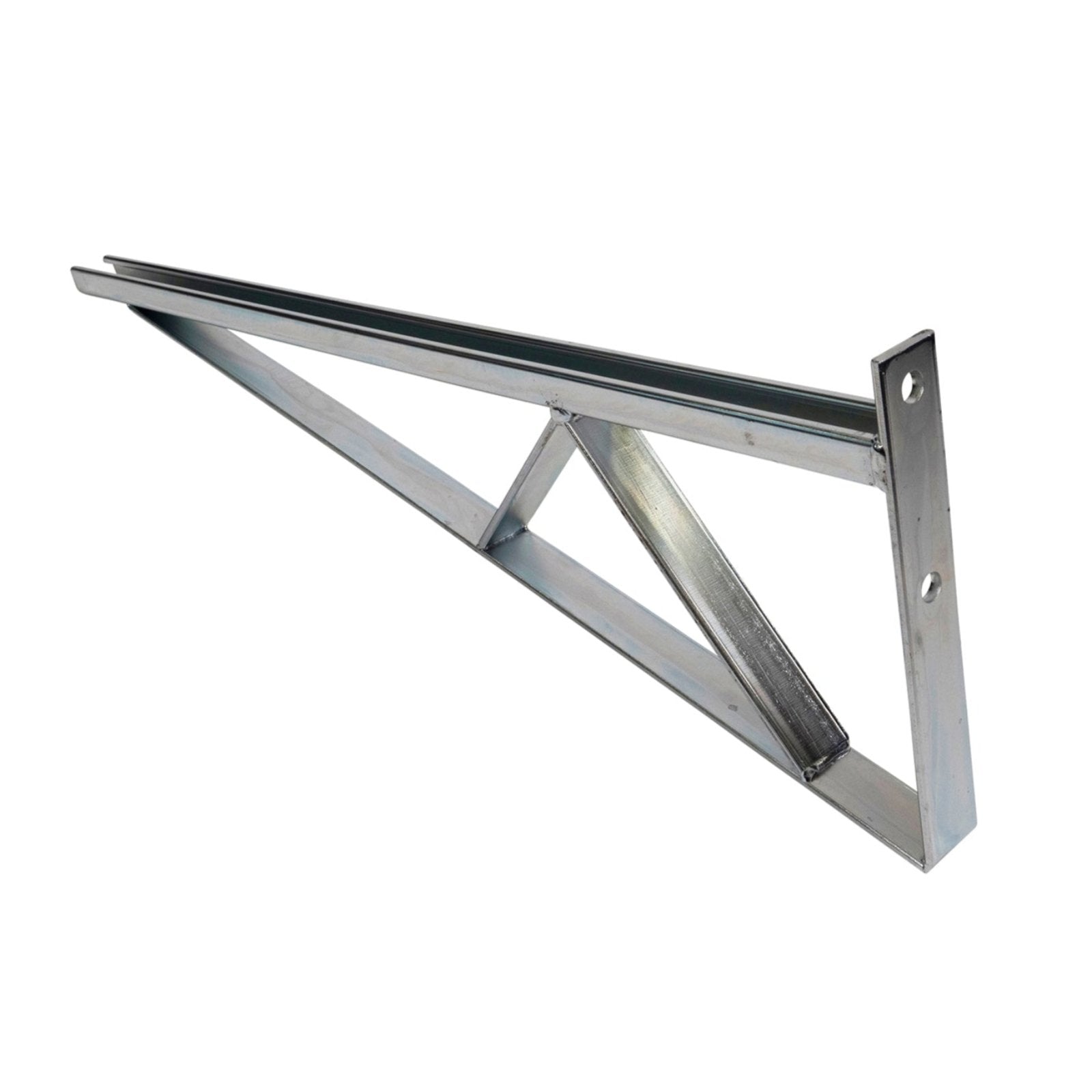

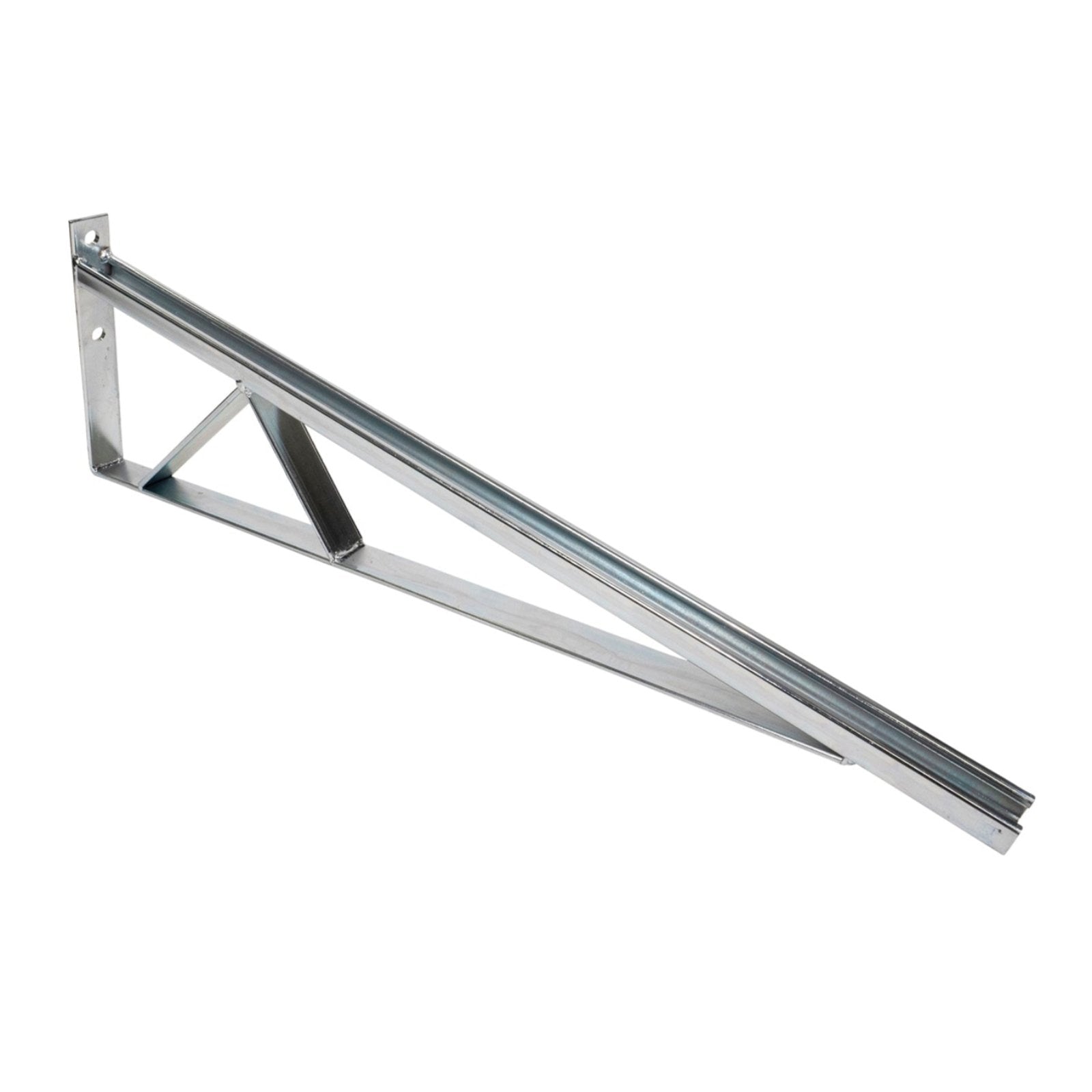

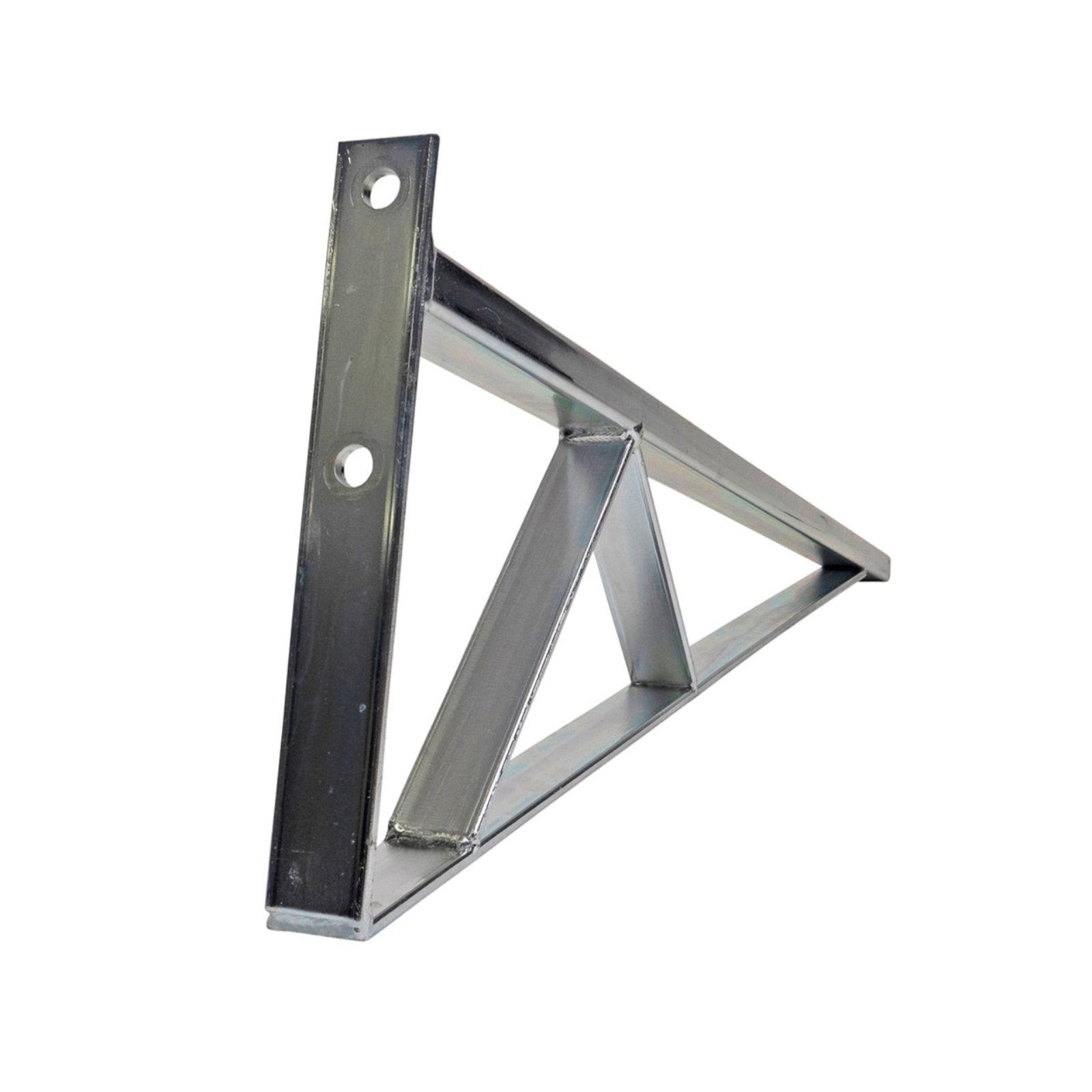

36" Channel Bracket - Electro-Galvanized

36" Channel Bracket - Electro-Galvanized!

Skip to product information
1 of 7

Continue Browsing

Channel Brackets

SKU: FS-5638-36-E/G
$62.34

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 4 and order in the next 2 hours 15 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Length: 36"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=500#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

36" Channel Bracket - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. The additional bracing at the bottom of the bracket gives more support than traditional channel brackets. With the slots of the bracket facing up, it allows for connections to be made on top of the bracket. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

View full details

Continue Browsing

Channel Brackets

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
