SKU: SCCB-24-EG
(5)

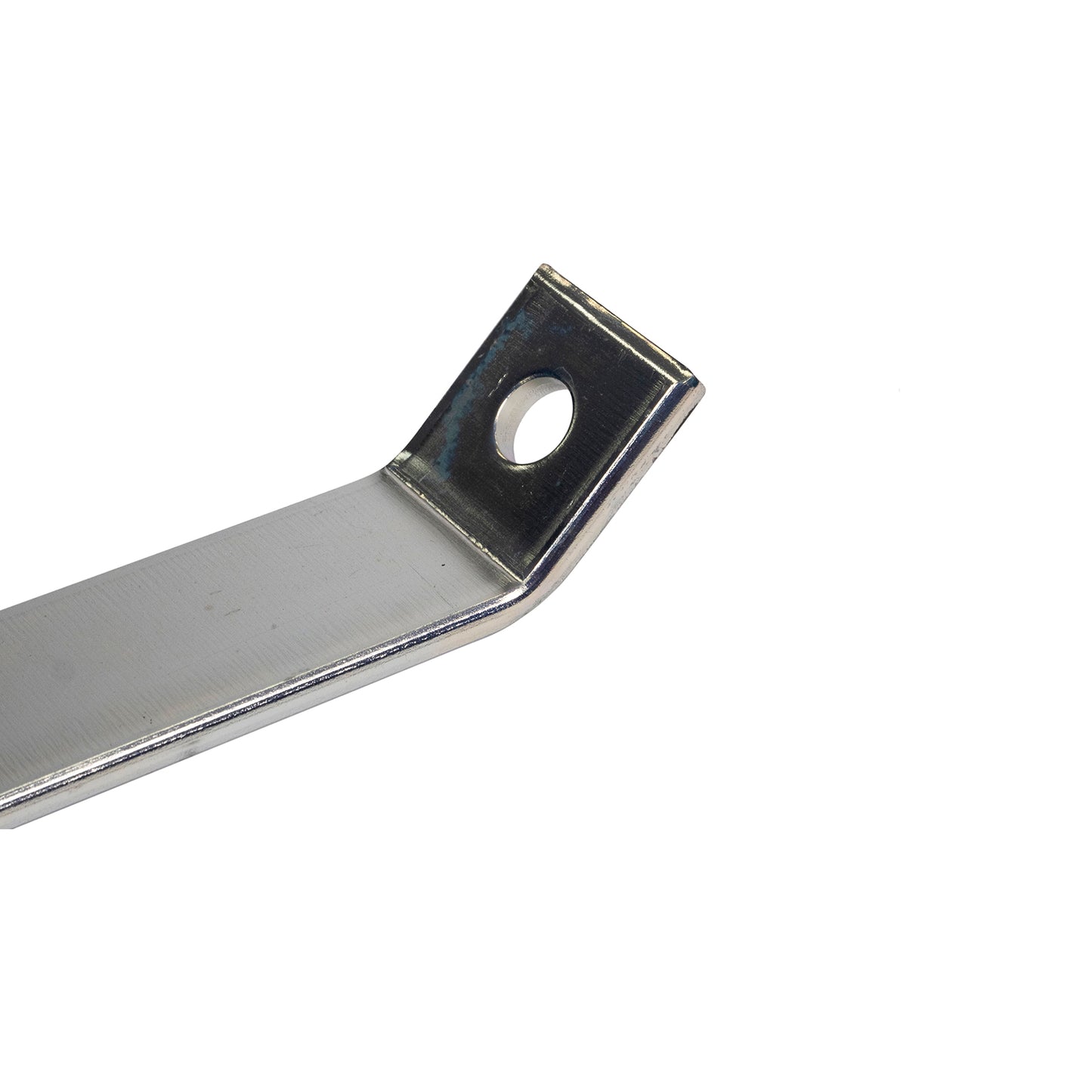

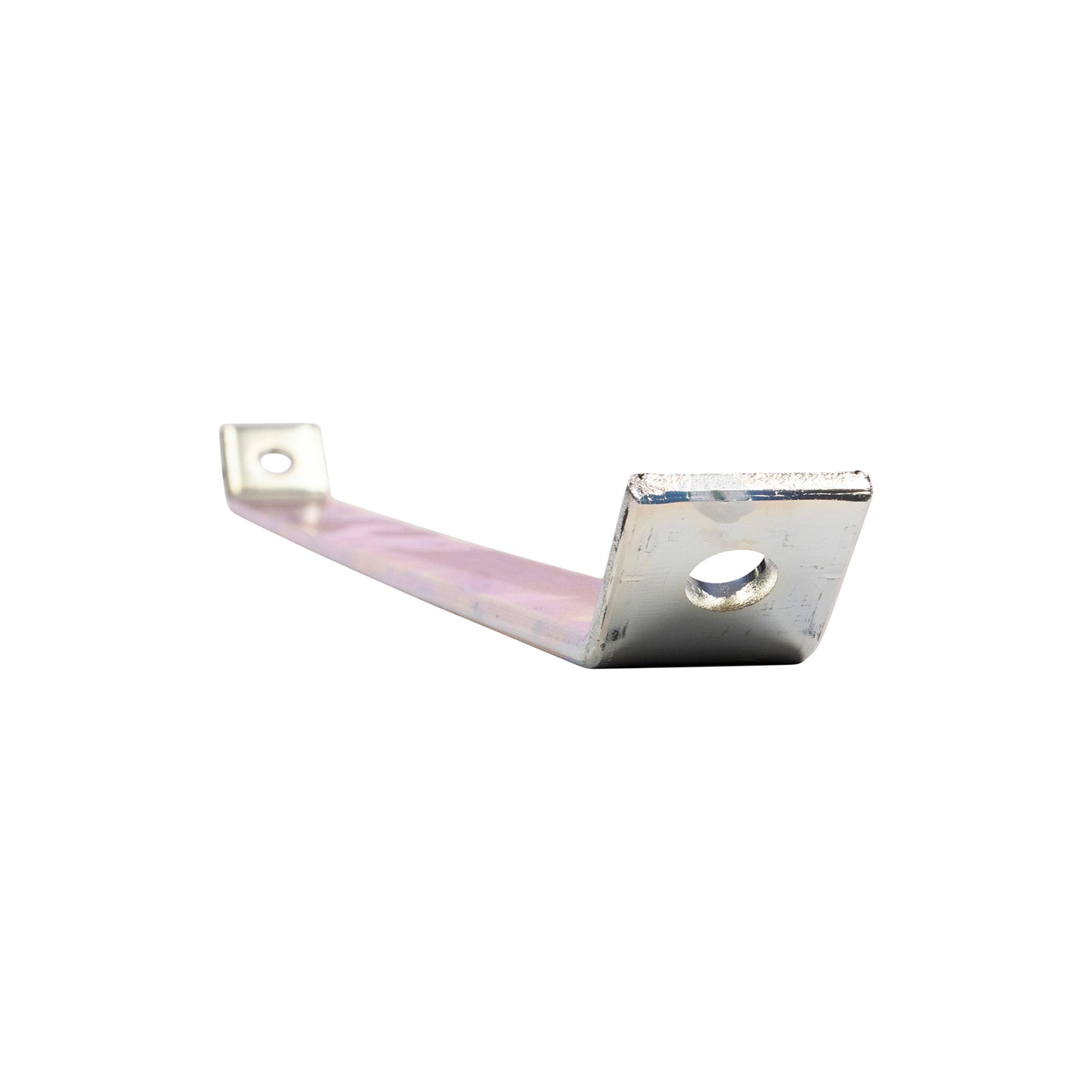

24" Corner Brace - Electro-Galvanized

Made in USA

Type

Electro-Galvanized Carbon Steel 304 Stainless Steel 316 Stainless Steel

Lengths

12" 16" 18" 24"
$1799
Ships Nov 16 when you order now

Description

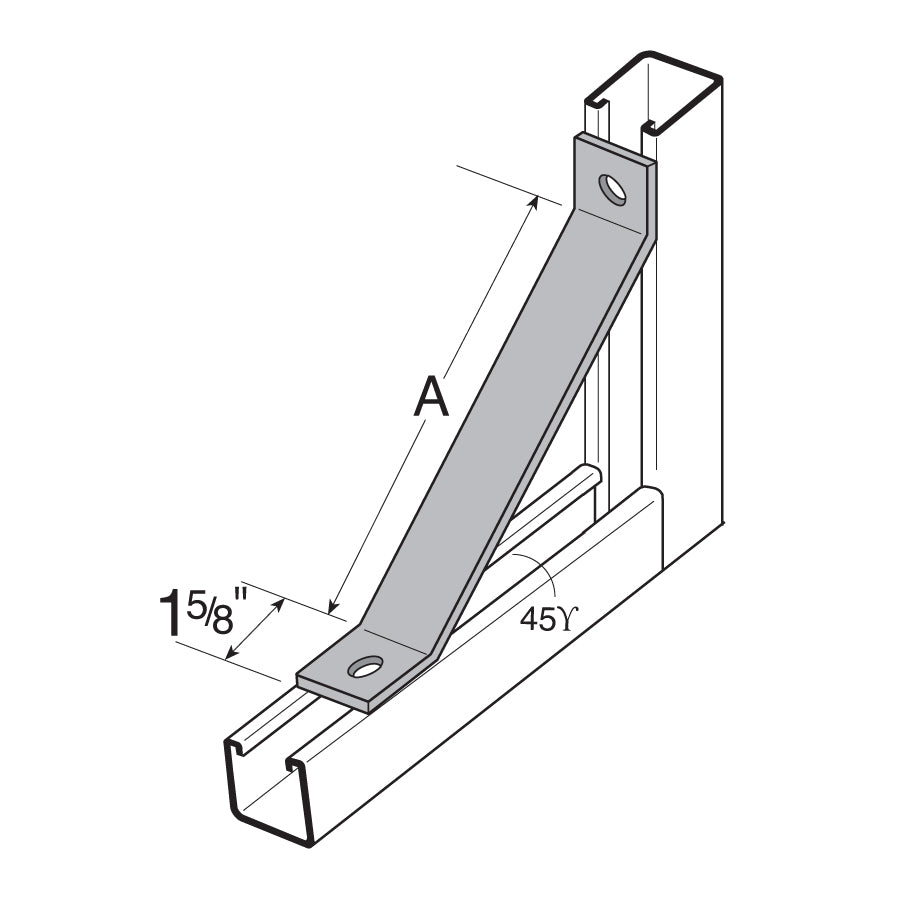

24" Corner Brace - Electro-Galvanized provides added strength and stability to strut channel framing systems. The two hole channel brace connects two channels together at the corners at the top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

Specifications
Width: 1-5/8"
Length: 24"
Hole Diameter: 9/16"
Thickness: 1/4"
Hole Spacing End Distance: 13/16"
Hole Spacing Center to Center: 1-7/8"
Material: Carbon Steel
Finish: Electro-Galvanized
Type: Electro-Galvanized Carbon Steel
Standards: Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33
Manufacturer Name: Flex-Strut
