SKU: FS-5343-E/G

3-Hole Splice Plate for FS-500 - Electro-Galvanized

3-Hole Splice Plate for FS-500 - Electro-Galvanized!

Skip to product information
1 of 2

Continue Browsing

Clevis Fittings

$7.99

min. order qty: 14
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

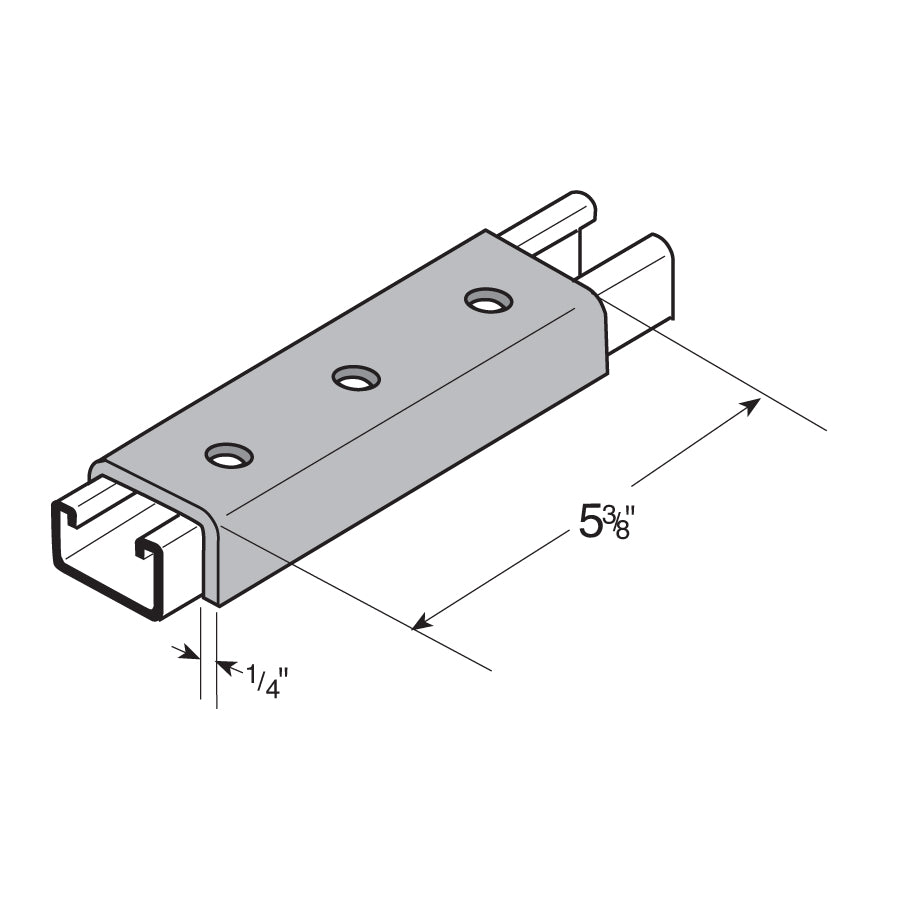

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 14 Gauge (0.078")
Width: 1-5/8'
Description

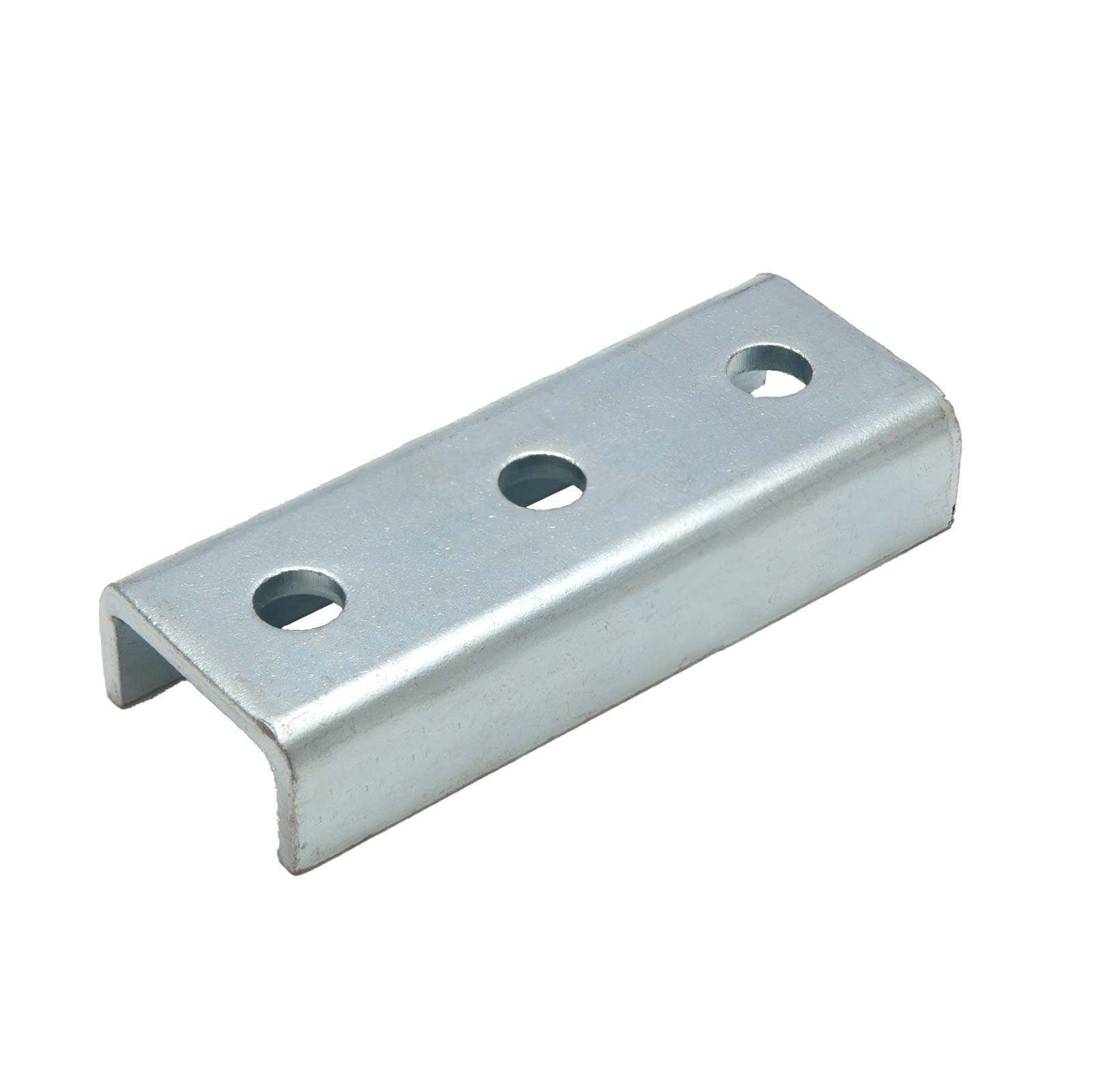

3-Hole Splice Plate for FS-500 - Electro-Galvanized allows for up to 3 connections to be made with the 9/16" punched holes. The FS-5343 is for FS-500 Channel and can be used with short spring channel nuts. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
