SKU: FS-5344-E/G

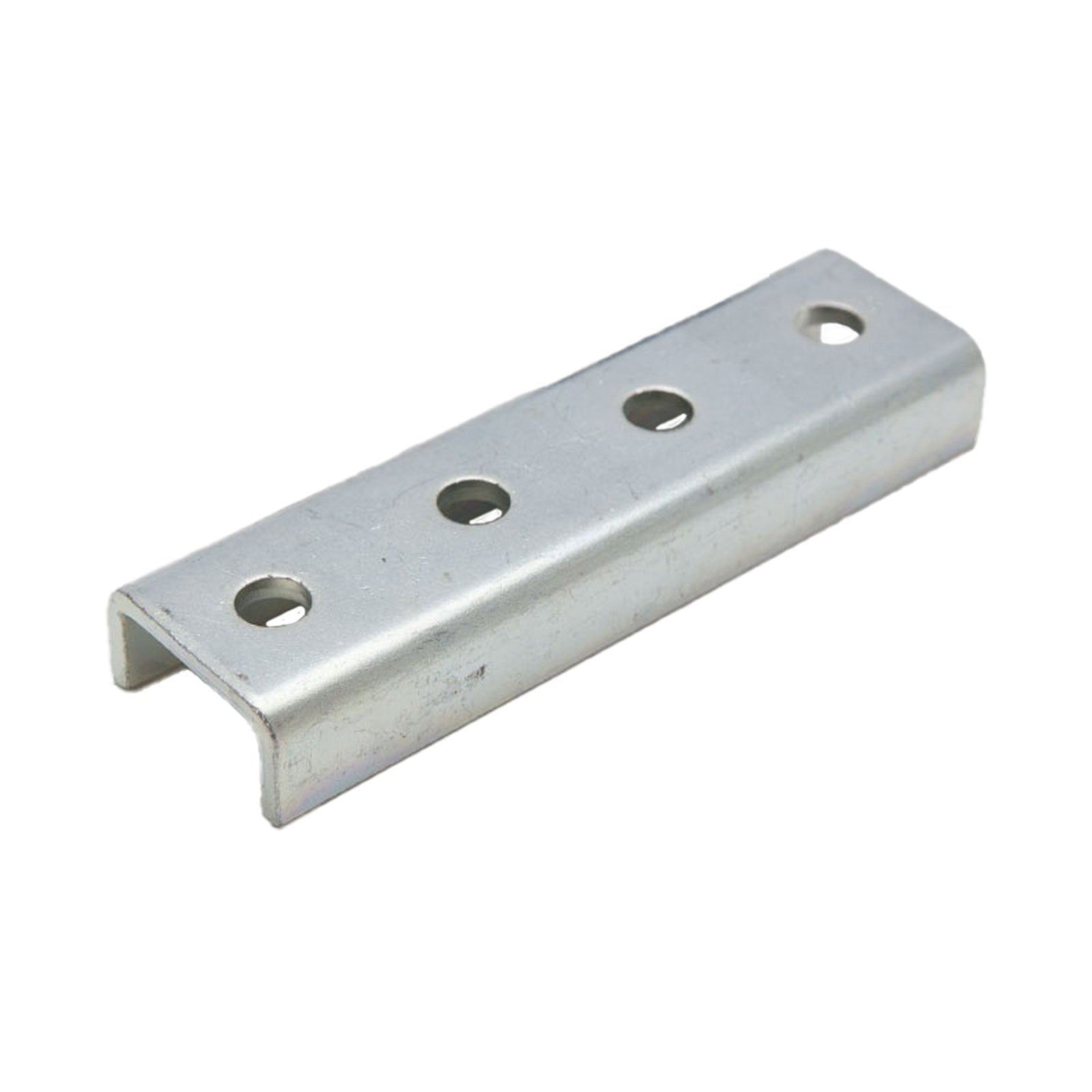

4-Hole Splice Plate for FS-500 - Electro-Galvanized

4-Hole Splice Plate for FS-500 - Electro-Galvanized!

  • Flexstrut FS-5344 Splice Plate Drawing

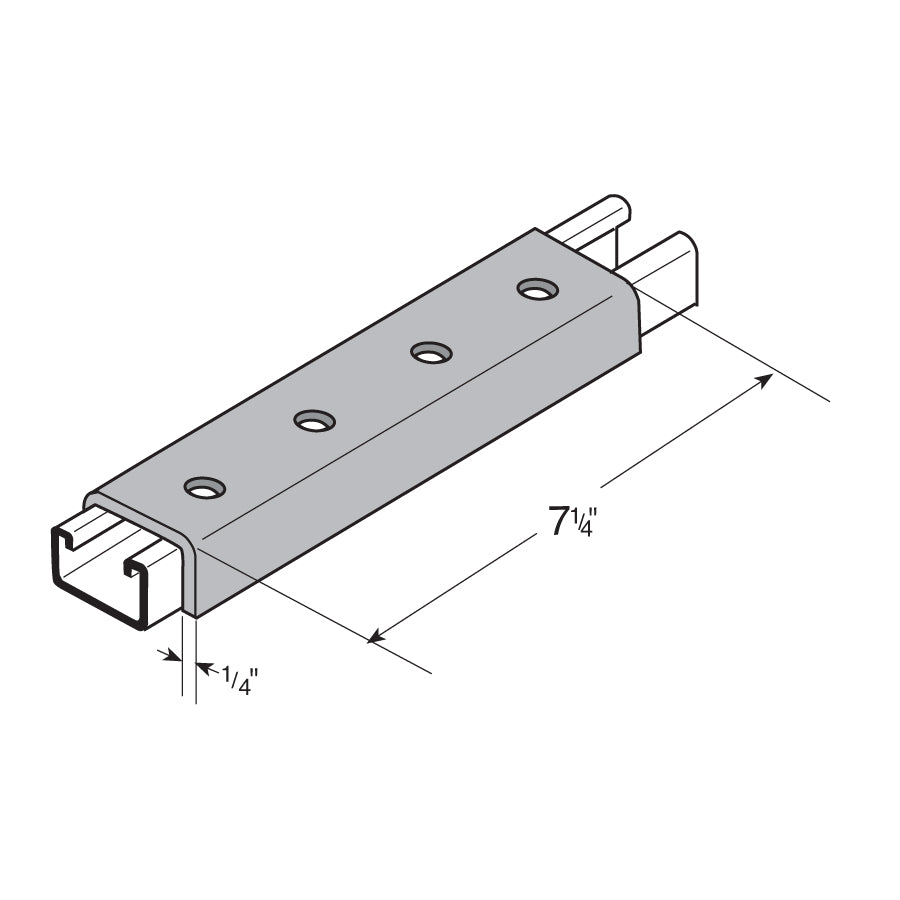

  • Flexstrut FS-5344 Splice Plate Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 5

Continue Browsing

Clevis Fittings
SKU: FS-5344-E/G

4-Hole Splice Plate for FS-500 - Electro-Galvanized

$10.63

Request Bulk Pricing
min. order qty: 10
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8'
Description

4-Hole Splice Plate for FS-500 - Electro-Galvanized allows for up to 4 connections to be made with the 9/16" punched holes. The FS-5344 is for FS-500 Channel and can be used with short spring channel nuts. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
