SKU: FS-5025-E/G

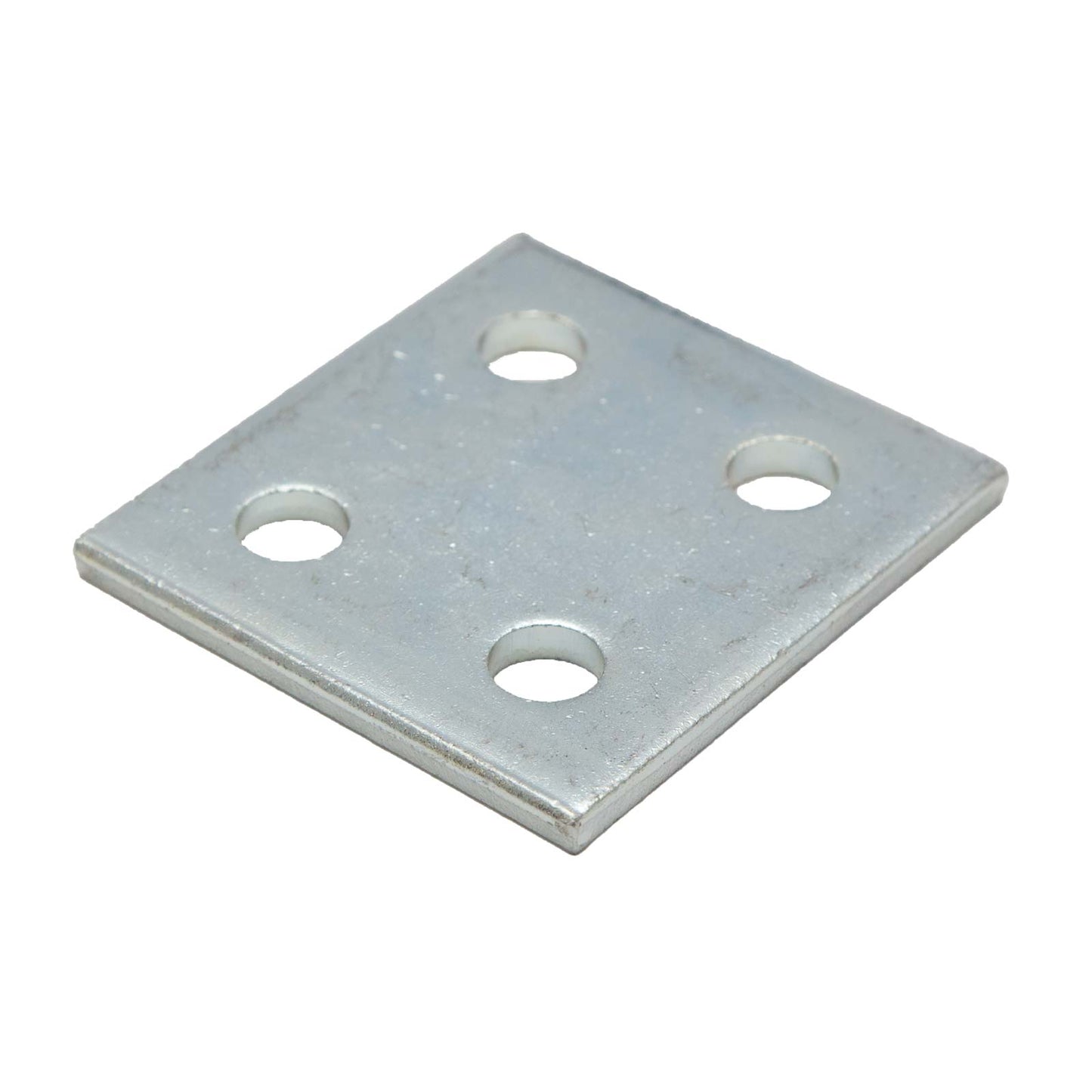

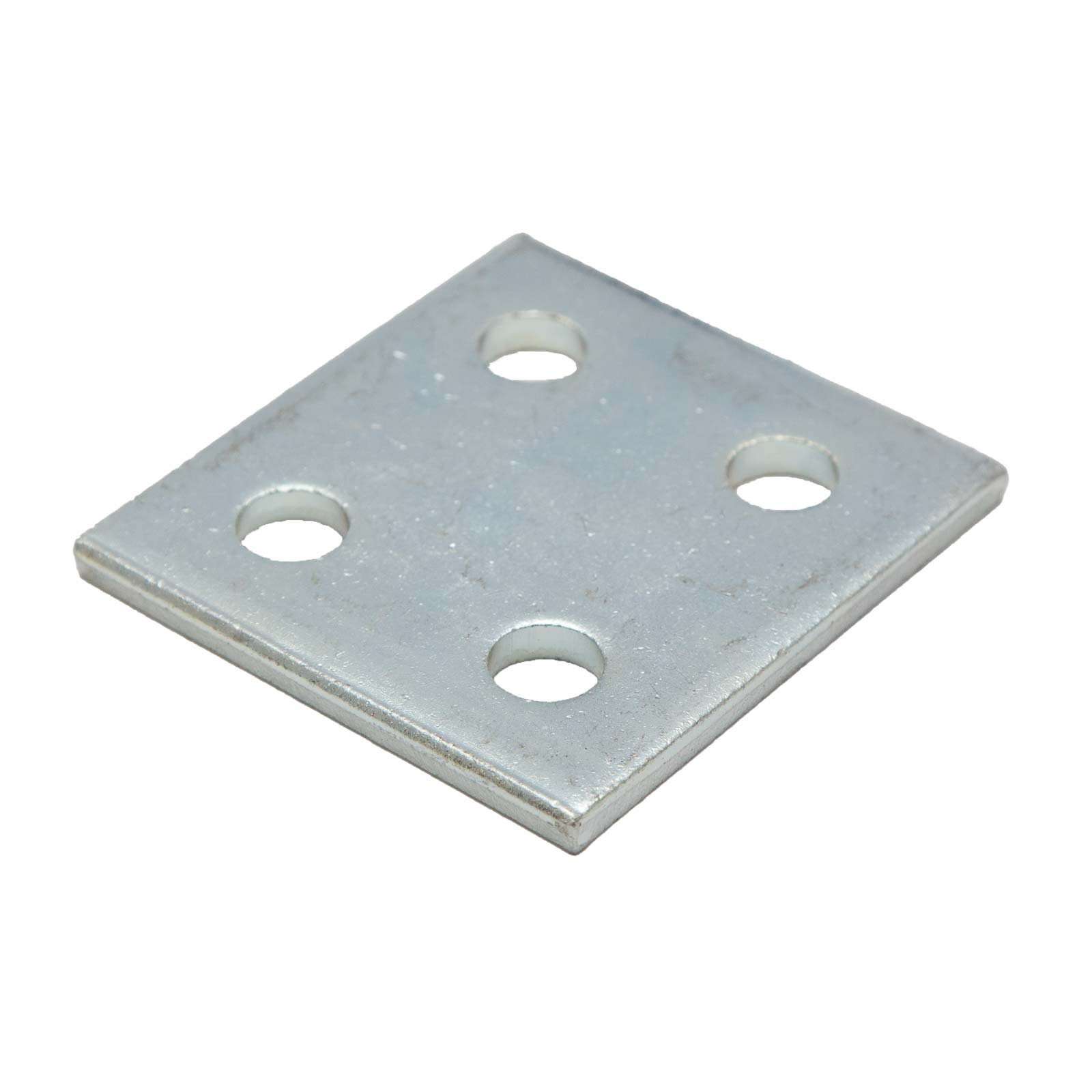

4-Hole Square Splice Plate - Electro-Galvanized

4-Hole Square Splice Plate - Electro-Galvanized!

Skip to product information
1 of 5

Continue Browsing

Flat Fittings

$10.90

Request Bulk Pricing
min. order qty: 10
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"

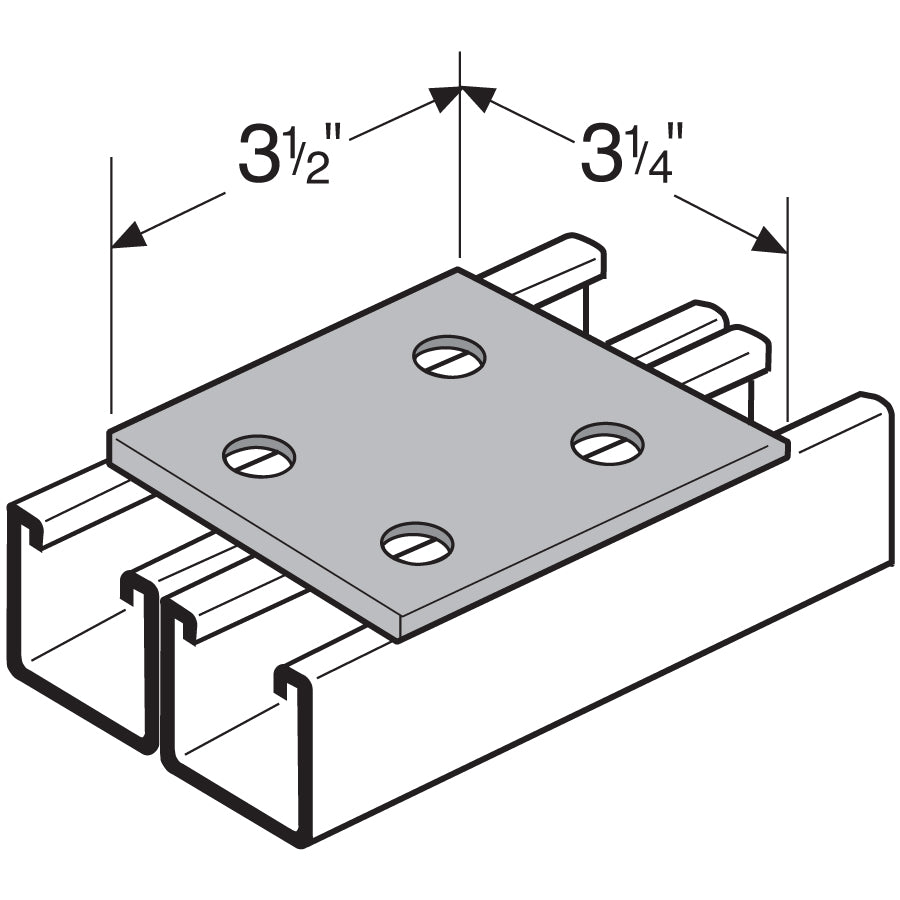

Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

4-Hole Square Splice Plate - Electro-Galvanized can be used to connect multiple channels together in a straight line or side-by-side. Flexstrut 4-Hole Splice Plates can be joined with channel nuts and bolts. Flat fittings sit flush on top of the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

View full details

Continue Browsing

Flat Fittings

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
