SKU: FS-5027-E/G

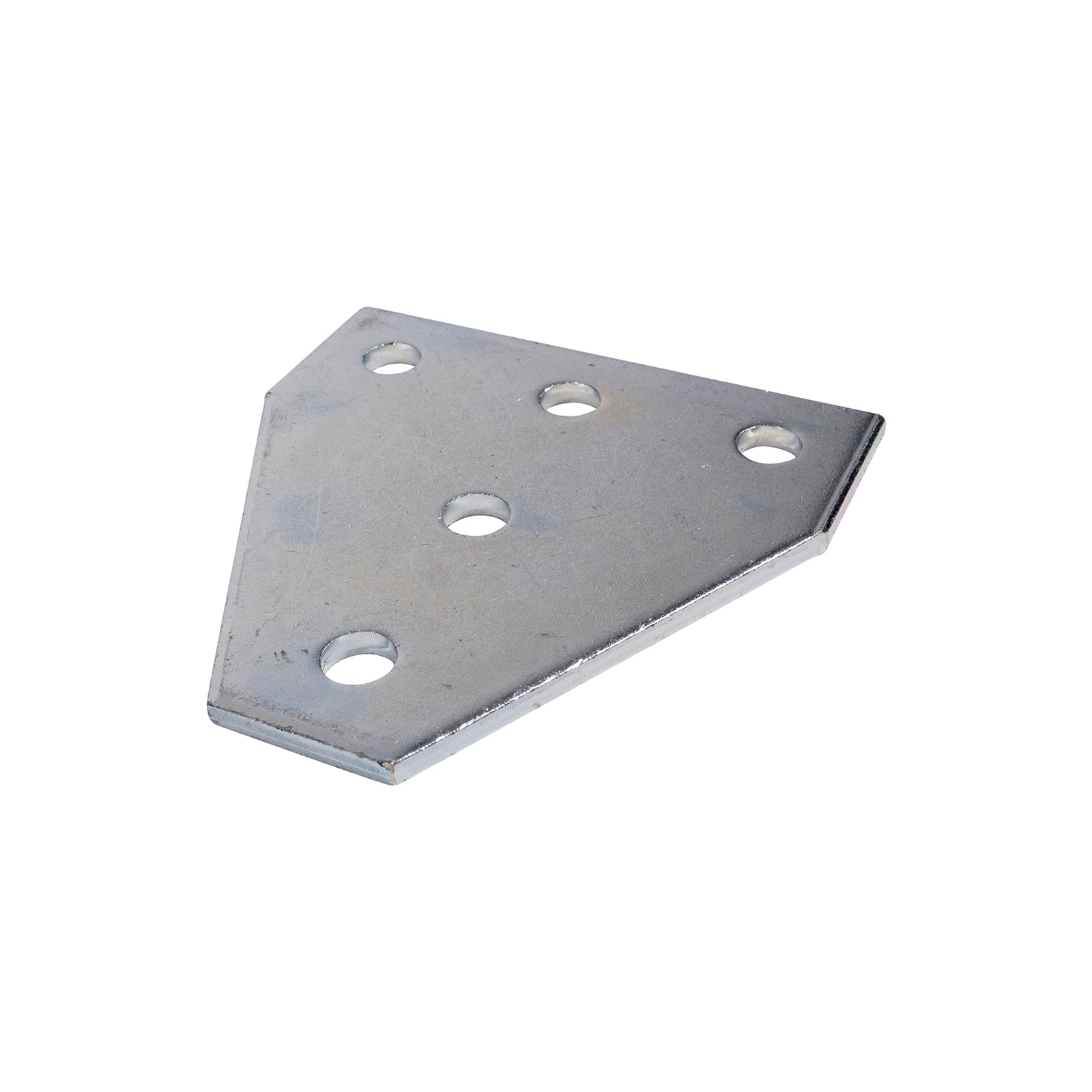

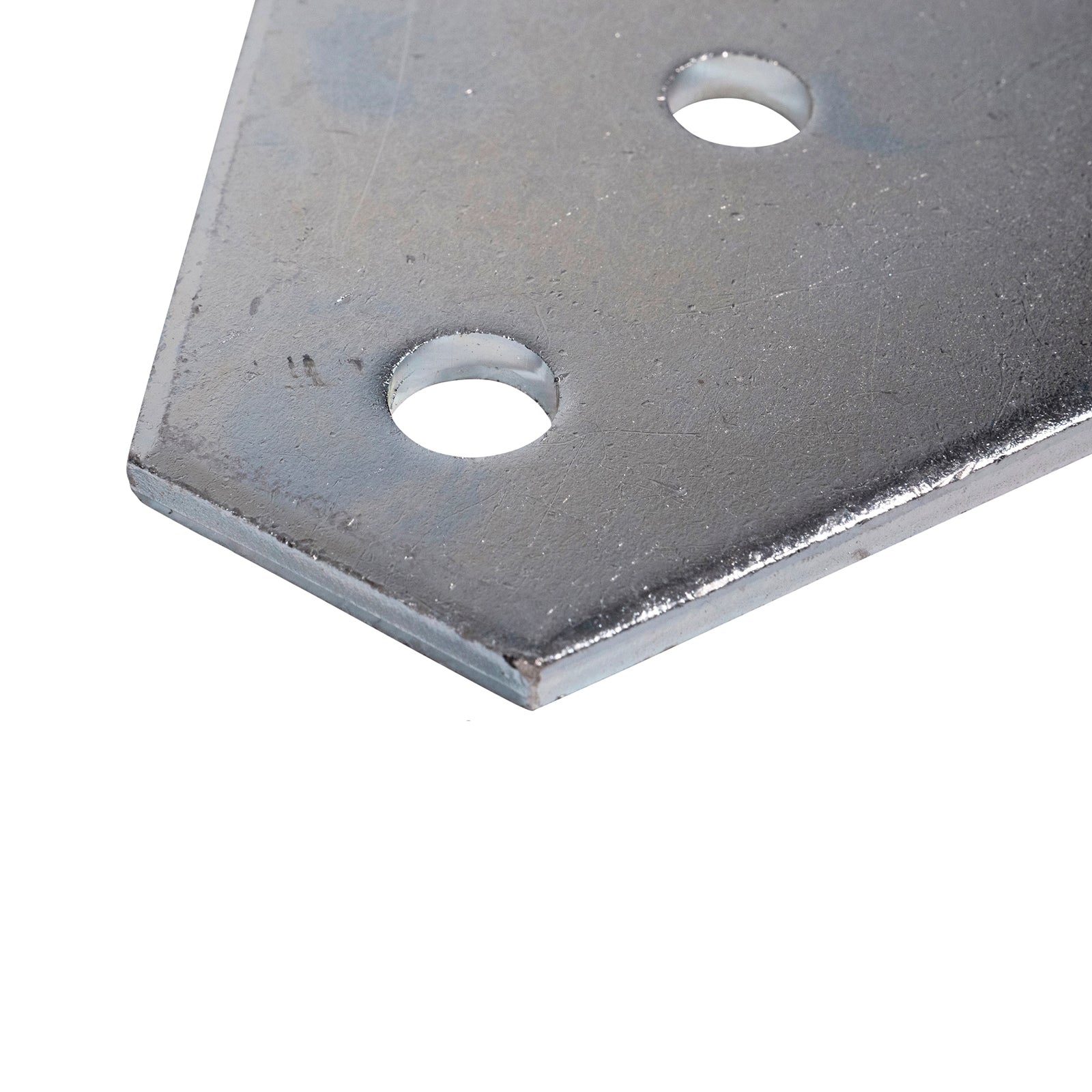

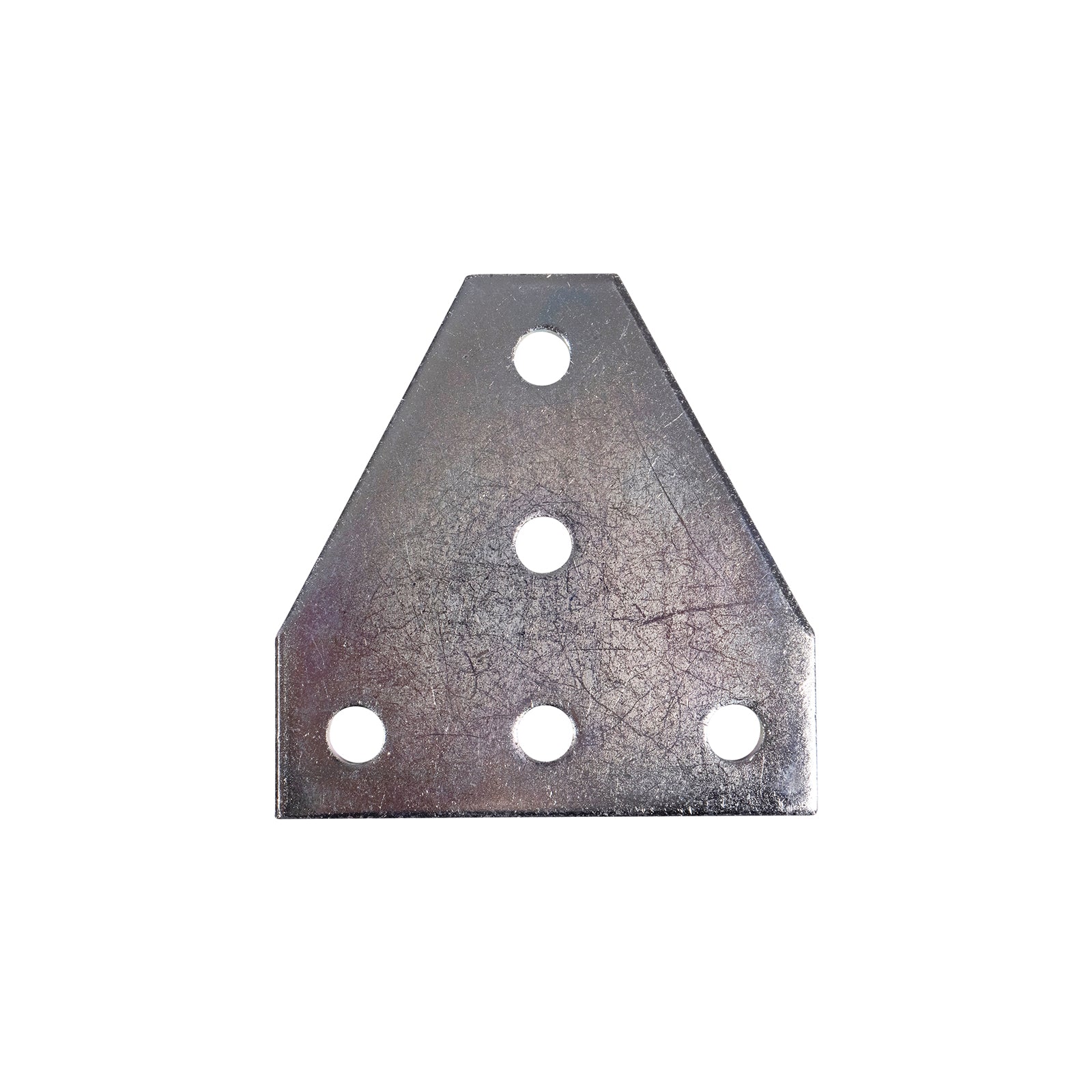

5-Hole T Gusset Plate - Electro-Galvanized

5-Hole T Gusset Plate - Electro-Galvanized!

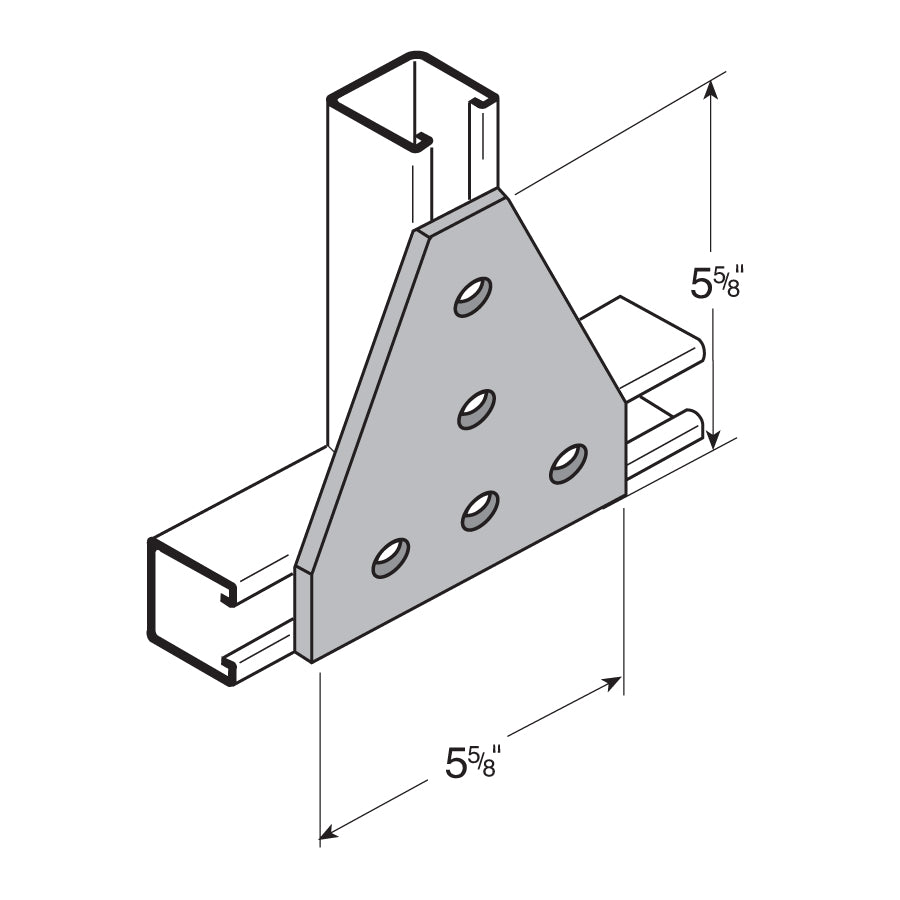

  • Flexstrut FS-5027 5-Hole T Gusset Plate Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Flat Fittings
SKU: FS-5027-E/G

5-Hole T Gusset Plate - Electro-Galvanized

$9.68

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 6 hours 16 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

5-Hole T Gusset Plate - Electro-Galvanized allow for connections at the joints of your strut channel frame that sit flush to the top of two channel lips meeting at a T. Gussets have greater surface area than traditional corner flat fittings. The corner plates use 9/16" punched holes. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
