5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 1,000' Coil
5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 1,000' Coil!
5/8" 6x19 Galvanized Wire Rope - EIPS IWRC | 1,000' Coil
Specifications

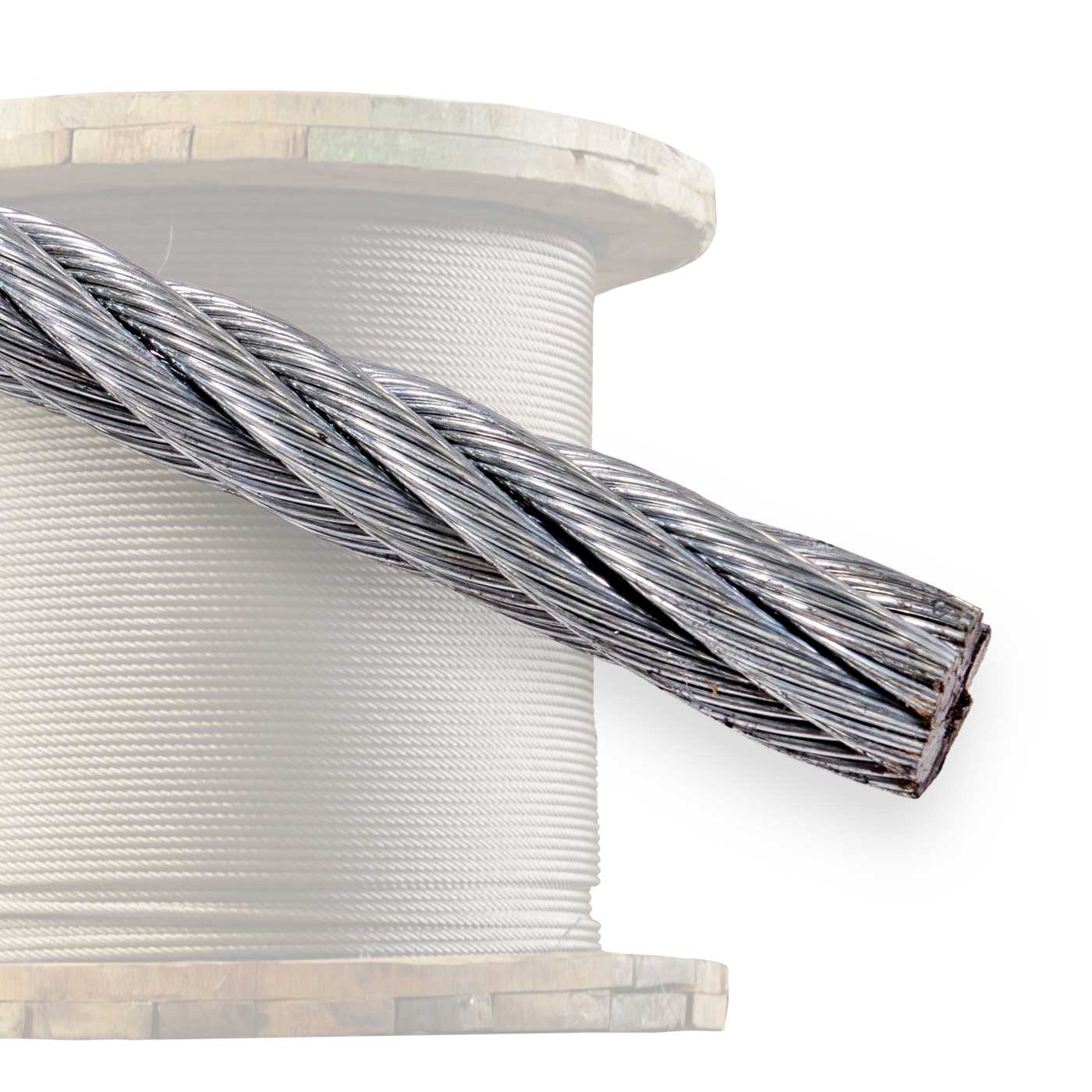

5/8" 6x19 Wire Rope Cable | Galvanized
This 5/8" galvanized wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a versatile 6x19 class construction. Designed to provide an excellent balance of abrasion resistance, strength, and flexibility, this wire rope is ideal for lifting, hoisting, winching, suspension, and general rigging applications. Its galvanized finish provides enhanced corrosion protection, making it well-suited for outdoor and exposed environments.
Corrosion-Resistant Steel Cable for Hoisting, Rigging & Winch Applications

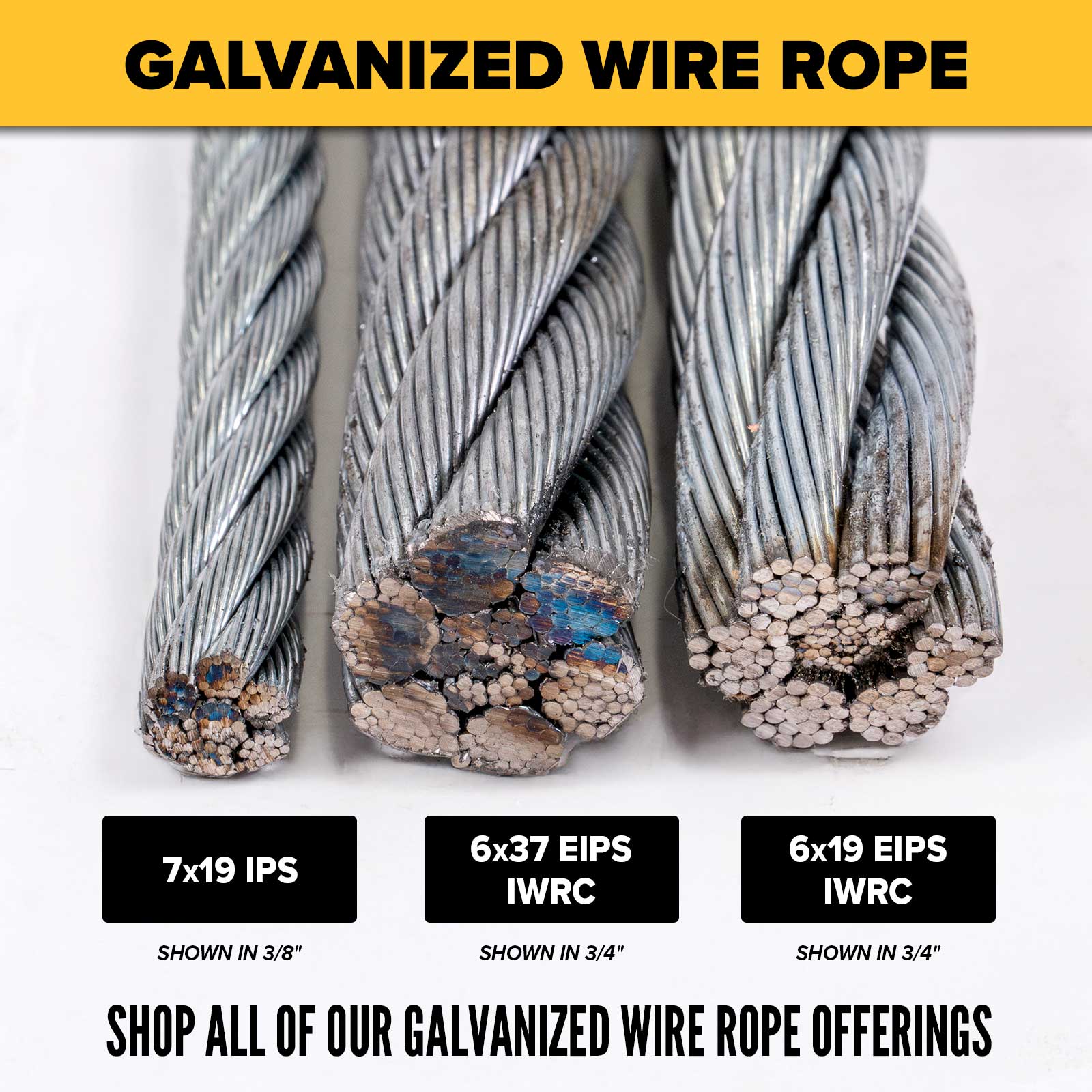

The 6x19 class is one of the most widely used wire rope constructions due to its durability and versatility. Compared to 6x37 wire rope, the 6x19 construction offers greater abrasion resistance when operating over drums, sheaves, and other wear surfaces. While slightly less flexible than a 6x37 rope, it delivers dependable performance in demanding industrial and construction applications.
6x19 Wire Rope Configuration
This wire rope is manufactured using EIPS-grade (Extra Improved Plow Steel) steel. EIPS wire rope provides approximately 10% greater tensile strength than IPS-grade wire rope, resulting in improved breaking strength and dependable load-handling performance.

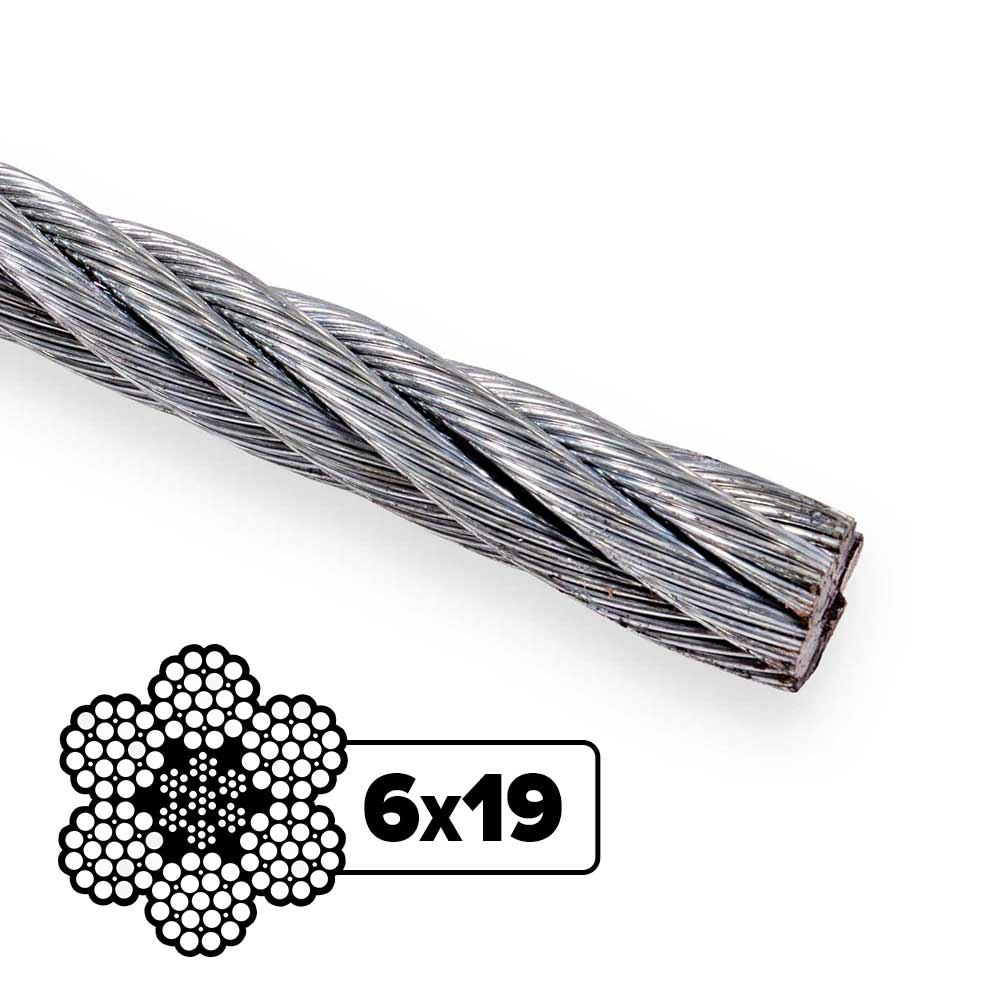

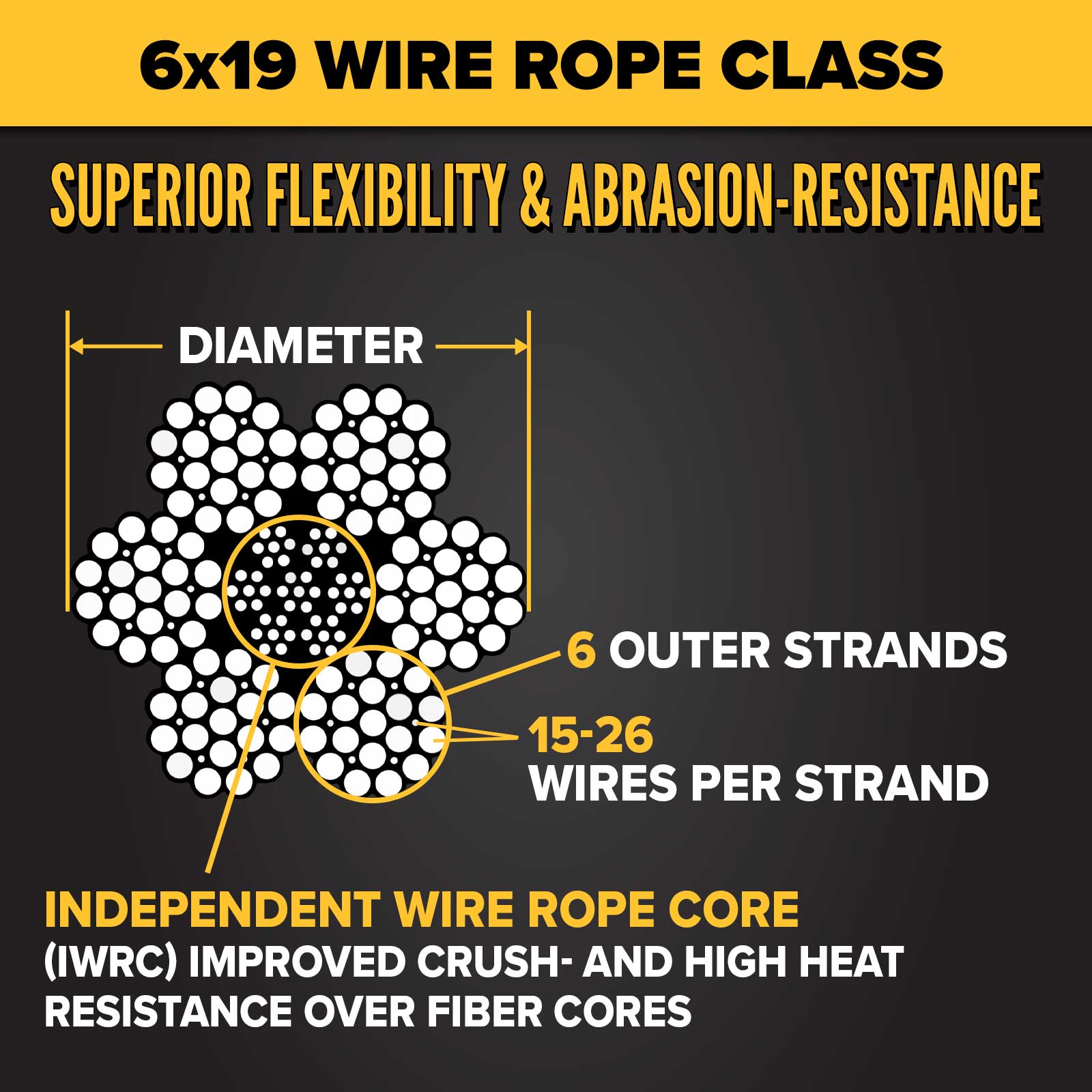

The class of this wire rope is 6x19. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires within each strand. This design creates an effective balance between flexibility and abrasion resistance.
The Independent Wire Rope Core (IWRC) provides increased support compared to fiber core constructions. IWRC wire rope offers improved crush resistance, better load stability, and reliable performance in temperatures ranging from -40°F to 400°F.

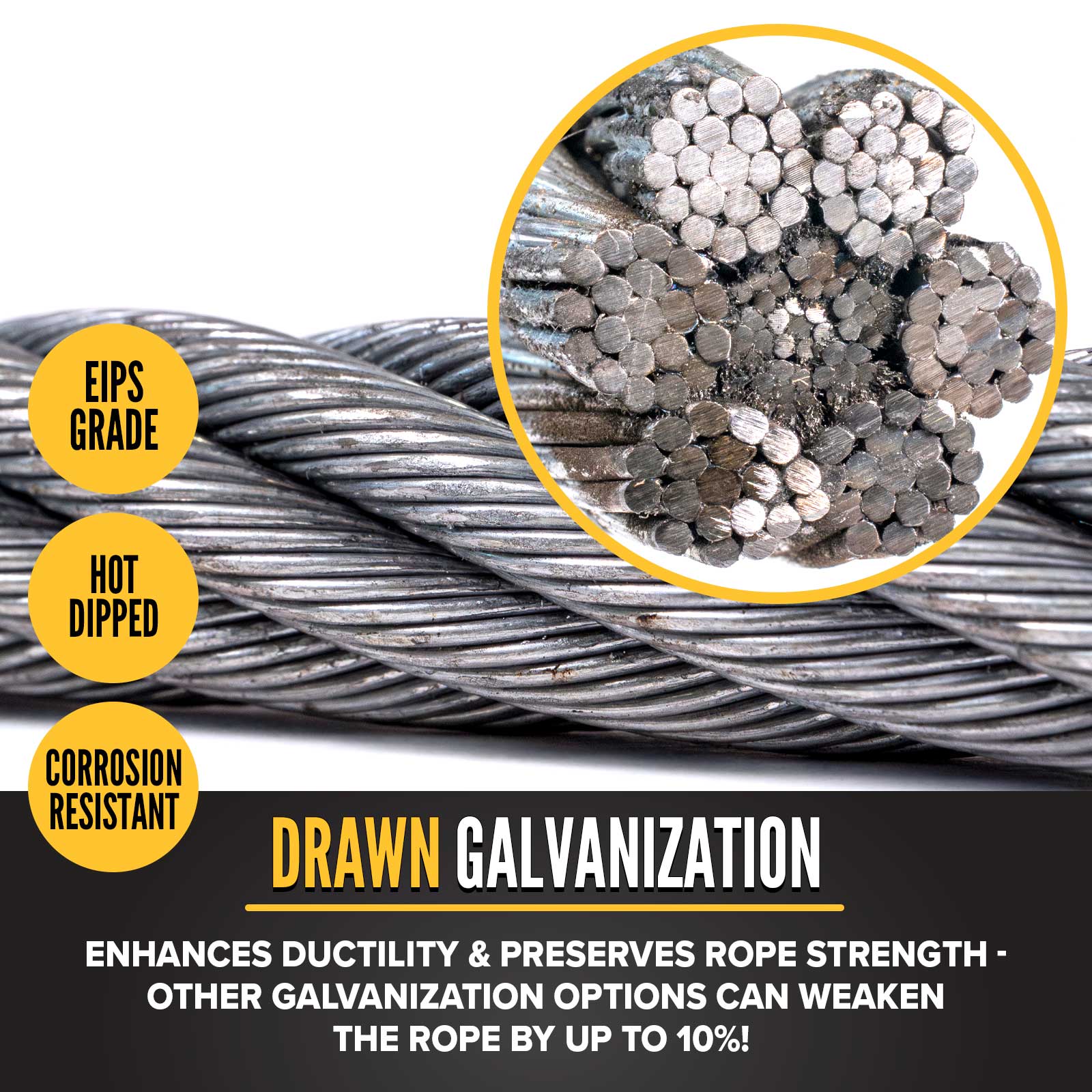

Hot Dip Drawn Galvanized Finish
Hot dip drawn galvanization provides superior corrosion protection while maintaining the wire rope's full strength. Unlike standard galvanization processes that can reduce breaking strength, the drawn galvanizing process preserves the rope's performance characteristics while adding a durable protective coating.
In addition to corrosion resistance, drawn galvanized wire rope offers improved ductility and durability. The galvanized coating is less likely to crack or flake compared to electro-galvanized alternatives, making it an excellent choice for demanding outdoor and marine-adjacent applications.
Key Features
- EIPS-grade steel provides approximately 10% greater tensile strength than IPS grades
- 6x19 construction balances flexibility with excellent abrasion resistance
- Hot dip drawn galvanized finish enhances corrosion resistance without reducing strength
- IWRC core improves crushing resistance and load support
- Ideal for hoisting, suspension systems, winch lines, and general rigging applications
- More abrasion-resistant than comparable 6x37 wire rope constructions
- Improved ductility and coating durability compared to electro-galvanized wire rope
- Temperature range from -40°F to 400°F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Sold by the foot and shipped as one continuous length when available
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
