5/8" 6x19 Wire Rope Cable | 304 Stainless

This 5/8" 304 stainless steel wire rope features a versatile 6x19 construction that balances flexibility, abrasion resistance, and corrosion protection. Commonly used for lifting, hoisting, winch lines, suspension systems, and general rigging applications, this wire rope offers greater corrosion resistance than galvanized steel while maintaining higher strength and affordability than 316 stainless steel. It's an excellent choice for projects that require dependable rust protection without the premium cost of marine-grade stainless.

Corrosion-Resistant Stainless Steel Cable for Rigging, Hoisting & Winch Applications

The 6x19 class is one of the most widely used wire rope constructions due to its combination of durability and flexibility. Compared to 6x37 wire rope, the 6x19 construction provides superior abrasion resistance when operating over drums, sheaves, and other contact surfaces. While slightly less flexible than a 6x37 rope, it delivers excellent performance in demanding industrial, commercial, and outdoor applications.

Type 304 stainless steel offers strong corrosion resistance in most environments and is often selected when additional strength and cost savings are preferred over the maximum corrosion protection offered by 316 stainless steel.

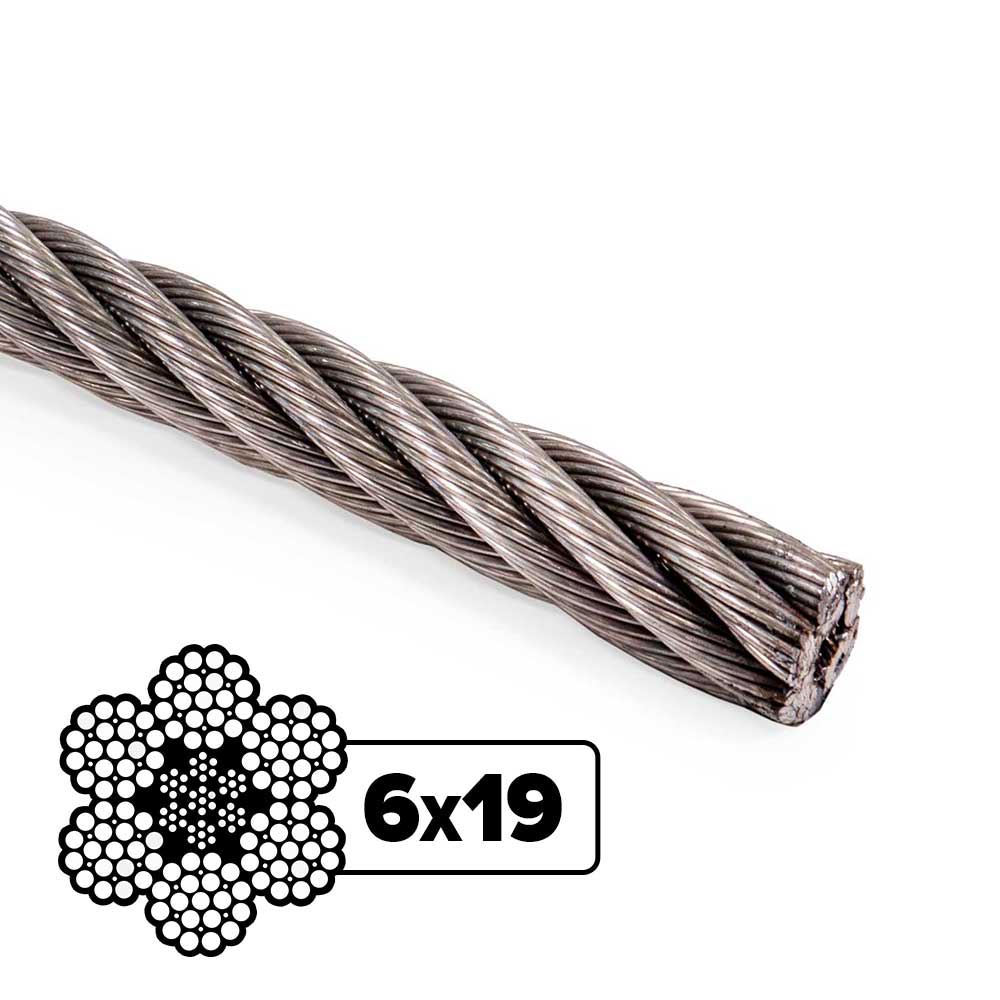

6x19 Wire Rope Configuration

The class of this wire rope is 6x19. These numbers nominally refer to the rope's construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires making up each strand. This design creates an ideal balance between flexibility, strength, and abrasion resistance.

Compared to a 6x37 wire rope, the 6x19 construction offers greater resistance to wear and abrasion, making it well-suited for applications involving repeated contact with sheaves, drums, and other working surfaces.

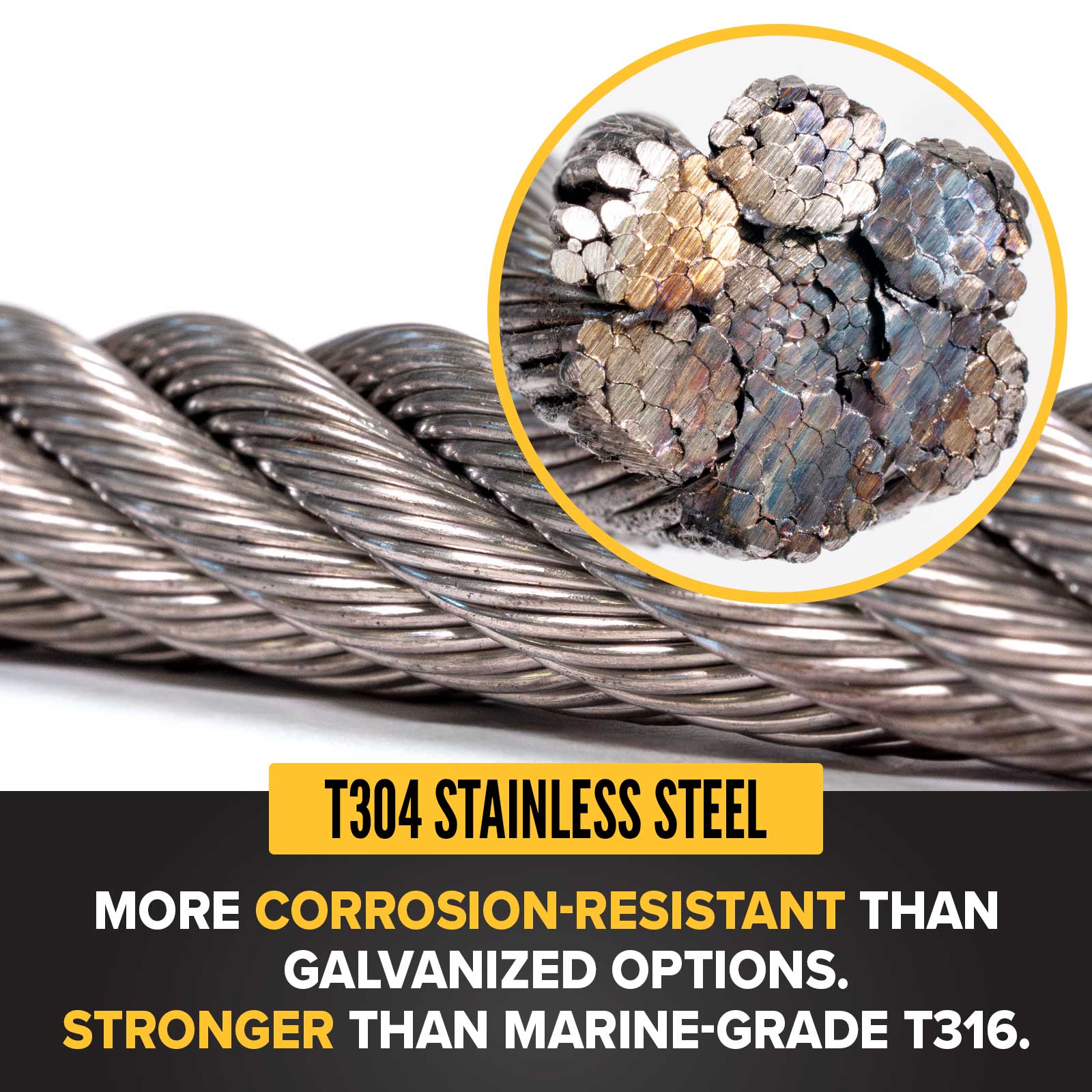

304 Stainless Steel & IWRC Construction

Type 304 stainless steel provides excellent resistance to rust and corrosion while maintaining higher tensile strength than 316 stainless steel. It is commonly used in industrial, architectural, and outdoor applications where long-term corrosion protection is required.

The Independent Wire Rope Core (IWRC) provides greater support than fiber core constructions. IWRC wire rope offers improved crush resistance, better load stability, and reliable performance in temperatures ranging from -40°F to 400°F.

Key Features

• Manufactured from corrosion-resistant 304 stainless steel
• 6x19 construction balances flexibility with abrasion resistance
• Greater corrosion resistance than galvanized wire rope
• Higher strength and lower cost than comparable 316 stainless wire rope
• IWRC core improves crush resistance and load support
• Ideal for hoisting, suspension systems, winch lines, and general rigging applications
• Performs in temperatures ranging from -40°F to 400°F
• Suitable for indoor, outdoor, and moderately corrosive environments
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Sold by the foot and shipped as one continuous length when available

Accessories & More

Complete your wire rope assembly with compatible wire rope fittings and rigging hardware. We carry a variety of type 304 stainless steel accessories, including wire rope clips and wire rope thimbles, to help you create a secure and reliable assembly. For best results, use type 304 stainless steel components throughout your system, as mixing materials or finishes can lead to galvanic corrosion and reduced performance over time.
