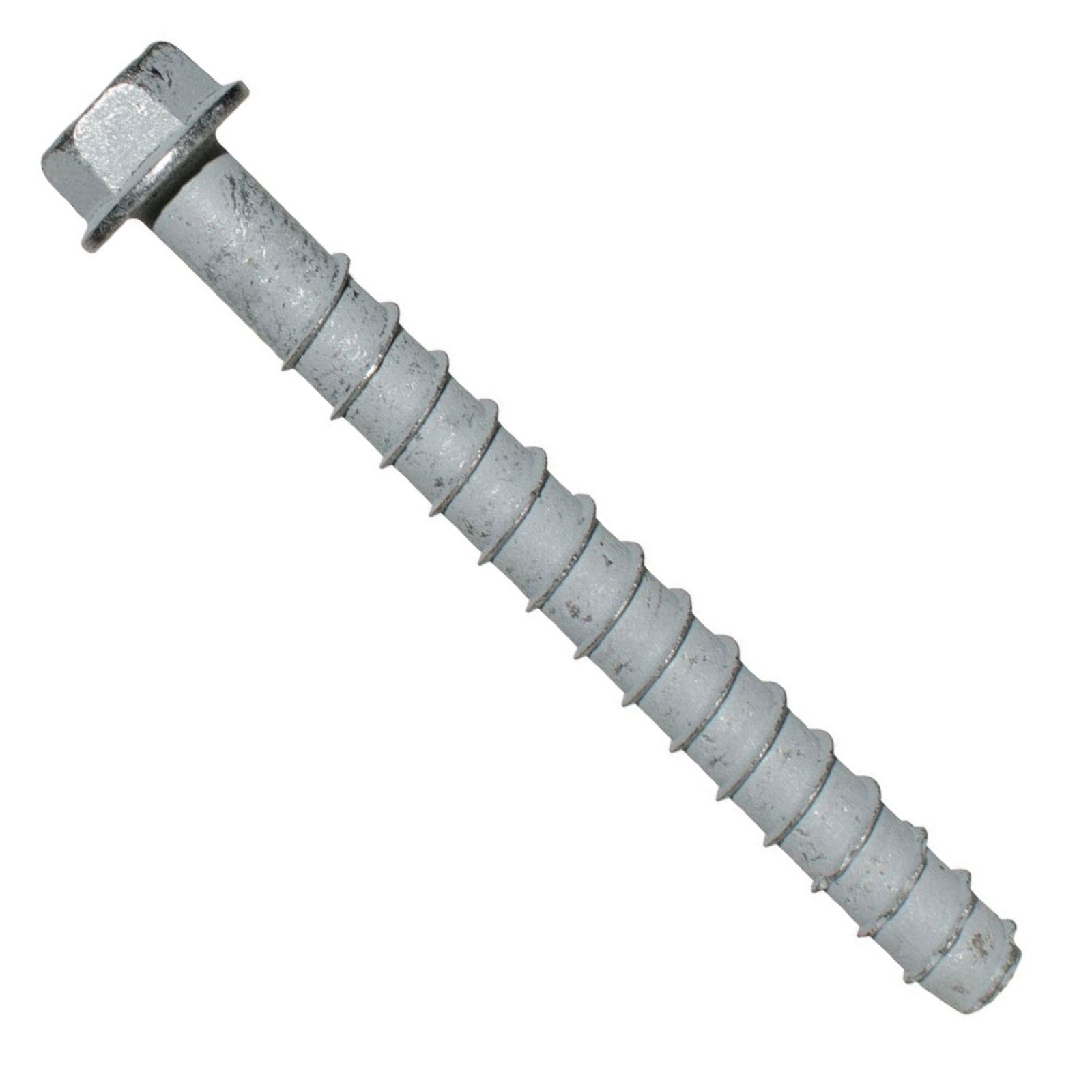

Simpson Strong-Tie Mechanically Galvanized Titen HD Concrete Screw Anchors provide code-listed anchoring strength for interior and exterior applications. Designed for use in cracked and uncracked concrete, as well as uncracked masonry, these heavy-duty screw anchors offer a fast, reliable alternative to traditional expansion anchors. Unlike wedge anchors, Titen HD anchors install by drilling a pilot hole and driving the anchor directly into place, with no nut-and-washer assembly, no hammering-in expansion clip, and no secondary setting step required. Their mechanically galvanized finish provides added corrosion resistance for demanding jobs where dependable holding power matters.

Key Features

• Code-Listed Performance: Evaluated for use in cracked and uncracked concrete and uncracked masonry applications.
• Mechanically Galvanized Finish: Provides corrosion resistance for interior and exterior anchoring applications.
• Fast Screw Anchor Installation: Installs quickly by drilling a pilot hole and driving the anchor into place.
• Easier Than Wedge Anchors: No expansion clip setting, no secondary tightening step, and no separate nut-and-washer assembly required.
• Removable Design: Can be removed for temporary applications, making it more flexible than many traditional expansion anchors.
• Reliable Thread Engagement: Threaded design cuts into concrete for strong, dependable holding power.
• Multiple Size Options: Available in a range of diameters and lengths to fit different fixture and embedment needs.
• ICC-ES Evaluated: ICC certifications include ESR-2713 and ESR-1056, where applicable by size and application.

Applications

• Concrete anchoring
• Structural steel connections
• Deck and ledger connections
• Railing, post base, and bracket attachment
• Equipment anchoring
• Exterior construction applications
• Temporary anchoring where removability is needed
• Use in cracked and uncracked concrete, plus uncracked masonry where approved

Installation

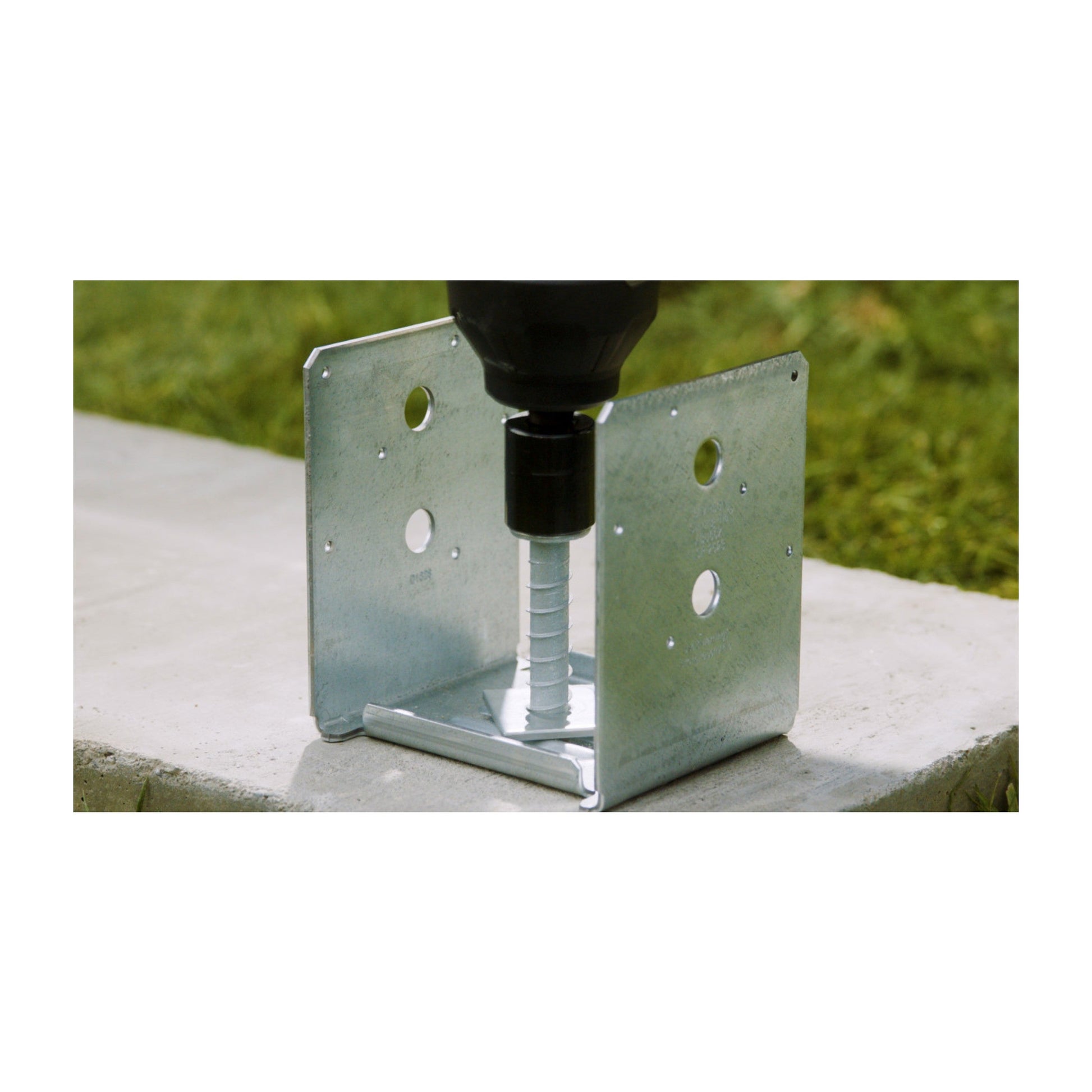

Install the Titen HD anchor by drilling the proper pilot hole, cleaning the hole of dust and debris, and driving the anchor through the fixture into the base material until the head is seated. Compared to a wedge anchor, installation is faster and more straightforward because the anchor cuts its own threads into the concrete and does not require expansion setting. Always follow Simpson Strong-Tie installation instructions, required embedment, edge distance, spacing, and applicable ICC-ES report requirements for the selected size.
