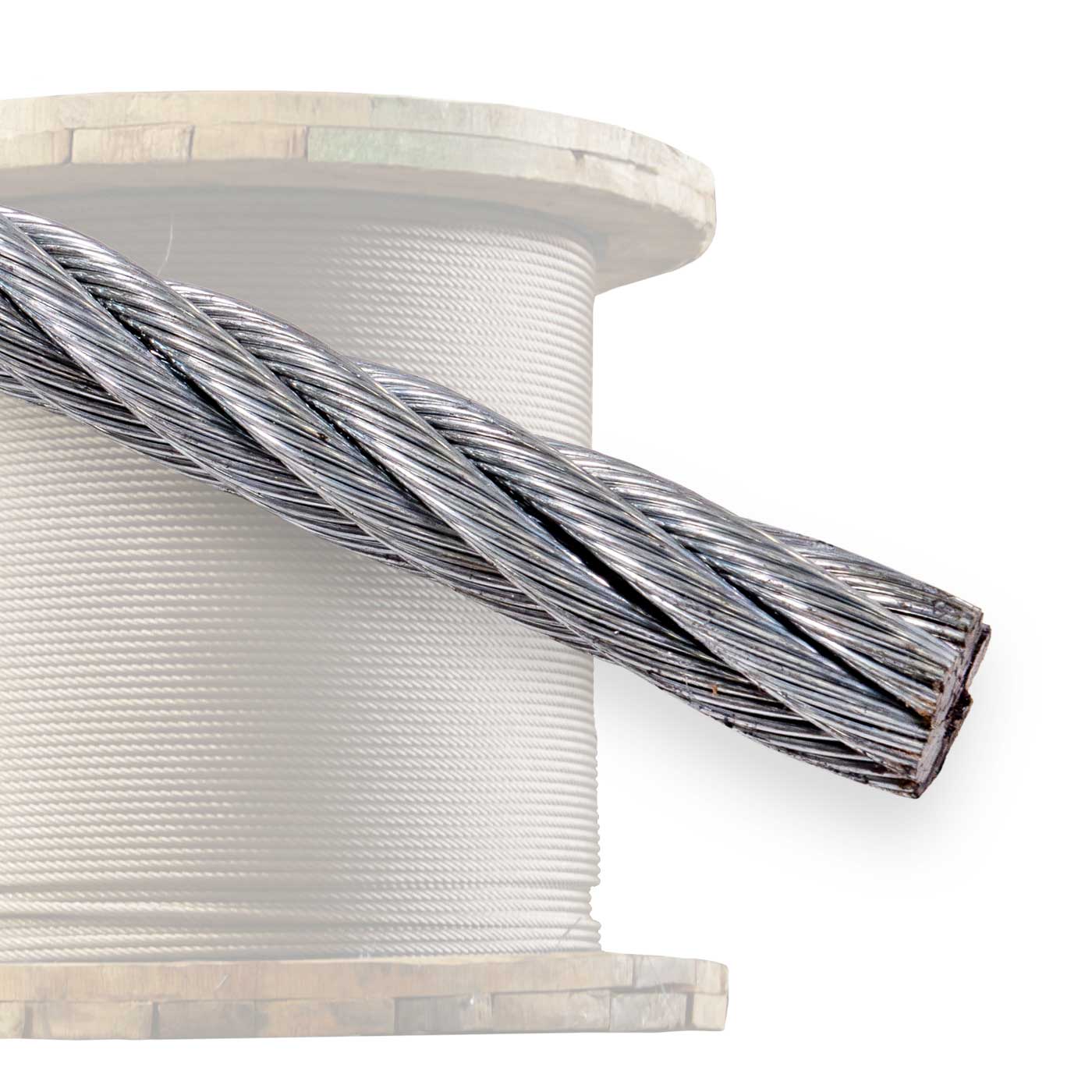

7/16" 6x19 Wire Rope Cable | Galvanized

This 7/16" galvanized wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a versatile 6x19 class construction known for its combination of flexibility and abrasion resistance. Commonly used for hoisting, suspension systems, winch lines, and general rigging applications, this wire rope delivers dependable performance in both indoor and outdoor environments where strength and durability are essential.

Corrosion-Resistant Wire Rope for Hoisting, Rigging & Winch Applications

The 6x19 class offers greater abrasion resistance than a comparable 6x37 wire rope, making it well-suited for applications involving frequent contact with drums, sheaves, and other wear surfaces. While slightly less flexible than 6x37 constructions, it provides excellent durability and service life for general-purpose lifting and pulling operations.

The hot-dip drawn galvanized finish adds superior protection against corrosion while maintaining the rope's original strength, making it an excellent choice for outdoor, marine-adjacent, and high-moisture environments.

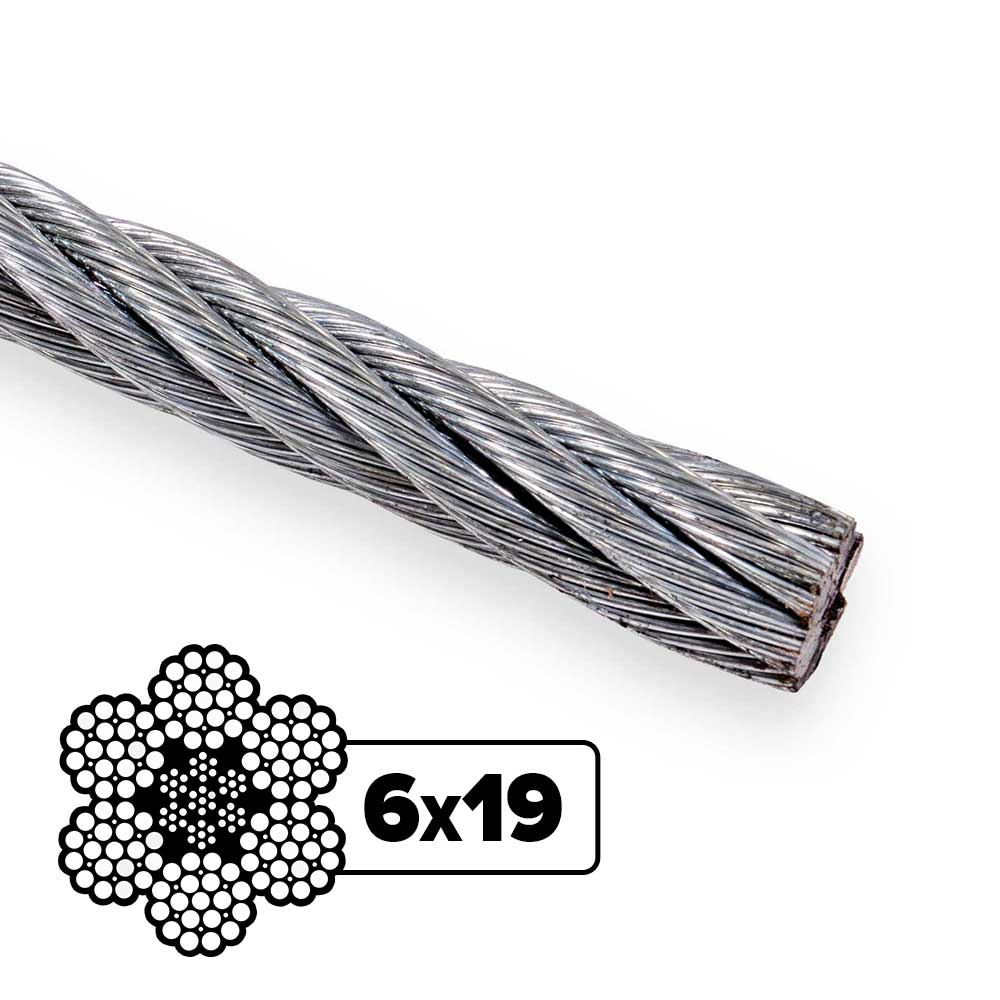

6x19 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in increased breaking strength and dependable load-handling performance.

The class of this wire rope is 6x19. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires making up each strand. This construction creates an ideal balance of strength, wear resistance, and flexibility.

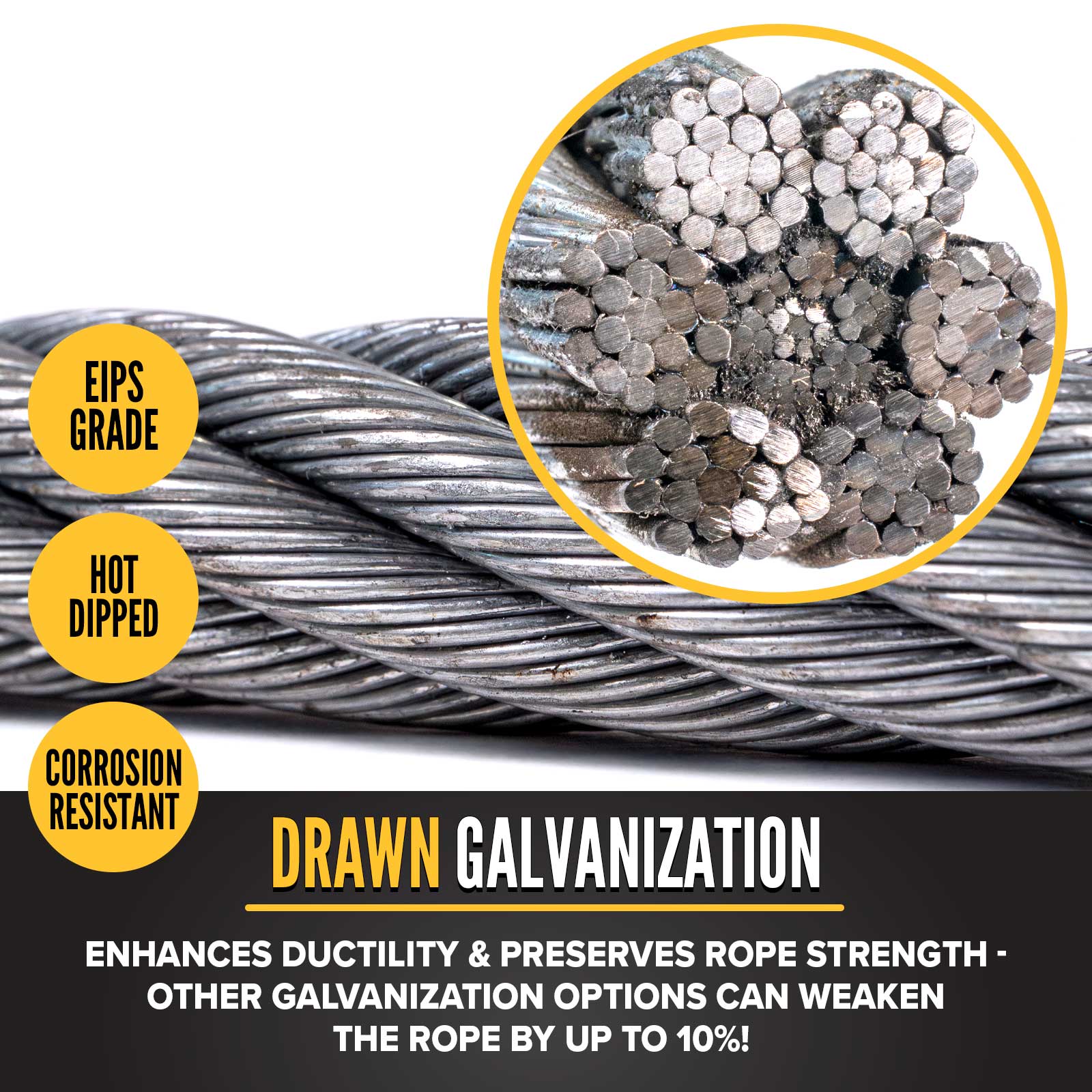

Hot-Dip Drawn Galvanized Finish & IWRC Construction

Unlike standard galvanization methods that can reduce breaking strength, the hot-dip drawn galvanizing process maintains the rope's full strength while providing enhanced corrosion resistance. This finish also improves ductility and helps prevent coating flaking or cracking during use.

The Independent Wire Rope Core (IWRC) provides greater support than fiber core constructions. IWRC wire rope offers superior crush resistance, improved load stability, and dependable operation in temperatures ranging from -40°F to 400°F.

Key Features

• EIPS-grade steel provides approximately 10% greater tensile strength than IPS grades
• 6x19 construction delivers an excellent balance of flexibility and abrasion resistance
• More wear-resistant than comparable 6x37 wire rope constructions
• Hot-dip drawn galvanized finish provides superior corrosion protection
• Galvanization process maintains rope strength while improving durability
• IWRC core improves crushing resistance and load support
• Ideal for hoisting, winch lines, suspension systems, and general rigging applications
• Suitable for outdoor and moisture-prone environments
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
