7/8" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC | 500' Coil
7/8" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC | 500' Coil!
7/8" 19x7 Rotation-Resistant Wire Rope - EIPS IWRC | 500' Coil
Specifications
Right Hand Regular Lay

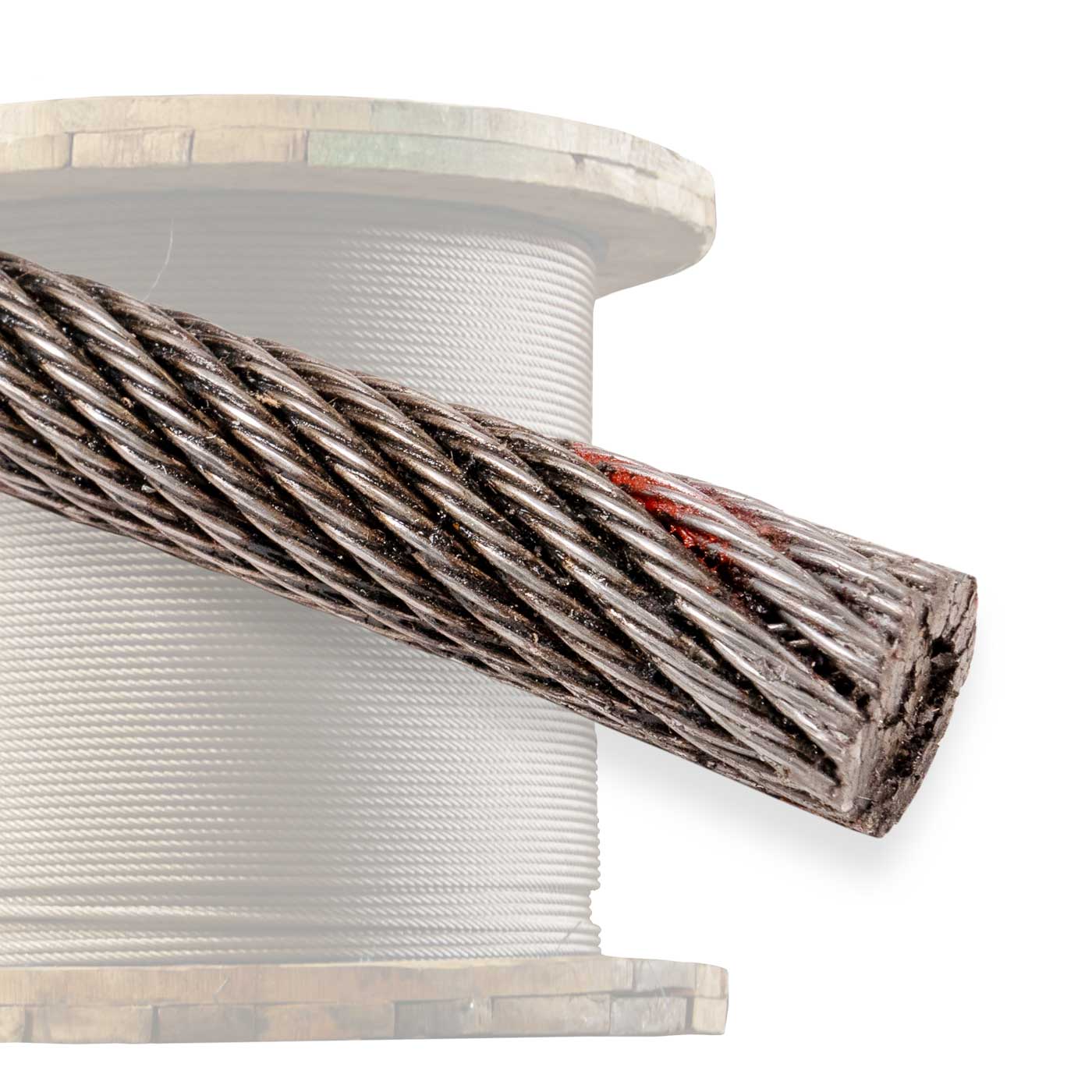

7/8" 19x7 Rotation-Resistant Wire Rope Cable
This 7/8" 19x7 rotation-resistant wire rope is designed for lifting and hoisting applications where load stability is critical. Featuring a specialized strand construction that minimizes rotation under load, this rope is ideal for cranes, hoists, and other systems handling unguided loads. Its combination of flexibility, strength, and rotation resistance makes it a dependable solution for demanding industrial environments.
Rotation-Resistant Wire Rope for Hoisting & Crane Applications
The 19x7 construction is engineered to reduce rope spin during lifting operations. The inner strands are laid in the opposite direction of the outer strands, allowing rotational forces to counterbalance one another. This design significantly reduces load rotation and improves control when lifting unguided loads with single-part or multi-part line systems.
With more than 10 outer strands, this rope is classified as a Category 2 Rotation-Resistant Rope, providing greater resistance to rotation than Category 3 constructions such as 8x19 wire rope.

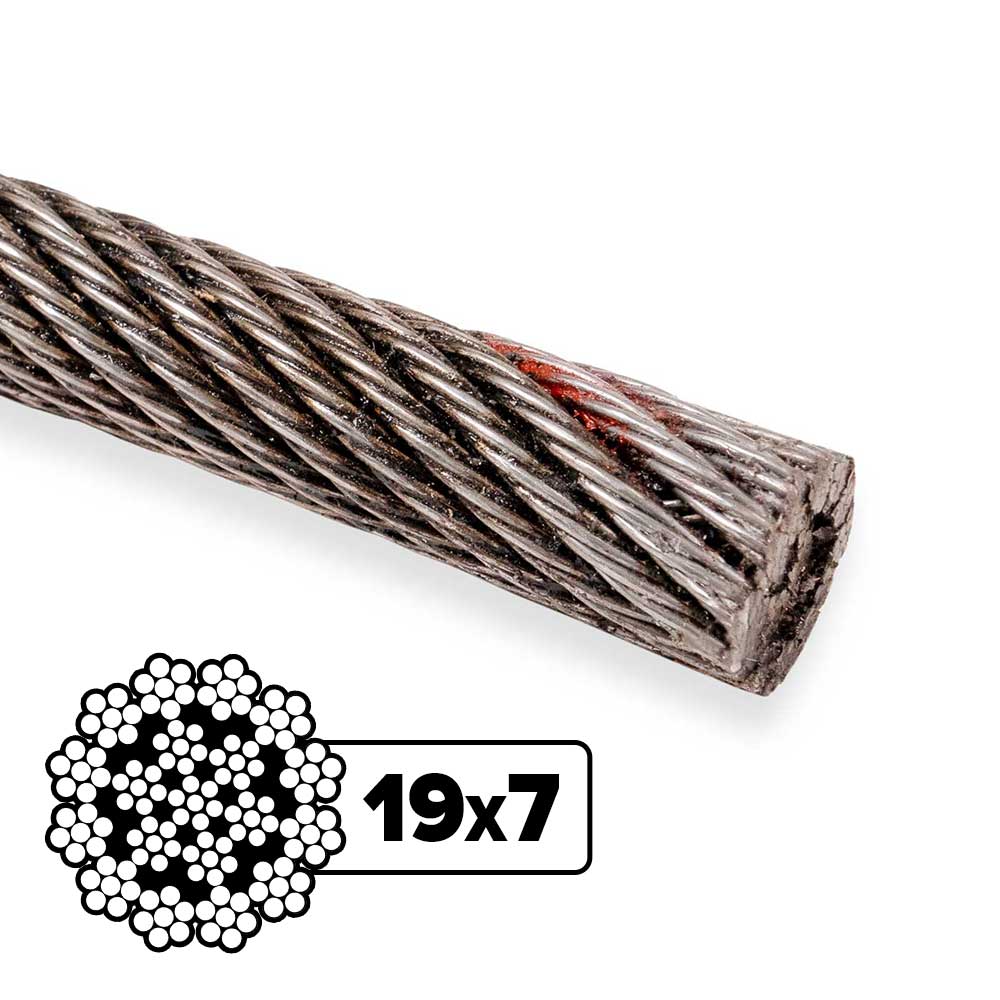

19x7 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable performance under heavy loads.

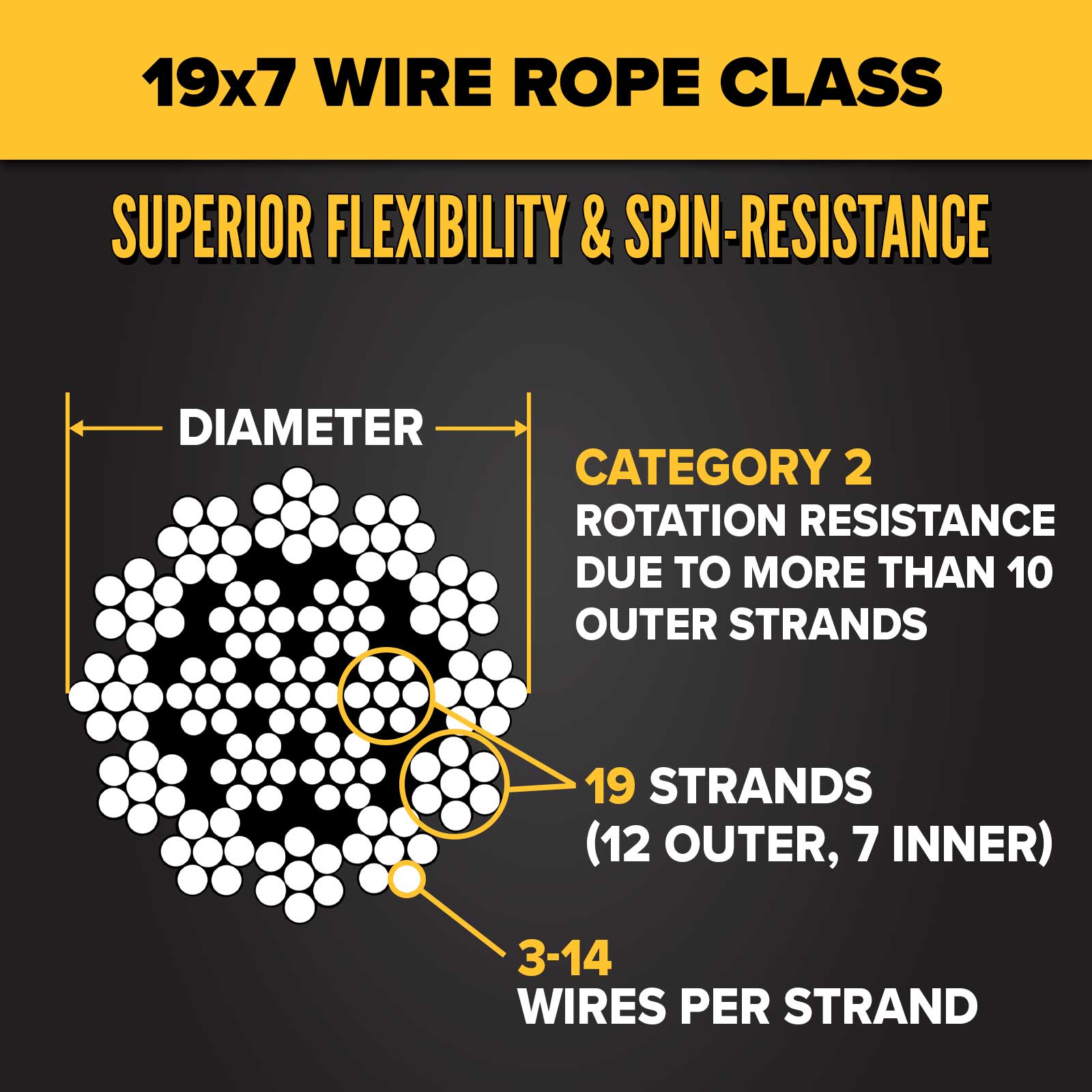

The class of this wire rope is 19x7. These numbers nominally refer to the rope's construction, with 19 strands surrounding the core and approximately 3-14 wires making up each strand. This design offers a balance of flexibility, handling ease, and significant rotation resistance.
Bright Finish & IWRC Construction

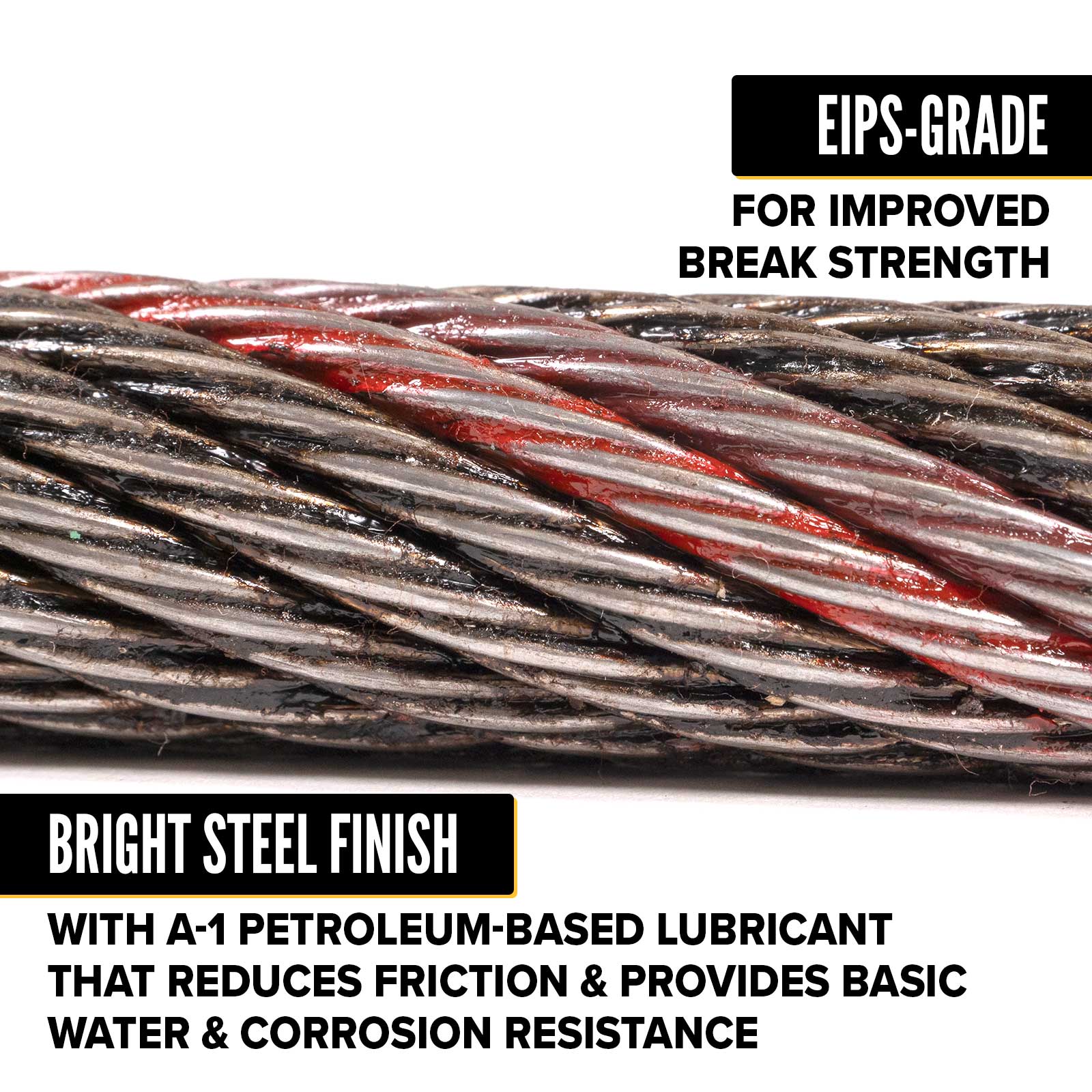

This rope features a bright steel finish protected by an A-1 petroleum-based lubricant applied to both the internal and external wires. The lubricant helps reduce internal friction, minimize wear, and provide basic resistance to moisture and corrosion.

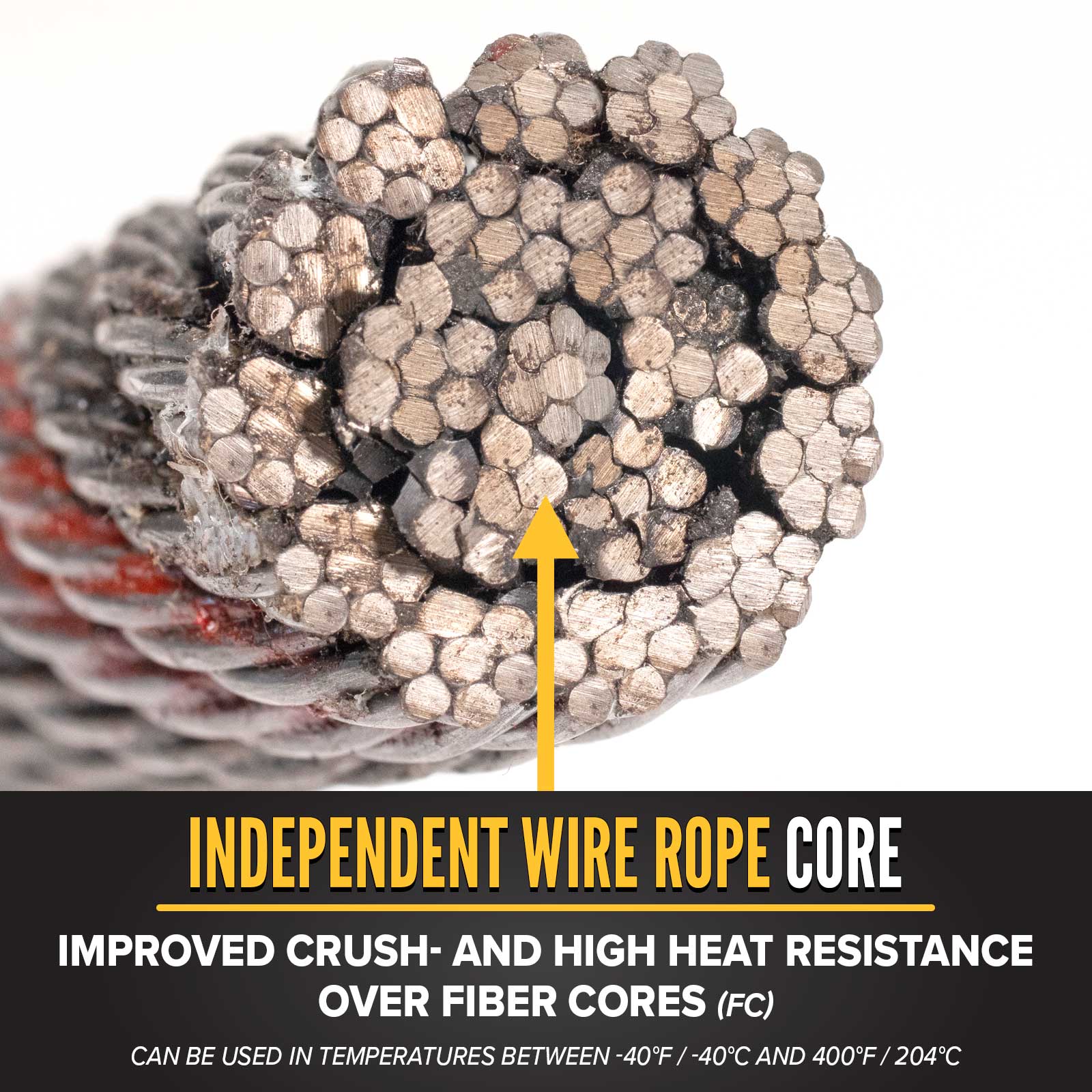

The Independent Wire Rope Core (IWRC) delivers greater support than fiber core alternatives. IWRC construction improves crushing resistance, enhances load stability, and performs reliably in temperatures ranging from -40°F to 400°F.
Key Features
- 19x7 construction provides significant rotation resistance during lifting operations
- Category 2 rotation-resistant design helps minimize load spin and twisting
- EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
- Flexible construction allows easier handling and installation
- Bright steel finish with A-1 lubricant reduces internal wear and friction
- IWRC core improves crushing resistance and structural support
- Ideal for cranes, hoists, lifting systems, and unguided load applications
- Suitable for temperatures from -40°F to 400°F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Should not be used with a swivel
- Certificate of Conformity available upon request
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
