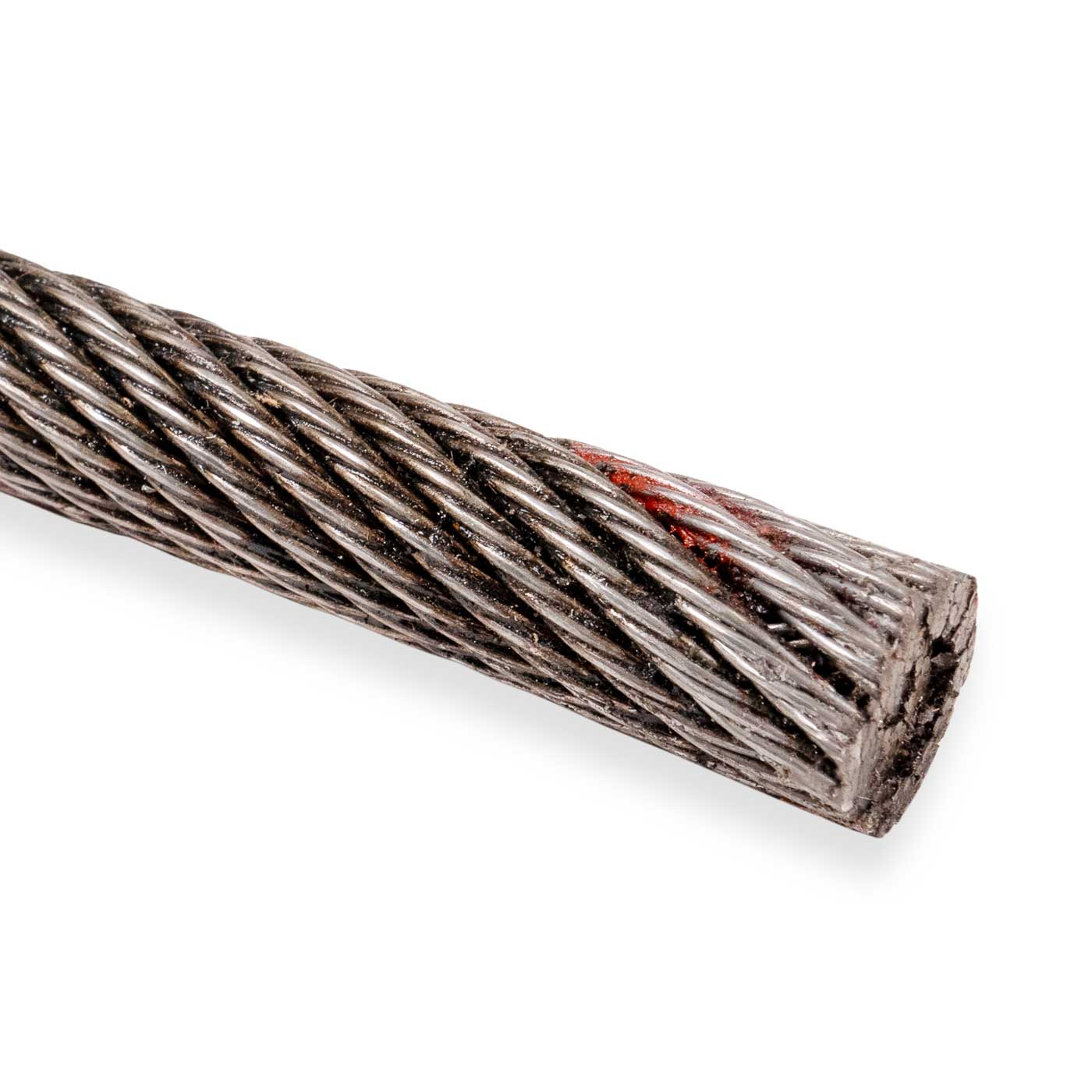

9/16" 19x7 Rotation-Resistant Wire Rope Cable

This 9/16" 19x7 rotation-resistant wire rope is designed to minimize rope rotation while under load, making it an excellent choice for hoisting unguided loads and lifting applications where load stability is critical. Manufactured from Extra Improved Plow Steel (EIPS) and featuring an Independent Wire Rope Core (IWRC), this rope delivers dependable strength, flexibility, and rotation resistance for demanding industrial operations.

Rotation-Resistant Wire Rope for Hoisting & Crane Applications

The 19x7 construction utilizes opposing strand lays, with the inner strands wound in the opposite direction of the outer strands. This design helps counteract rotational forces generated during lifting, reducing load spin and improving control during operation.

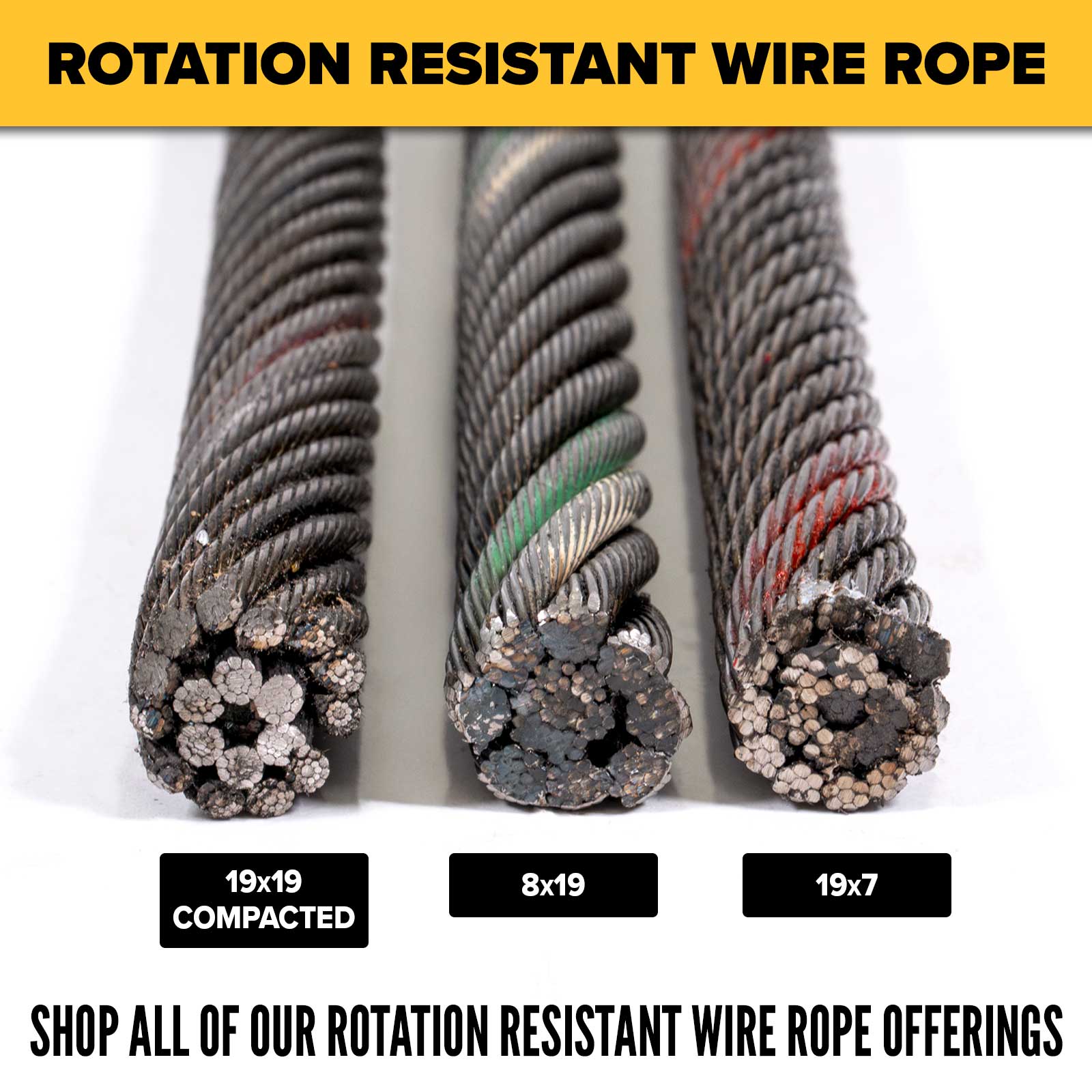

With more than 10 outer strands, this rope is classified as a Category 2 Rotation-Resistant Rope, offering significant resistance to rotation and greater spin control than Category 3 constructions such as 8x19 wire rope. Its flexible design also makes handling and installation easier while maintaining excellent lifting performance.

19x7 Wire Rope Configuration

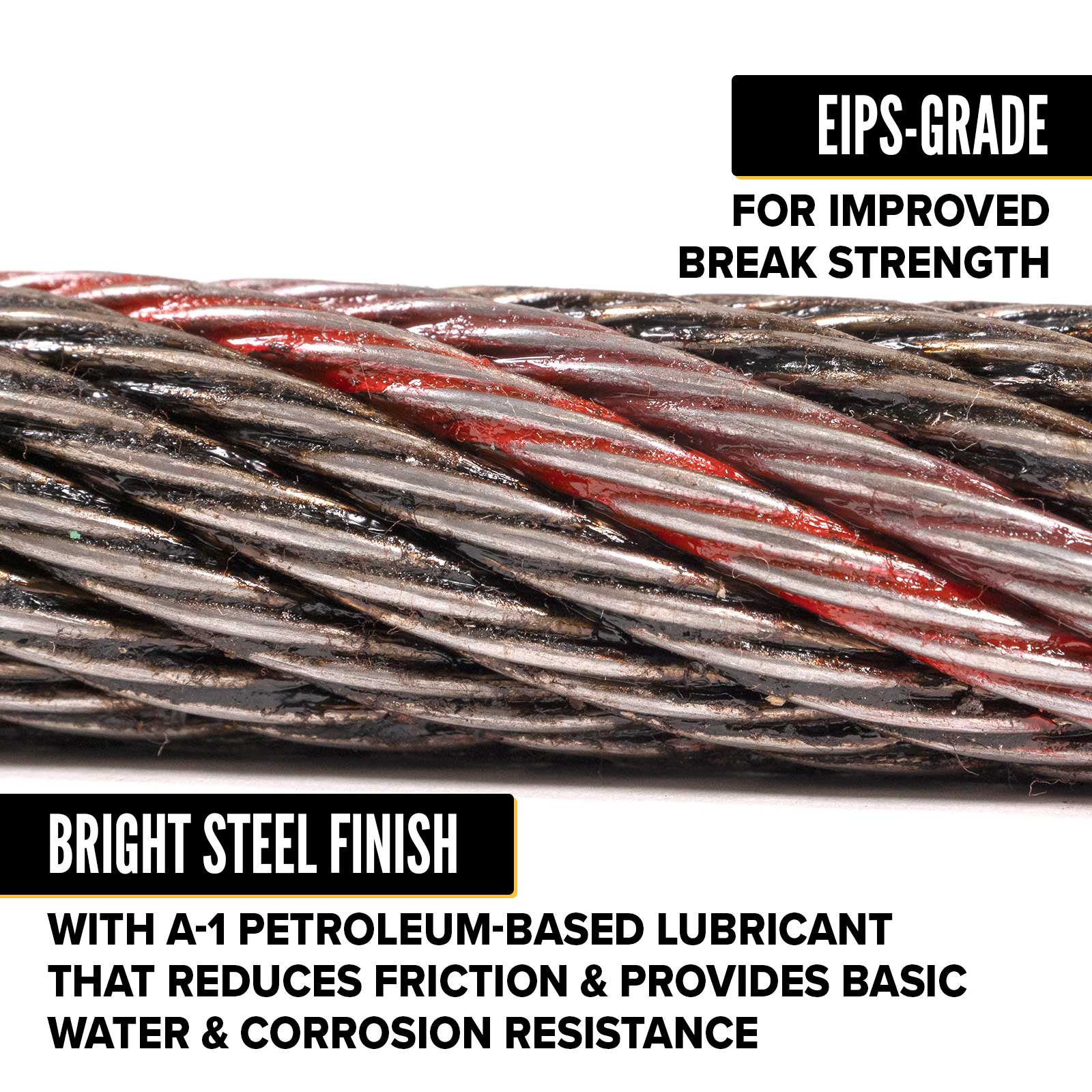

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in increased breaking strength and dependable performance under demanding loads.

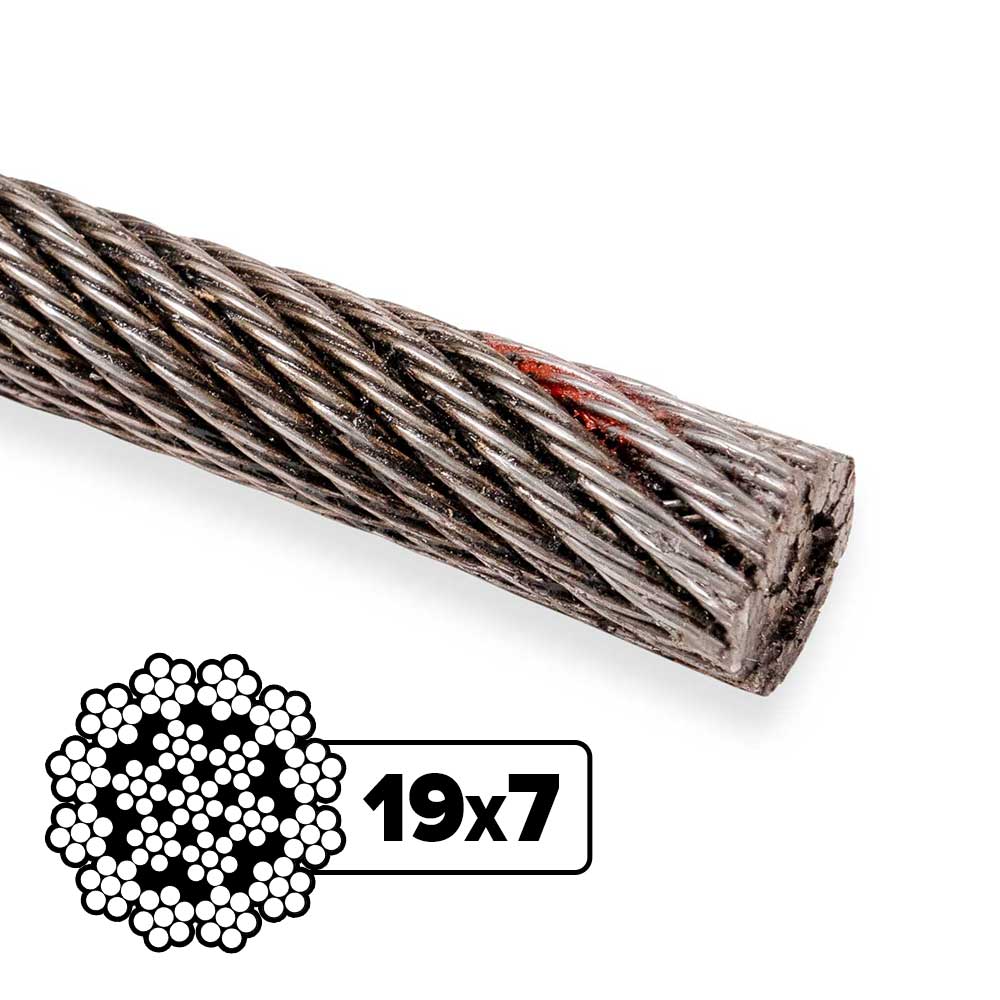

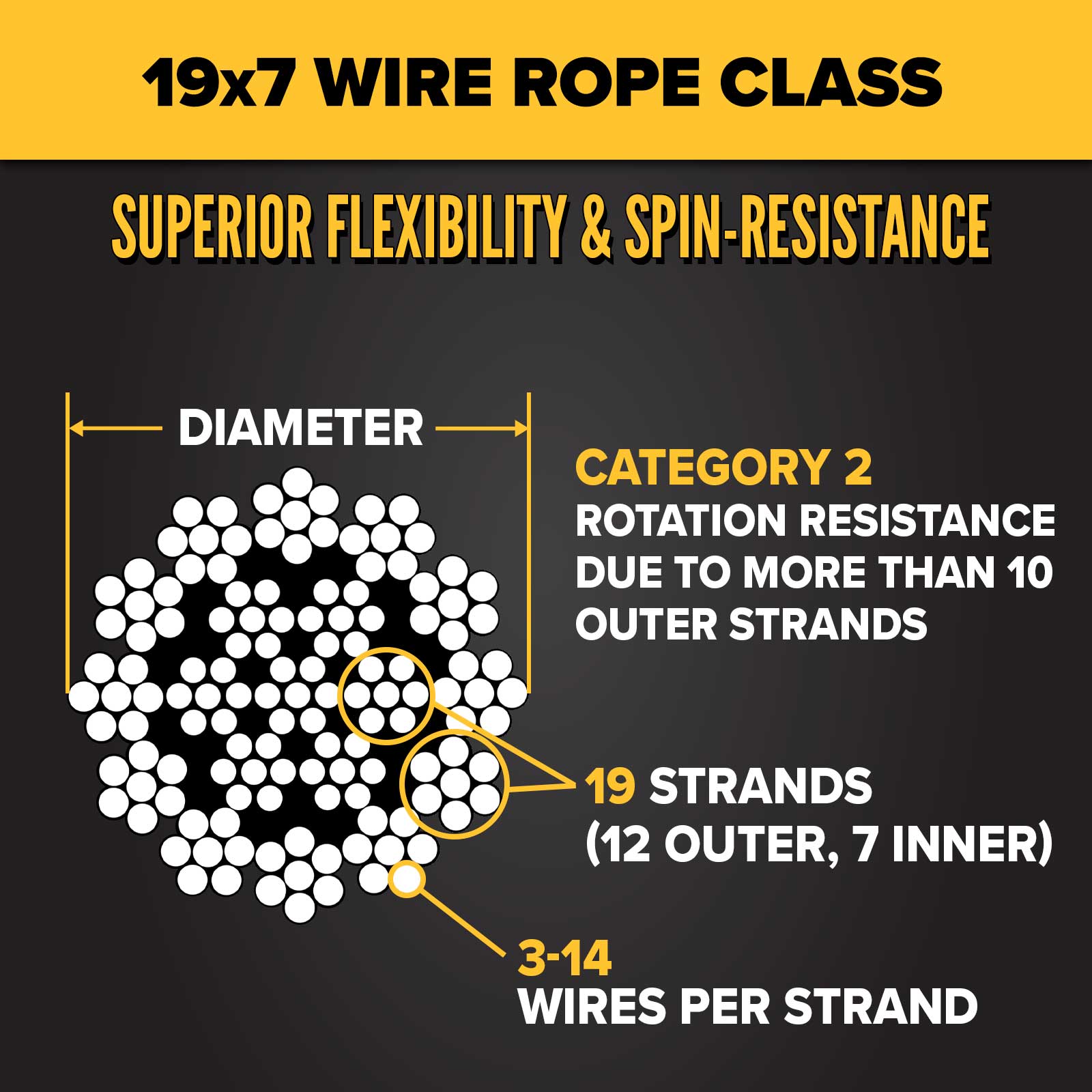

The class of this wire rope is 19x7. These numbers nominally refer to the rope construction, consisting of 19 outer strands with approximately 3-14 wires making up each strand. This configuration provides the flexibility and rotation-resistant characteristics that make it well-suited for lifting applications requiring stable load control.

Bright Finish & IWRC Construction

This wire rope features a bright steel finish protected with an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic resistance against moisture and corrosion.

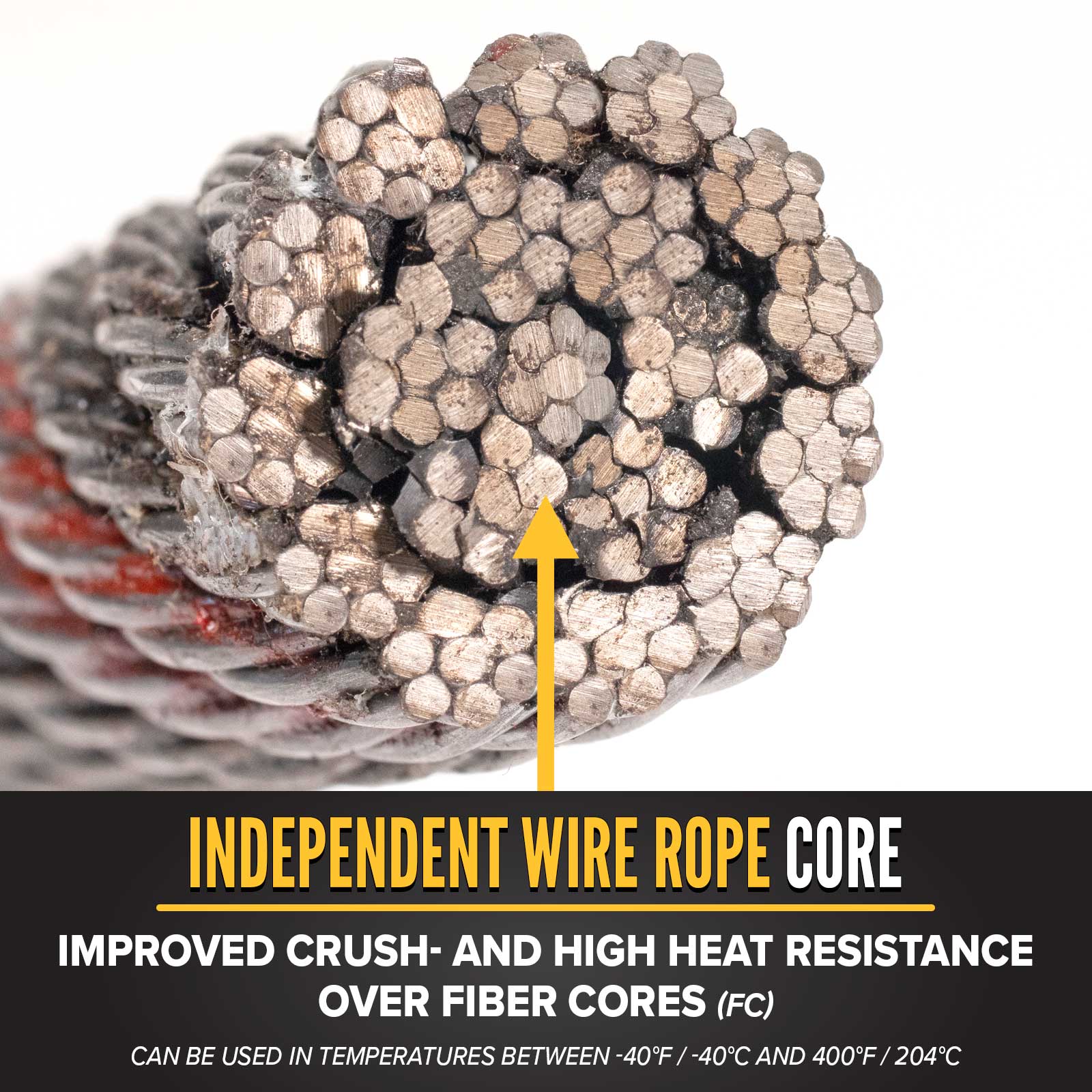

The Independent Wire Rope Core (IWRC) provides greater structural support than fiber core constructions. IWRC wire rope offers enhanced crushing resistance, improved load stability, and dependable operation in temperatures ranging from -40°F to 400°F.

Key Features

• EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
• 19x7 construction provides flexibility and easy handling
• Category 2 rotation-resistant design offers significant resistance to load rotation
• Designed for hoisting unguided loads and lifting applications requiring load stability
• Bright finish with A-1 lubricant reduces friction and internal wear
• Lubricant applied to internal and external wires for added protection
• IWRC core improves crushing resistance and load support
• Provides greater spin resistance than Category 3 rotation-resistant ropes
• Ideal for crane operations, hoisting systems, and lifting equipment
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Should not be used with a swivel
• Imported from a vetted supplier
• Certificate of Conformity available upon request
• Available by the foot for project-specific lengths

Wire Rope by the Foot Ordering FAQ

Will my wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.

Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.

Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
