7/8" 6x37 Wire Rope Cable | Bright Steel

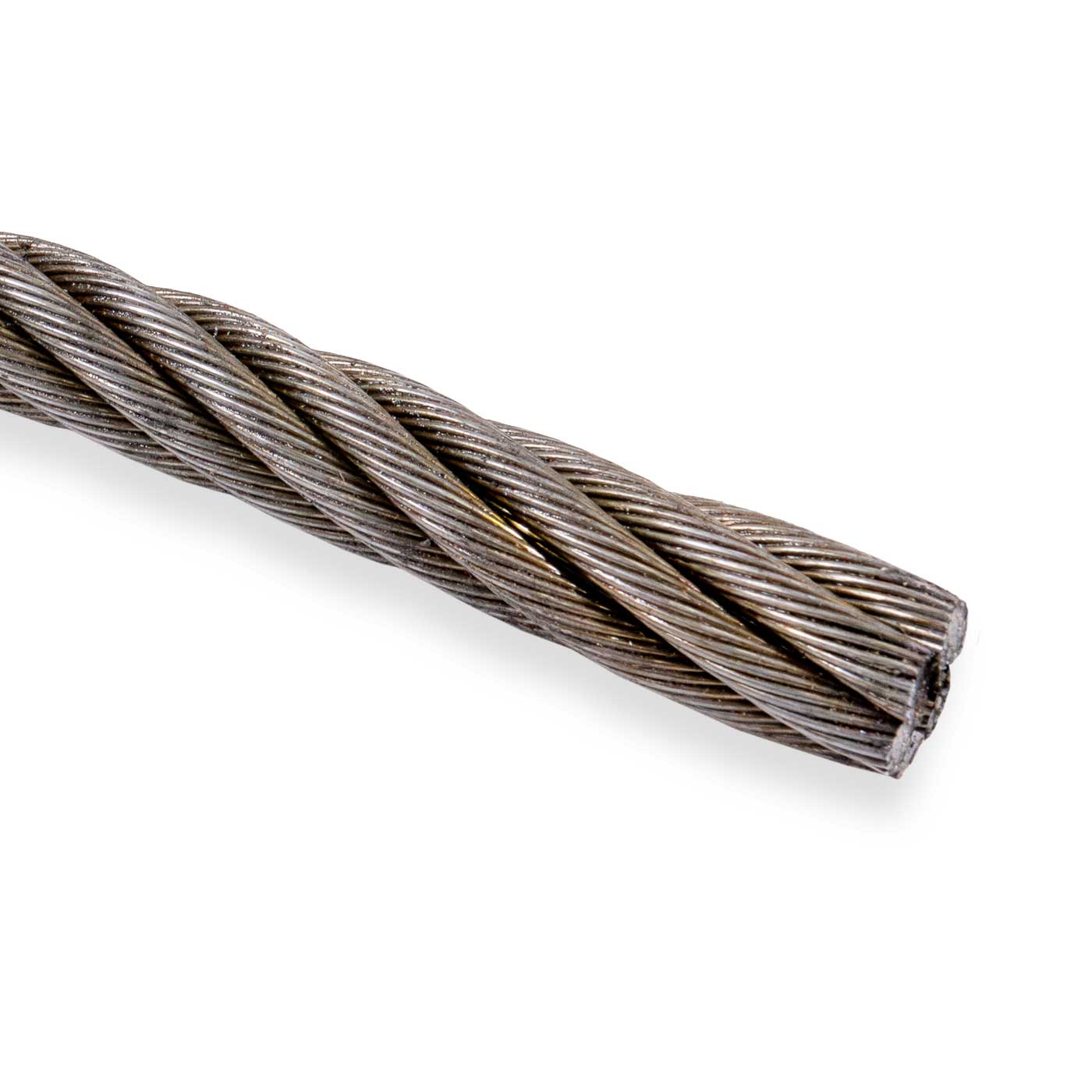

This 7/8" bright steel wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a flexible 6x37 class construction. Designed for applications requiring repeated bending and reliable performance, this wire rope is commonly used for hoisting, suspension systems, winch lines, lifting equipment, and general rigging applications where flexibility and fatigue resistance are critical.

Flexible Wire Rope for Hoisting, Rigging & Winch Applications

The 6x37 class is known for its superior flexibility and fatigue resistance compared to 6x19 wire rope. Its higher wire count allows the rope to bend more easily around sheaves, drums, and pulleys while reducing the likelihood of wire fatigue during repeated movement.

This makes 6x37 wire rope an excellent choice for applications where flexibility and long service life under cyclical loading are more important than maximum abrasion resistance.

6x37 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable performance under heavy loads.

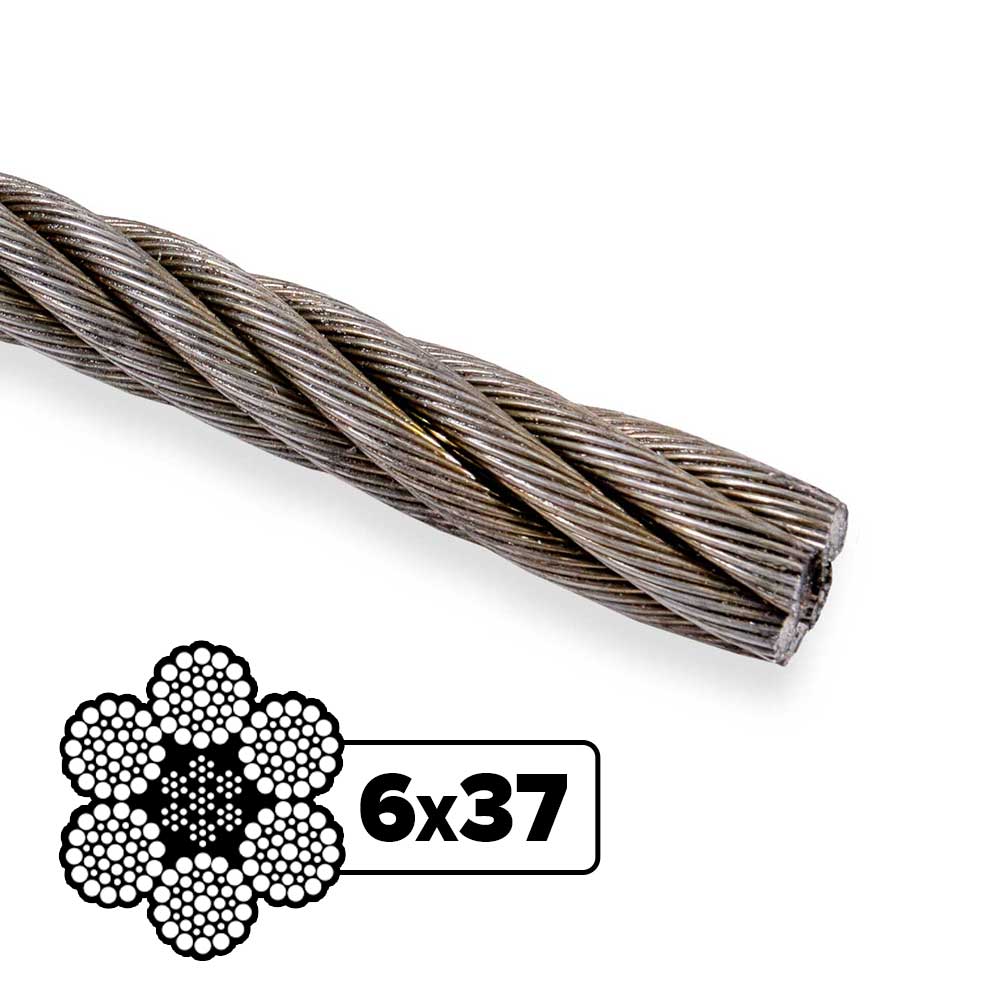

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 27-49 wires making up each strand. The actual construction supplied is 6x36, which falls within the 6x37 classification and delivers the same flexibility and fatigue-resistant characteristics expected from this class of wire rope.

Bright Finish & IWRC Construction

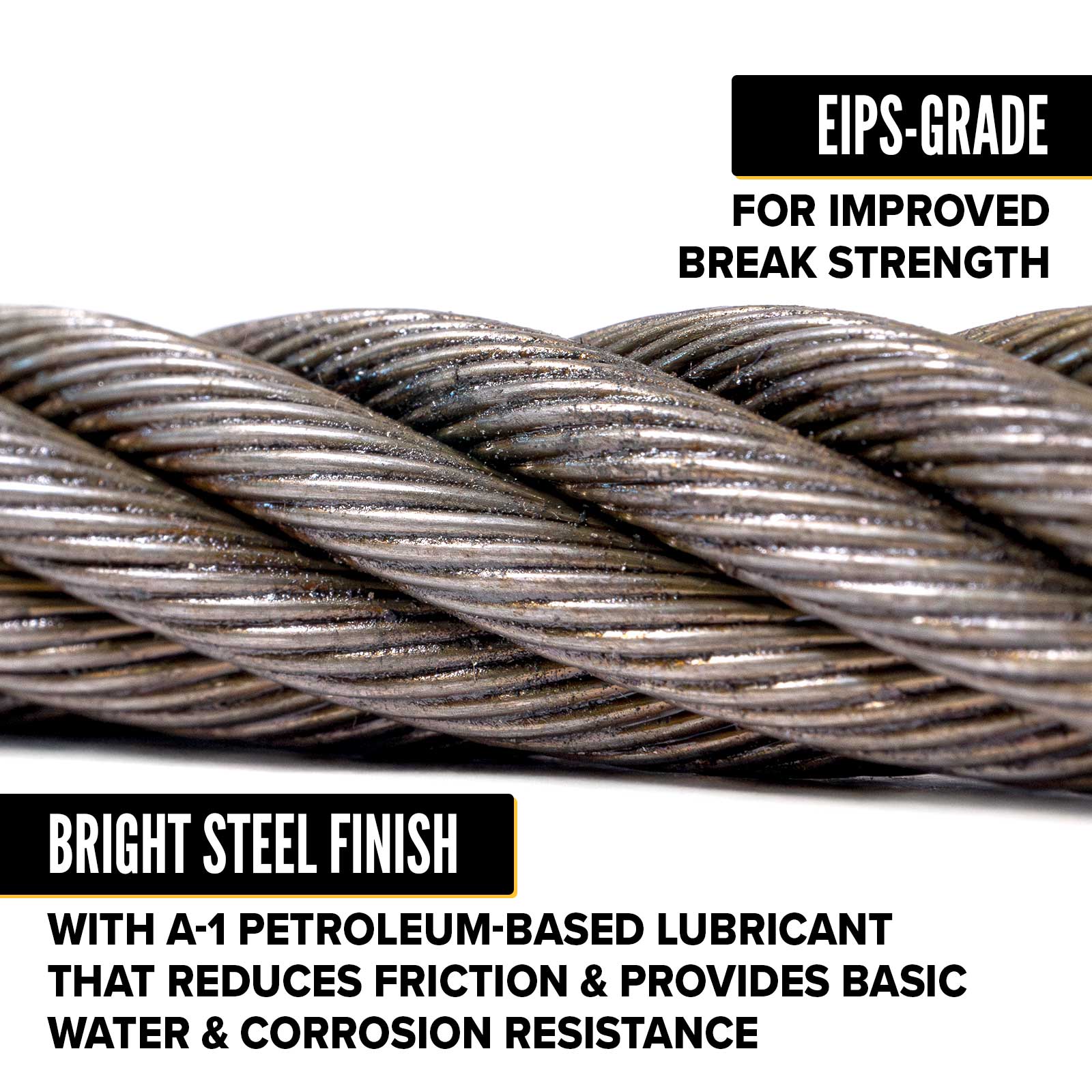

This wire rope features a bright steel finish protected with an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic resistance against moisture and corrosion.

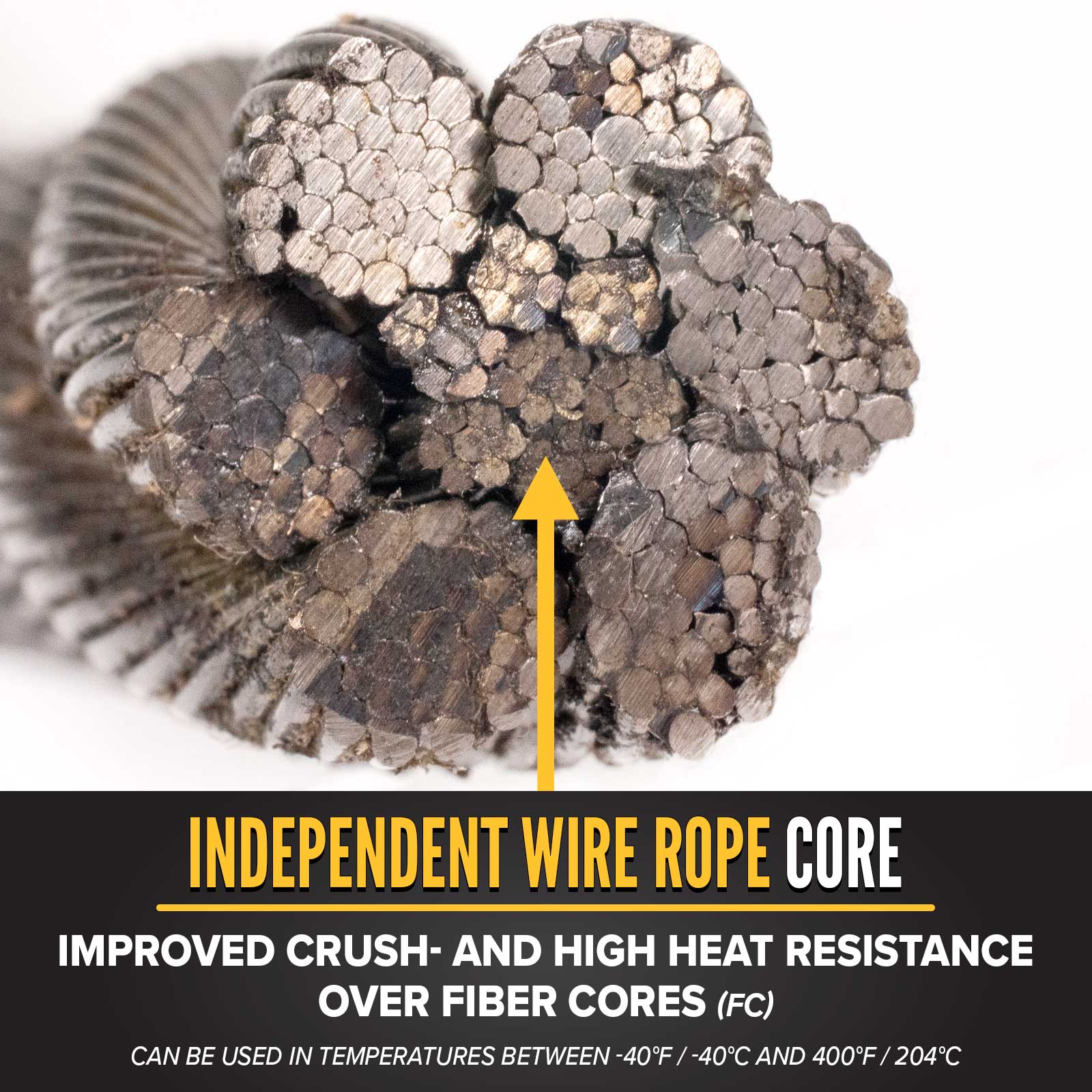

The Independent Wire Rope Core (IWRC) provides greater structural support than fiber core constructions. IWRC wire rope offers enhanced crushing resistance, improved load stability, and dependable performance in temperatures ranging from -40°F to 400°F.

Key Features

• EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
• 6x37 class construction provides exceptional flexibility and fatigue resistance
• Actual rope construction supplied is 6x36
• Performs exceptionally well in repetitive bending applications
• Bright steel finish with A-1 lubricant reduces friction and internal wear
• Lubricant applied to both internal and external wires for enhanced protection
• IWRC core improves crushing resistance and load support
• Ideal for hoisting, suspension systems, winch lines, and rigging applications
• More flexible and fatigue-resistant than comparable 6x19 wire rope constructions
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Imported from a vetted supplier
• Certificate of Conformity available upon request
• Available by the foot for project-specific lengths

Wire Rope by the Foot Ordering FAQ

Will my wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.

Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.

Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
