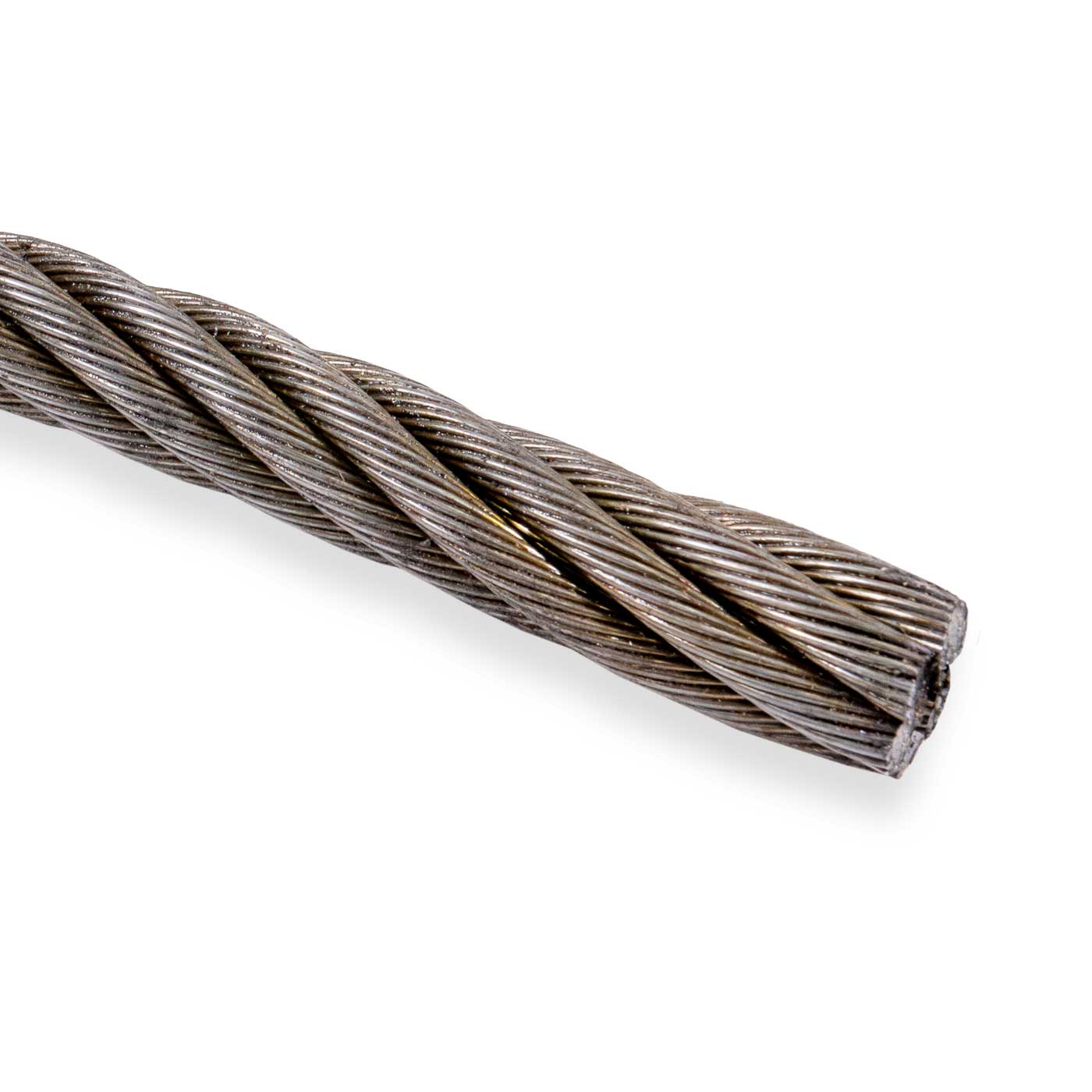

9/16" 6x37 Wire Rope Cable | Bright Steel

This 9/16" bright steel wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a 6x37 class construction designed for maximum flexibility and fatigue resistance. Commonly used in hoisting systems, suspension cables, winch lines, and other dynamic lifting applications, this wire rope performs exceptionally well where repeated bending and movement are required.

Flexible Wire Rope for Hoisting, Suspension & Winch Applications

The 6x37 class is a popular choice for applications that demand flexibility and long service life under repeated bending. Compared to 6x19 wire rope, the 6x37 construction offers greater flexibility and improved fatigue resistance, allowing it to bend repeatedly over sheaves and drums with less wear. While it provides less abrasion resistance than 6x19 constructions, it excels in dynamic operating environments.

6x37 Wire Rope Configuration

Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable performance under load.

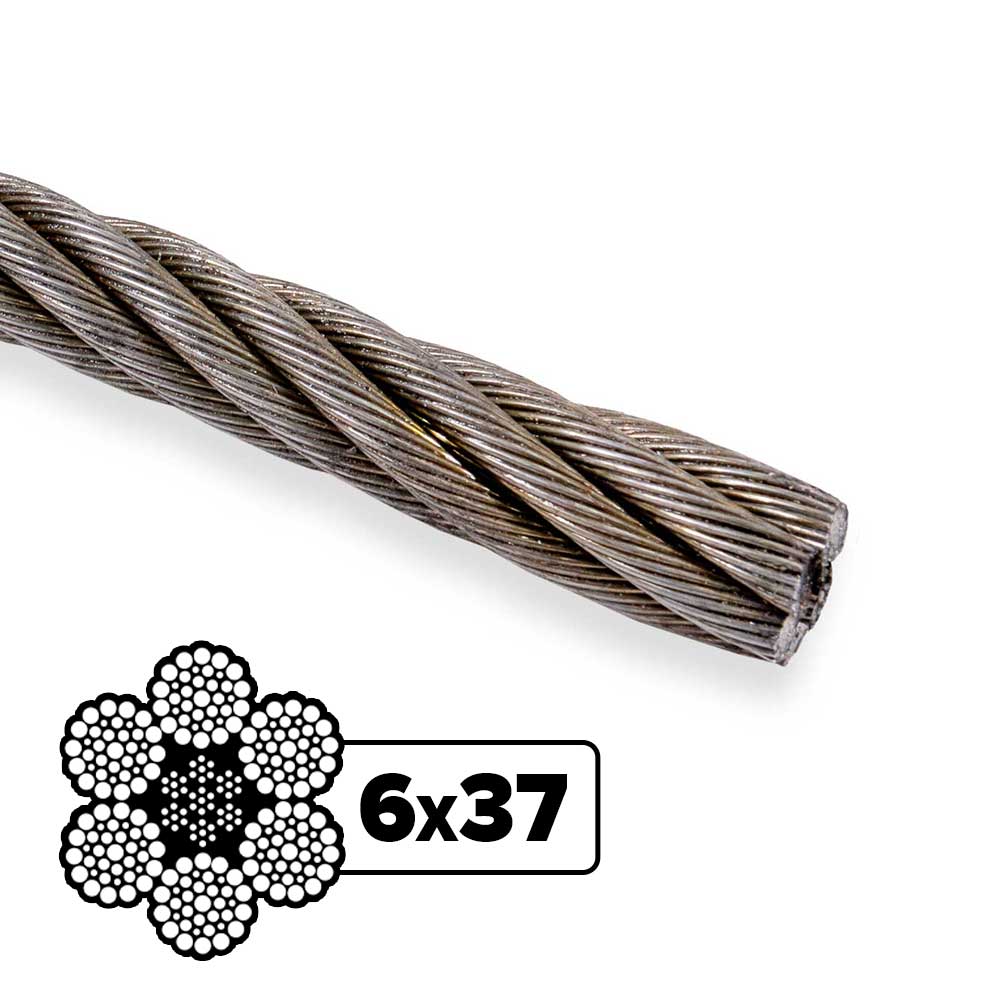

The class of this wire rope is 6x37. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 27-49 wires making up each strand. The actual construction supplied is 6x36. If you require a different construction, please contact our team.

Bright Finish & IWRC Construction

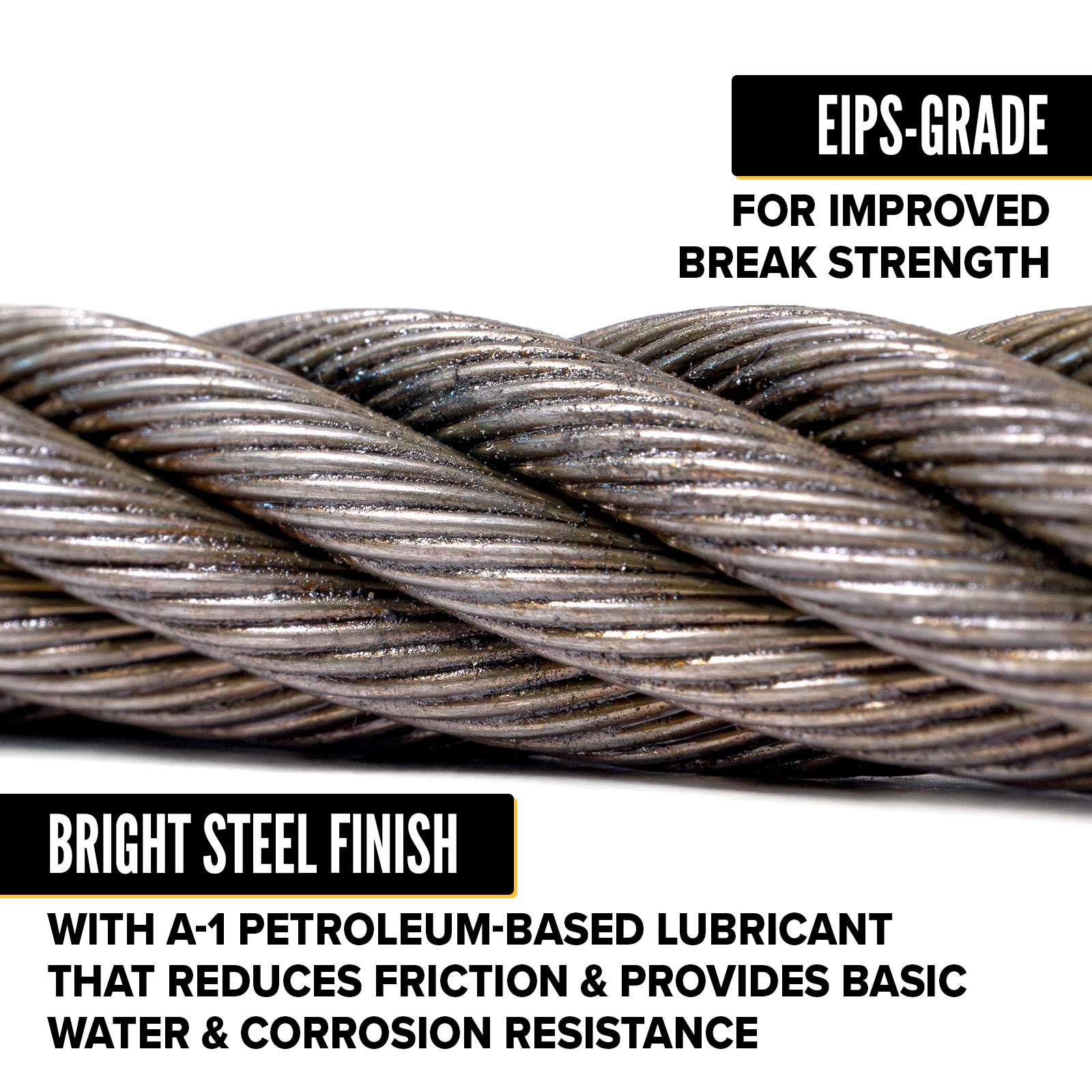

This wire rope features a bright steel finish protected by an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce internal friction, minimize wear, and provide basic resistance against moisture and corrosion.

The Independent Wire Rope Core (IWRC) offers greater support than fiber core alternatives. IWRC construction improves crushing resistance, enhances load stability, and performs reliably in temperatures ranging from -40°F to 400°F.

Key Features

• EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
• 6x37 class construction provides exceptional flexibility and fatigue resistance
• Actual rope construction supplied is 6x36
• Designed for repeated bending and dynamic load applications
• Bright finish with A-1 petroleum-based lubricant reduces friction and internal wear
• Lubricant applied to internal and external wires for enhanced protection
• IWRC core improves crushing resistance and load support
• Ideal for hoisting systems, suspension cables, winch lines, and lifting applications
• More flexible and fatigue-resistant than comparable 6x19 wire rope
• Temperature range from -40°F to 400°F
• Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
• Imported from a vetted supplier
• Certificate of Conformity available upon request
• Available by the foot for project-specific lengths

Wire Rope by the Foot Ordering FAQ

Will my wire rope arrive as one continuous length?
Yes. The quantity you order will be supplied as one continuous, uncut length of wire rope. For example, if you order a quantity of 1,000, you will receive a single 1,000-foot length.

Can I order multiple separate lengths?
Yes. To receive multiple lengths, add each length to your cart as a separate line item. For example, if you need two 1,500-foot lengths, enter a quantity of 1,500 and add it to your cart twice. Each line item will be cut and supplied as a separate length.

Can I order lengths shorter than the minimum order quantity if the combined total exceeds the minimum?
Yes. If your combined order will exceed the minimum quantity requirement but you need shorter individual lengths, please call our team to place your order. One of our product experts will be happy to assist.

Accessories & More

Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
