SKU: CASLB2000-2

Caldwell 1 Ton x 1 - 2' Adjustable Lifting Beam | Dura-Lite 416-1-2

Regular price $2,74500

Description

Off-center loads and mixed load types are where fixed lifting points fall short, which is why this Caldwell Dura-Lite adjustable lifting beam is built to move. Its adjustable lug positions let you dial in the pick point for the actual center of gravity of the load in front of you, instead of forcing every lift into the same fixed geometry. Constructed from a fiber-reinforced polymer composite instead of steel, it is noticeably lighter to handle than a comparable steel beam, and it will not corrode or conduct electricity, which makes it a strong fit for marine environments and jobsites where sparking near live equipment is a concern.

Key Features

  • Adjustable lifting points: Reposition the beam's attachment points to compensate for off-center loads and shifting centers of gravity.
  • Lightweight composite construction: A fiber-reinforced polymer composite that is easier on riggers to handle than steel, without giving up strength.
  • Non-corrosive and non-conductive: Suited to marine environments and jobsites where sparking is a hazard.
  • Wear-resistant hardware: Lug attachment holes are fitted with steel bushings, and an acrylic polyurethane finish adds UV protection.
  • Rated for 2 million duty cycles at capacity when used as intended.

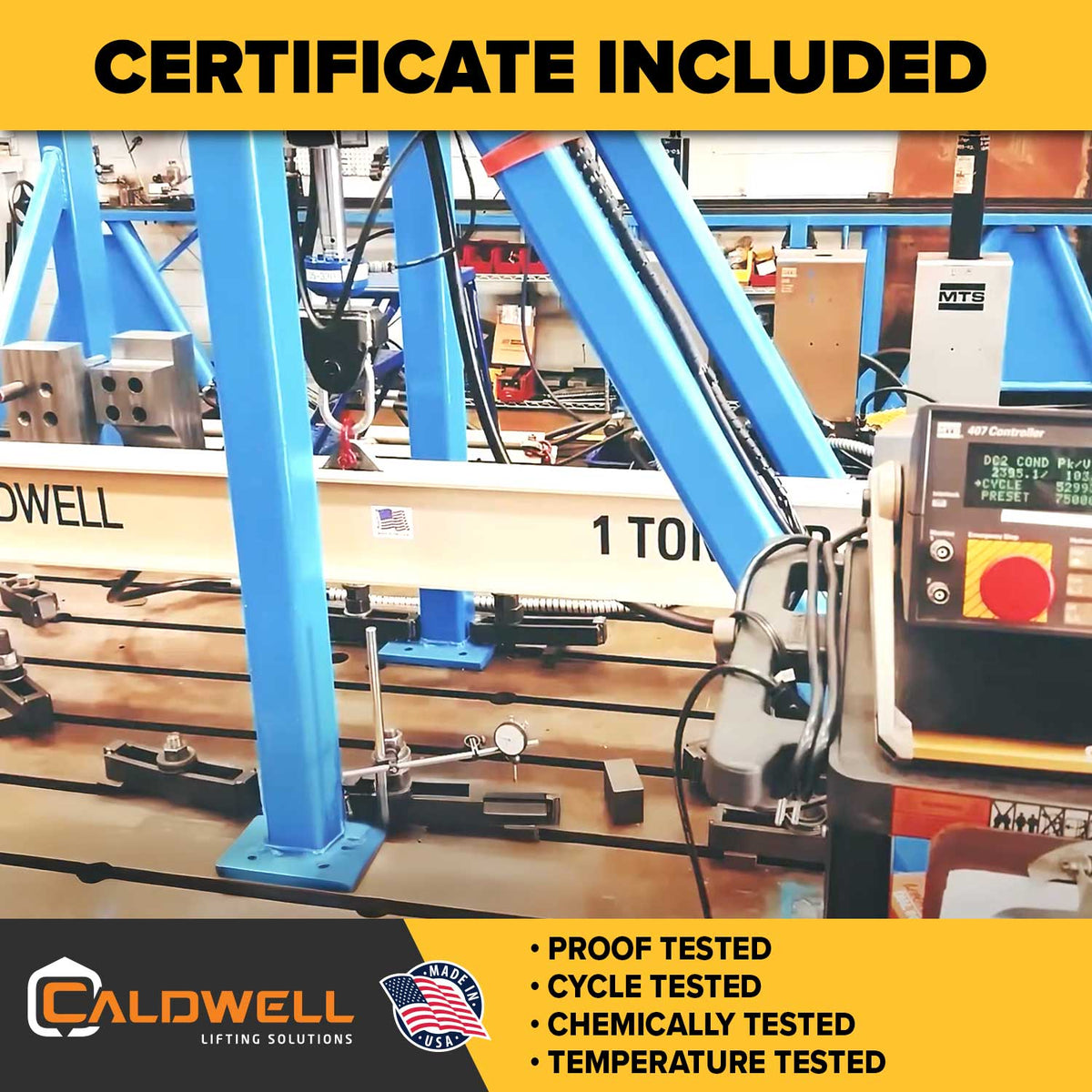

  • Proof-tested to 200% of rated capacity, with certification paperwork included.
  • Top link and bottom swivel latch hooks included for a complete rigging connection.
  • Industry-compliant: Conforms to ASME B30.9, BTH-1, and B30.20 requirements, design category B, service class 4.
  • Backed by a 2-year limited manufacturer's warranty.

Applications

  • Adjustable lifting beam use where load size, shape, or balance point changes from lift to lift.
  • Marine and offshore rigging where corrosion resistance matters.
  • Jobsites near flammable materials or live electrical equipment where a non-conductive beam reduces spark risk.
  • Caldwell lifting beam applications where crews want to keep beam weight down without sacrificing capacity.

Specifications

Working Load Limit (lbs.): 2,204
Safety Factor: 3:1
Rated For Overhead Lifting: Yes
Throat Opening: 0.91"
Spread: 1' - 2'
Bail Dimensions: Inside Width: 2.8"
Inside Length: 4.5"
Diameter: 0.62"
End Fitting: Bottom Swivel Latch Hooks & Top Link Included
Material: Fiber-Reinforced Polymer Composite
Finish: Acrylic Polyurethane
Item Weight: 18 lbs.
Standards: Complies with ASME B30.9, BTH-1, and B30.20, design category B, service class 4 regulations.
Manufacturer Name: Caldwell
Manufacturer Part Number: 416-1-2
Shipping and Returns: This item ships complete with proof testing certificate; it cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (tons): 1
Headroom: 20.4"
Bail Adjustment Length: 6"
Bail Adjustment Increments: 3"
