FallTech 8' Confined Space Tripod Kit with Winch & 3-Way SRL-R | 7509
Specifications
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connectors: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
SRL-R Housing / Drum: Machined aluminum alloy
Personnel Winch Drive / Drum Gears: Plated alloy steel
ANSI Personnel Capacity: 130-310 lbs.
OSHA User Capacity: 130-310 lbs.
Material Capacity: 620 lbs.

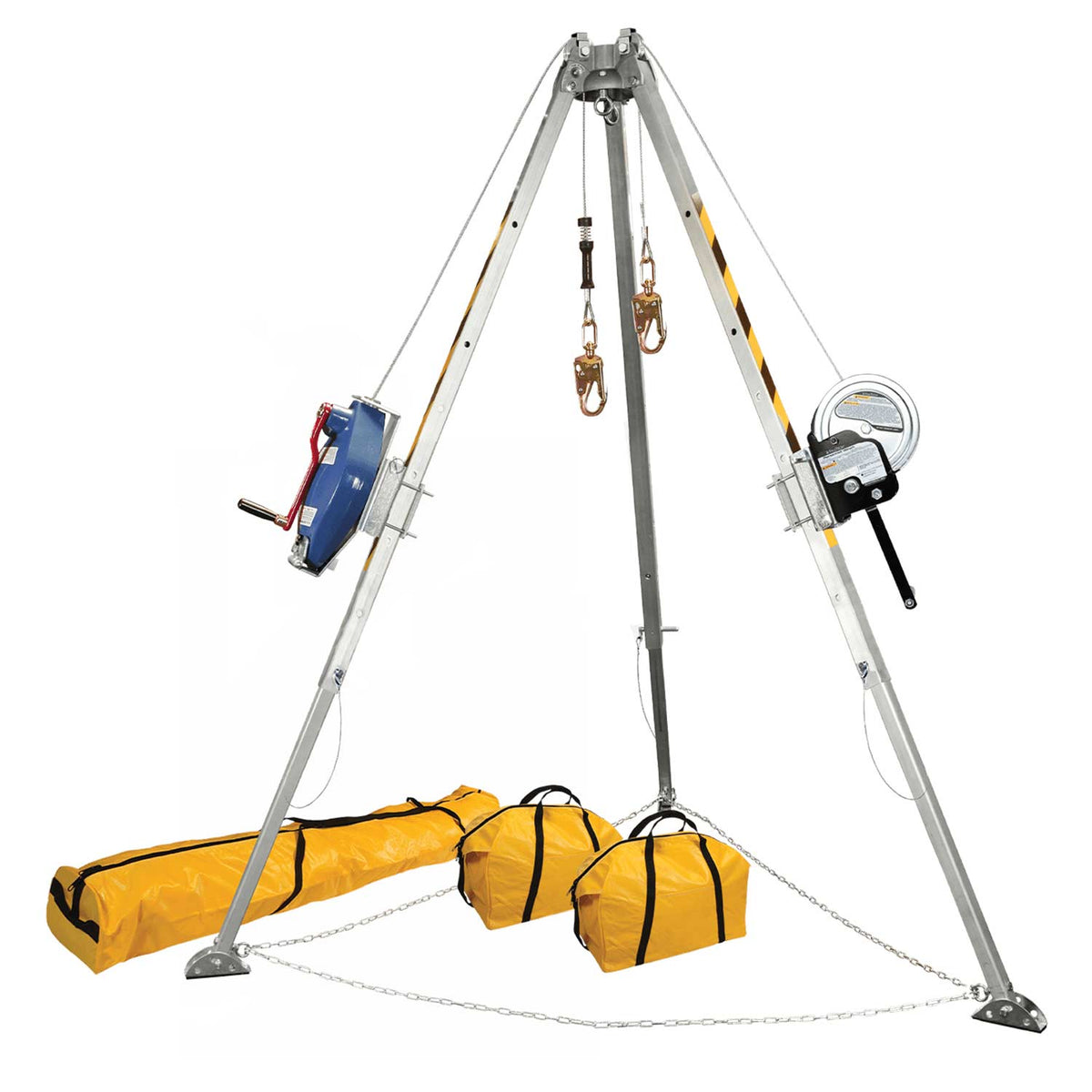

This 8' aluminum tripod kit gives you a complete confined space entry, exit, and rescue setup in one package: tripod, 3-way SRL-R, and personnel winch, all built to work together. It's rated for personnel movement only, not material handling, and it's built to adjust to a range of openings and ground conditions on site.
Key Features
- 2-stage telescoping legs adjust from 5' to 8' in 6" increments, giving an internal working height of 55" to 81"
- Auto-leveling feet with a rubber pad and spiked edge, built for hard or soft surfaces
- Dual pulleys with covers for smooth cable payout and retraction, plus two auxiliary eyebolts under the head assembly for mounting additional devices
- 3-way SRL-R functions as both a self-retracting lifeline and a retrieval winch, with corrosion-resistant housing, 3/16" galvanized steel cable, a load-indicating swivel snap hook, and an inertial braking system
- SRL-R rated to 3,000 lb. min. static strength, ANSI SRL Class B, 1,125 lb. avg. arrest force, 1,800 lb. max arrest force, and 54" max arrest distance
- Personnel winch (for entering and exiting confined spaces only, not material handling) with a secondary braking system, 3/16" galvanized steel cable, alloy steel swivel snap hook, 30 lbs. max handle operation force, 12' per minute average lifting speed, and a folding handle for storage
- Kit includes a 60' personnel winch, 60' self-retracting lifeline for rescue and retrieval, two leg bracket assemblies, a leg safety chain, a 70" tripod bag, and two 20" weather-resistant device bags
Applications
- Confined space entry and exit for personnel
- Rescue and retrieval operations in tanks, vaults, manholes, and similar spaces
- Sites that need both a self-retracting lifeline and a retrieval winch on one tripod-mounted system
- Work areas with uneven or mixed ground conditions where auto-leveling feet are needed
