SKU: FS-5145-60-E/G

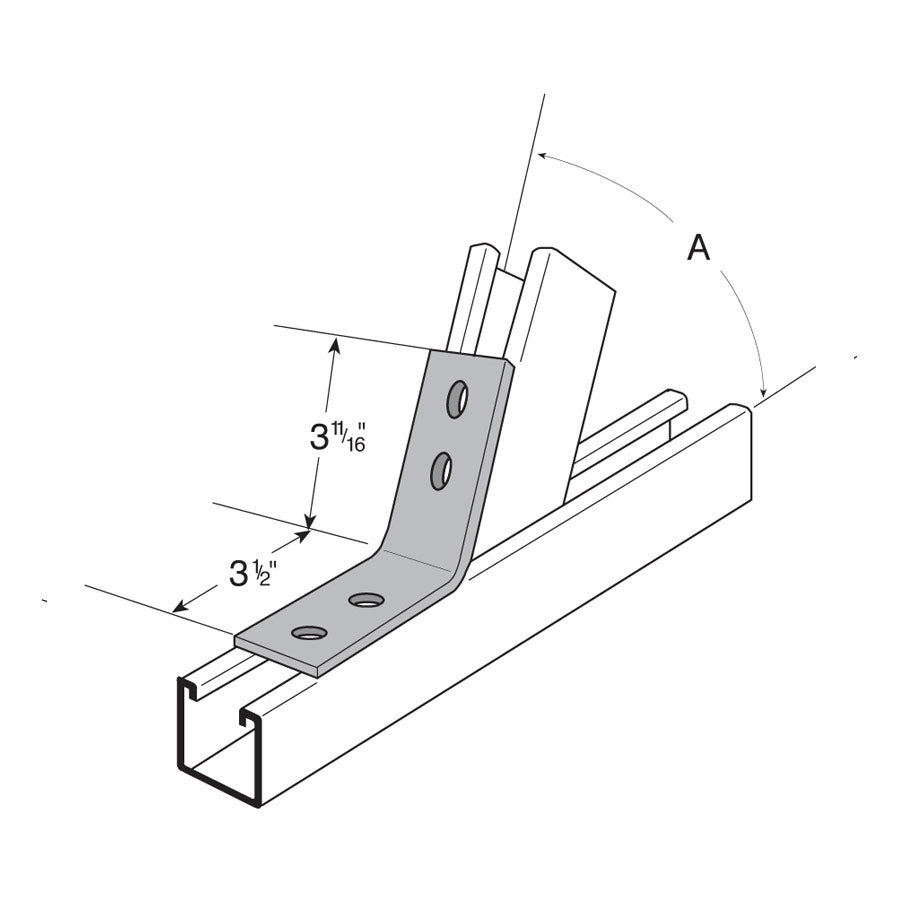

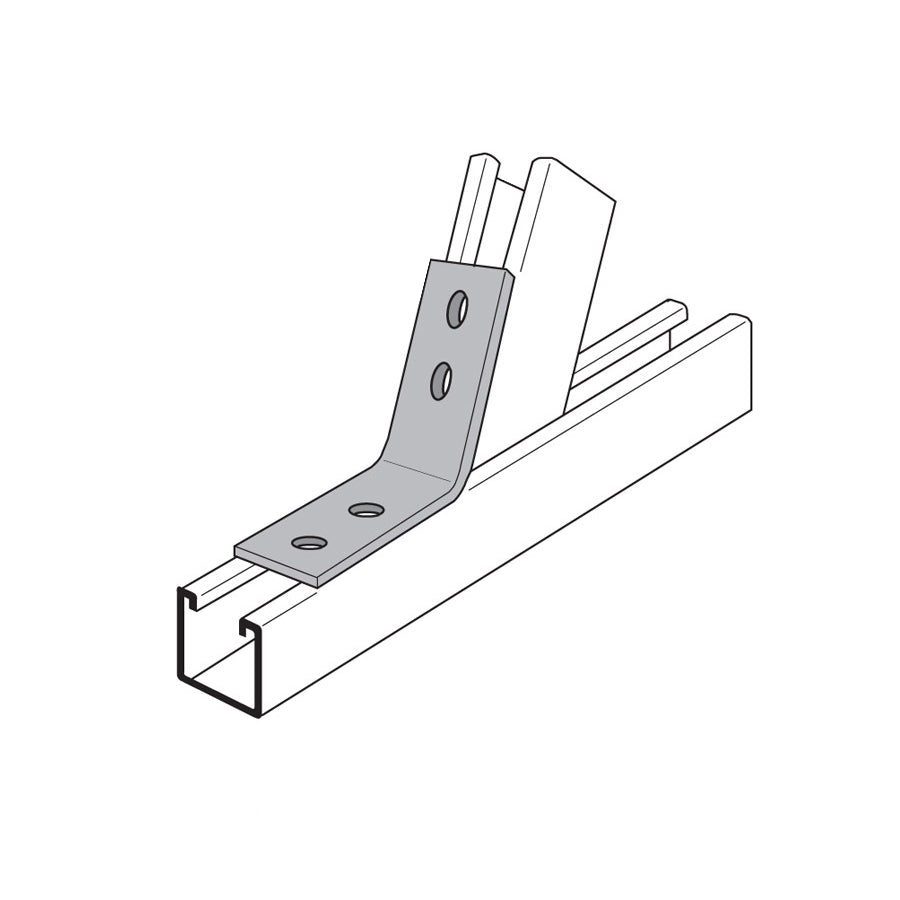

FS-5145-60 E/G 4-Hole 60 Degree Strut Angle - Electro-Galvanized
FS-5145-60 E/G 4-Hole 60 Degree Strut Angle - Electro-Galvanized
No reviews
Regular price
$5.10
Sale price
$5.10
Regular price
Unit price
/
per
0% off
Call to Order
Payment methods
Accepted payments:
Minimum $100 Purchase on Special Order FlexStrut Items - Call 888-794-1590 To Place Your Order
Ships in 7-14 business days.
Ships in 7-14 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 319-382-8794.
Description:
Description:
FS-5145-60 E/G 4-Hole 60 Degree Angle - Electro-Galvanized fittings connect strut channel at the corners and joints. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
