SKU: FS-5120-E/G

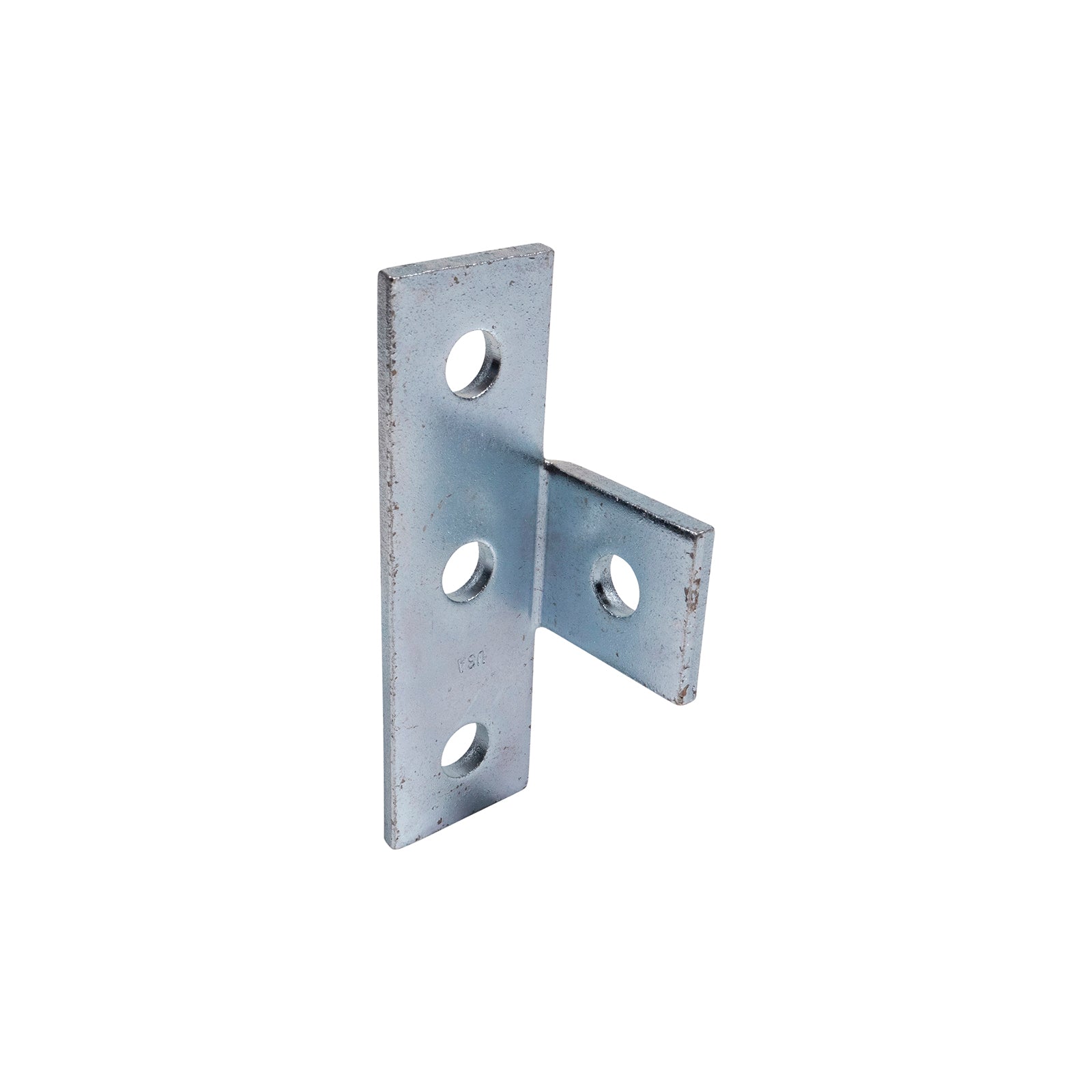

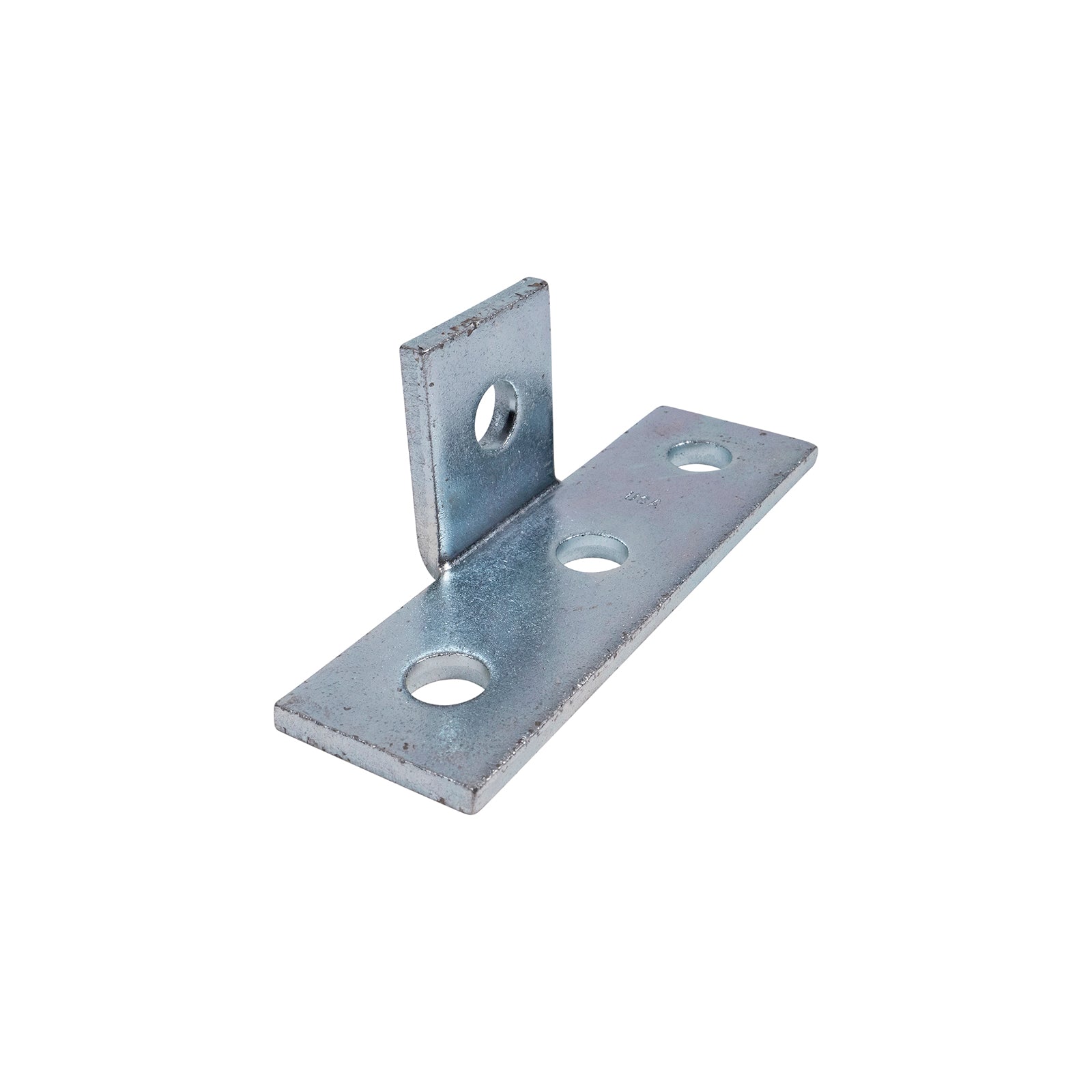

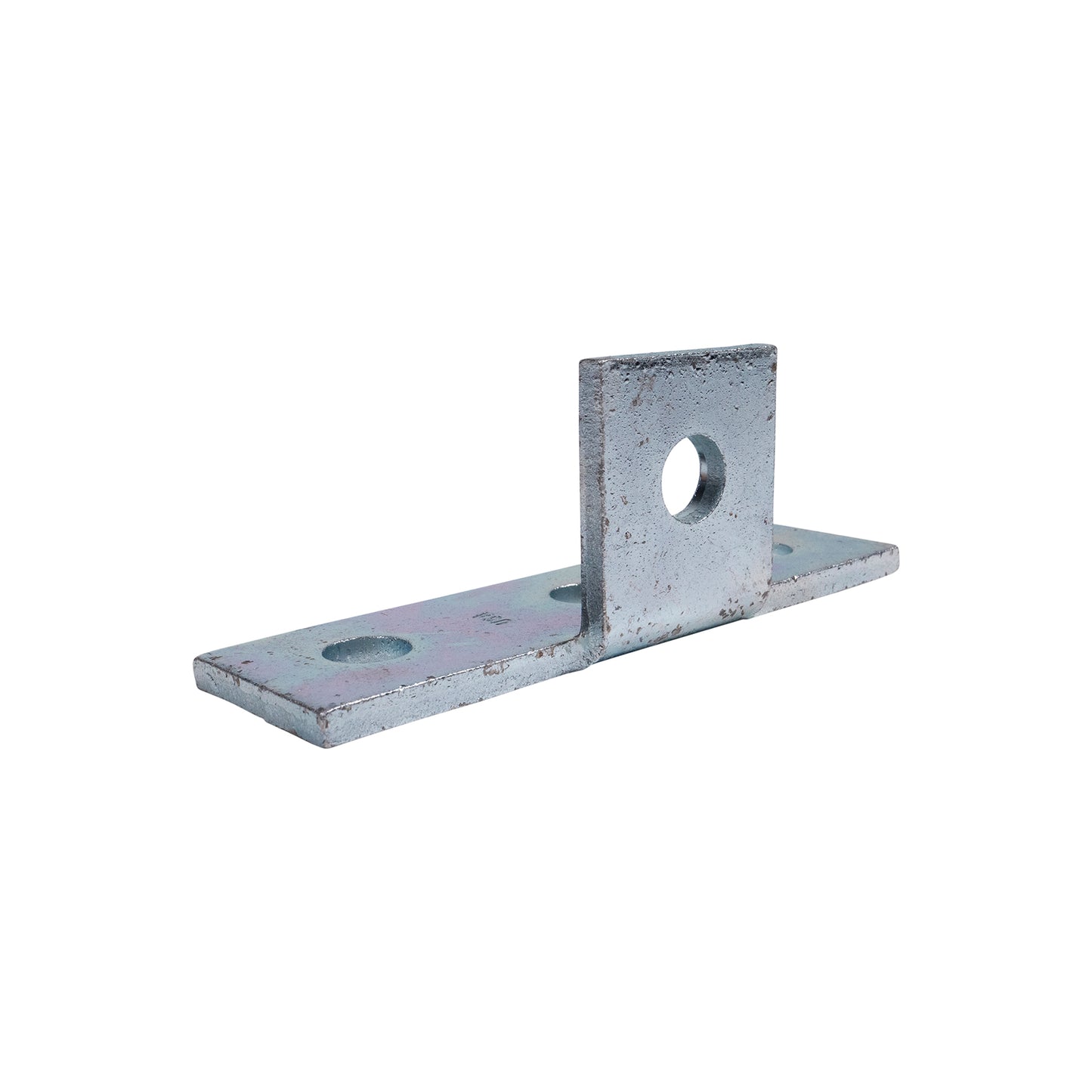

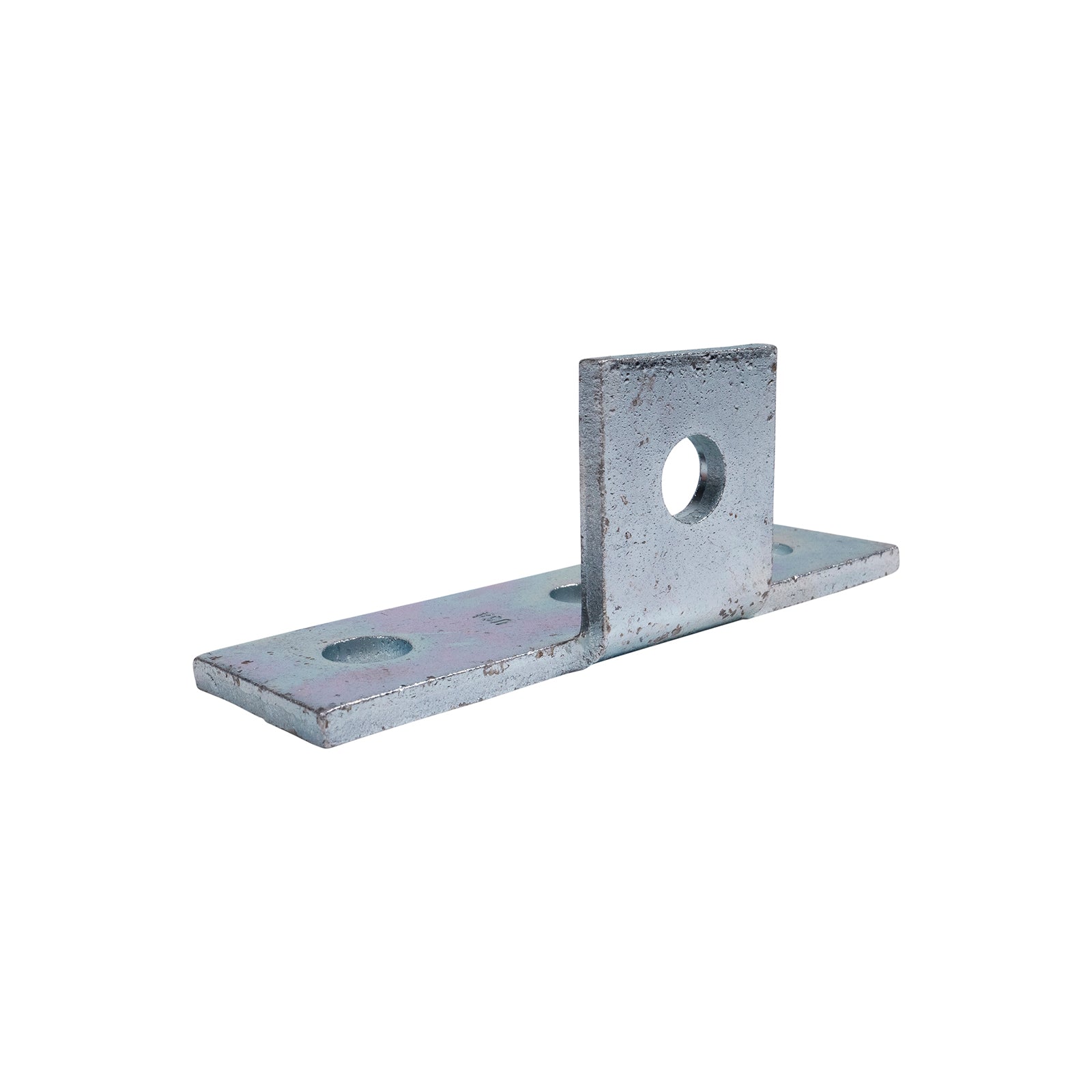

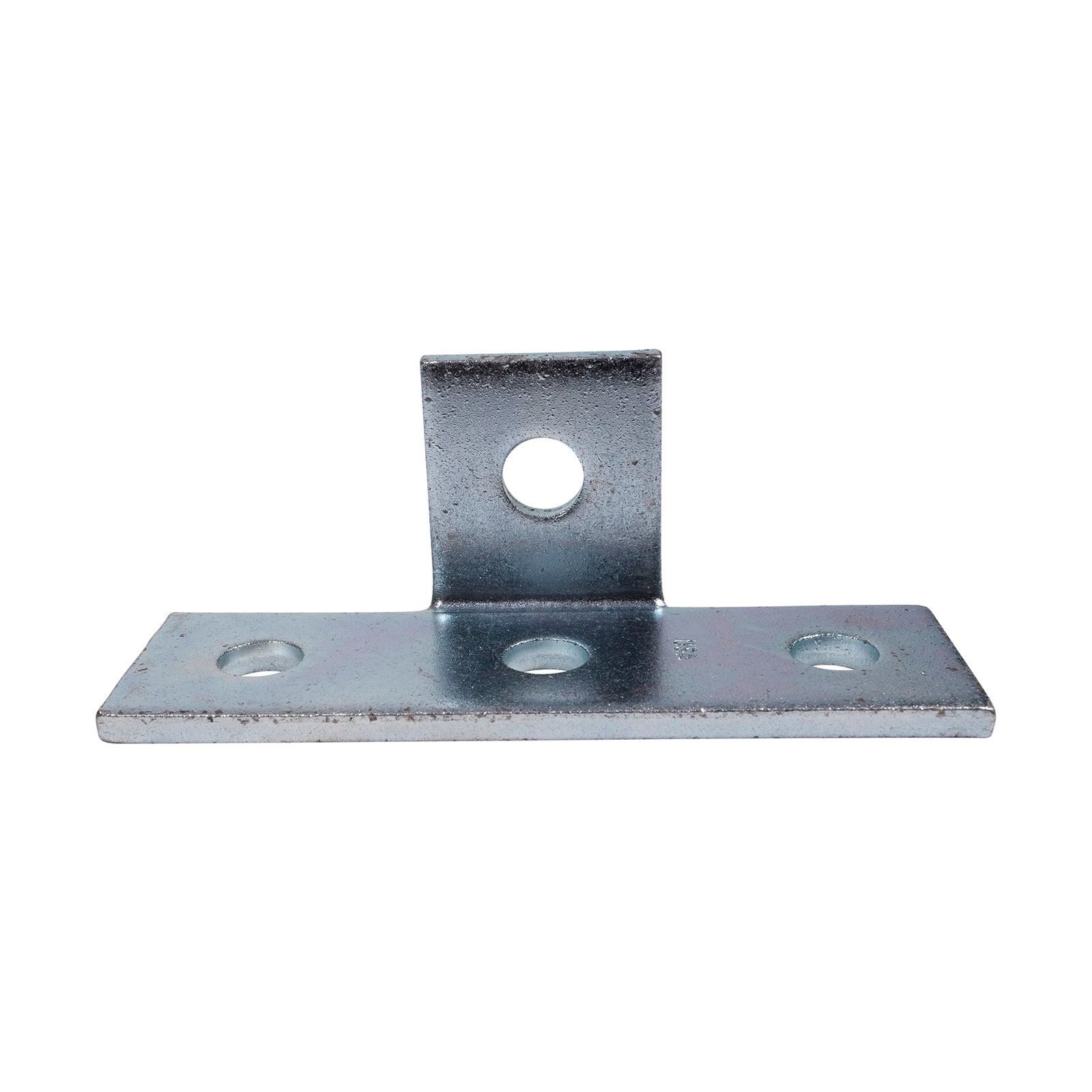

90 Degree Tee Strut Angle - Electro-Galvanized
90 Degree Tee Strut Angle - Electro-Galvanized
No reviews
Regular price
$11.71
Sale price
$11.71
Regular price
Unit price
/
per
0% off
Payment methods
Accepted payments:
Ships today when you order in the next
57 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.
Description:
Description:

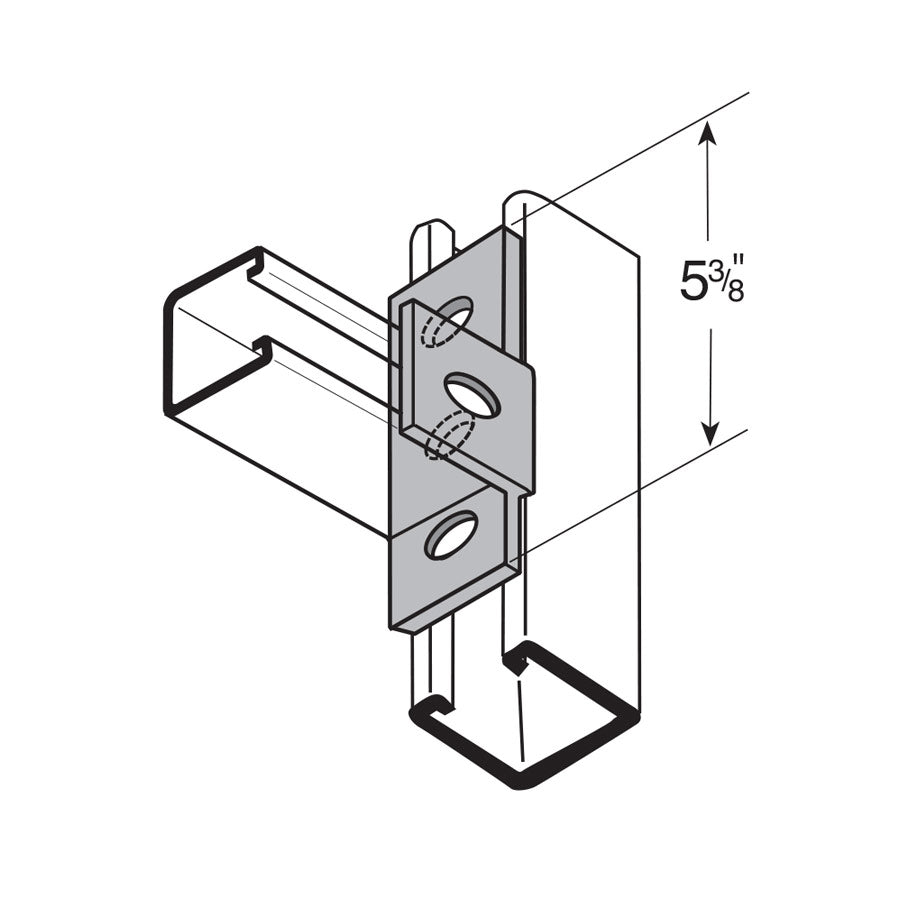

90 Degree Tee Angle - Electro-Galvanized fittings connect strut channel at the joints where channel meets at a T. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
Specifications:
Specifications:
Material: Carbon Steel
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Thickness: 1/4"
Hole diameter: 9/16"
Width: 1-5/8"
Finish: Electro-Galvanized
Manufacturer name: Flex-Strut
Product Guide: View Spec Sheet
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
