9/16" 6x19 Galvanized Wire Rope - EIPS IWRC | 5,000' Coil
Diameters
Lengths
Description
Description

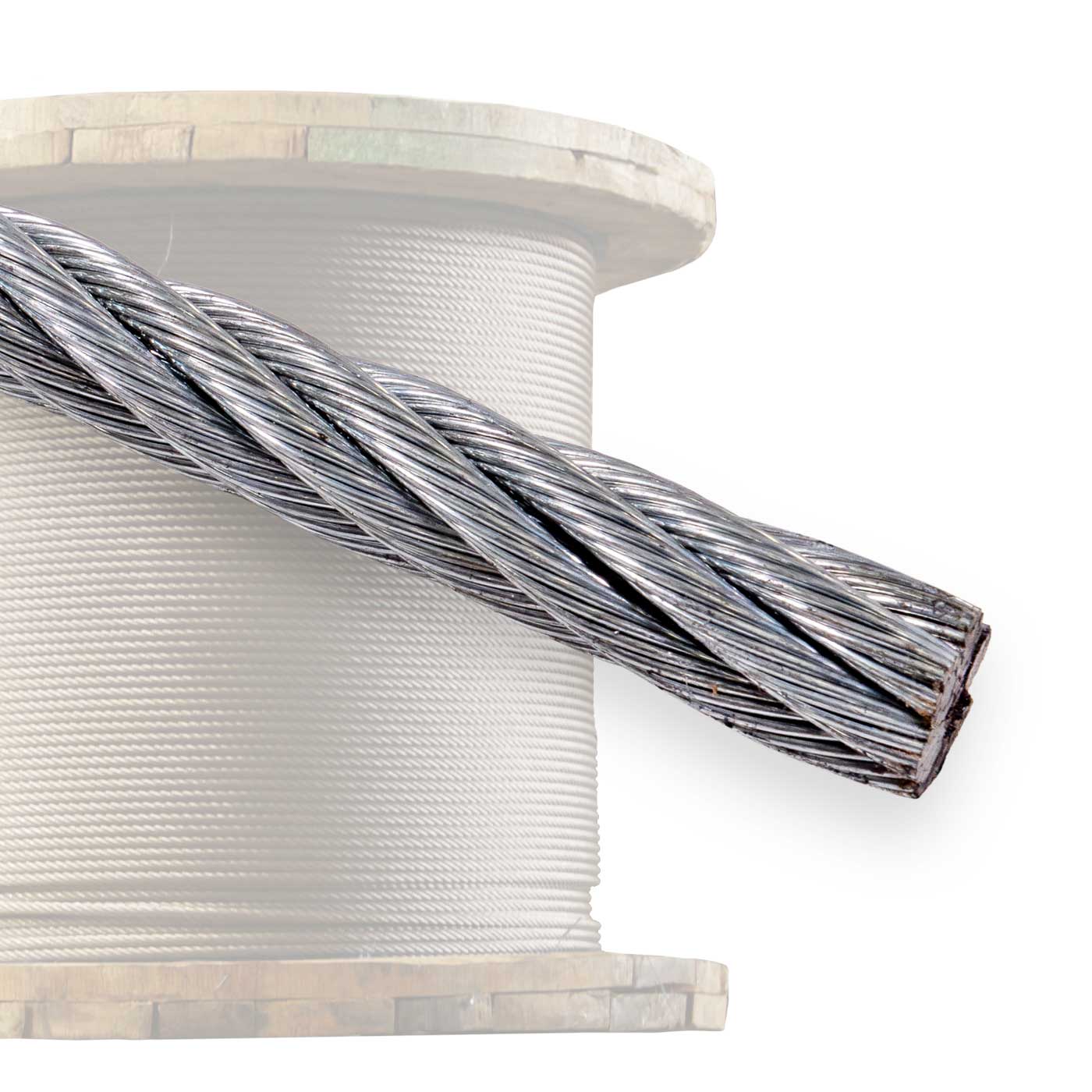

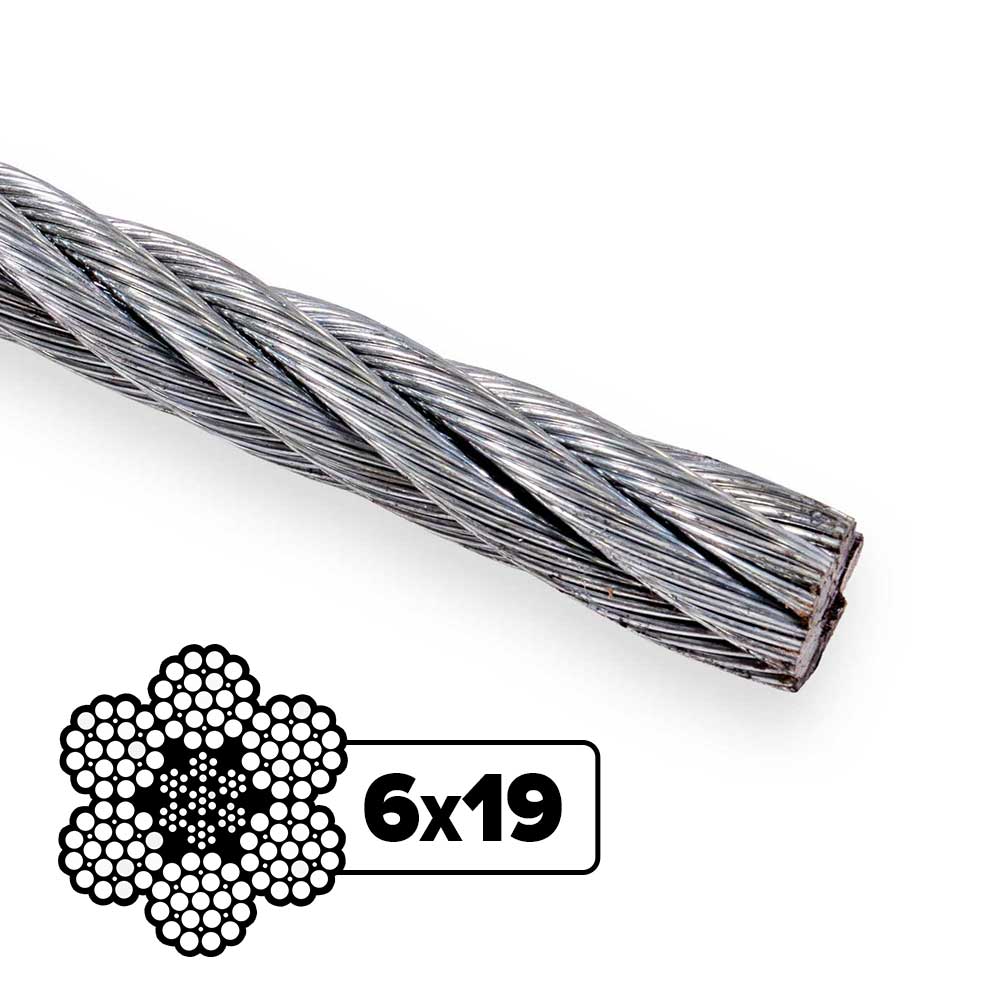

9/16" 6x19 Wire Rope Cable | Galvanized
This 9/16" galvanized wire rope is manufactured from Extra Improved Plow Steel (EIPS) and features a versatile 6x19 construction that balances abrasion resistance, durability, and flexibility. Commonly used for hoisting, suspension systems, winch lines, lifting equipment, and general rigging applications, this wire rope is well-suited for both indoor and outdoor environments where corrosion protection is important.
Corrosion-Resistant Wire Rope for Hoisting, Rigging & Winch Applications

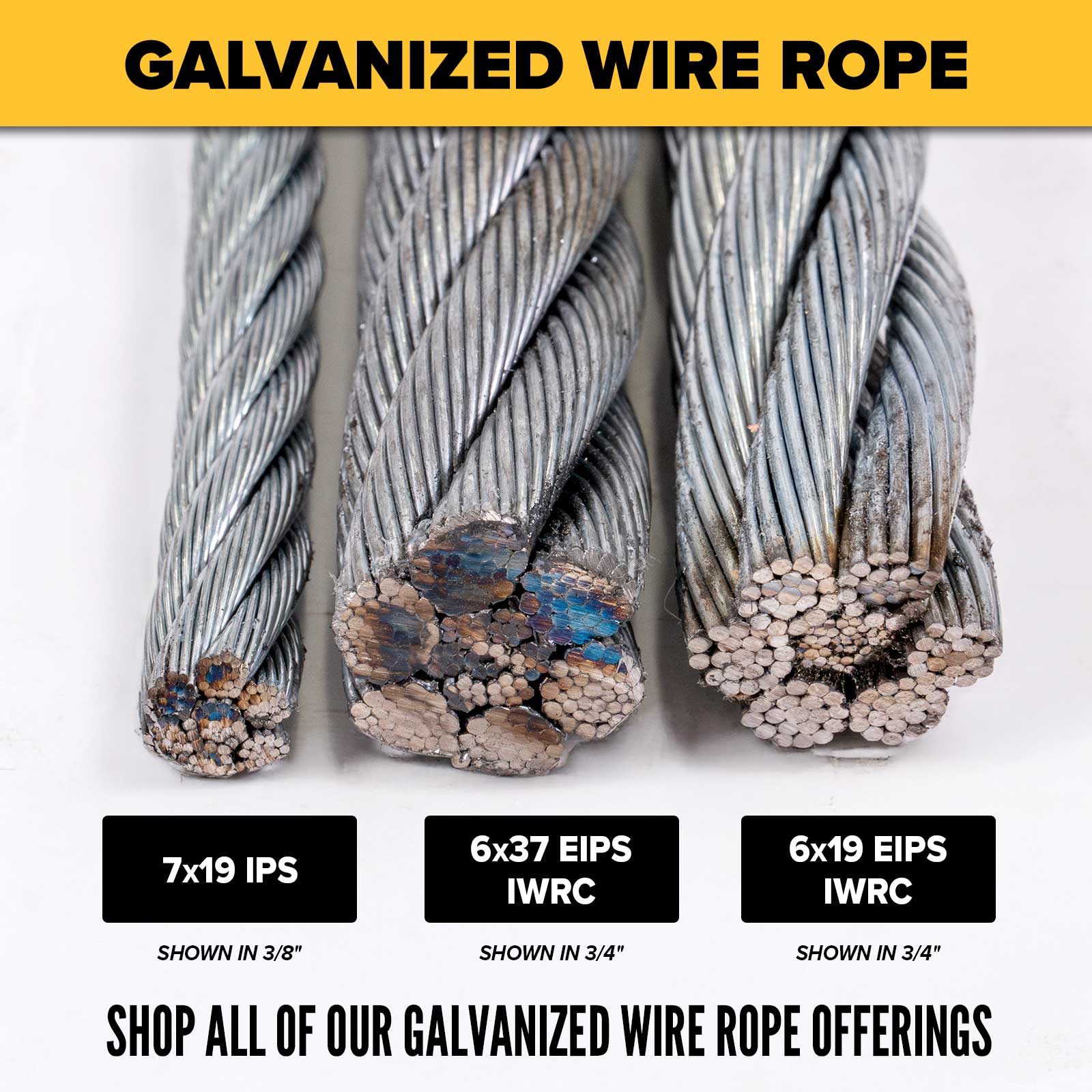

The 6x19 class is one of the most popular wire rope constructions for general-purpose use. Compared to 6x37 wire rope, the 6x19 configuration offers greater abrasion resistance, making it ideal for applications where the rope regularly contacts drums, sheaves, and other wear surfaces. While slightly less flexible than 6x37 constructions, it provides excellent durability and service life.
6x19 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable load-carrying performance.

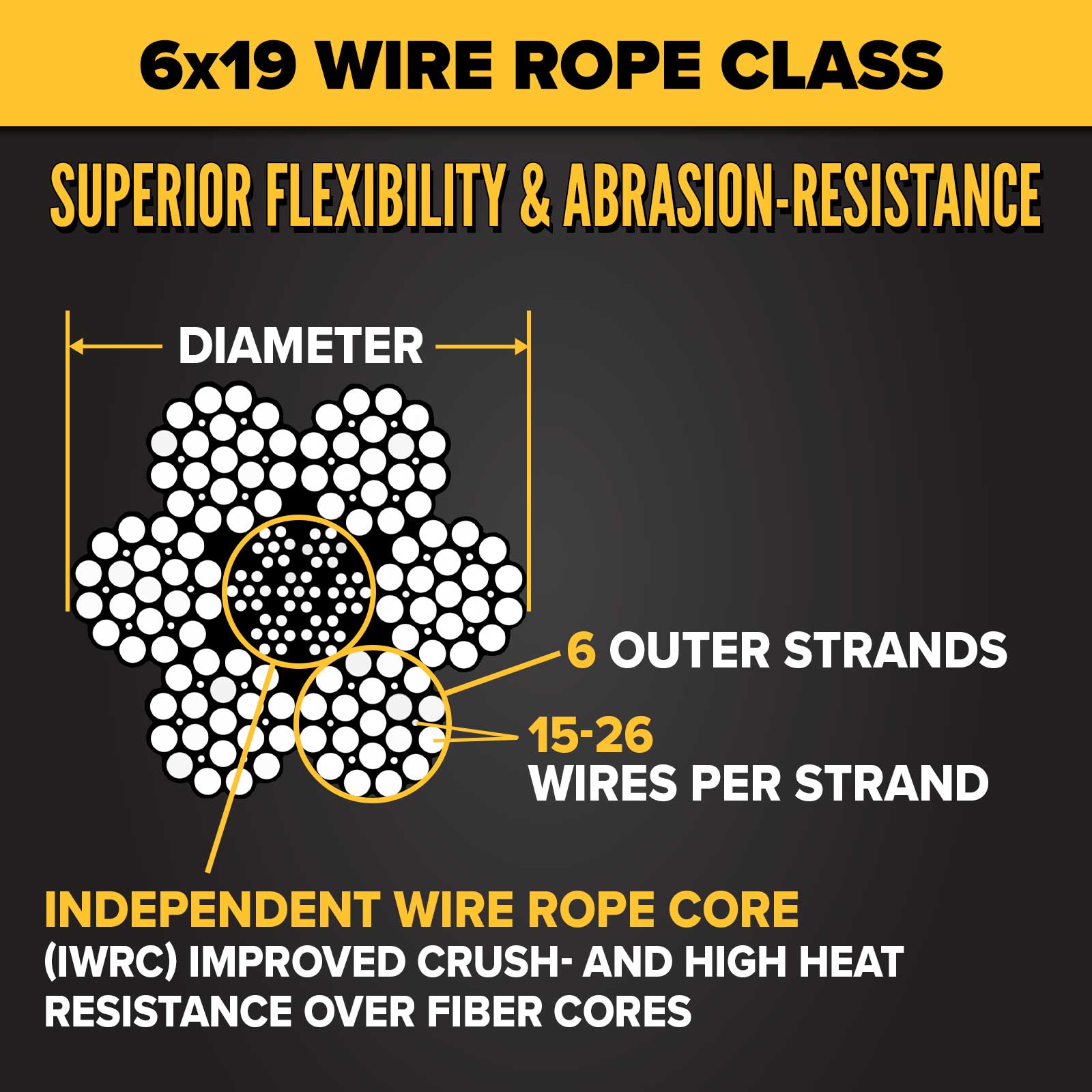

The class of this wire rope is 6x19. These numbers nominally refer to the rope construction, consisting of six outer strands surrounding the core, with approximately 15-26 wires making up each strand. This design provides an effective balance of strength, flexibility, and abrasion resistance.
The Independent Wire Rope Core (IWRC) offers greater support than traditional fiber core constructions. IWRC wire rope provides enhanced crushing resistance, improved load stability, and dependable performance in temperatures ranging from -40°F to 400°F.

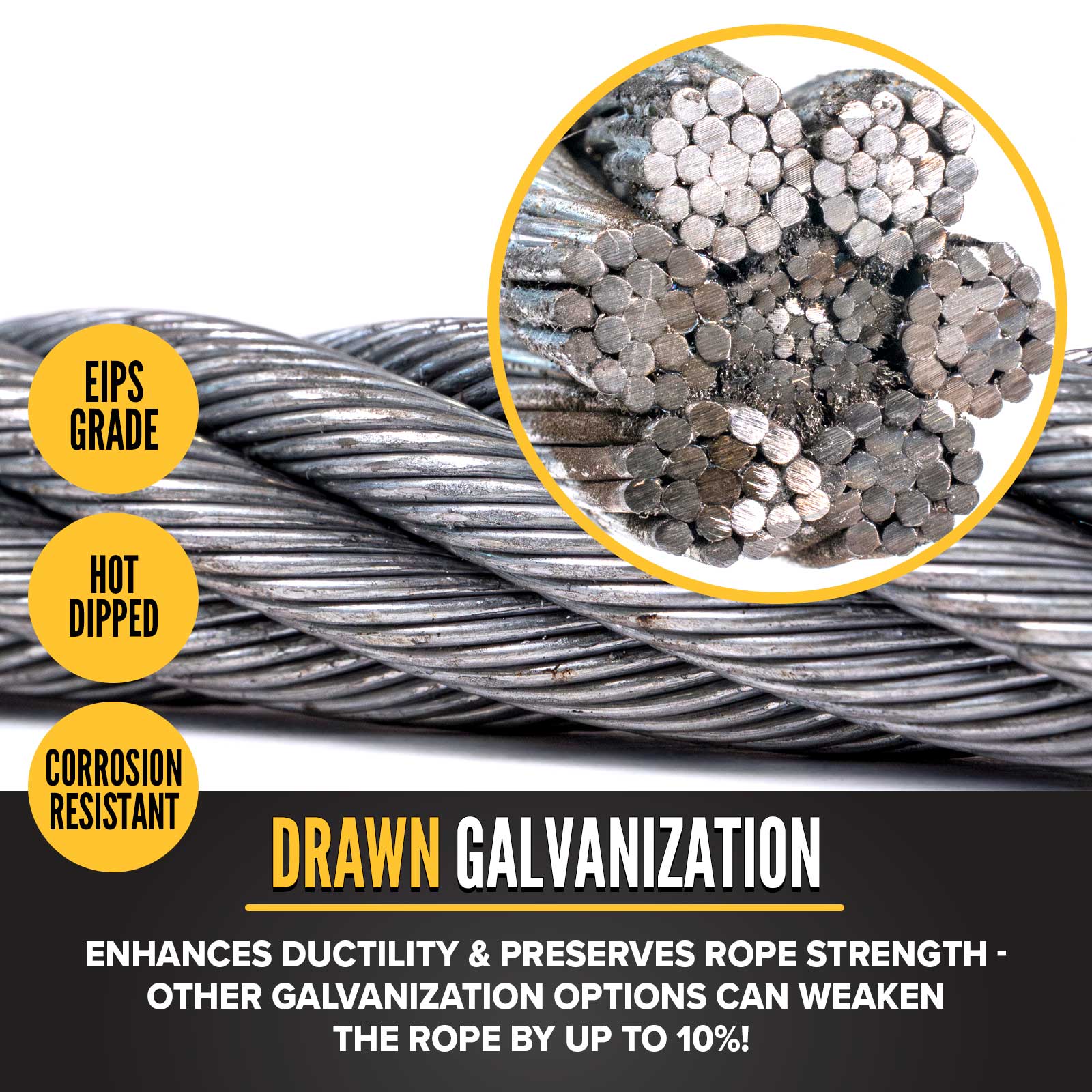

Hot-Dip Drawn Galvanized Finish
This wire rope features a hot-dip drawn galvanized finish that provides superior corrosion resistance compared to bright wire rope. Unlike standard galvanization methods that can reduce breaking strength, the drawn galvanizing process maintains the rope's original strength while improving durability and service life.
Hot-dip drawn galvanization also enhances ductility and provides a more durable protective coating that resists cracking, flaking, and wear better than electro-galvanized alternatives.
Key Features
- EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
- 6x19 construction provides an excellent balance of flexibility and abrasion resistance
- Greater wear resistance than comparable 6x37 wire rope constructions
- Hot-dip drawn galvanized finish provides long-term corrosion protection
- Drawn galvanization maintains strength while improving durability and ductility
- IWRC core improves crushing resistance and load support
- Ideal for hoisting, suspension systems, winch lines, and general rigging applications
- Suitable for outdoor and corrosive environments
- Temperature range from -40°F to 400°F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Imported from a vetted supplier
- Certificate of Conformity available upon request
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
