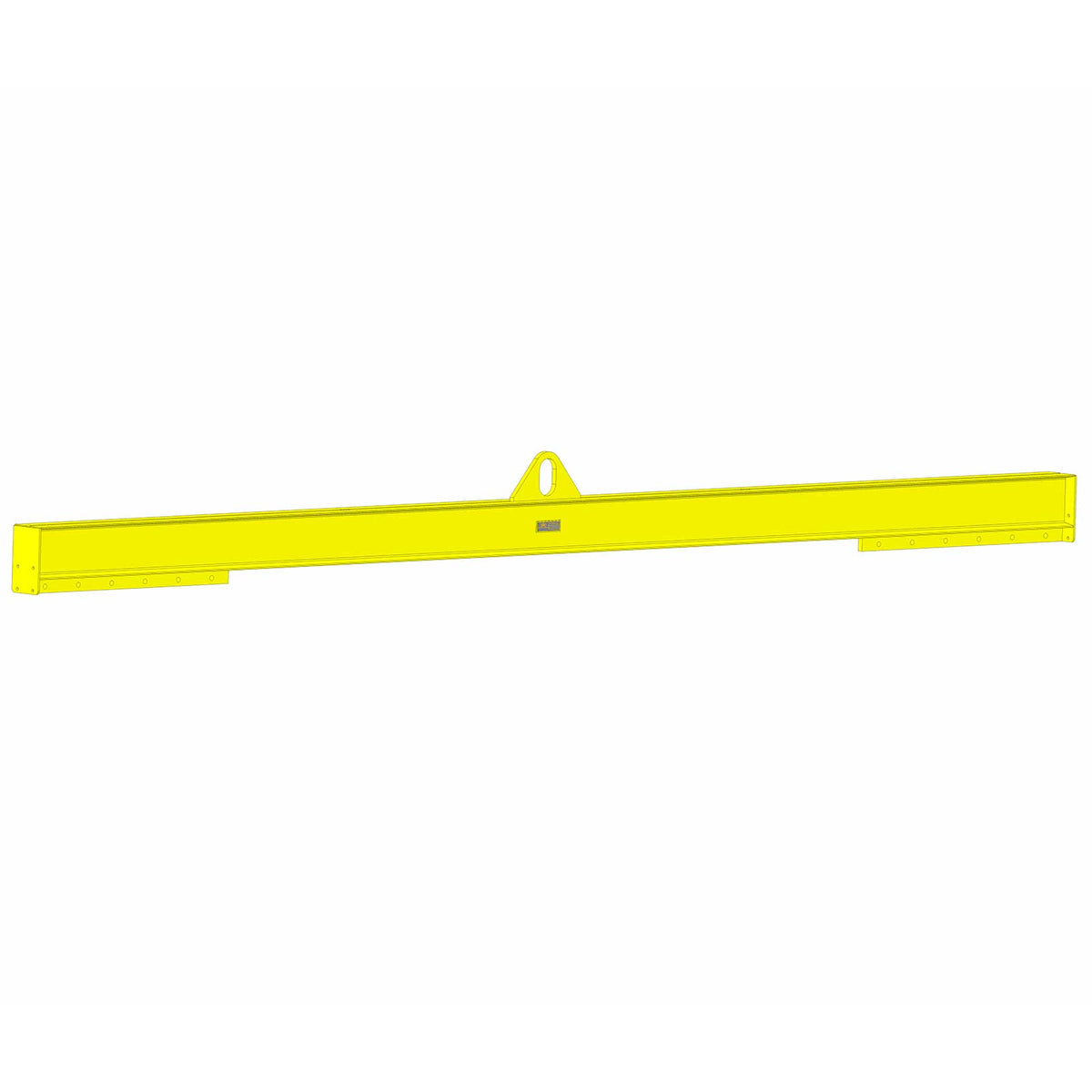

Low Headroom Adjustable Lifting Beam | 15,000 lb. Capacity | 3' to 5' Spread
Spread
Load Limit
Description
Description
When ceiling height is tight, whether it's a low warehouse bay, a mezzanine, or a machine shop with overhead obstructions, a standard fixed lifting beam can eat up clearance you don't have. The M&W Low Headroom Adjustable Lifting Beam is built for exactly that situation: a compact, adjustable-length beam that keeps your lift point low while still letting you shift the balance for loads that aren't centered. The lineup spans a wide range of capacities and lengths, from 2,000 lbs. to 80,000 lbs. of rated capacity and 3' to 30' in length, so you can match the beam to the lift instead of working around it.
Key Features
- Wide capacity and length range: Available from 2,000 lbs. to 80,000 lbs. of rated capacity and 3' to 30' in length across the lineup, so you can size the beam to your load and your headroom.
- Low-headroom, adjustable design: Built to minimize the clearance needed above the load while still allowing the rigging points to shift for off-center or unevenly balanced loads.
- Heavy-duty steel construction with welded joints built to hold up under repeated, demanding lifts.
- Hook and shackle compatible, giving you flexibility in how you rig the load.
- High-visibility powder coat finish that stands out on a busy jobsite and resists scratches and chipping.
- Made in the USA and individually proof-loaded per OSHA requirements, with certification paperwork included.
- Manufactured to meet ASME B30.20 and OSHA below-the-hook lifting device requirements.
- 30-day limited manufacturer's warranty.
Applications
- Lifts in low-clearance spaces such as tight warehouse bays, mezzanines, and covered work areas.
- Balancing loads with an off-center center of gravity that a fixed lifting point can't handle well.
- Indoor and outdoor material handling in warehouses, manufacturing plants, and on construction sites.
- Below-the-hook lifting where headroom rules out a traditional spreader beam setup.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

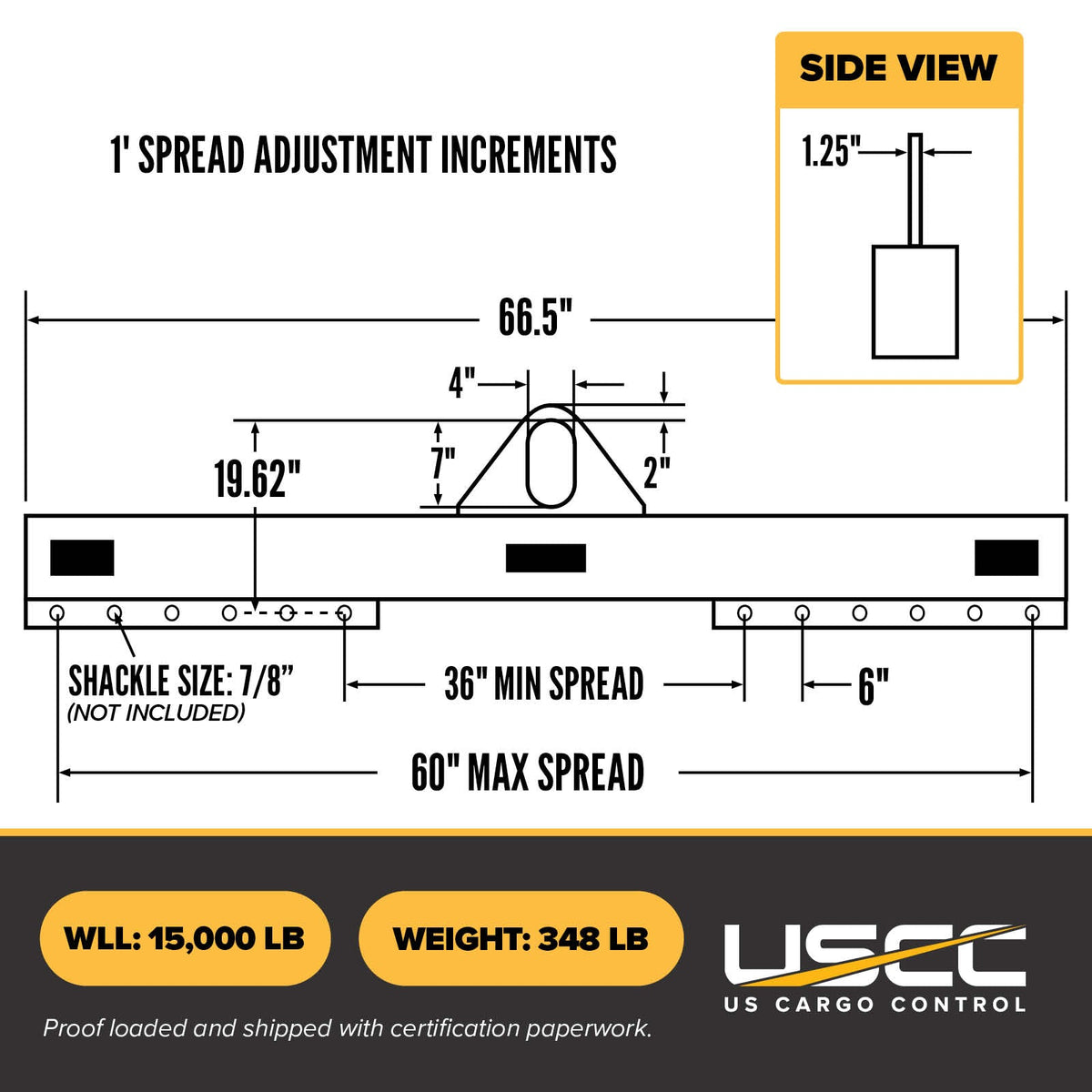

Specifications
Specifications
Inside Length: 7"
Top Thickness: 2"
Thickness: 1.25"
Proof loaded per OSHA requirements.
Headroom: 19.62"
Spread Adjustment Increments: 6" per side
