SKU: LBLHA40K30

Low Headroom Adjustable Lifting Beam | 40,000 lb. Capacity | 25' to 30' Spread

Regular price $25,14500
Ships in 1-3 business days.

Description

When ceiling height is tight, whether it's a low warehouse bay, a mezzanine, or a machine shop with overhead obstructions, a standard fixed lifting beam can eat up clearance you don't have. The M&W Low Headroom Adjustable Lifting Beam is built for exactly that situation: a compact, adjustable-length beam that keeps your lift point low while still letting you shift the balance for loads that aren't centered. The lineup spans a wide range of capacities and lengths, from 2,000 lbs. to 80,000 lbs. of rated capacity and 3' to 30' in length, so you can match the beam to the lift instead of working around it.

Key Features

  • Wide capacity and length range: Available from 2,000 lbs. to 80,000 lbs. of rated capacity and 3' to 30' in length across the lineup, so you can size the beam to your load and your headroom.
  • Low-headroom, adjustable design: Built to minimize the clearance needed above the load while still allowing the rigging points to shift for off-center or unevenly balanced loads.
  • Heavy-duty steel construction with welded joints built to hold up under repeated, demanding lifts.
  • Hook and shackle compatible, giving you flexibility in how you rig the load.
  • High-visibility powder coat finish that stands out on a busy jobsite and resists scratches and chipping.
  • Made in the USA and individually proof-loaded per OSHA requirements, with certification paperwork included.
  • Manufactured to meet ASME B30.20 and OSHA below-the-hook lifting device requirements.
  • 30-day limited manufacturer's warranty.

Applications

  • Lifts in low-clearance spaces such as tight warehouse bays, mezzanines, and covered work areas.
  • Balancing loads with an off-center center of gravity that a fixed lifting point can't handle well.
  • Indoor and outdoor material handling in warehouses, manufacturing plants, and on construction sites.
  • Below-the-hook lifting where headroom rules out a traditional spreader beam setup.

Specifications

Working Load Limit (lbs.): 40,000
Safety Factor: 3:1
Rated For Overhead Lifting: Yes
Overall Length: 367"
Spread: 25' - 30'
Bail Dimensions: Inside Width: 5"
Inside Length: 9"
Top Thickness: 2.5"
Thickness: 1.5"
Material: Steel

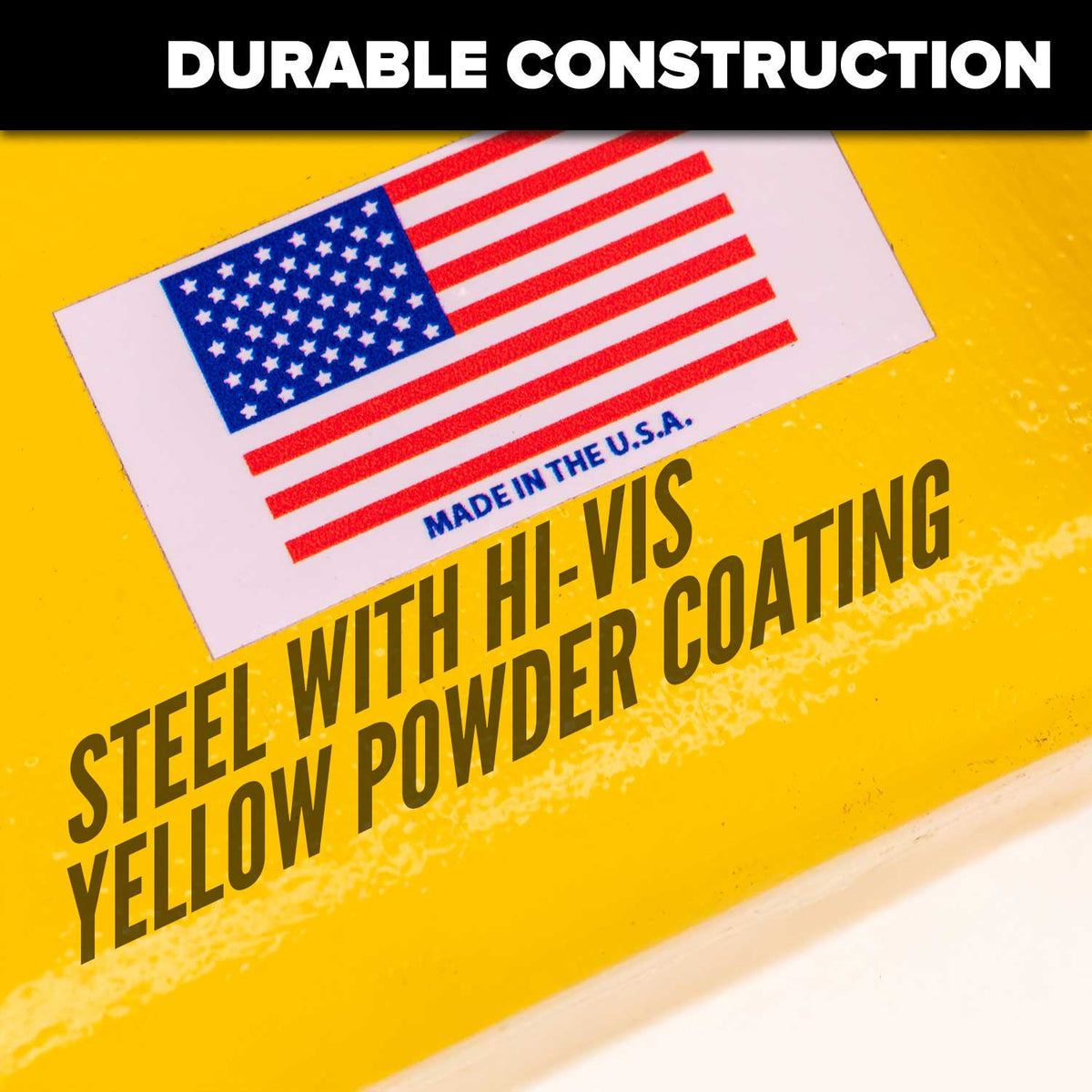

Finish: High visibility yellow powder coated paint
Item Weight: 3,880 lbs.
Standards: Exceeds all ASME B30.20 and OSHA regulations.
Proof loaded per OSHA requirements.
Manufacturer Name: M&W
Manufacturer Part Number: 24519
Shipping and Returns: This item ships LTL; learn more. It ships complete with proof testing certificate and cannot be returned due to safety risks associated with used materials.
Additional Info: WLL (tons): 20
Headroom: 35.1"
Spread Adjustment Increments: 6" per side

Reviews (0)

Customer Reviews

Be the first to write a review
