Specifications
Debris liner size: 1/16"
Debris liner opacity: 70%
Cord diameter: 5 mm
Hook size: 4-3/4" (120 mm) Snap Hooks (included)
UV Rating: 300kLy

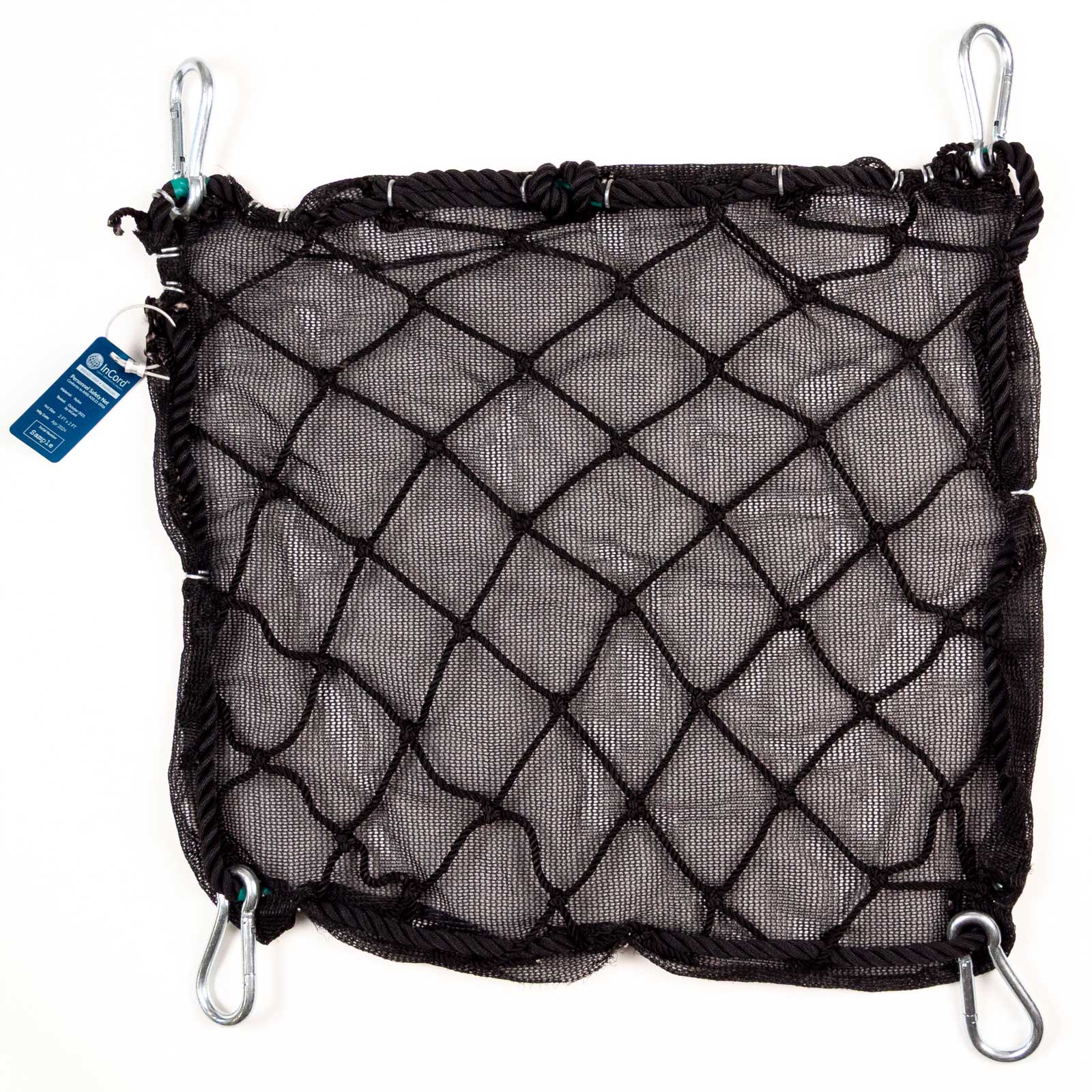

Personnel Safety Net with Debris Liner - 20' x 40'

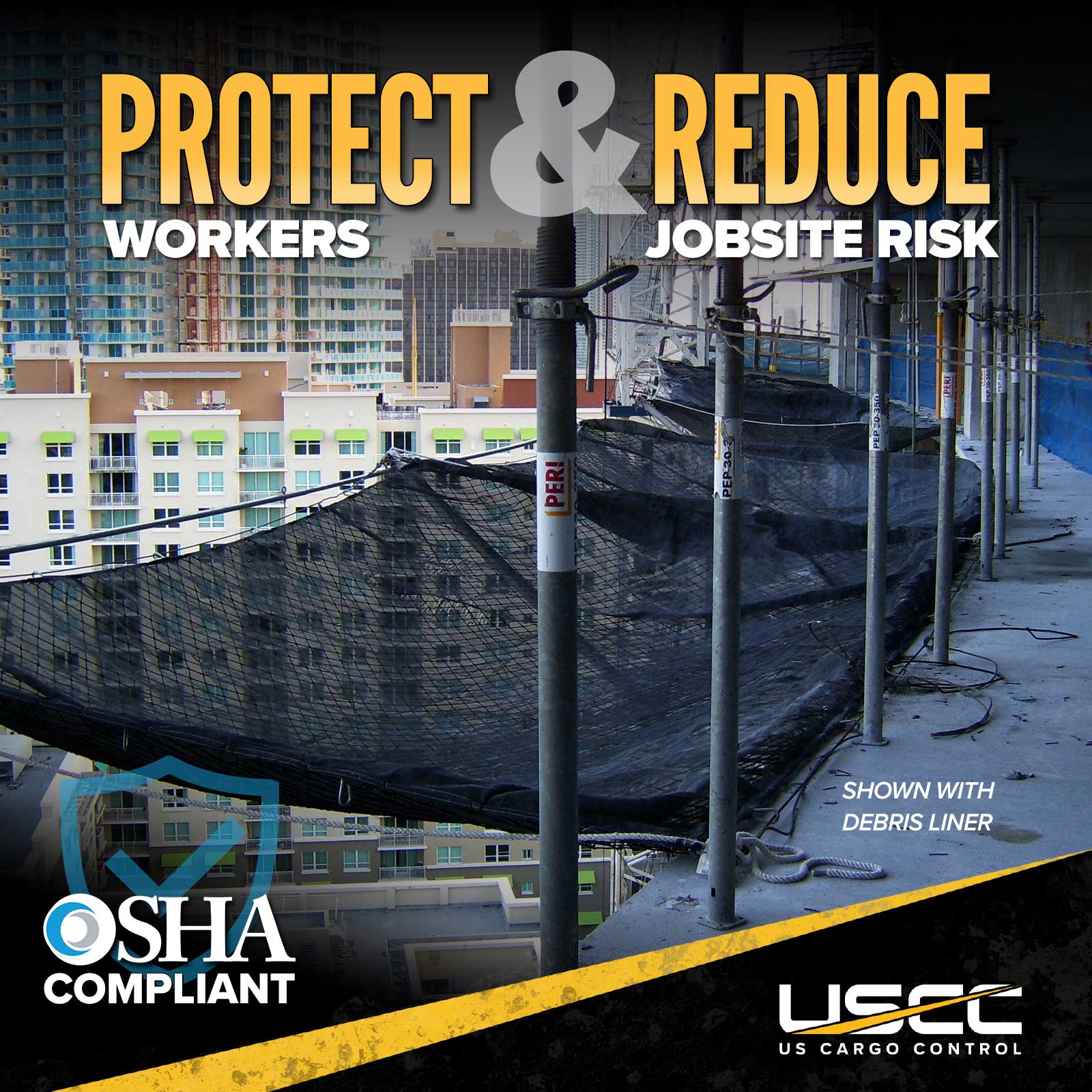

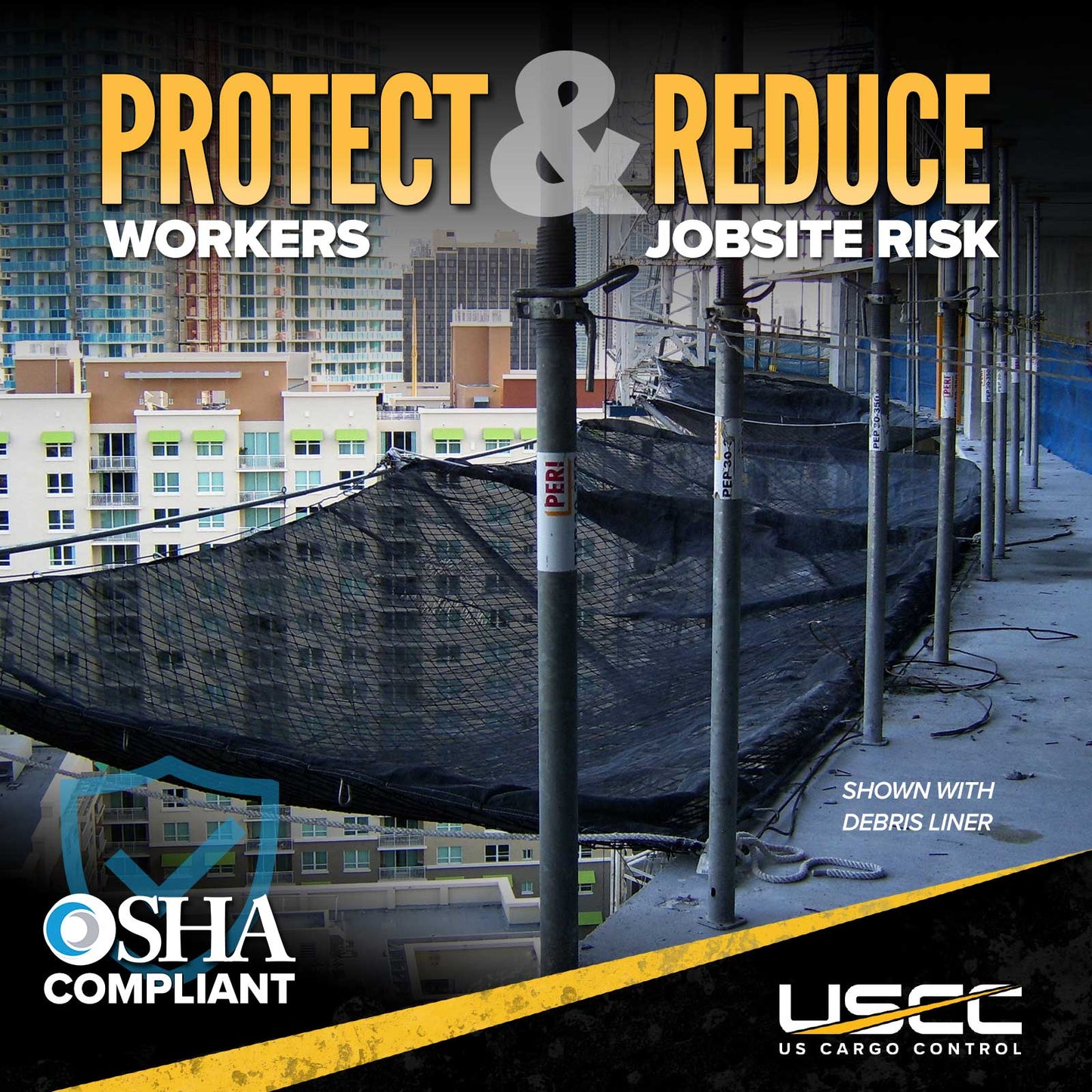

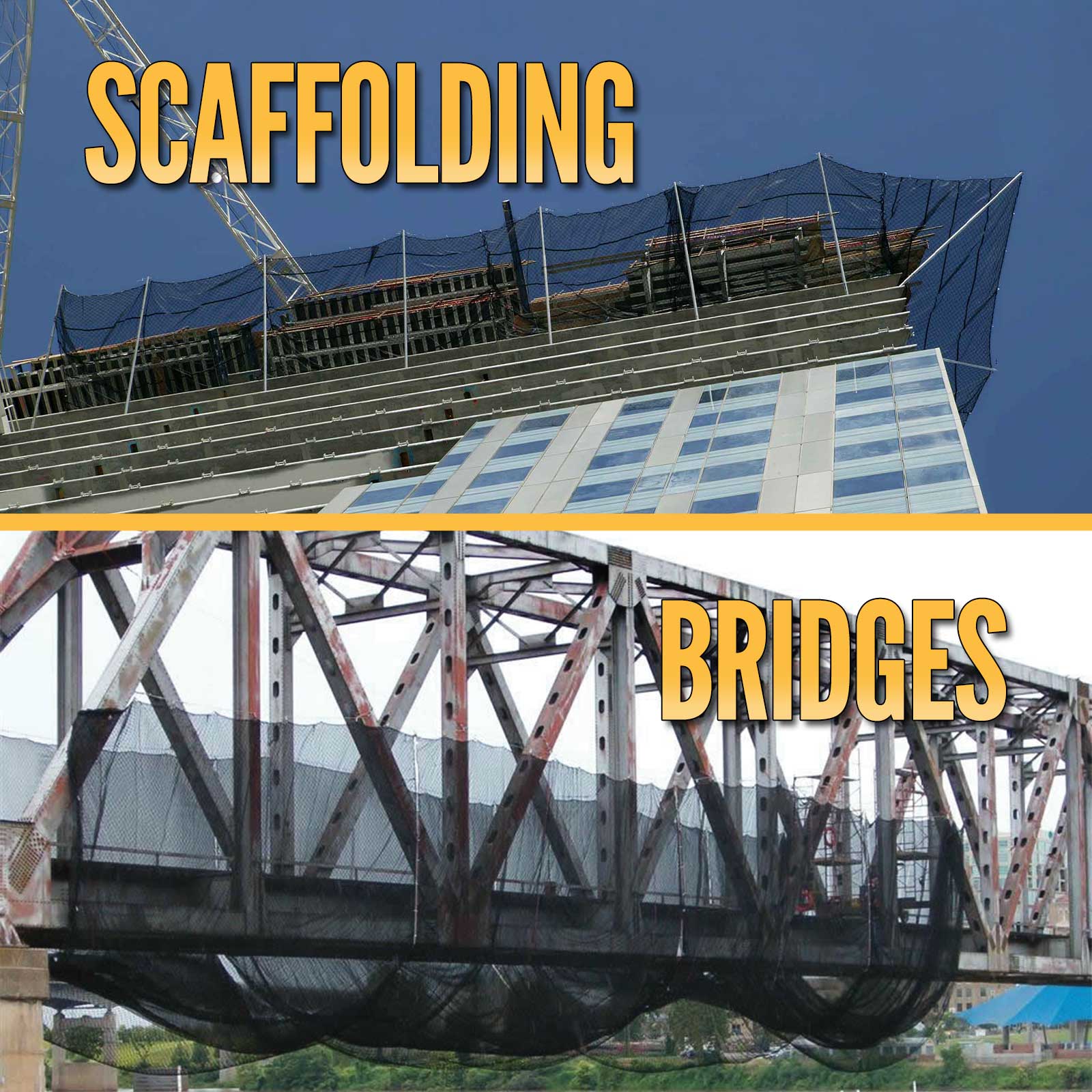

Built for full-scale jobsite protection, the 20' x 40' personnel safety net with integrated debris liner delivers both fall arrest capability and debris containment. Constructed from high-tenacity polyamide in a shock-absorbing diamond mesh configuration, it meets or exceeds ANSI A10.11 standards for combined personnel and debris safety applications. Ideal for high-rise construction, scaffold perimeter containment, and overhead hazard zones.
Full-Coverage Safety Netting with Integrated Debris Control

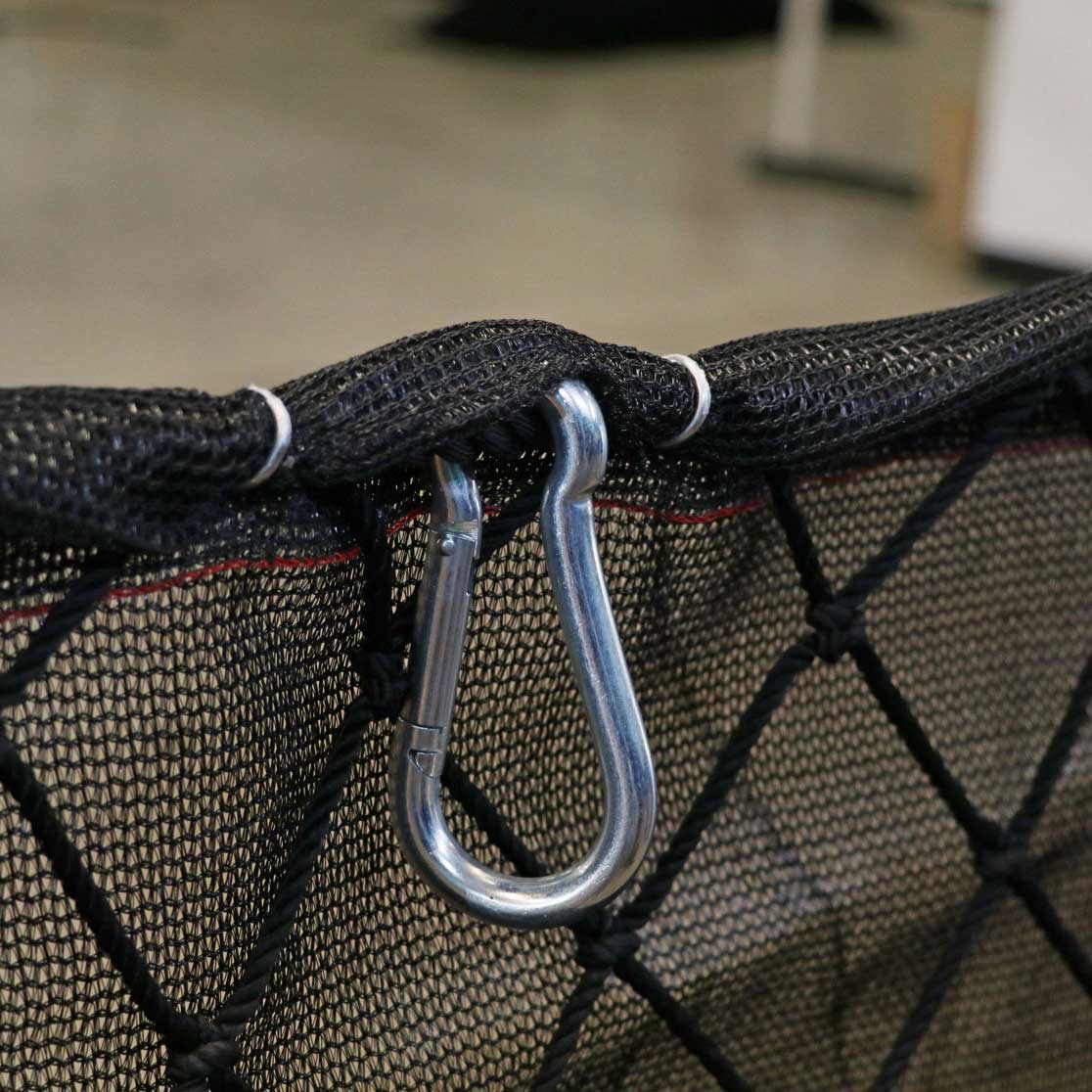

This net features a 70% opacity fine mesh liner securely fastened with hog rings to retain small tools, dust, and falling debris. A 5,000 lb. minimum test synthetic rope borders the net with 4-3/4" snap hooks spaced every 4 feet and staggered for modular connection. The UV-stabilized black finish improves long-term visibility and weather resistance. Reinforced corners and edge snap hook points ensure secure performance under tension and frequent use.
Key Features
- Load Capacity: Rated to approx. 17,500 lbs. for personnel fall arrest and debris retention.
- Large Coverage: 20' x 40' size ideal for wide scaffolding zones and full platform protection.

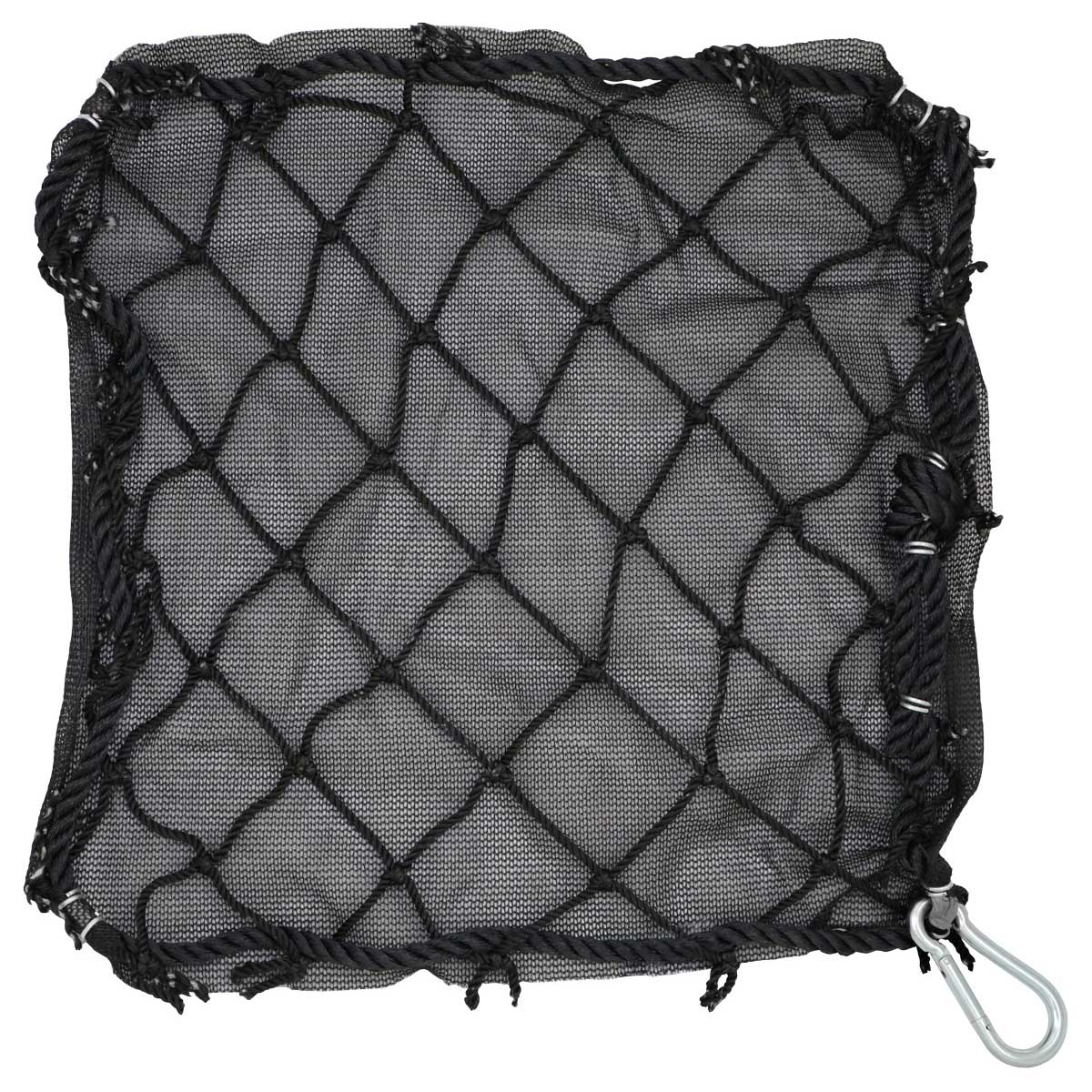

- Mesh + Liner Design: 3-1/2" diamond mesh with 70% opacity fine mesh liner for debris containment.
- ANSI Compliant: Meets or exceeds ANSI A10.11 standards for safety net systems.

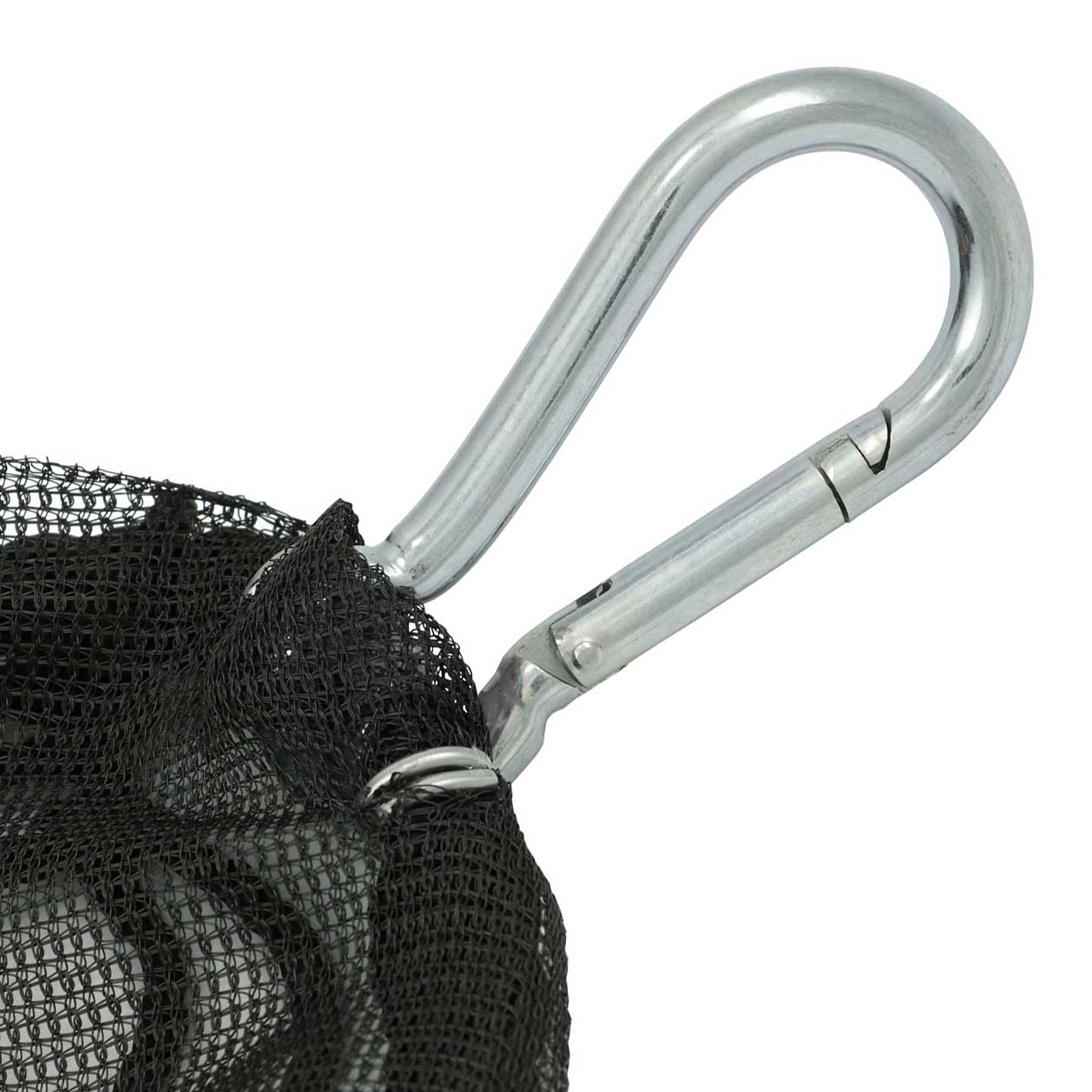

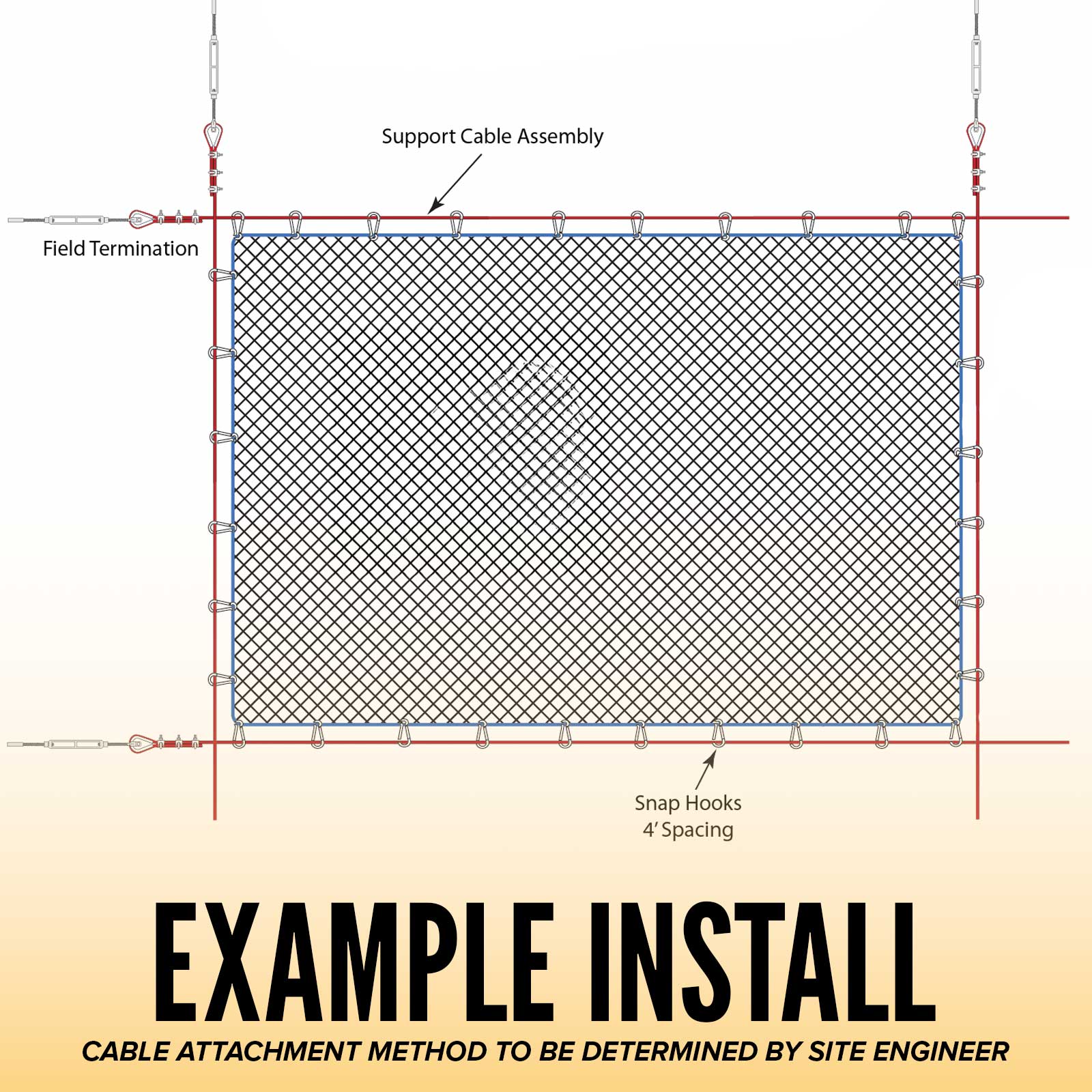

- Snap Hook System: 4-3/4" hooks spaced every 4 ft., staggered along the perimeter for fast, secure installation.
- UV-Stabilized Finish: Black dye improves visibility while resisting fading and sun degradation.

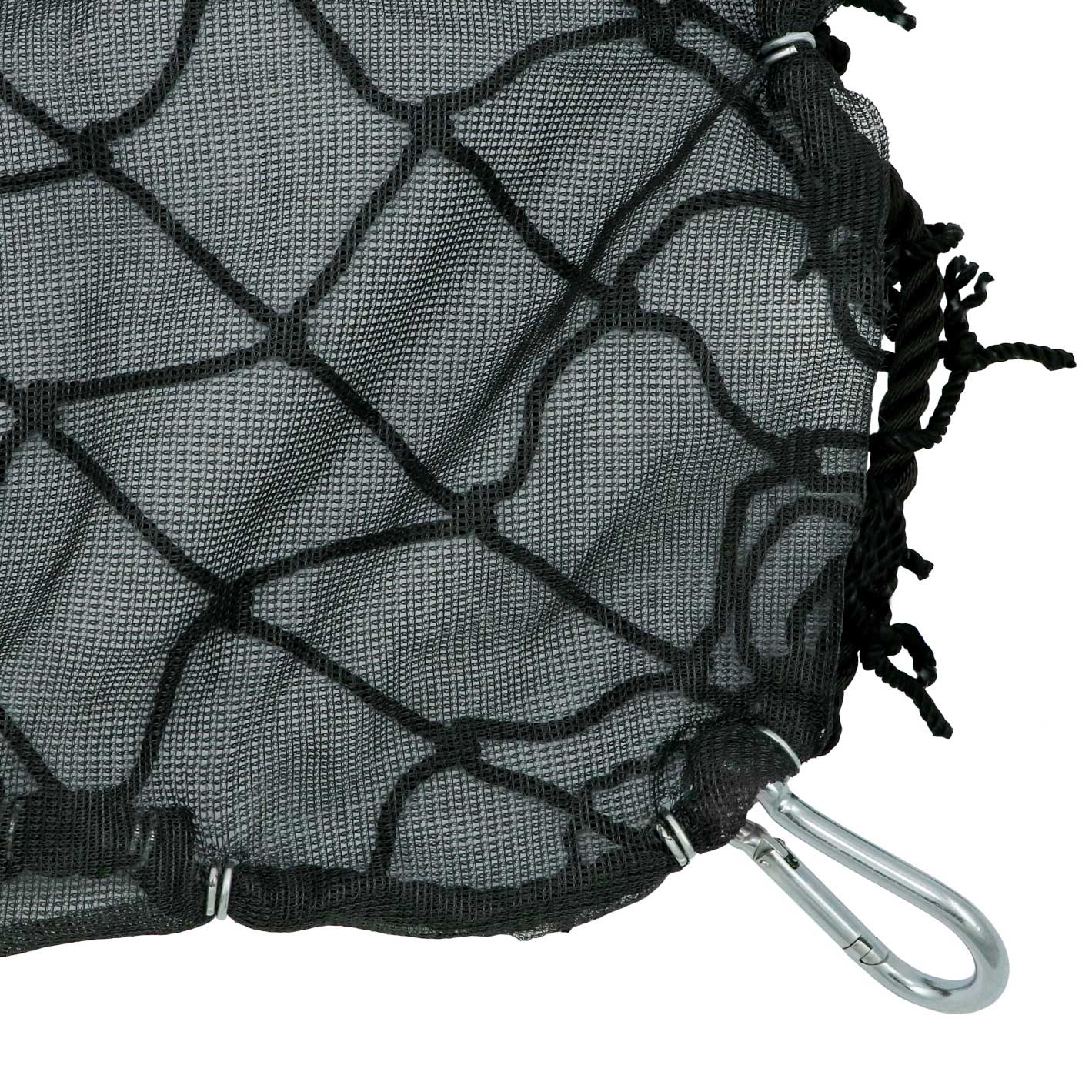

- Reinforced Hook Points: Hog-ringed corners and border hooks for long-term strength under load.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
20' x 40' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
Add the Essentials
Complete your order with these essentials, compatible with:
20' x 40' ANSI A10.11 Personnel Safety Net with Debris Liner | 17,500 lbs.
My Cart:
-
ANSI-Tested Fall Protection
InCord personnel safety nets are built to comply with ANSI A10.11-2010, meeting or exceeding OSHA's requirements for fall protection. Rated for dynamic loads up to 17,500 ft-lb and produced in an ISO 9001:2015-certified facility, these nets are engineered for job sites where there's no margin for error.
-

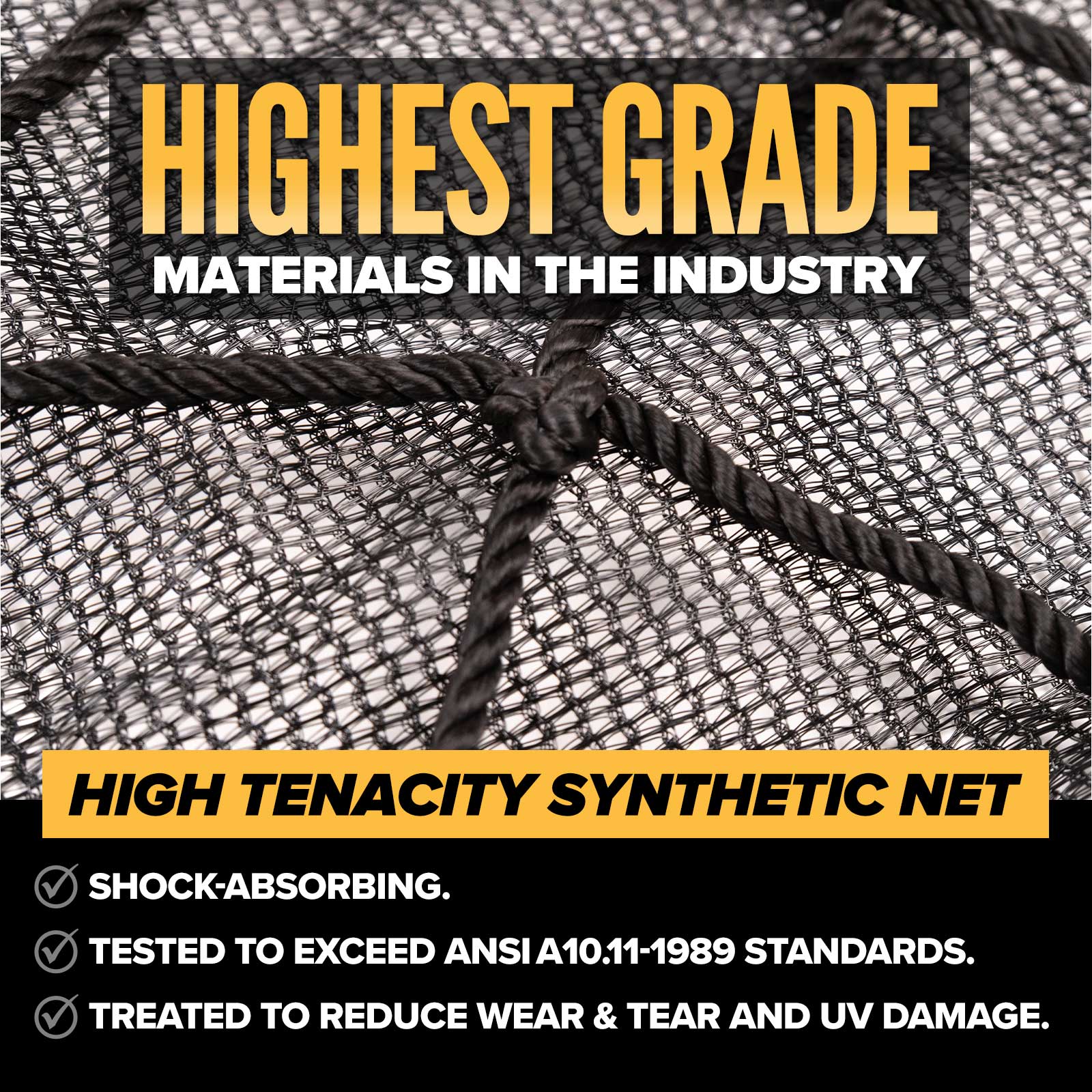

Highest Quality Materials in the Industry
Made in the USA from high-tenacity polyamide, this 5mm knotted nylon safety net offers impressive strength while staying lightweight. Its border is reinforced with synthetic rope carrying a 6,700 lb. minimum tensile strength, and zinc-plated snap hooks ensure a secure, rust-resistant connection. A fire-retardant monofilament debris liner rounds out the design, adding extra protection against smaller falling debris.
-
Safety Netting Built to Your Specifications
When off-the-shelf netting doesn't quite fit your application, custom safety netting can be built to your precise specs. Manufactured in the USA and suited to a wide range of uses, it lets you dial in the size, accessories, and other details yourself, so the final product is built around your job, not the other way around.
-
