Simpson 3" x 25-1/2" 3 Gauge Heavy Strap Tie - G90 Galvanized

SKU: HST3

$54.98

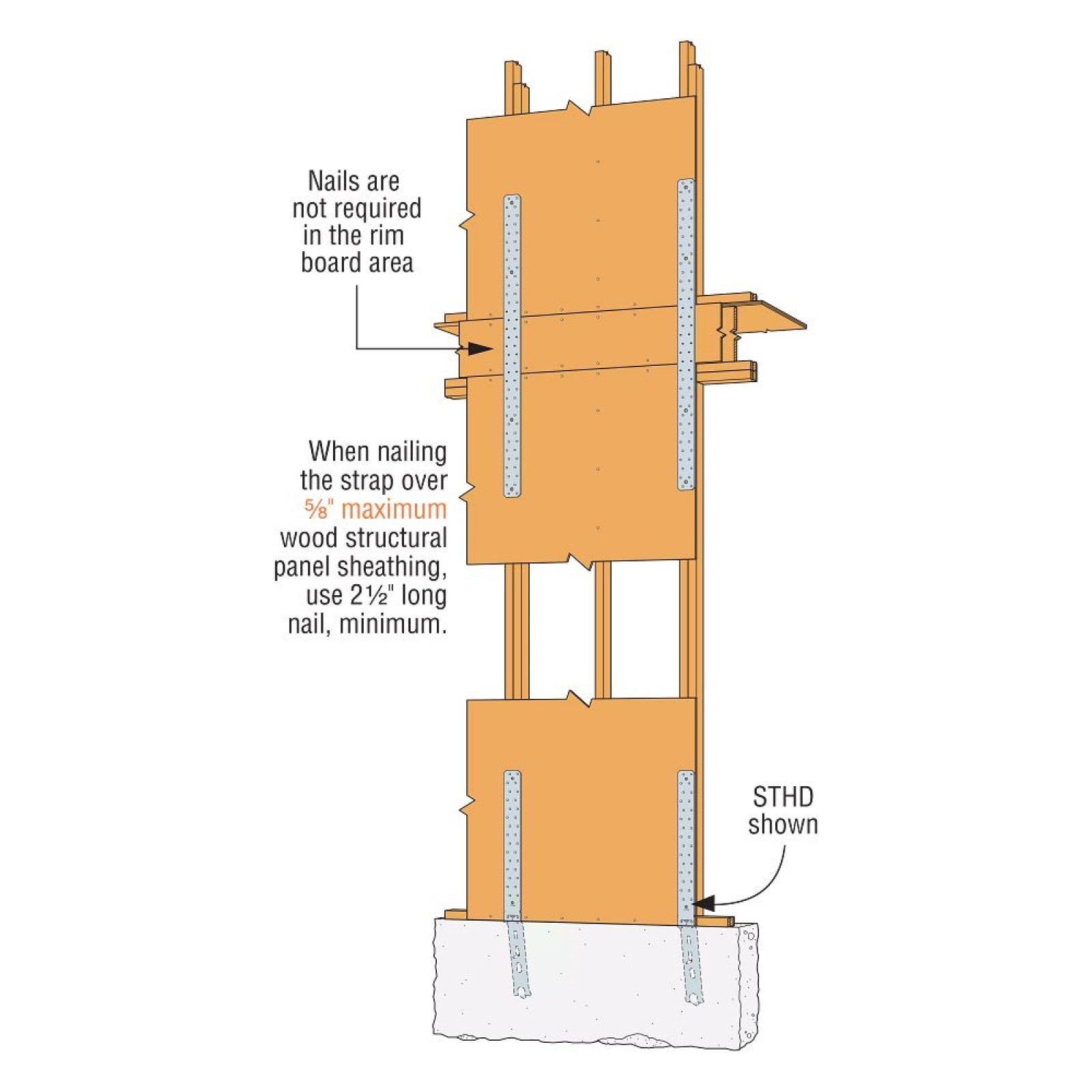

Simpson Strong-Tie HST heavy strap ties are load rated and provide the correct thickness and number of fasteners the specifier is looking for compared with field fabricated straps. Install Strap Ties where top or bottom plates are cut, at wall intersections, and as ridge ties. Reduce the allowable load based on the size and quantity of fasteners used. The Strong-Tie HST3 strap tie features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HST heavy strap ties are load rated and provide the correct thickness and number of fasteners the specifier is looking for compa...

Read More

Simpson Strong-Tie HST heavy strap ties are load rated and provide the correct thickness and number of fasteners the specifier is looking for compared with field fabricated straps. Install Strap Ties where top or bottom plates are cut, at wall intersections, and as ridge ties. Reduce the allowable load based on the size and quantity of fasteners used. The Strong-Tie HST3 strap tie features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:

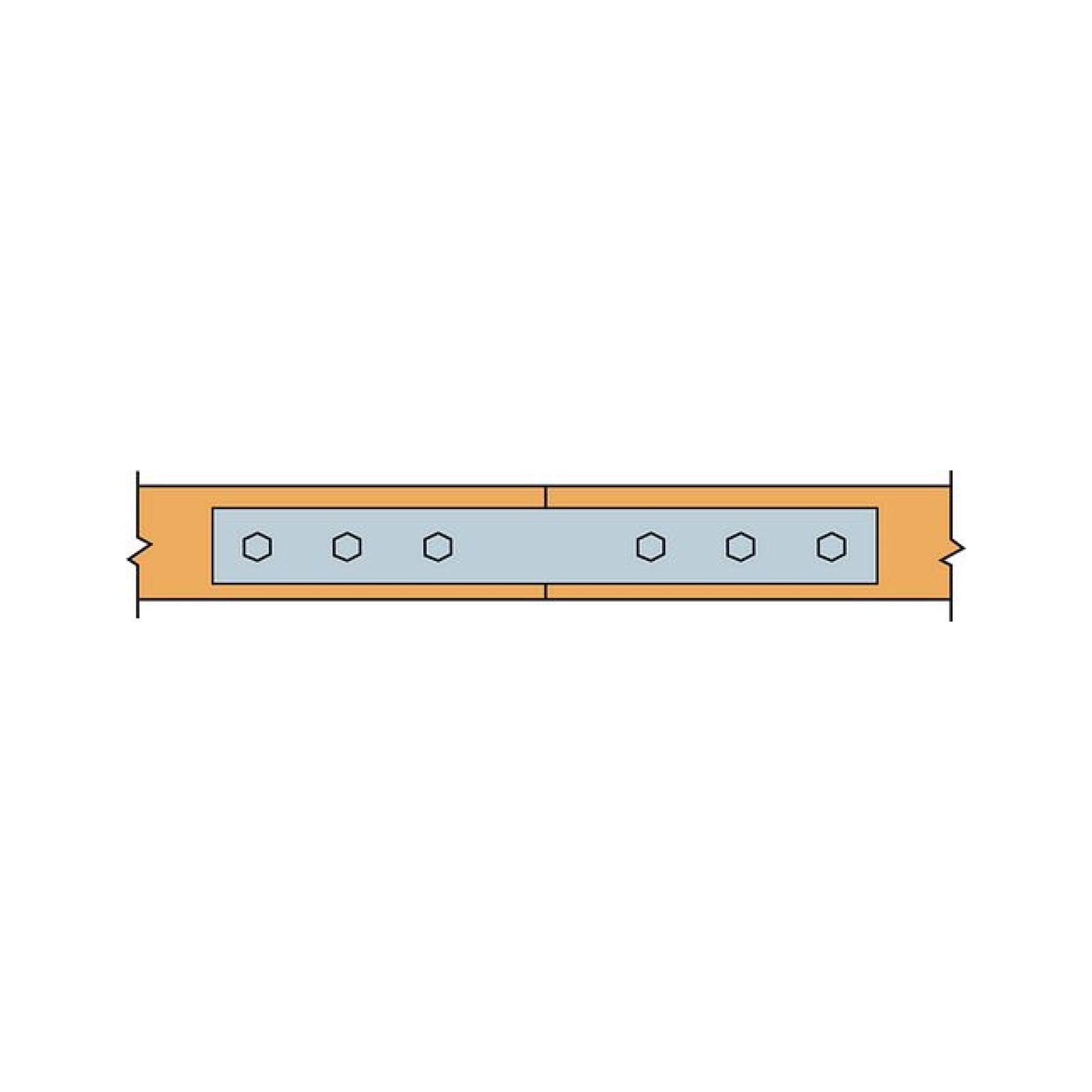

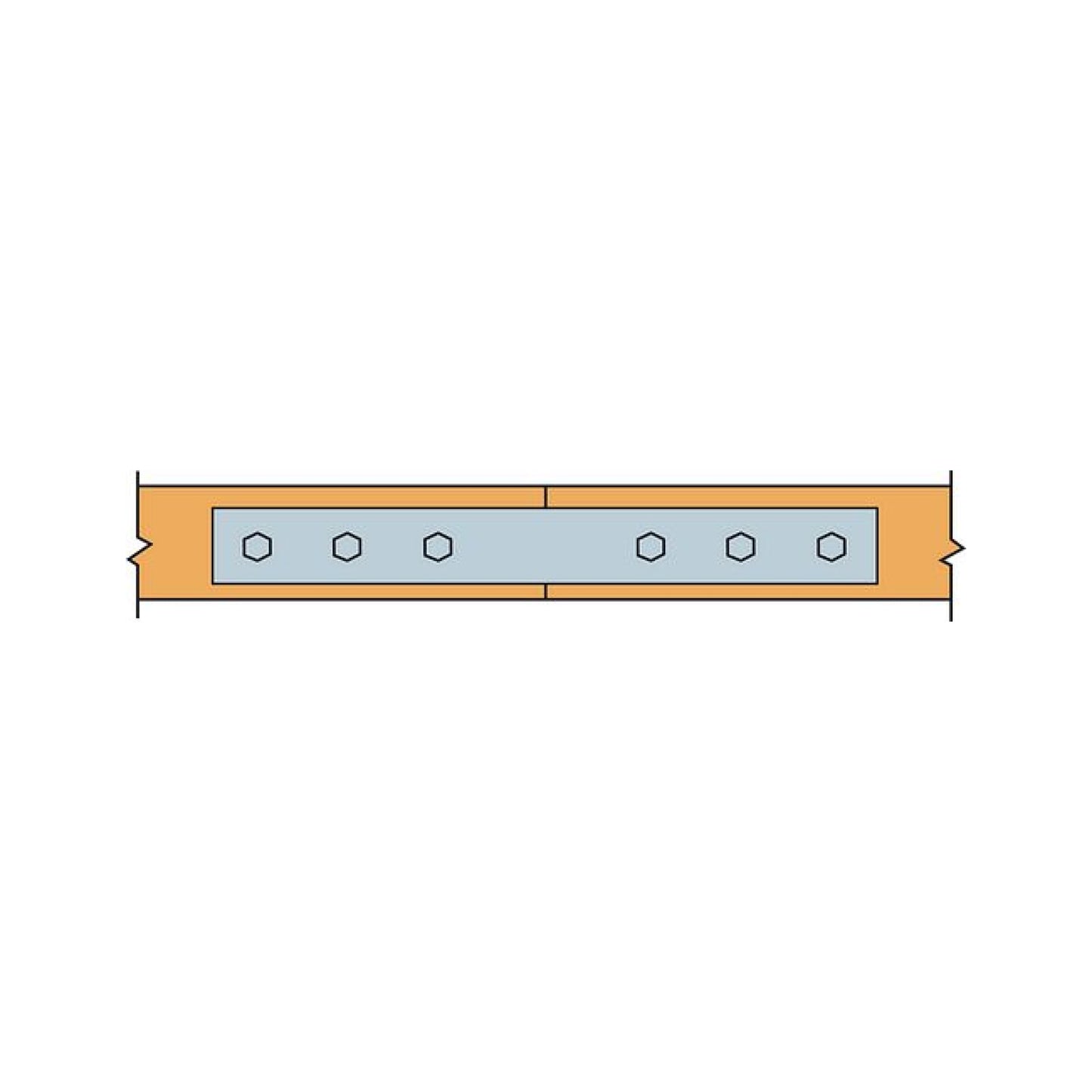

(6) 3/4" Machine Bolts

Finish Spec:
G90 Galvanized

Length Spec:
25-1/2"

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Thickness:
3 Gauge

Product Guide:

Read More

Show Less
