Shop more BC/BCS Post Caps
SKU: BC6Z

Simpson BC6Z 6x Post Cap - Zmax Finish

Simpson BC6Z 6x Post Cap - Zmax Finish

Regular price $30.05
Sale price $30.05 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 9 hours 36 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BC6Z post cap is approved to be installed only with the specified nails. The Strong-Tie BC6Z post base features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes
  • BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

Specifications:


Height: 3-3/8"
Fasteners required: Beam Flange - (12) 0.162 x 3-1/2" NailsPost Flange - (12) 0.162 x 3-1/2" Nails
Thickness: 18 Gauge
Width: 5-1/2"
Finish: ZMAX
Length: 4-3/8"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet

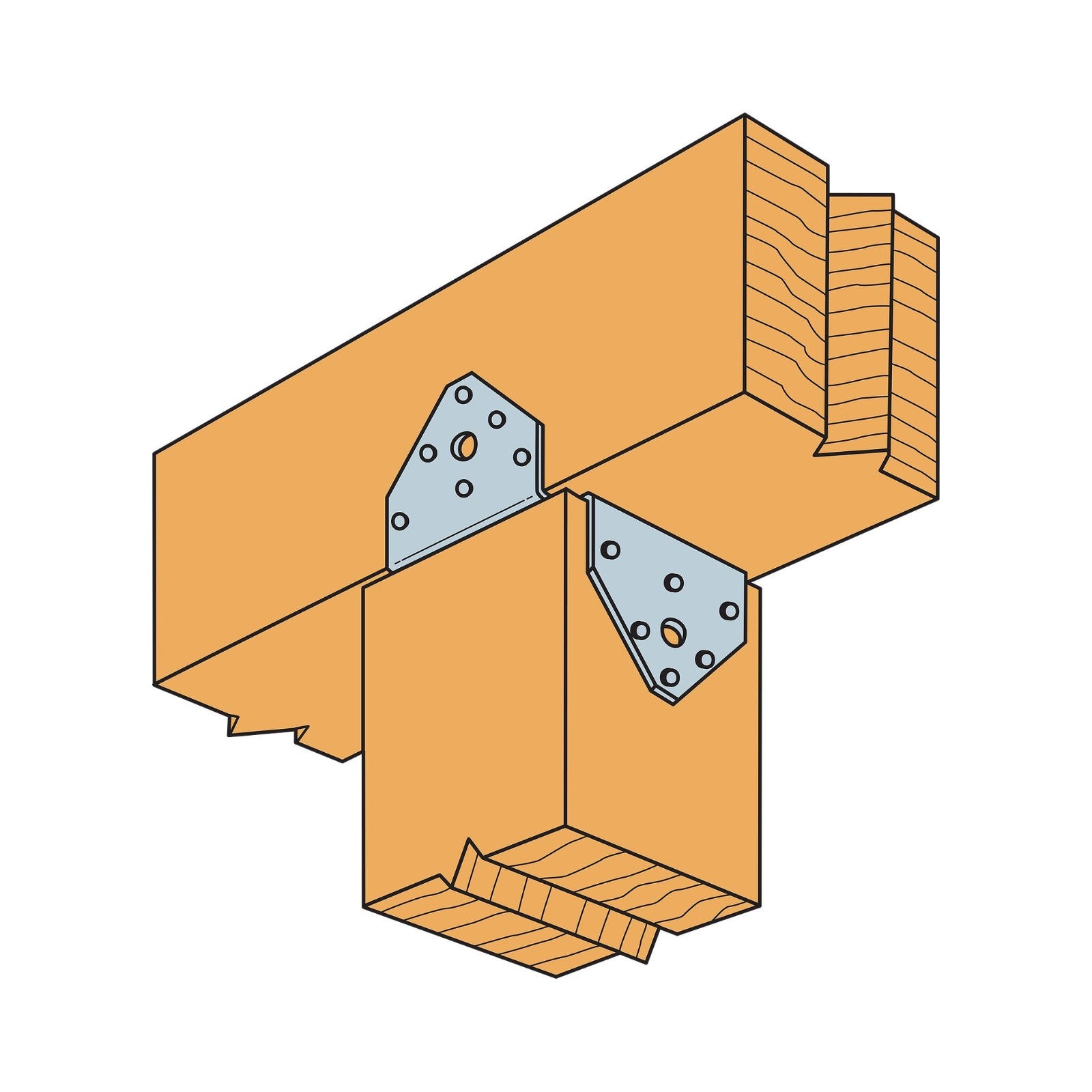

Installation

-Use all specified fasteners.
-Do not install bolts into pilot holes
-BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

View full details
Shop more BC/BCS Post Caps
× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
