Shop more BC/BCS Post Caps
SKU: BCS2-3/6

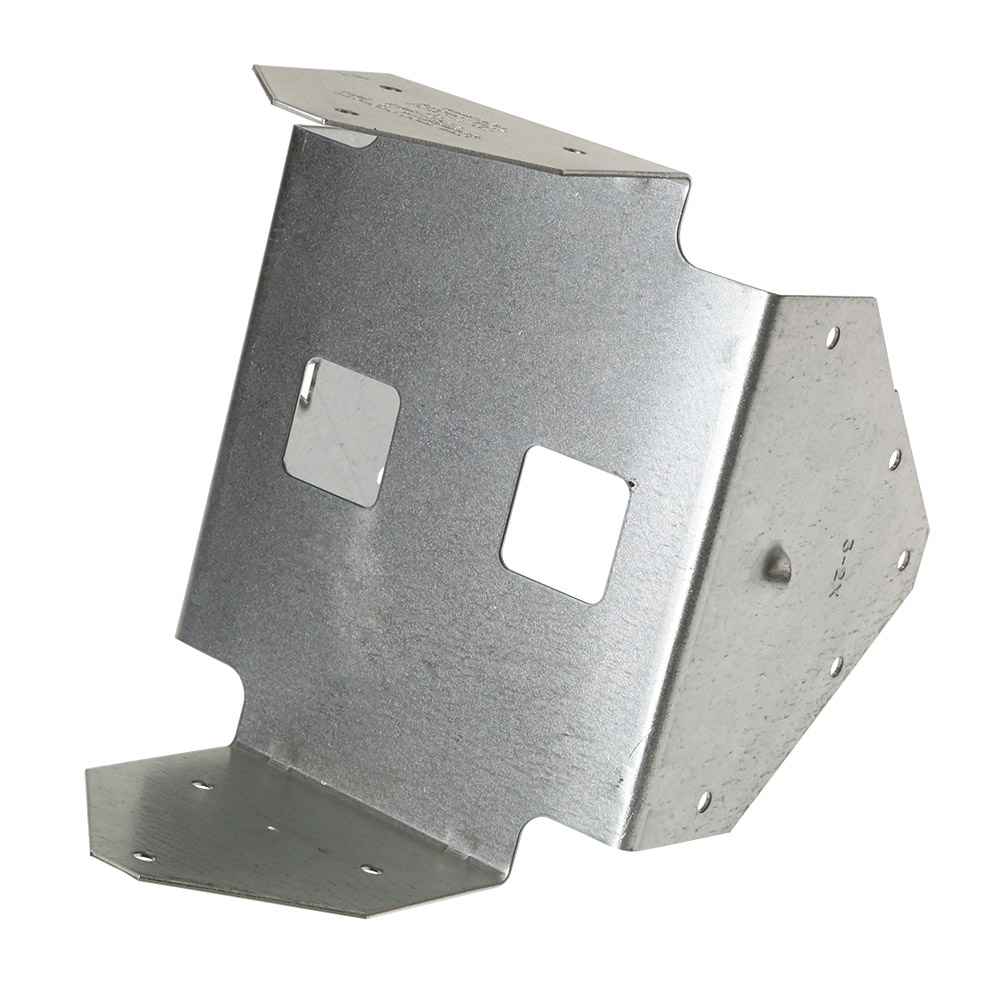

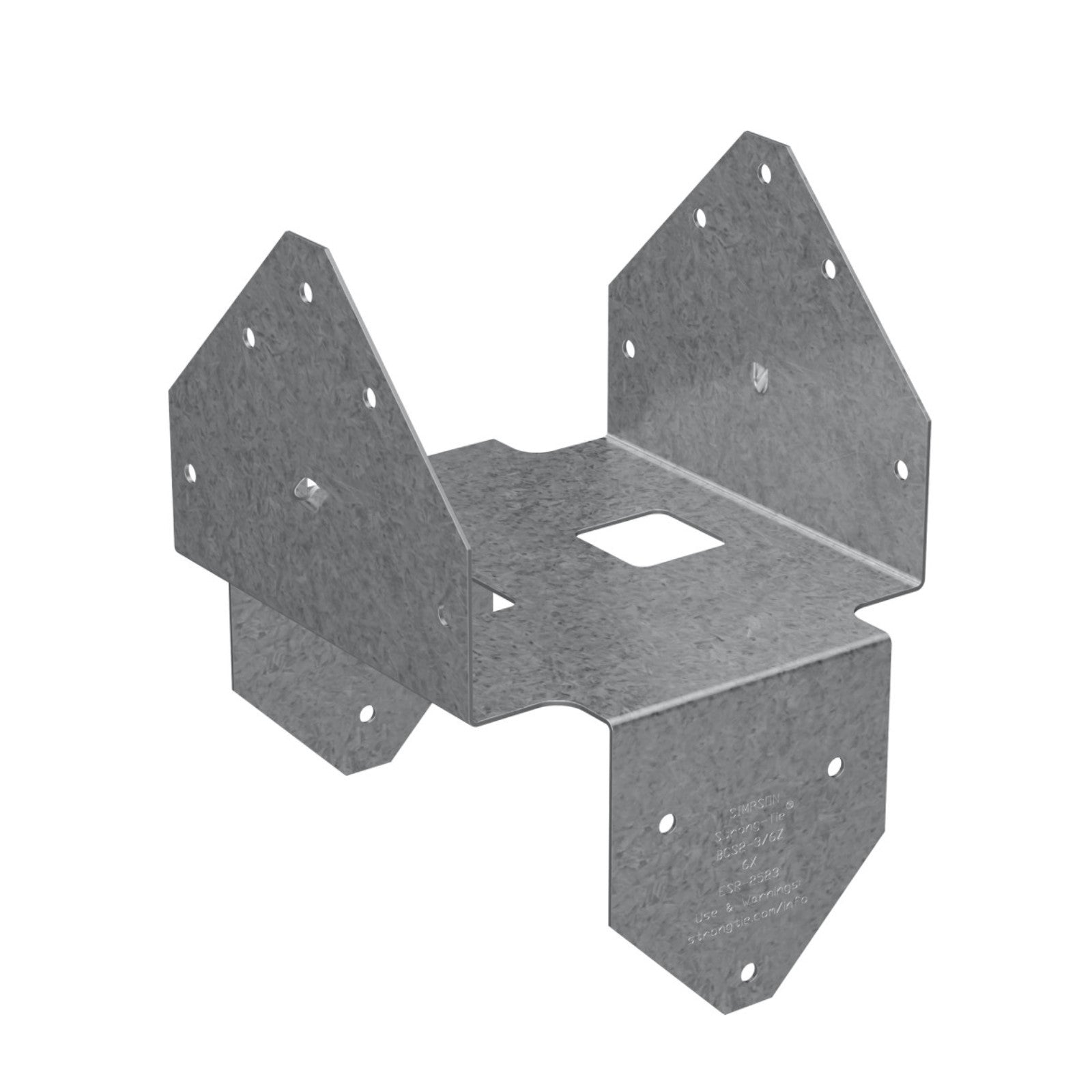

Simpson BCS2-3/6 2-3X6 Post Cap - G90 Galvanized

Simpson BCS2-3/6 2-3X6 Post Cap - G90 Galvanized

Regular price $13.57
Sale price $13.57 Regular price
0% off
shipping truck, lead time icon
Ships today when you order in the next 5 hours 12 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The Strong-Tie BC series offers dual purpose post cap/base for light cap or base connections. The BCS2-3/6 post cap is approved to be installed with the specified nails or Strong-Drive SD connector screws. The Strong-Tie BCS2-3/6 post base features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Do not install bolts into pilot holes
  • BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
  • To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

Looking for something different? See the rest of our Simpson BC & BCS Post Caps.


California Residents: WARNING

Specifications:


Fasteners required: Beam Flange - (12) 0.162 x 3-1/2" Nails Post Flange - (6) 0.162 x 3-1/2" Nails
Thickness: 18 Gauge
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Additional information:
Width (1): 4-5/8"
Width (2): 5-9/16"
Length (1): 4-3/8"
Length (2): 2-7/8"
Height (1): 3-5/16"
Height (2): 2-15/16"
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Do not install bolts into pilot holes
-BC: install with 16d commons or 16dx2 1/2" joist hanger nails.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
-To tie multiple 2x members together, the Designer must determine the fasteners required to join members to act as one unit without splitting the wood.
