Simpson CB5-4.5 Column Base

ICC Certified

Regular price $5200
Ships today when you order in the next 11 hours and 26 minutes

Description

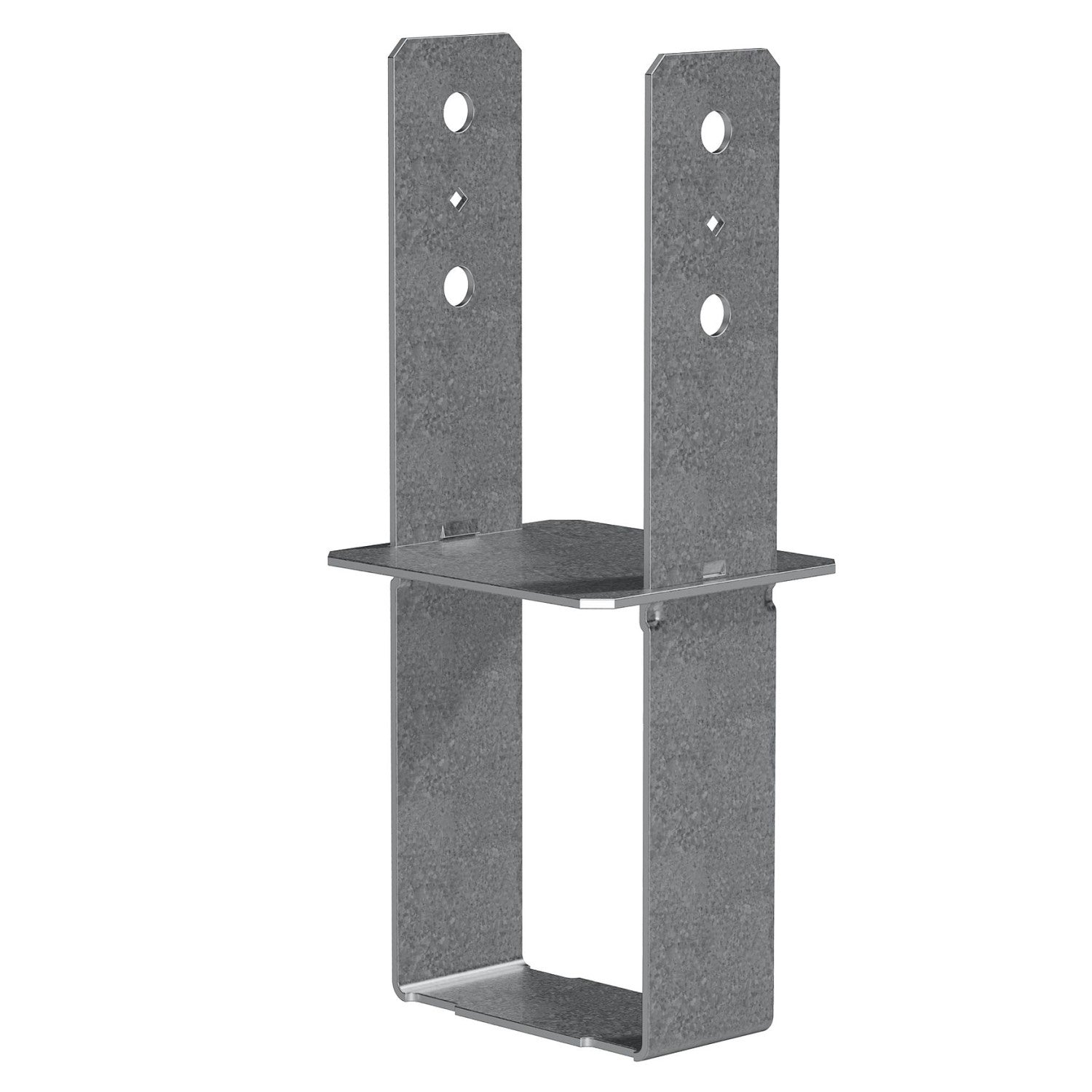

The Simpson CB5-4.5 Column Base enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column base is designed to connect columns or posts to concrete foundations.

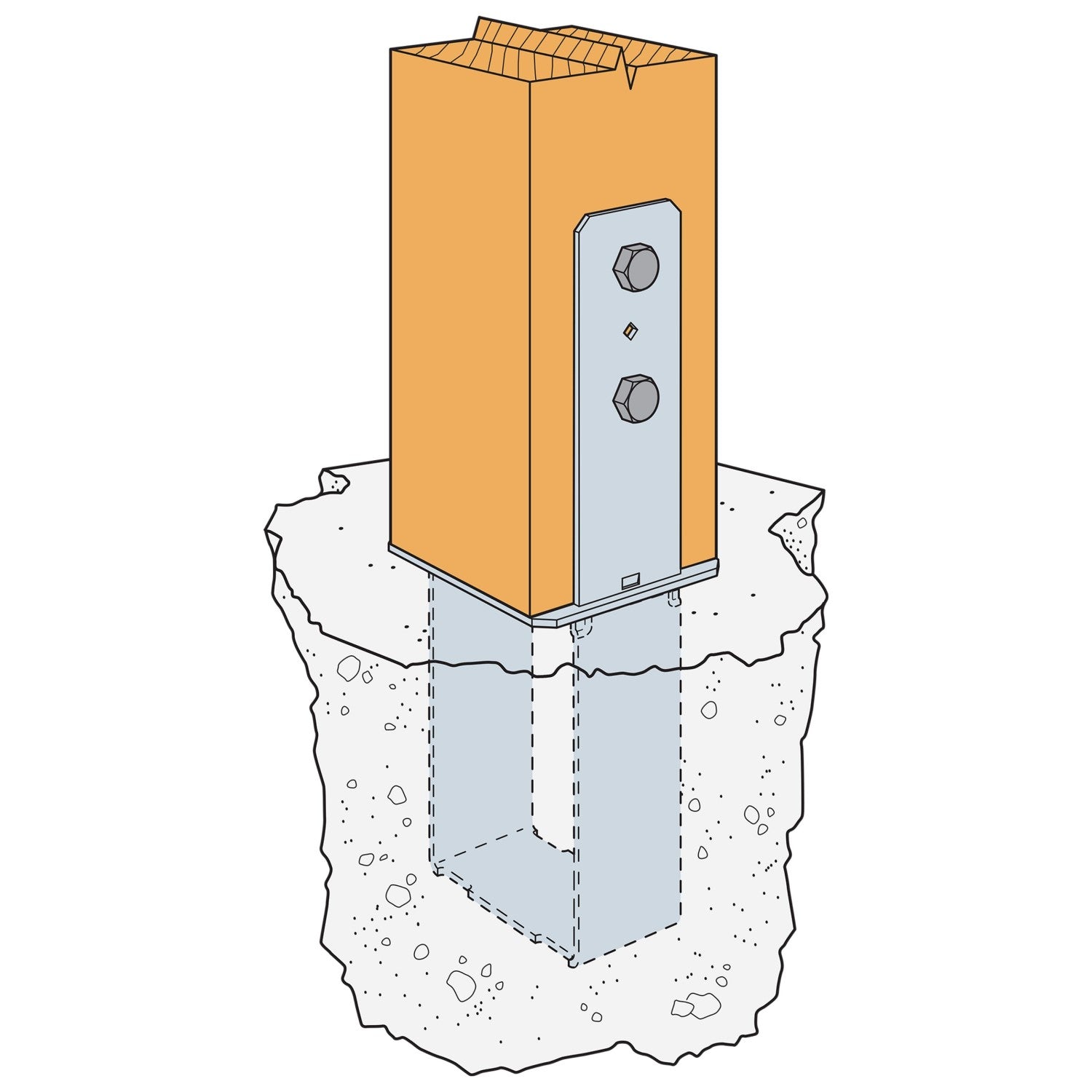

These connectors are cast-in-place or wet-set in concrete, sit flush with the concrete for full post bearing, and is ideal for columns that require high structural values and long-lasting performance.

This product is intended for use with posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Designed to be cast-in-place or wet-set into concrete in order to connect columns to concrete foundations.
  • Lumber Size: Intended for use with Glulam posts/columns.
  • Material and Finish: Made from Heavy Gauge Steel for durability and finished with Gray Paint coating.
  • Performance: Increased uplift resistance for wind or seismic loading.

California Residents: WARNING

Specifications

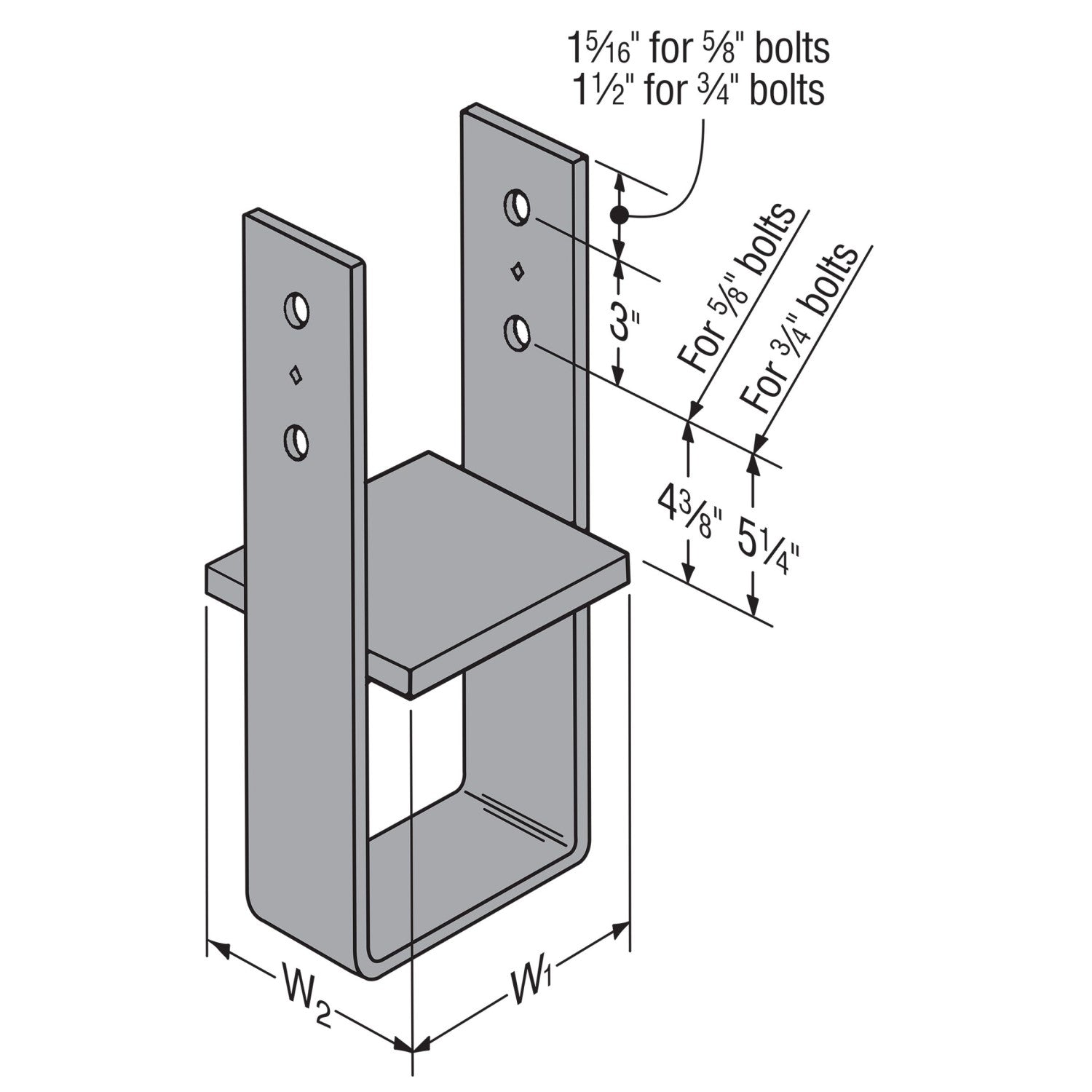

Width: W1: 4-1/2" W2: 5-1/8"
Material: Heavy Gauge Steel
Finish: Gray Paint
Manufacturer Name: Simpson Strong-Tie Company Inc
Fasteners Required: Bolts - (2) 5/8"

Reviews
(2)

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
RobClemens
Fast shipping product as described.

Product was exactly as described and shipping was fast. If using 3 2xs for beams, may have to cut one of the tack welds off as thickness of boards can throw off your plans with just a slight variation in thickness. But product is heavy duty and will work great. Too bad they don’t make one 5” wide that would be perfect for that application.

D
David Elliott
Excellent

Everything was perfect
