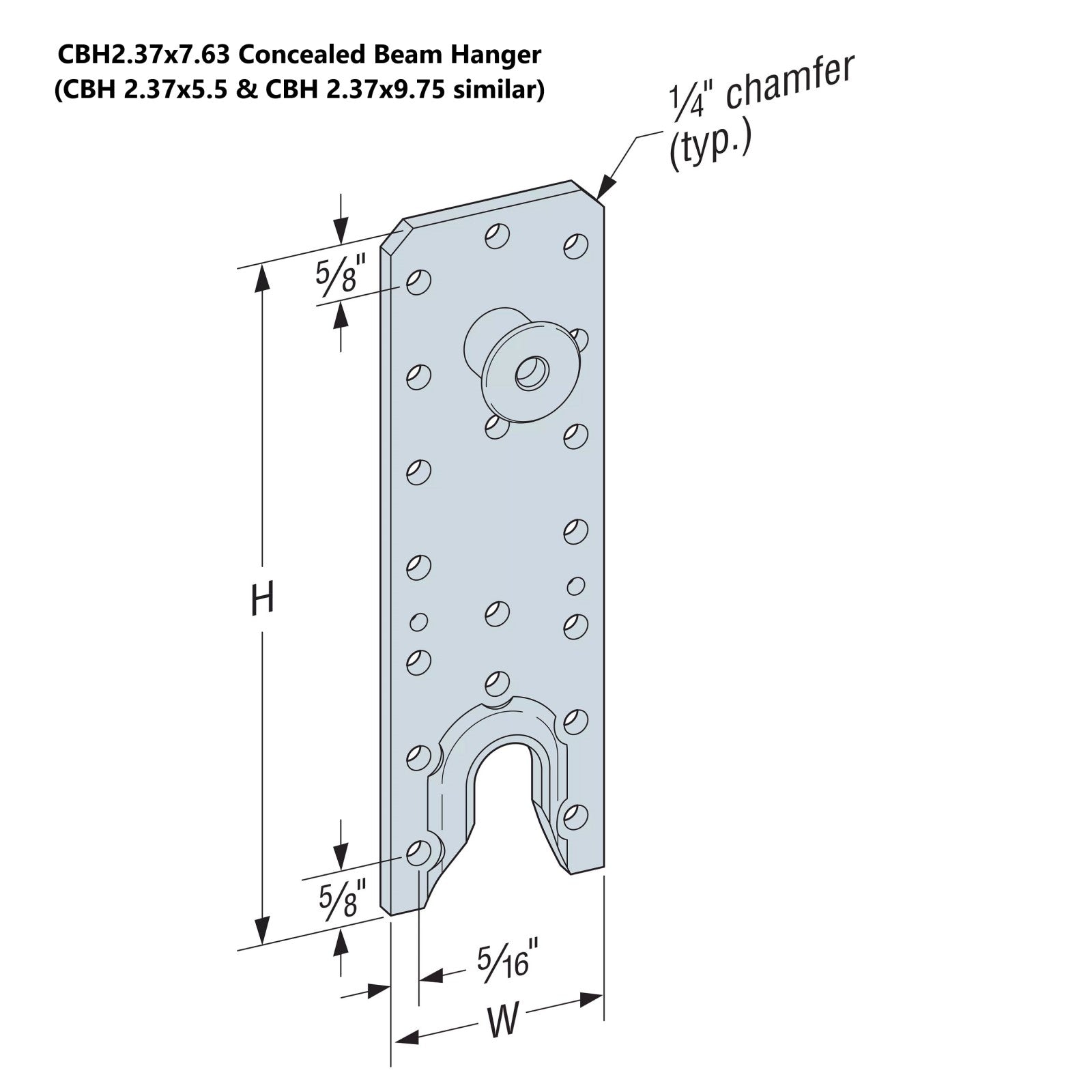

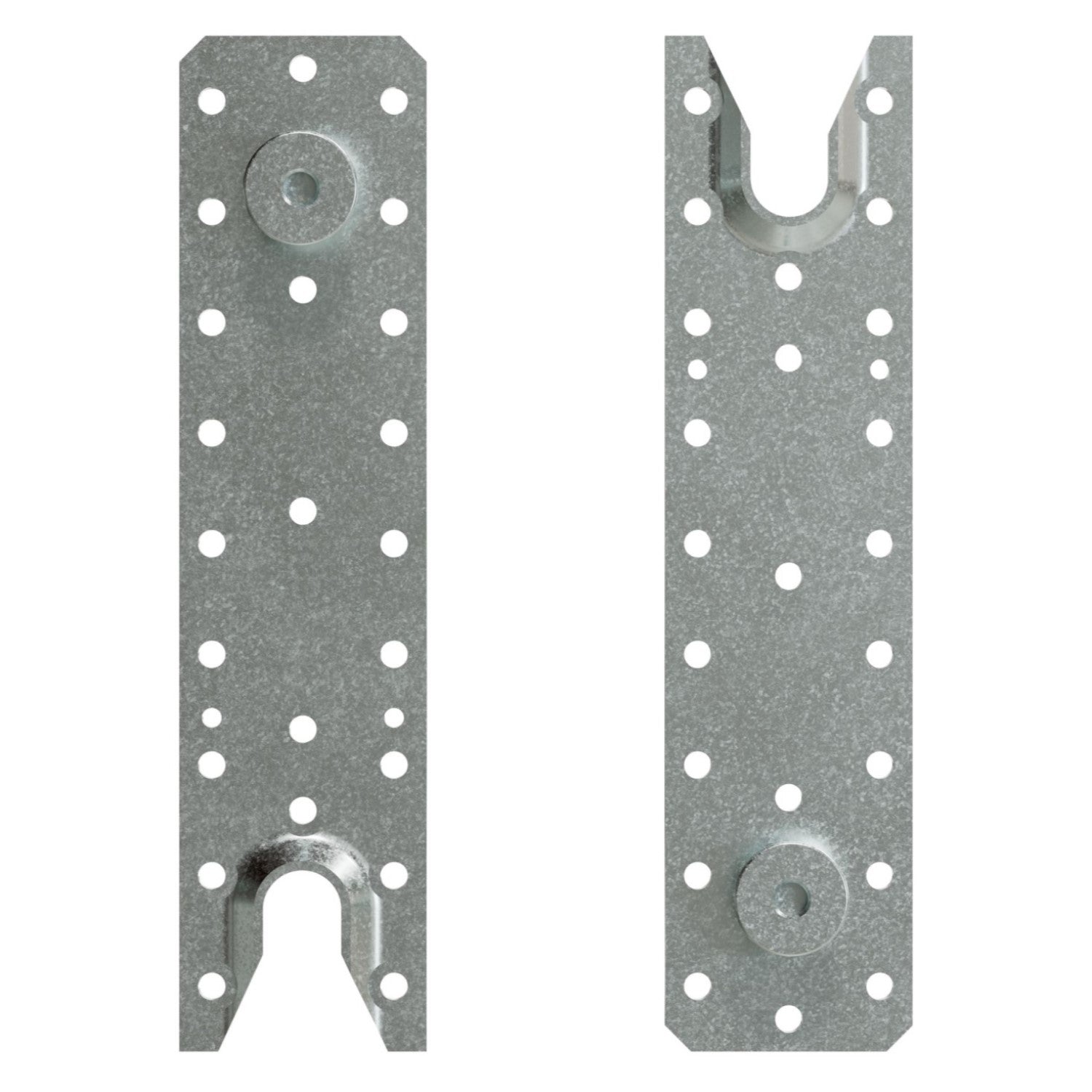

Computer modeling and CNC manufacturing enables glulam to be delivered to the jobsite in precise lengths and with preinstalled concealed hangers. The CBH concealed beam hanger is specifically designed for such applications, and is installed with readily available Simpson Strong-Tie^® SDS Heavy-Duty Connector screws. The CBH has been tested for inter-story drift and has achieved 1-hr and 2-hr fire resistance ratings according to ASTM E119.

Key Features

• Includes (20) backplates (screws not included)
• Concealed for architectural aesthetics and fire-rated performance
• Multiple router options to suit jobsite needs

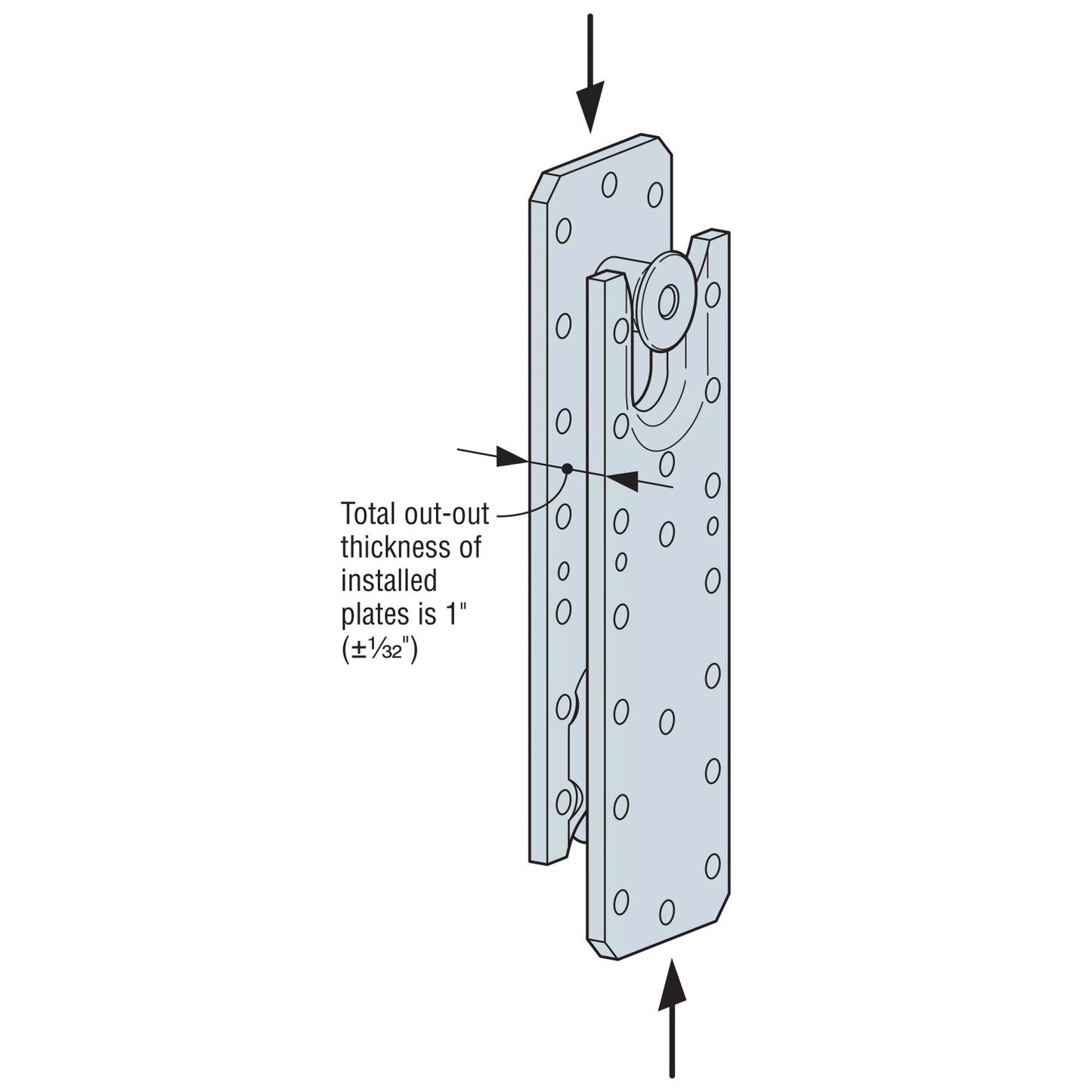

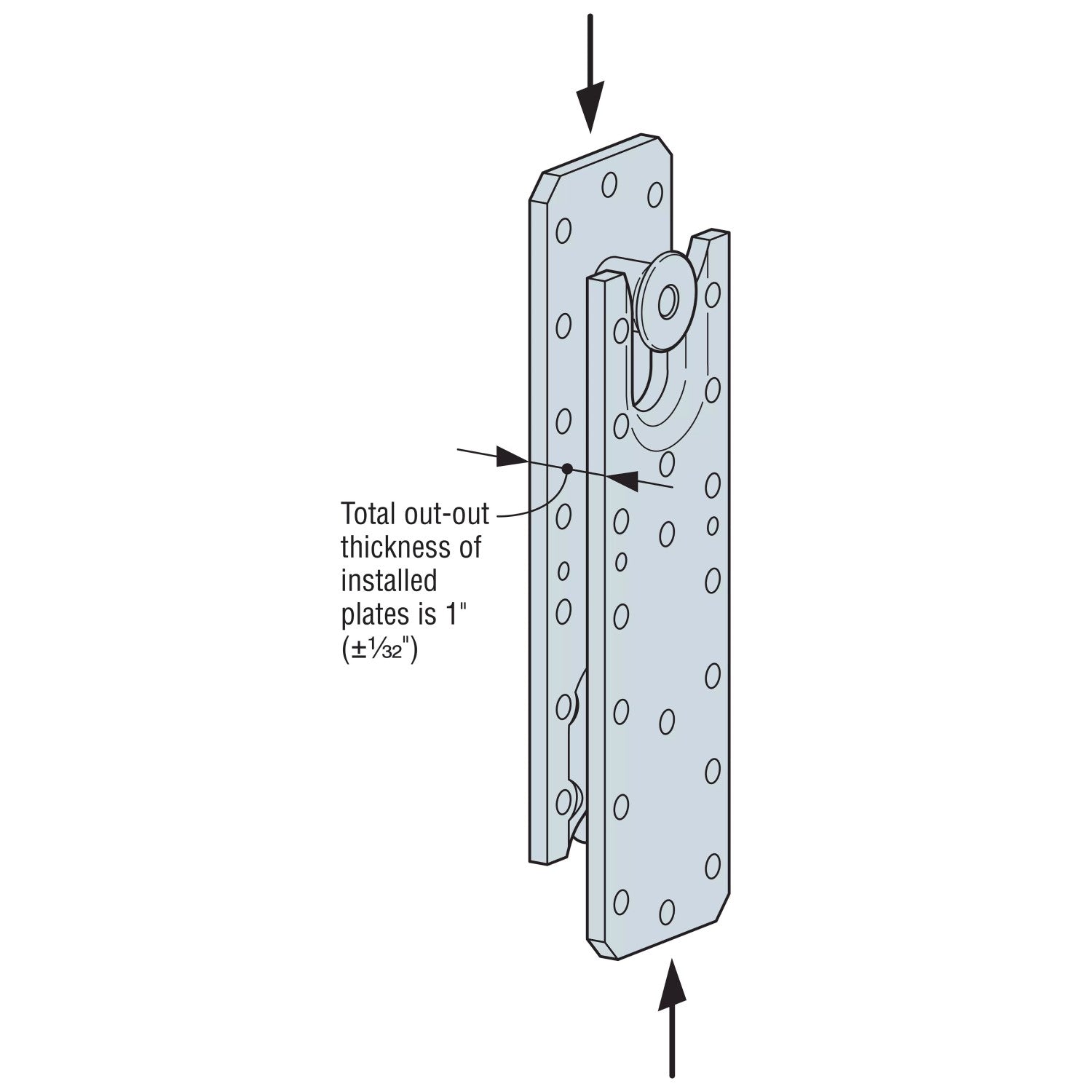

• +/- 1/32" beam length tolerance on each end enables easier installation
• 1-hr and 2-hr fire resistance ratings per ASTM E119 (see L-C-CBHCHAR)
• Inter-story drift performance tested to over 2% (see L-C-CBHDRIFT)
• Code-listed per ICC-ESR-2552
