Simpson Strong-Tie CBH2.37X7.63C-KT Concealed Glulam Beam Hanger - Electro-Galvanized | Fasteners Included | Qty. 2
Type
Height
Quantities
Description
Description
The CBH2.37X7.63C-KT is a concealed beam hanger kit from Simpson Strong-Tie, engineered for heavy-duty, hidden wood-to-wood connections in mass timber applications. Designed for a clean, modern finish with no visible hardware, it’s perfect for projects that showcase exposed timber framing with structural strength and seamless aesthetics.
Kit Includes:

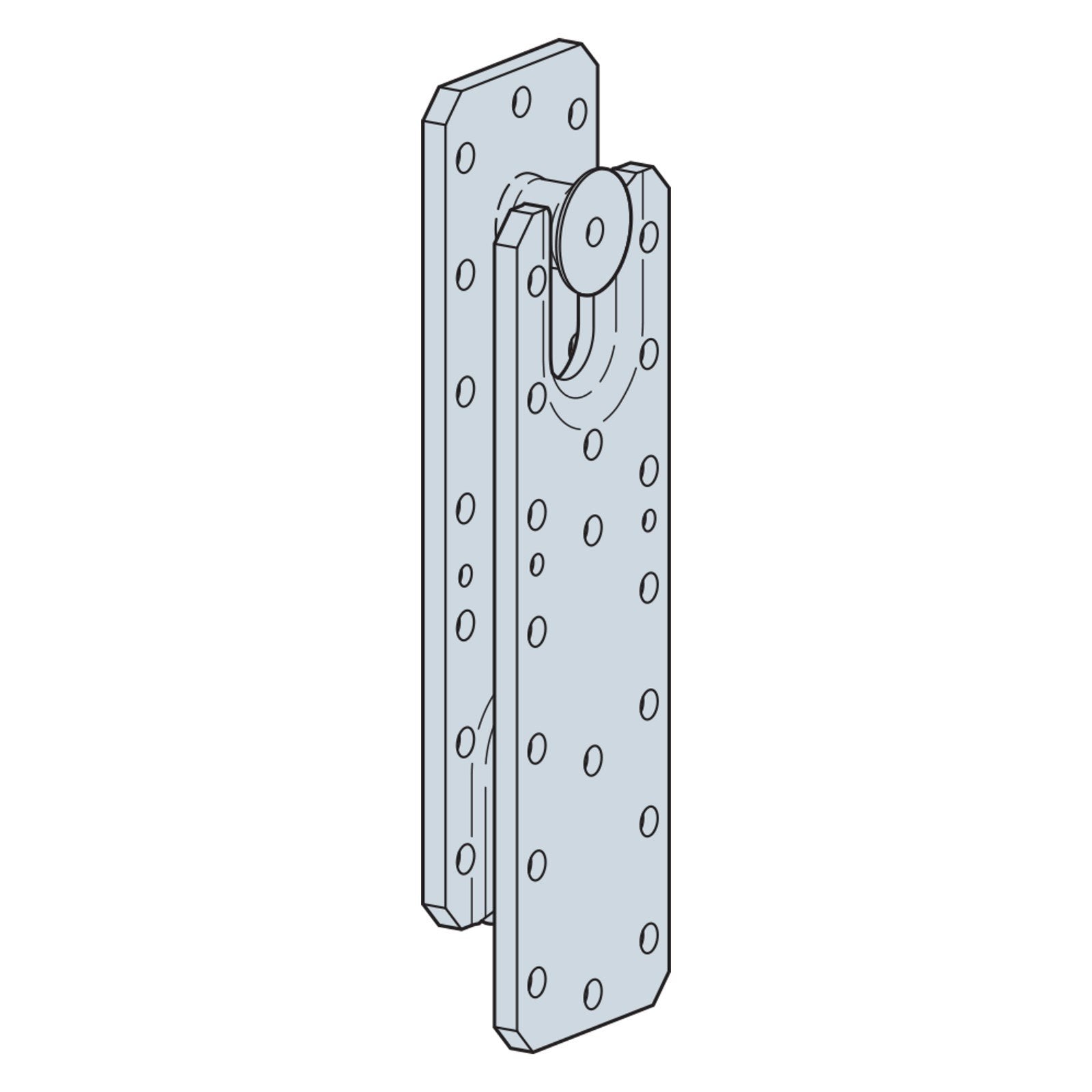

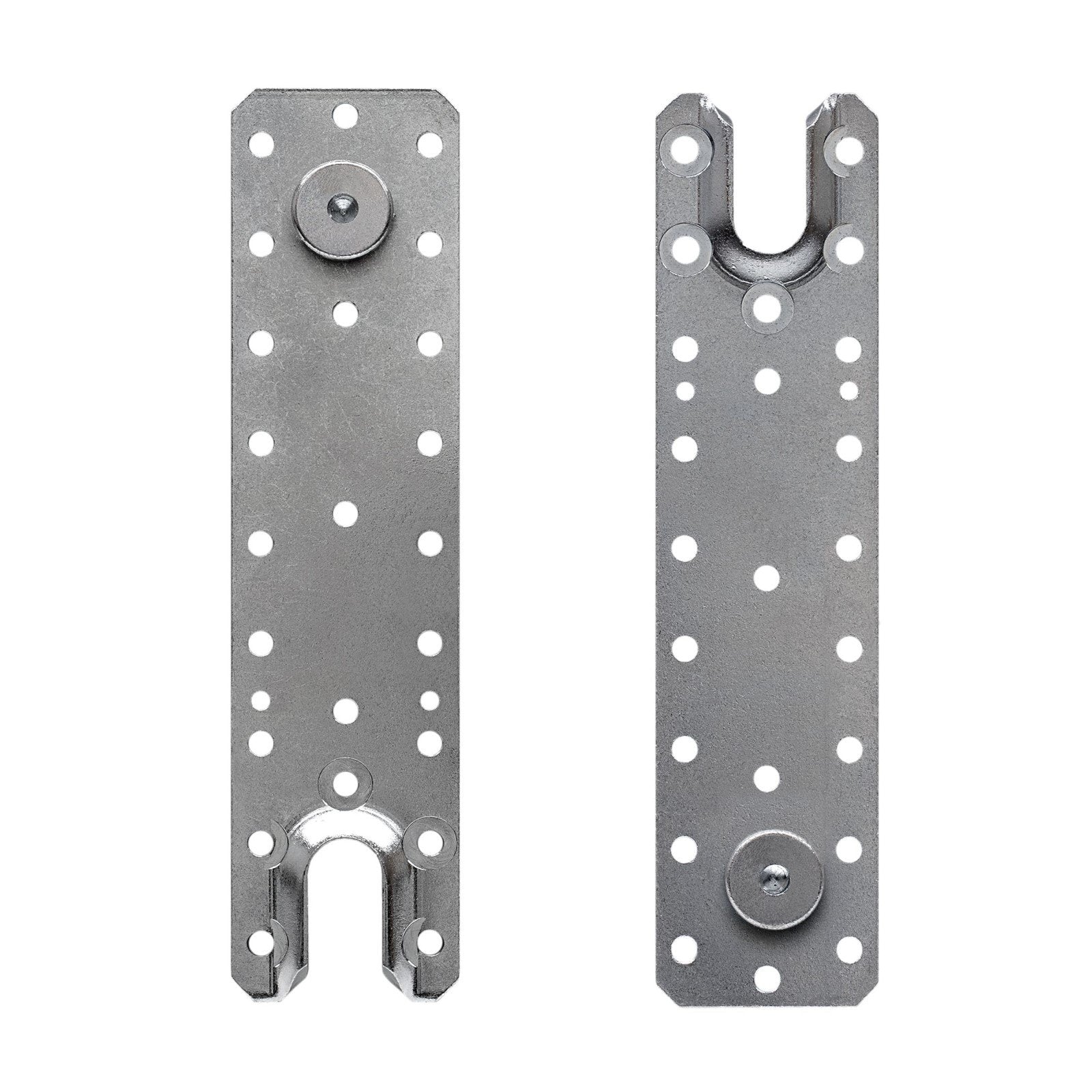

- (2) CBH2.37X7.63C-KT Concealed Beam Hanger Backplates
- (36) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Key Features:
- Hidden Connection: Maintains clean, uninterrupted timber surfaces
- High Load Performance: Code-listed under ICC-ES ESR-2552

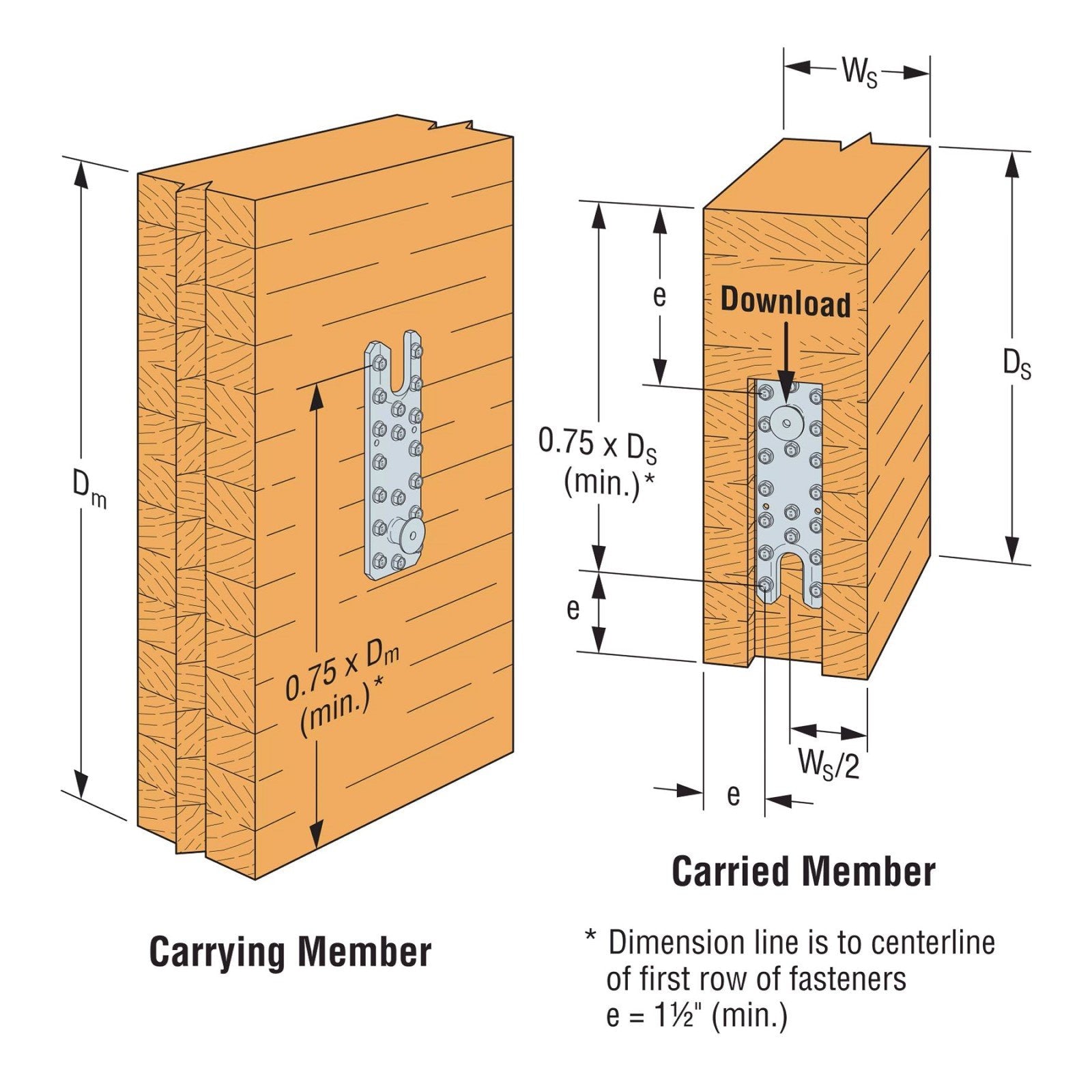

- Precision Alignment: Allows for ±1/32" beam length tolerance
- Heavy-Duty Steel: Manufactured from 3-gauge galvanized steel for structural strength
Applications:

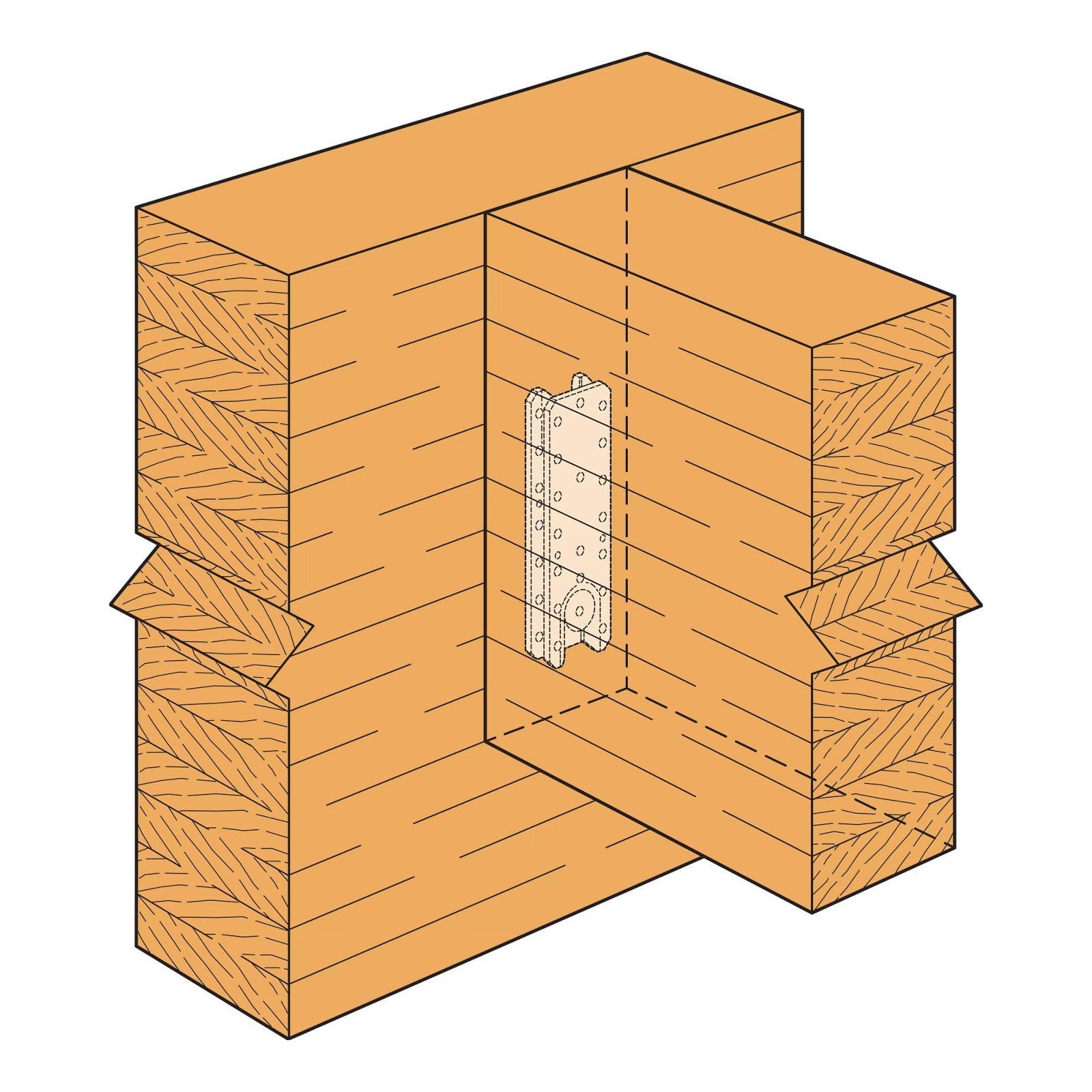

- Concealed beam-to-column or beam-to-beam connections
- Mass timber structures and architectural wood framing
- Projects requiring hidden, high-load timber joints
Installation Overview:
- Prepare Members: Ensure beams and columns are clean, square-cut, and dry.
- Routing (if needed): Recess areas for the hanger plates per project specifications.

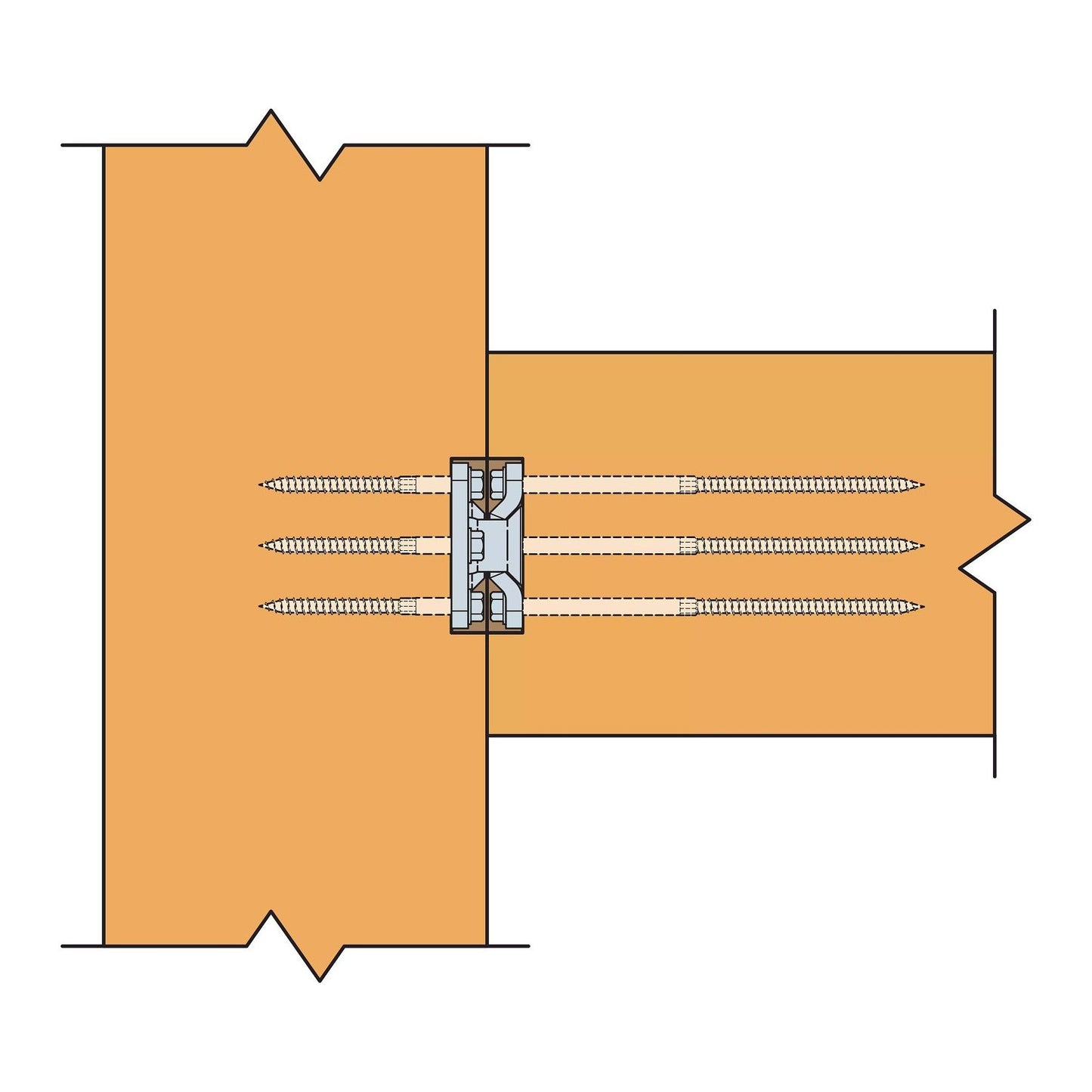

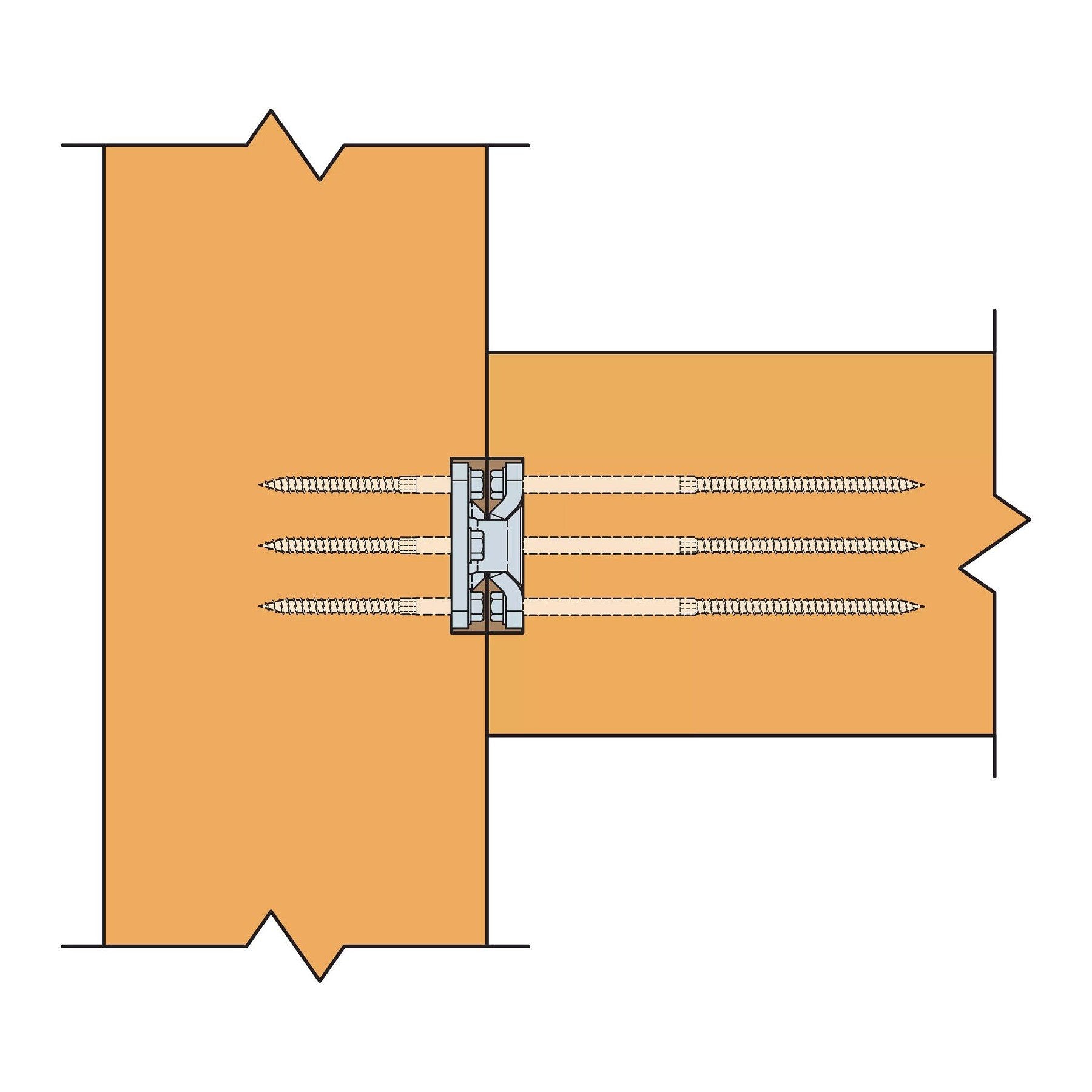

- Join Components: Align and interlock the members so the stud fits securely into the slotted plate.
- Inspect Fit: Confirm full seating and alignment before moving forward.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
