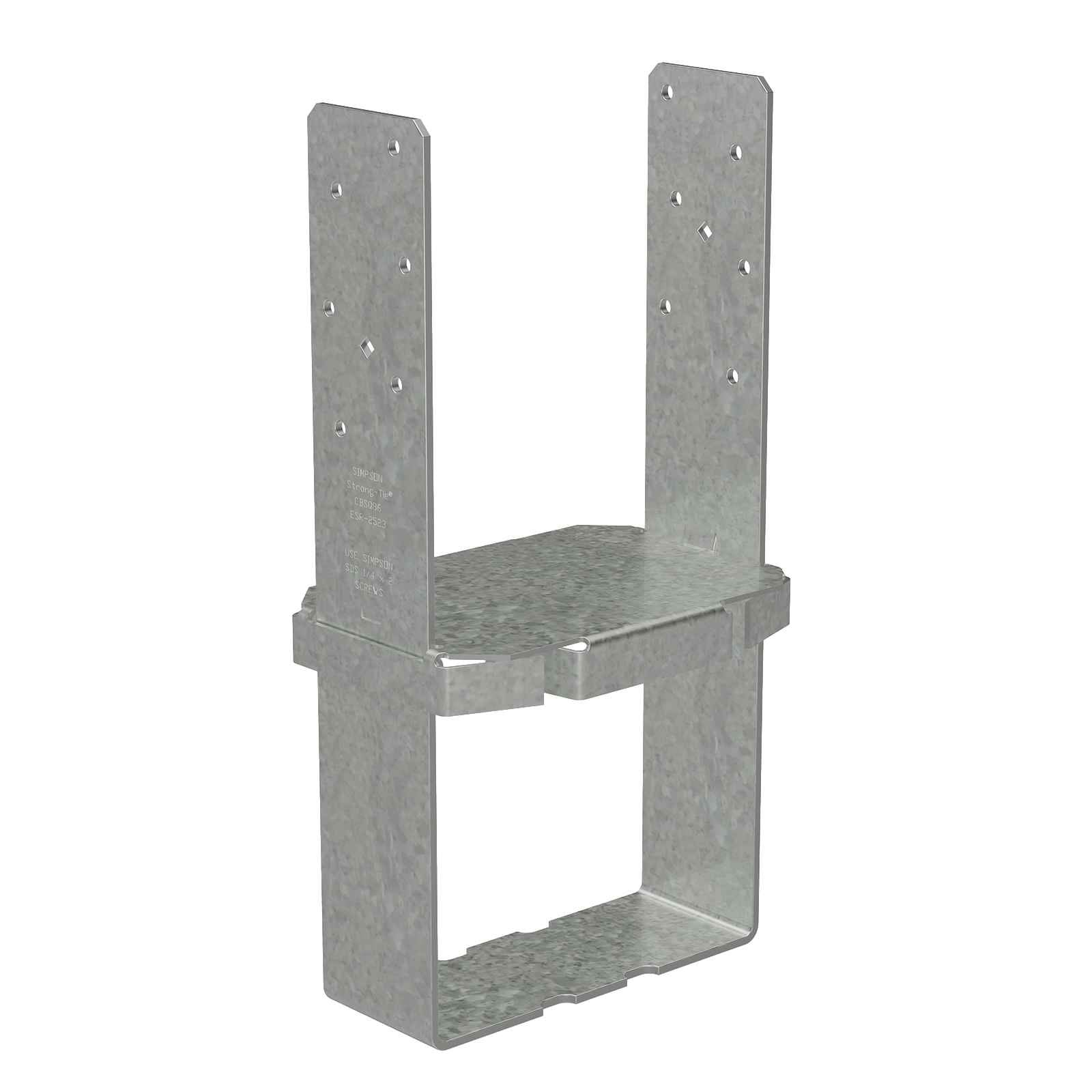

Simpson CBSQ86 Column Base, Quick-Install - G90 Galvanized
Simpson CBSQ86 Column Base, Quick-Install - G90 Galvanized
Description:
Description:
Simpson Strong-Tie CBS/CBSQ are a sturdy cast in place column base that includes a 1" standoff that meets code requirements for structural posts installed in basements or exposed to weather or water splash. The CBSQ includes Stong-Drive SDS screws which allow for fast installation, reduced reveal and high capacity.
Looking for something different? See the rest of our Simpson CBS & CBSQ Column Bases.
California Residents: WARNING
Specifications:
Specifications:
Height: 8-11/16"
Fasteners required: 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws - provided
Thickness: 12 Gauge
Depth: 6-1/8"
Quantity: 1
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Column size: 6X8
Additional information:
Width (1): 7-1/2"
Width (2): 5-3/8"
Product Guide: View Spec Sheet
Features
Features
•1" standoff of the CBSQ meets code requirements for structural posts installed in basements or exposed to weather or water splash
•Included fasteners provide faster installation than bolts
•SDS Heavy-Duty Connector screws that provide a greater wood net section area than bolts
Installation
Installation
•Use all specified fasteners; see General Notes.
•Install 1/4" x 2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column base. (Lag screws will not achieve the same load.)
•Install CBSQ with bottom of standoff flush to top of concrete
•Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
