SKU: CCCQ7X-SDS

Simpson CCCQ7X-SDS Cross Column Cap W/ SDS Screws, Made to Order Non-Returnable

Name: Simpson CCCQ7X-SDS Cross Column Cap W/ SDS Screws, Made to Order Non-Returnable
SKU: CCCQ7X-SDS
Availability: InStock

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

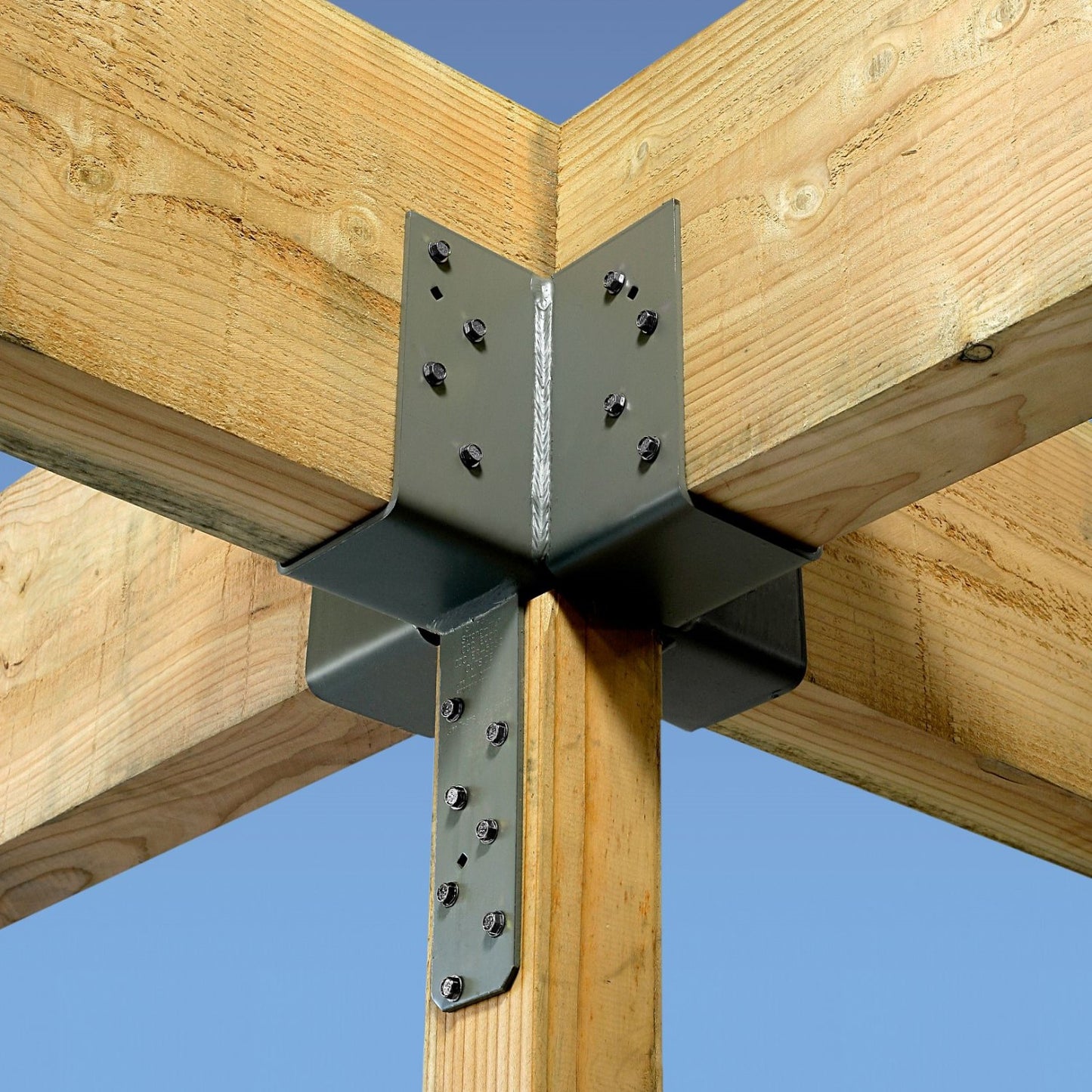

The CCCQ is designed to provide strong column-to-beam connections when there are multiple wood beams on top of a column. When properly installed, this cross-column cap helps to distribute the load from the intersecting beams and provides support for the connection. The CCCQ7X-SDS come with Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts and is special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.

Key Features

Simpson Strong-Tie gray paint. Also available in HDG; please request when ordering.
Screws are configured to provide high uplift design values
Certified welds for confidence in strength and loading
Diamond holes to provide temporary fastening
Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
Available in widths up to 8" wide; additionally, many combinations of beam and post sizes can be manufactured.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications

Width: W1: 6.875" - 7.4375"; W2: 3.25" - 10"; W3: 3.25" - 8"; W4: 3.25" - 8"

Height: H1: 7"; H2: 7" - 15"

Thickness: 3 Gauge

Manufacturer Name: Simpson Strong-Tie

Quantity: 1

View Spec Sheet
