Simpson CCQM3.62-SDSHDG Column Cap for GFCMU and Concrete Piers
Simpson CCQM3.62-SDSHDG Column Cap for GFCMU and Concrete Piers!
Continue Browsing
CCQM/CCTQM/CCCQM Column Caps
Specifications

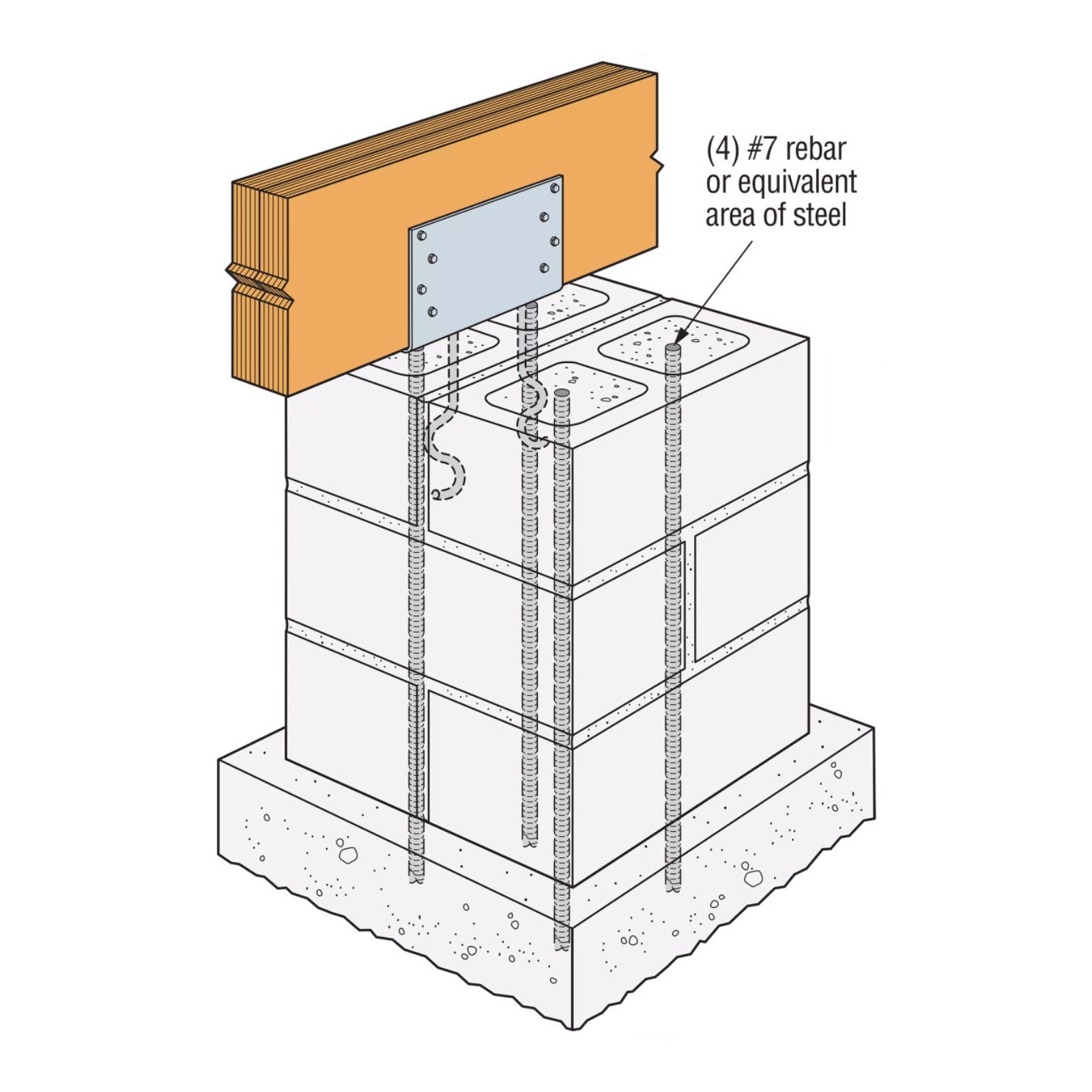

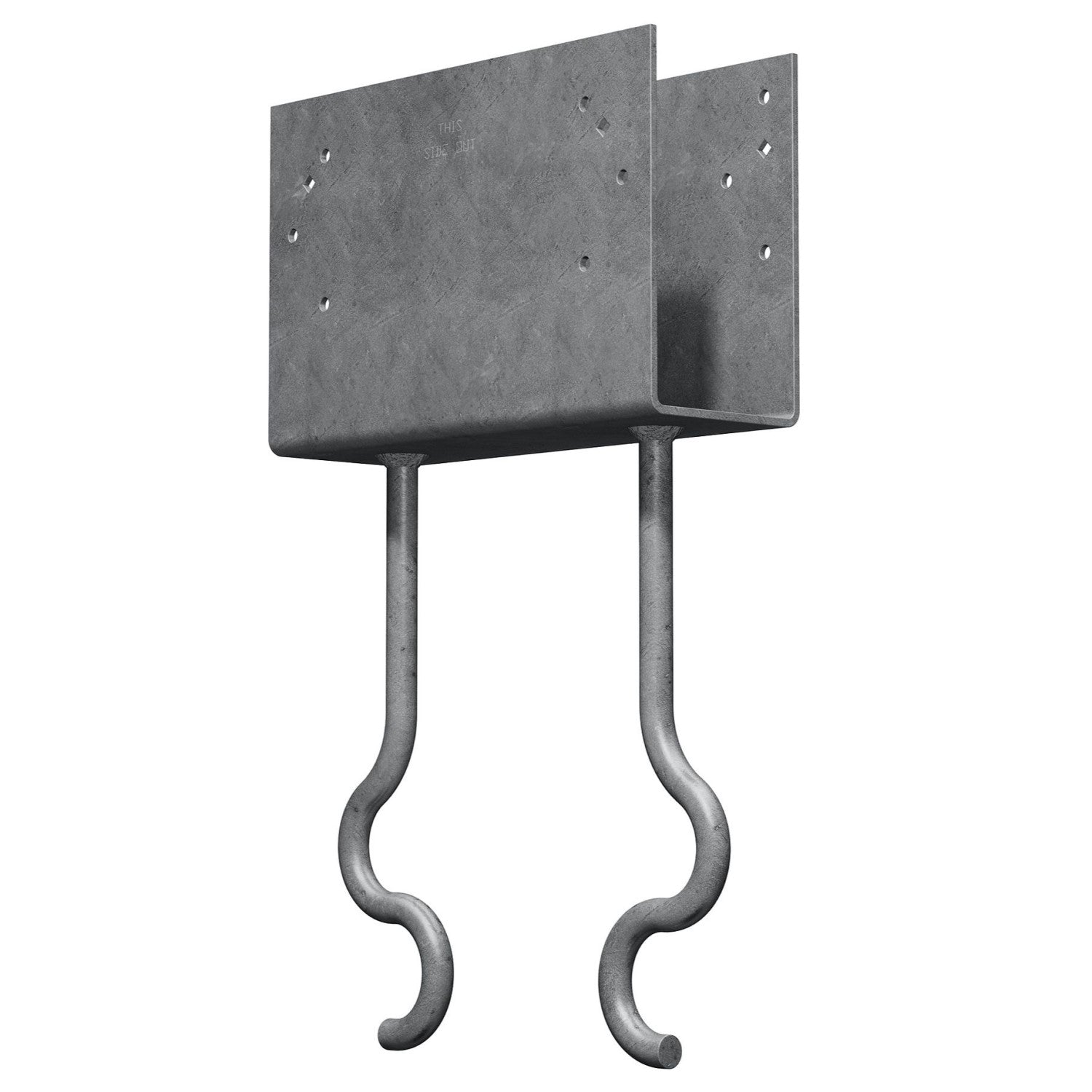

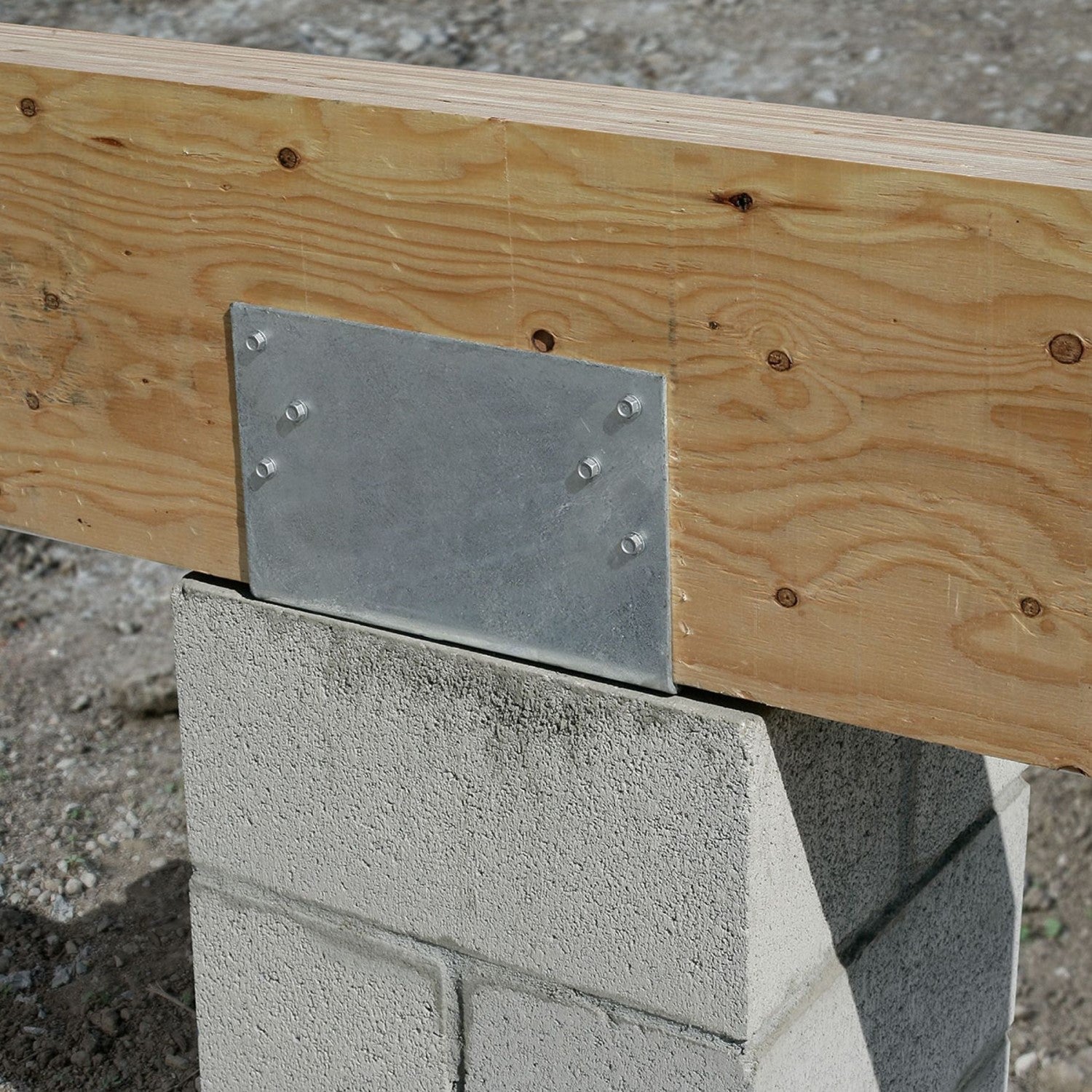

The Simpson CCQM3.62-SDSHDG Column Cap for GFCMU and Concrete Piers enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections for GFCMU and concrete piers.
The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

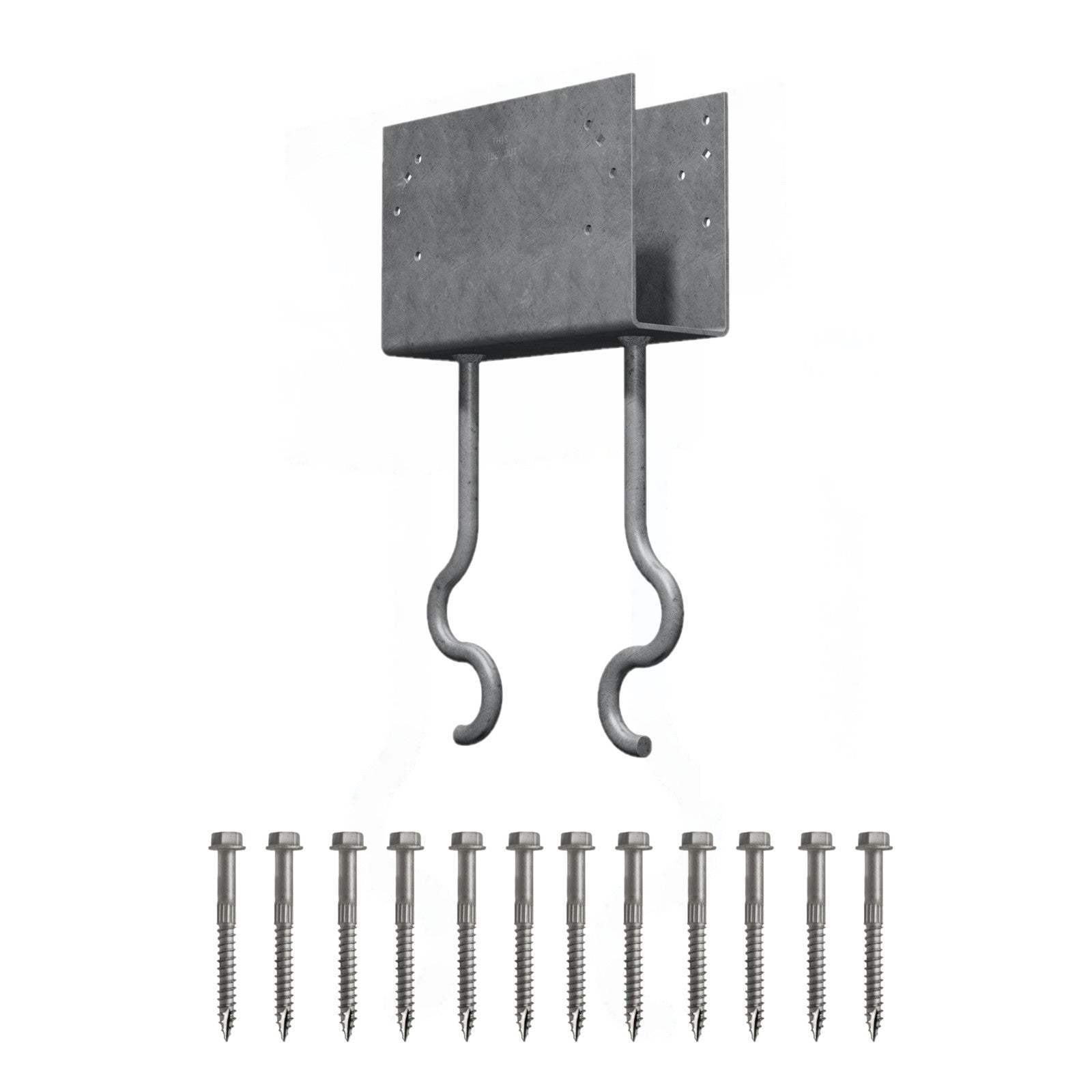

This product is intended for use with posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber. Included with this column cap are the necessary Simpson Strong-Tie SSTB anchor bolts to provide fast installation and lower profile than standard bolts.
Features:
- Connection Type: Provides strong column to beam connection for GFCMU and concrete piers and the extended area of the column seat offers additional surface area of bearing to distribute the load.

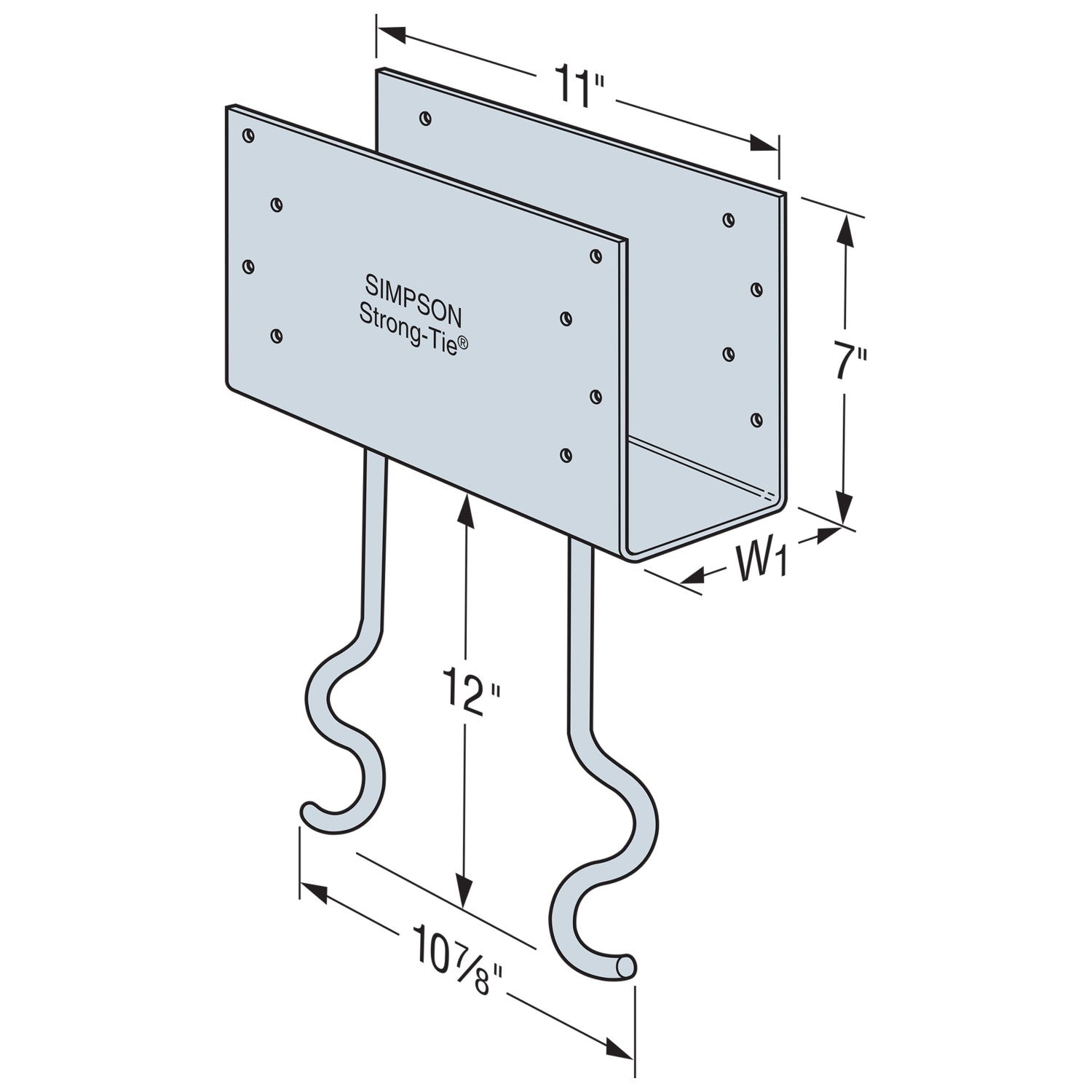

- Lumber Size: Intended for use with 3-5/8x beams and posts/columns and includes necessary Strong-Tie SSTB anchor bolts for quick installation.
- Material and Finish: Made from Steel for durability and finished with Hot Dip Galvanized coating.
- Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
California Residents: WARNING
