Shop more CCQM/CCTQM/CCCQM Column Caps
SKU: CCQM4.62-SDS

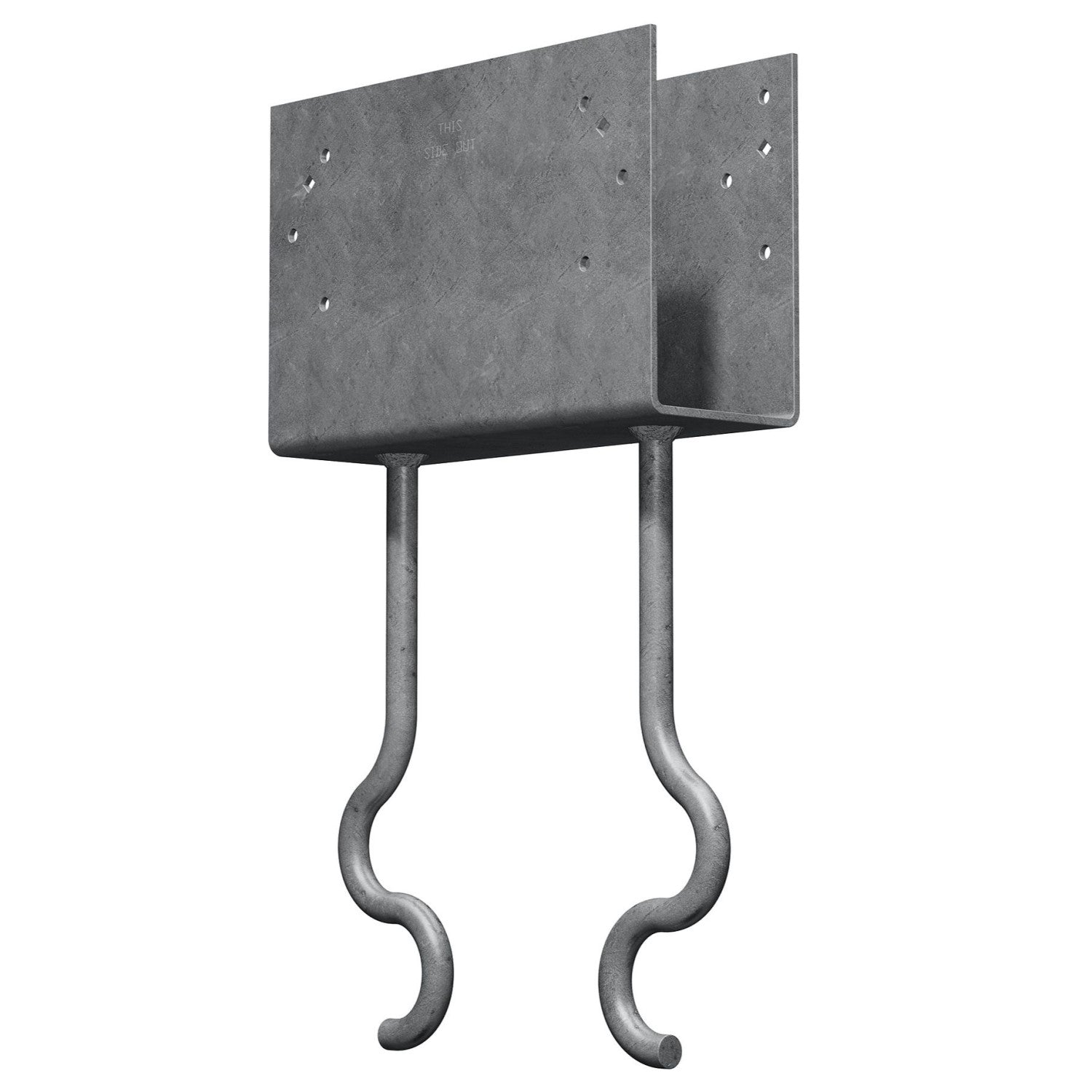

Simpson CCQM4.62-SDS Column Cap for GFCMU and Concrete Piers

Simpson CCQM4.62-SDS Column Cap for GFCMU and Concrete Piers

Call for Price
Call to Order
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

  • This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

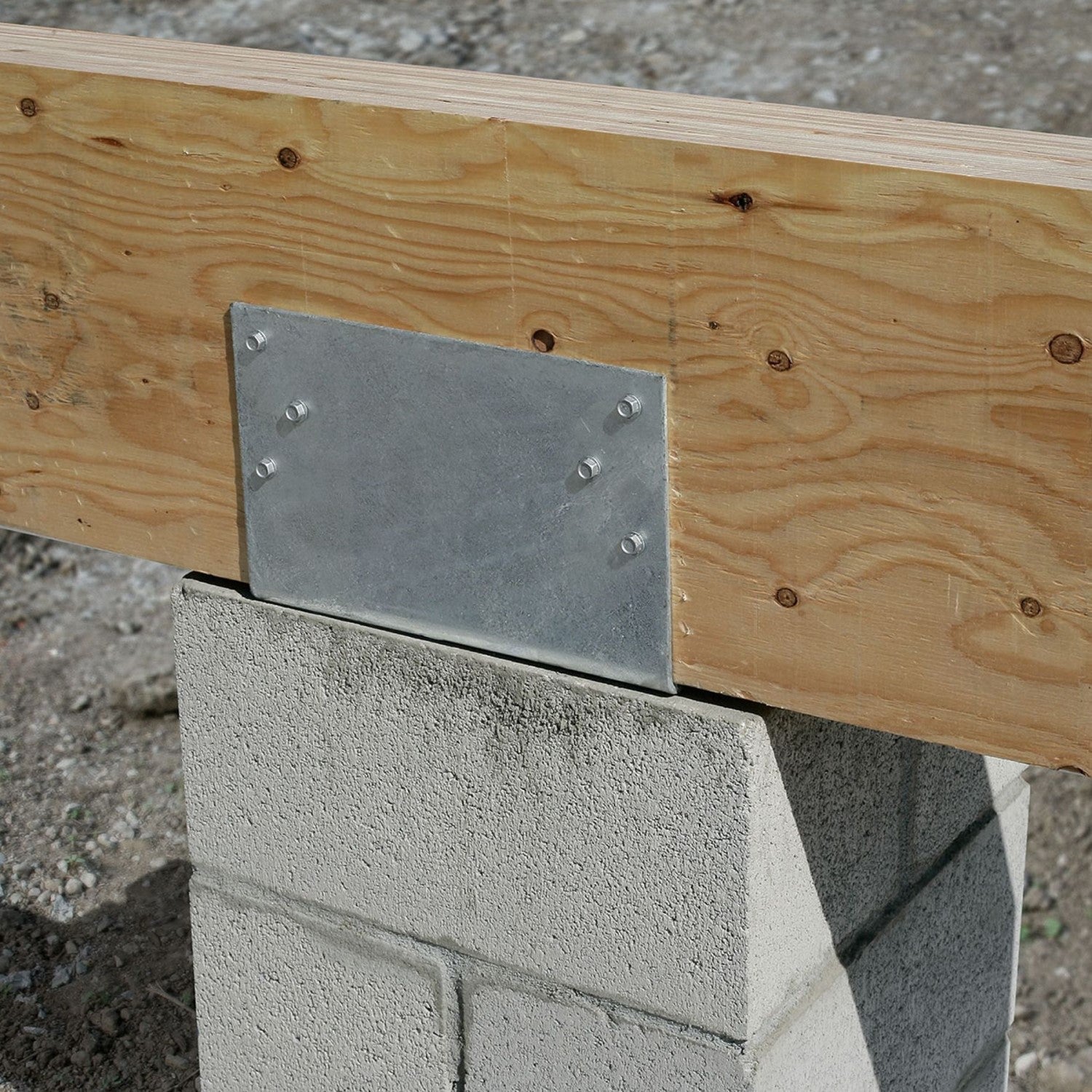

  • The CCQM Column Cap for GFCMU and Concrete Piers embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCQM is intended for use along a floor support beam and non-corner locations.

    • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
    • Screws are configured to provide high uplift design values
    • Certified welds provide confidence in strength and loading
    • SSTB offset allows flush installation to edge of pier
    • SSTBs spaced to fit standard CMU cells

    California Residents: WARNING

    Specifications:


    Fasteners required: 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (provided)

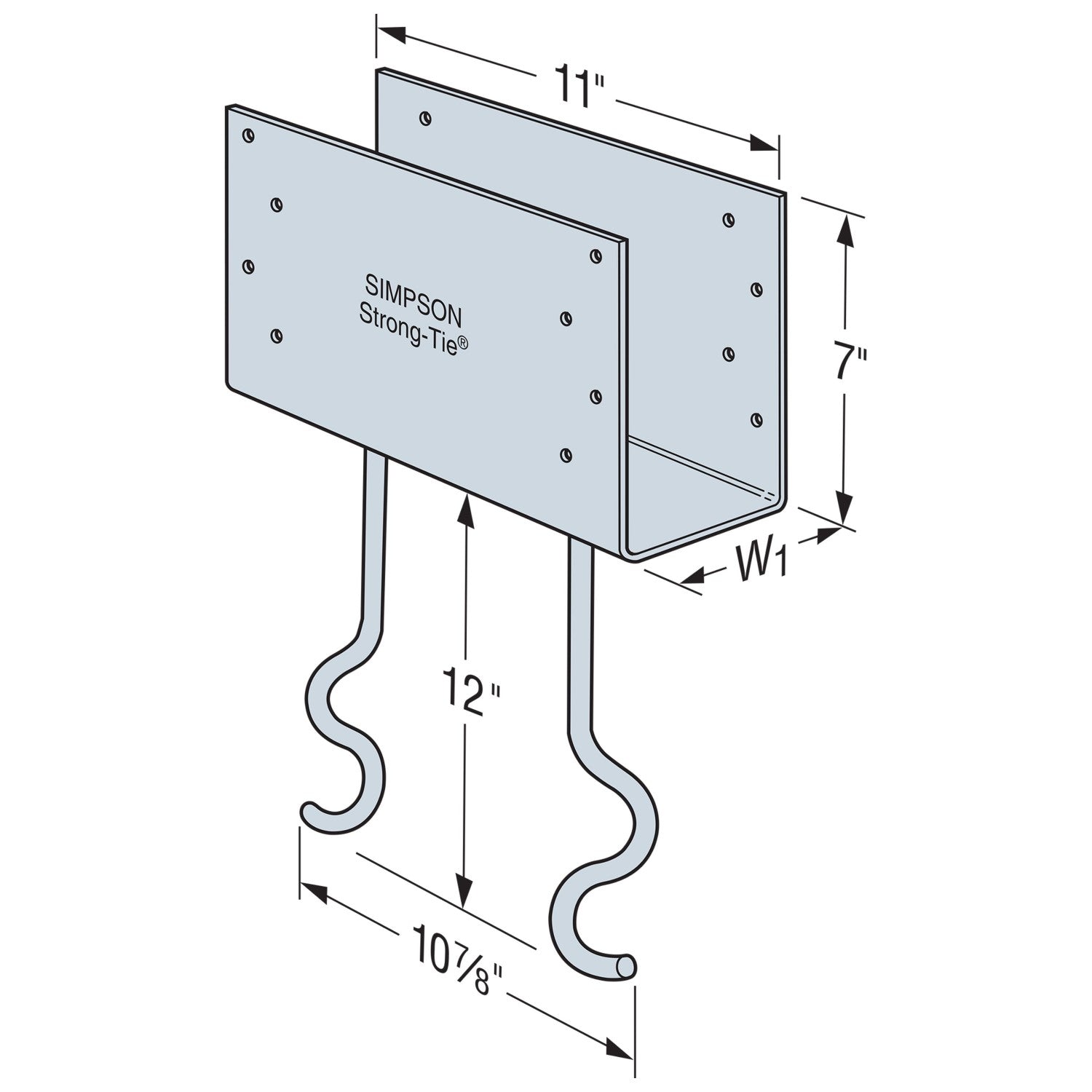

    Width: 4-5/8"
    Finish: Gray Paint
    Length: 11"
    Manufacturer name: Simpson Strong-Tie Company Inc
    Product Guide: View Spec Sheet
