Simpson CCQM5.50X-SDS Straight Column Cap for GFCMU and Concrete Piers 5.5" W/SDS Screws, Made to Order Non-Returnable

Name: Simpson CCQM5.50X-SDS Straight Column Cap for GFCMU and Concrete Piers 5.5" W/SDS Screws, Made to Order Non-Returnable
SKU: CCQM5.50X-SDS
Availability: InStock

Call for Price

Call to Order888-794-1590

Ships in 1-3 business days.

Description

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

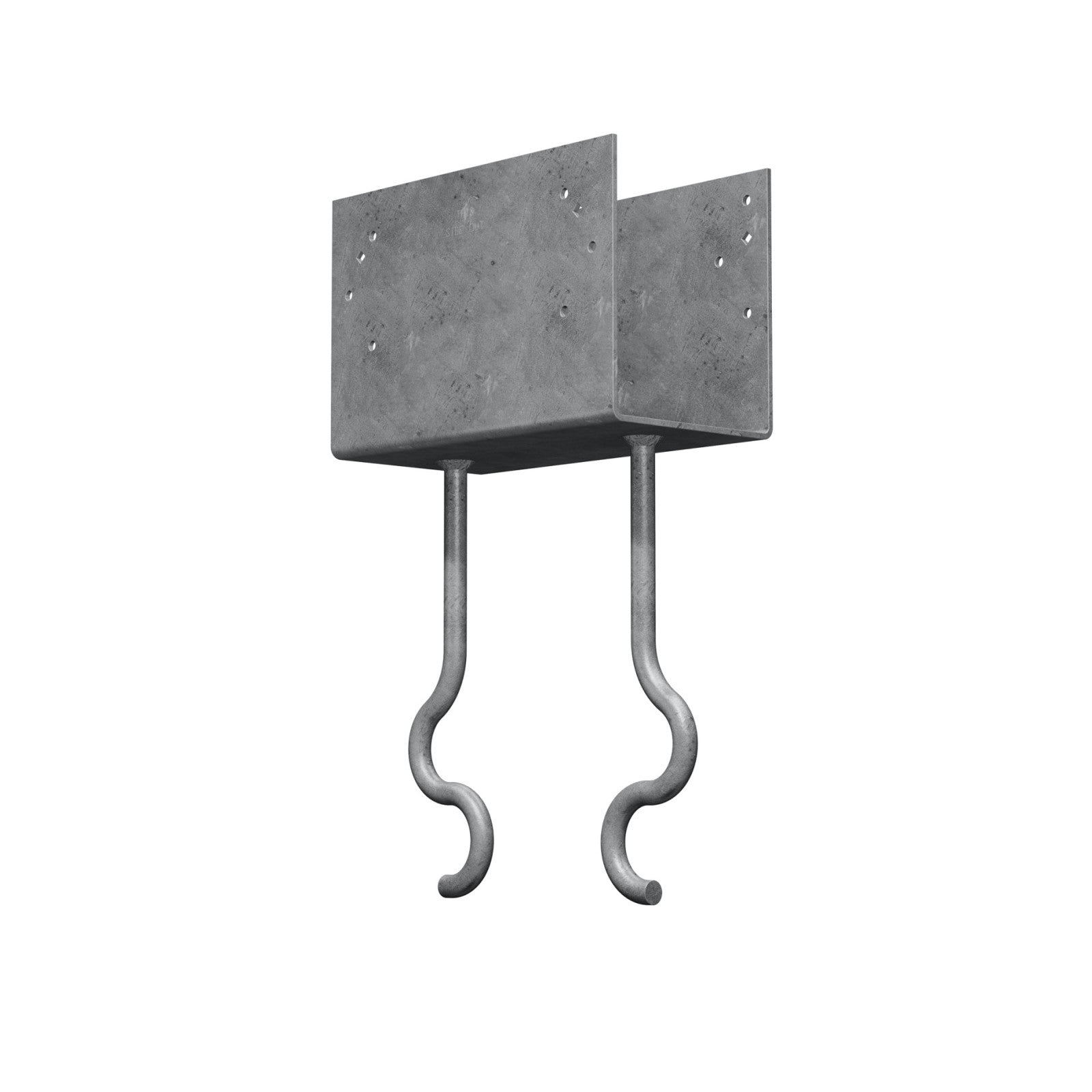

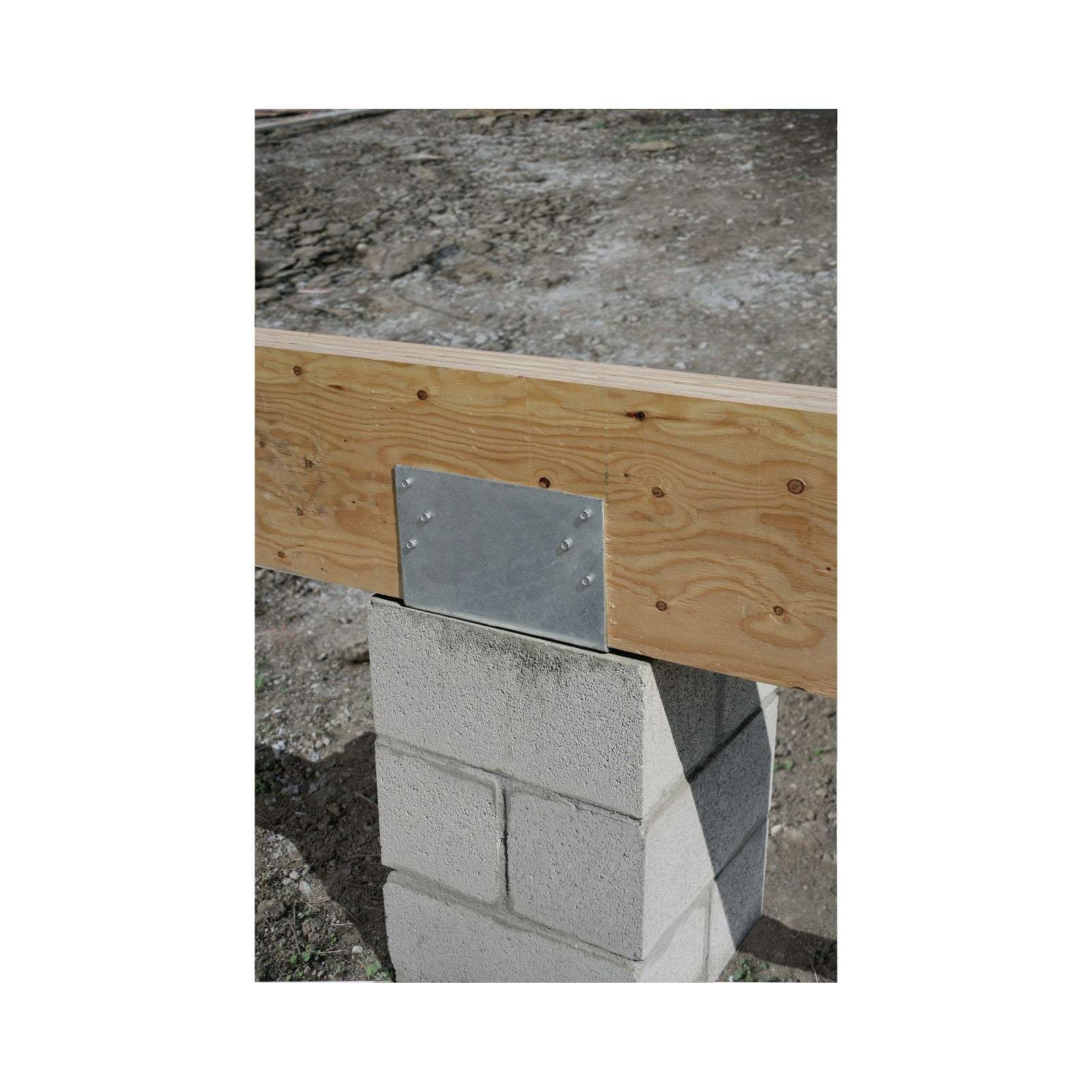

The CCCQM Cross Column Cap for GFCMU and Concrete Piers embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCQM5.50X-SDS is for use along a floor support beam with a stirrup on each side of the main channel to accommodate intermediate support beams at 90° angles.

Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
Screws are configured to provide high uplift design values
Certified welds for confidence in strength and loading
SSTB offset allows flush installation to edge of pier
SSTBs spaced to fit standard CMU cells

California Residents: WARNING

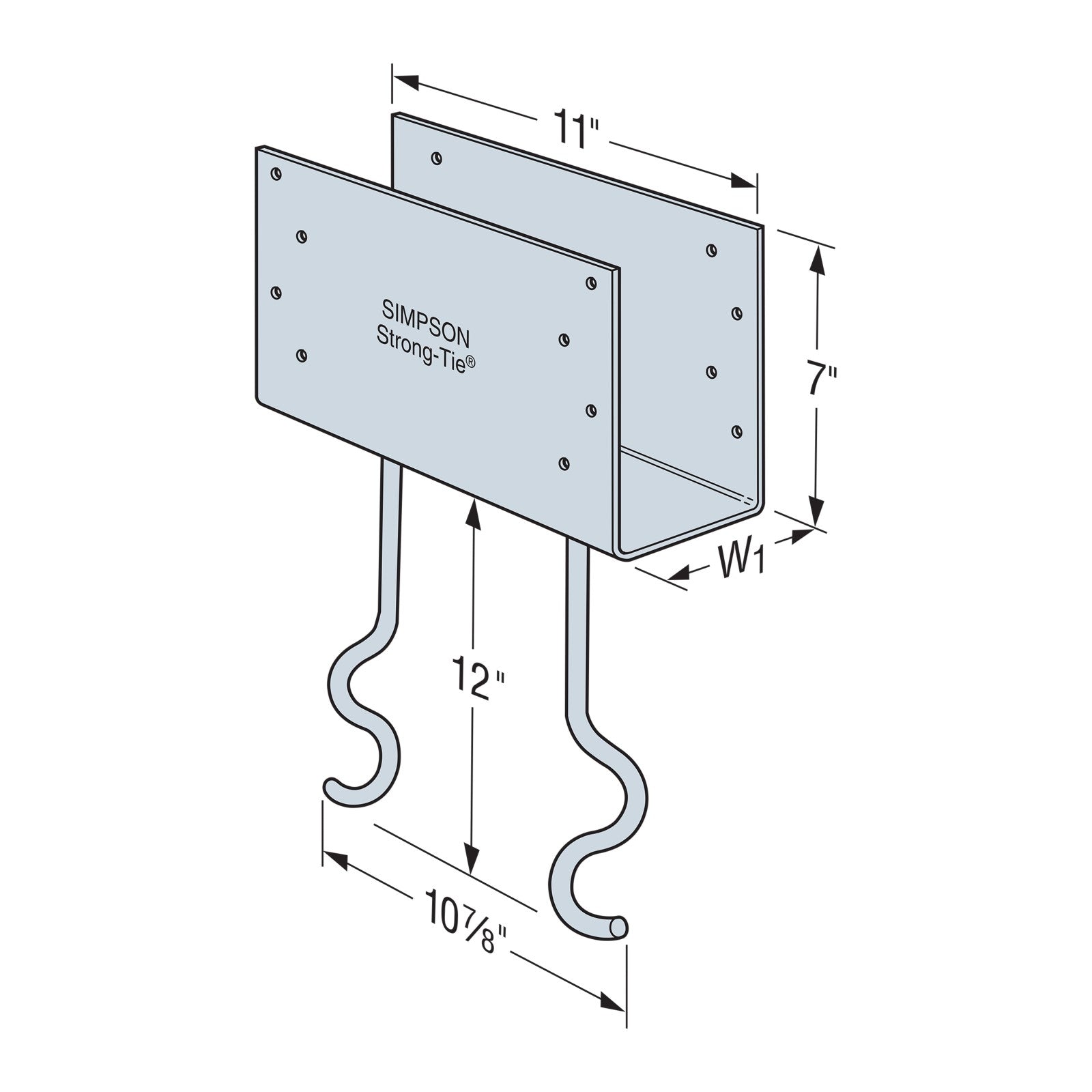

Specifications

Width: 5.5" - 7.125"

Length: 11"

Height: 7"

Thickness: 7 Gauge

Finish: Gray Paint

Manufacturer Name: Simpson Strong-Tie

View Spec Sheet

Simpson Strong-Tie Limited Warranty
