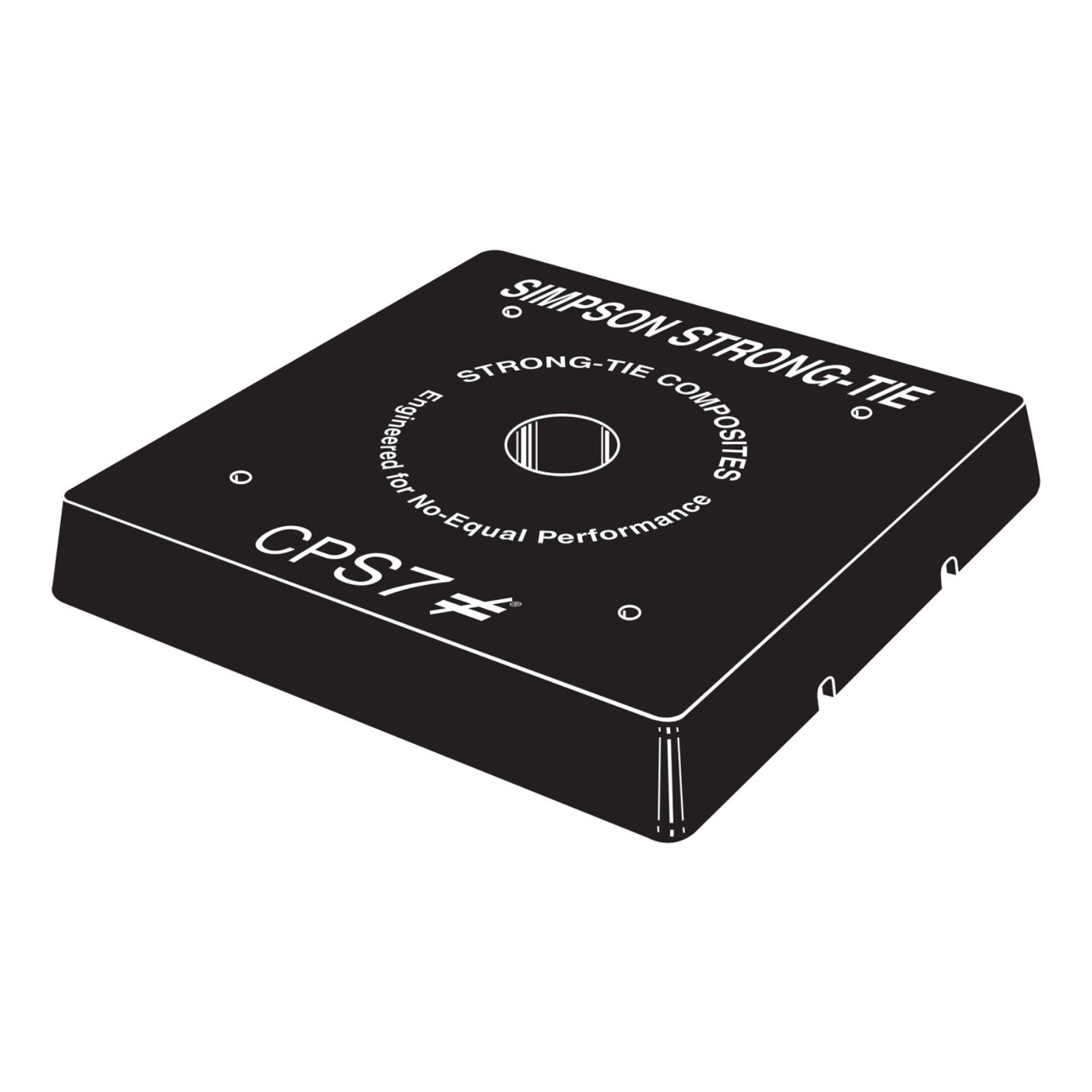

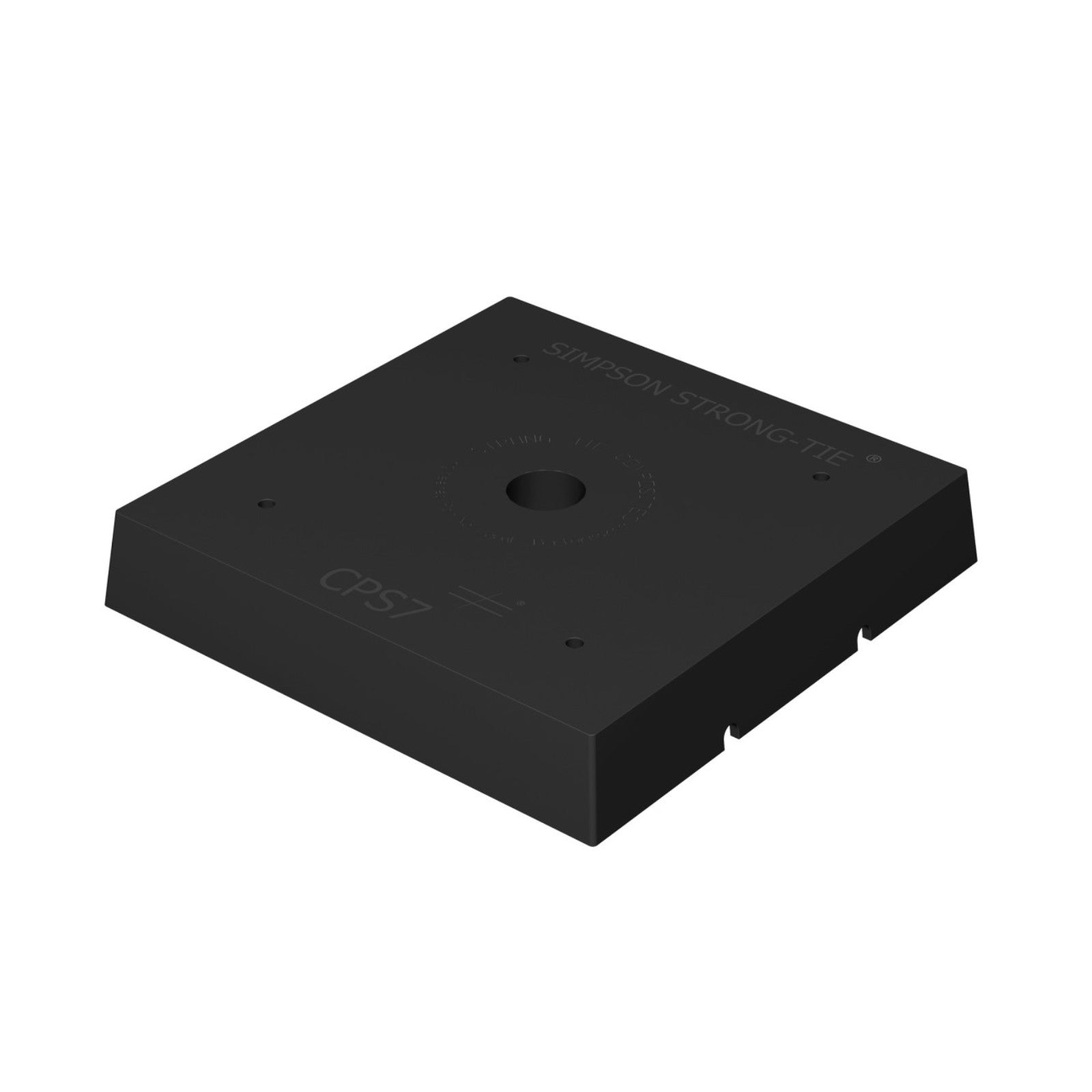

Simpson CPS7 8x8 Composite Plastic Standoff

SKU: CPS7
$10.89

The Simpson Strong-Tie CPS is a composite-plastic standoff designed for increased concrete surface area. The molded composite plastic will never rust and has been designed for maximum durability.

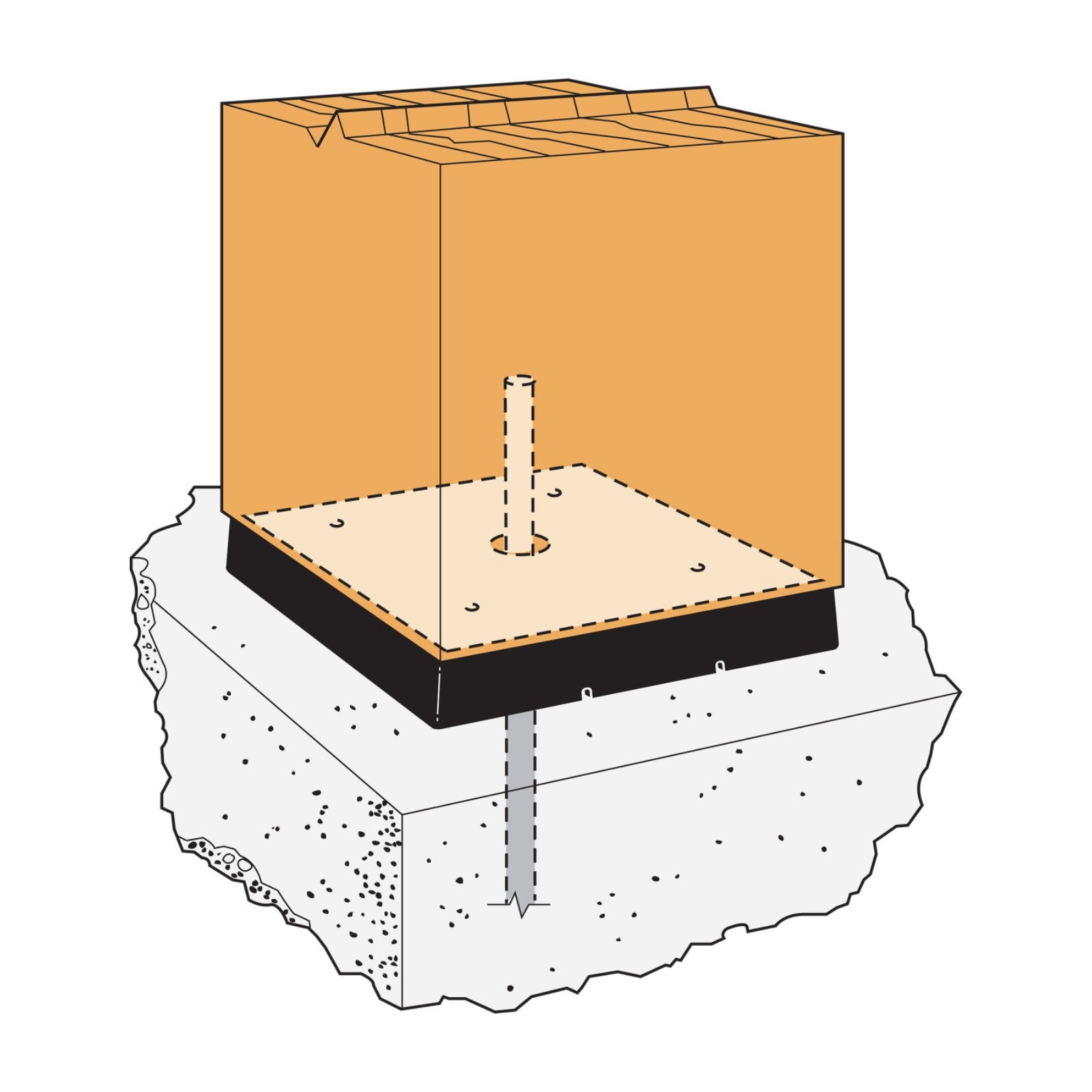

Installation:
Post:
  • Drill a 3/4" diameter hole, 10" into the center of the post.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie® SET® epoxy anchoring adhesive.
  • Insert all-thread rod and allow epoxy to set and cure.
  • Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws.

Concrete:
  • Drill a 3/4" diameter hole per anchor design.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
  • Insert post subassembly into hole and allow epoxy to set and cure.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie CPS is a composite-plastic standoff designed for increased concrete surface area. The molded composite plastic will never ru...

Read More

The Simpson Strong-Tie CPS is a composite-plastic standoff designed for increased concrete surface area. The molded composite plastic will never rust and has been designed for maximum durability.

Installation:
Post:
  • Drill a 3/4" diameter hole, 10" into the center of the post.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie® SET® epoxy anchoring adhesive.
  • Insert all-thread rod and allow epoxy to set and cure.
  • Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws.

Concrete:
  • Drill a 3/4" diameter hole per anchor design.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
  • Insert post subassembly into hole and allow epoxy to set and cure.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

length spec:
7-1/4"

manufacturer name:
Simpson Strong-Tie

fasteners required:
- (4) 0.148 x 3" Nails
- (1) 5/8" Concrete Anchor

height:
1-1/4"

post size:
8X8
