Shop more Standoff Bases
SKU: PBV10PC

Simpson PBV10PC 10" Hidden Standoff Post Base - Black Powder Coated

Simpson PBV10PC 10" Hidden Standoff Post Base - Black Powder Coated

Regular price $90.65
Sale price $90.65 Regular price
0% off
shipping truck, lead time icon
Ships Apr 22 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

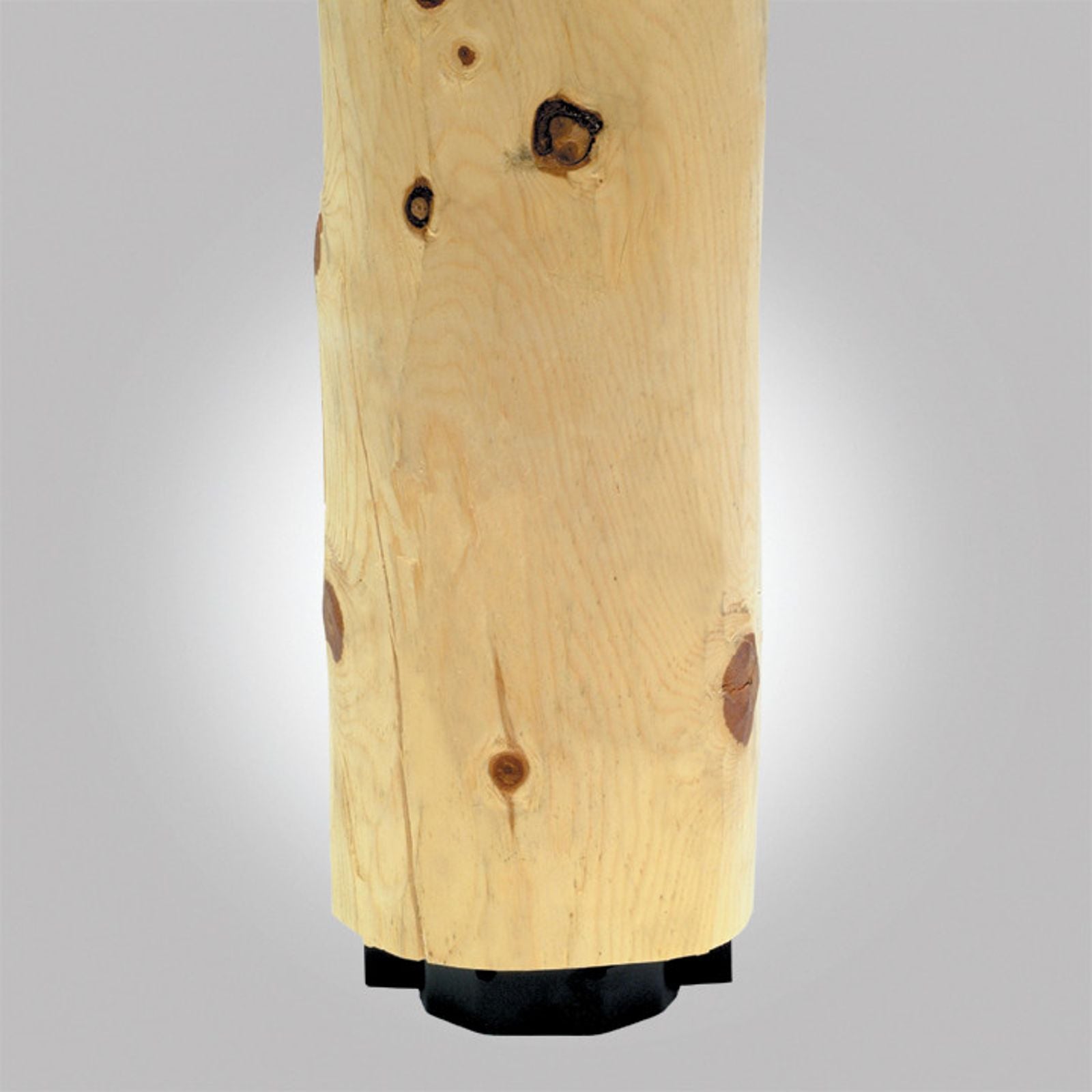

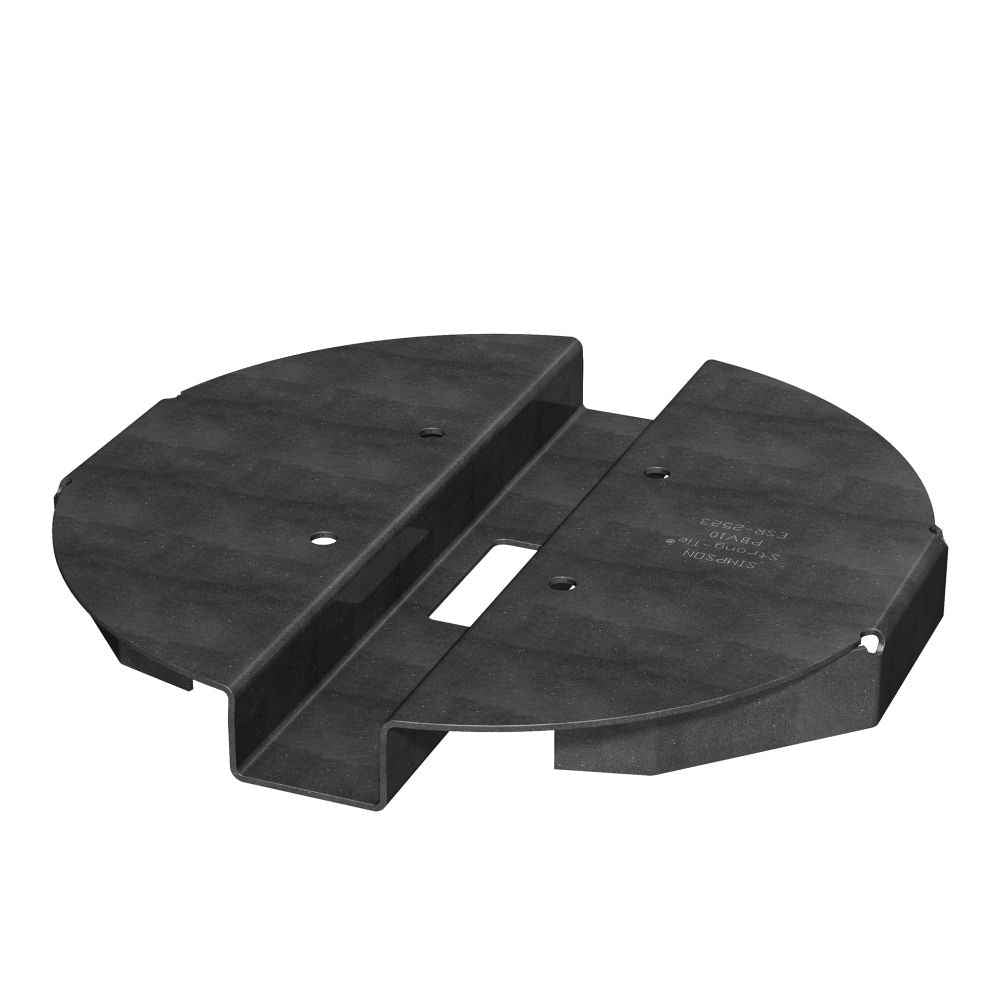

The Simpson PBV hidden-standoff post base comes in two different sizes for a variety of post shapes. The PBV10PC hidden standoff features a flat black powder-coated finish which produces a much more durable and better looking finish than standard paint.

Installation:
Post:
  • Drill a 3/4" diameter hole, 10" into the center of the post.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie® SET® epoxy anchoring adhesive.
  • Insert all-thread rod and allow epoxy to set and cure.
  • Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws.

Concrete:
  • Drill a 3/4" diameter hole per anchor design.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
  • Insert post subassembly into hole and allow epoxy to set and cure.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Post Size: 10"
Fasteners required: Post - (4) 1/4" x 3" SDS Screws Anchor Bolt - (1) 5/8" All Thread Rod
Length: 9-3/16"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

Installation

-Drill a 3/4" diameter hole, 10" into the center of the post.
-Clean out dust. Fill hole halfway with Simpson Strong-Tie® SET® epoxy anchoring adhesive.
-Insert all-thread rod and allow epoxy to set and cure.
-Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws.
