SKU: CSD25200

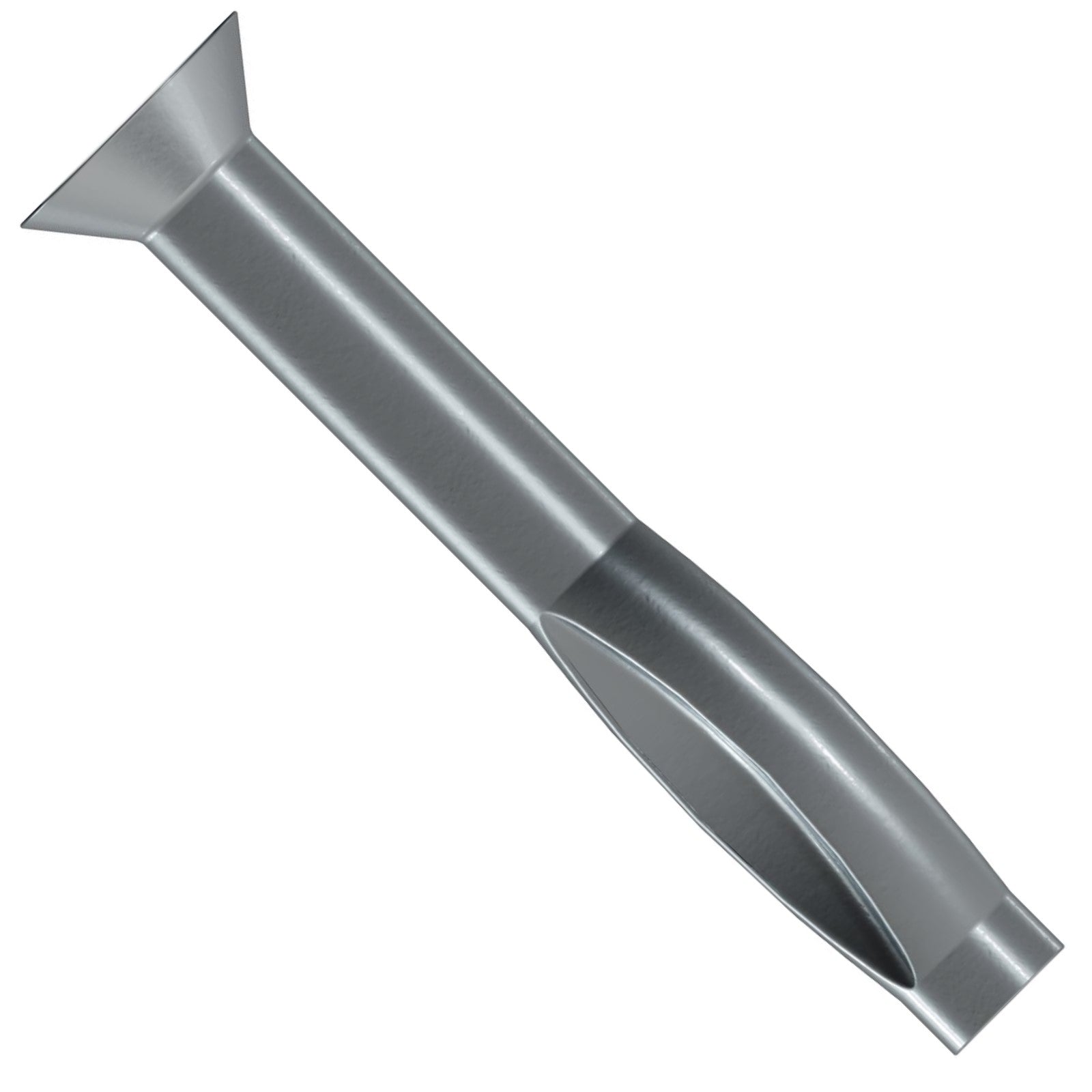

Simpson CSD25200 1/4" X 2" Countersunk Head Split-Drive Anchor - Zinc, Pkg 100

Name: Simpson CSD25200 1/4" X 2" Countersunk Head Split-Drive Anchor - Zinc, Pkg 100
Brand: Simpson Strong-Tie
SKU: CSD25200
Price: 31.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$31⁹⁹

Ships in 1-2 business days.

Description

The Split-Drive anchor is a one-piece expansion anchor that can be installed in concrete, grout-filled block and stone. As the anchor is driven in, the split-type expansion mechanism on the working end compresses and exerts force against the walls of the hole. The Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block surfaces.
Installation:

For Common Rafters:
Drill a hole in base material using a 1/4"-diameter carbide-tipped drill. Drill hole to specified embedment depth and blow clean using compressed air. (Overhead installation need not be blown clean.) Alternatively, drill hole deep enough to accommodate embedment depth and dust from drilling. Position fixture and insert split-drive anchor through fixture hole.
For CSD, 3/8"-diameter fixture hole is recommended for hard fixtures such as steel. For DSD, 5/16"-diameter fixture hole is recommended.
Drive anchor until head is flush against fixture.

California Residents: WARNING

Specifications

Diameter: 1/4"

Length: 2"

Drill Bit Size: 1/4"

Head Type: Countersunk Head

For Treated Lumber: Yes

Material: Carbon Steel

Manufacturer Name: Simpson Strong-Tie

Quantity: 100

View Spec Sheet

Simpson Strong-Tie Limited Warranty

Reviews

(1)

Great service!

I ordered on a Monday, and the pins arrived at my house on Wednesday. Last time I ordered from a big box store, it took two weeks to get them delivered to the store.

Erik,
Thank you for taking the time to write a review! We are happy to hear that you had a great experience ordering from us and that your order came right away. We strive to provide customers with a wide range of in stock options to ensure fast shipping times. Please reach out if we can be of any assistance in the future!
