SKU: CSD25400

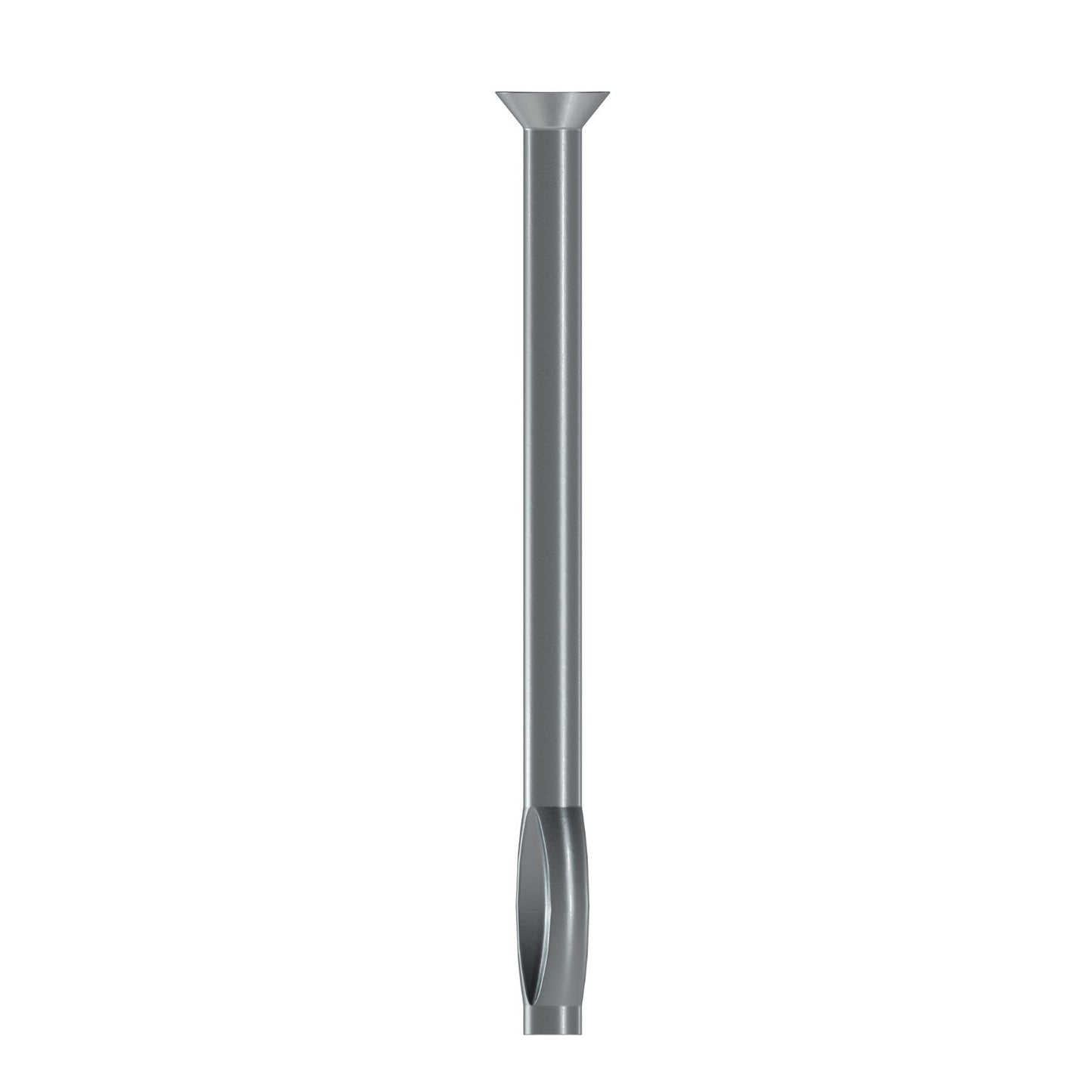

Simpson CSD25400 1/4" X 4" Countersunk Head Split-Drive Anchor - Zinc, Pkg 100

Simpson CSD25400 1/4" X 4" Countersunk Head Split-Drive Anchor - Zinc, Pkg 100!

  • Simpson CSD25400 14 inch X 4 inch Countersunk Head SplitDrive Anchor Zinc Pkg 100

Continue Browsing

Split-Drive Anchors
SKU: CSD25400

Simpson CSD25400 1/4" X 4" Countersunk Head Split-Drive Anchor - Zinc, Pkg 100

$36.18

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 6 and order in the next 1 hour 8 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 1/4"
Length: 4"
Material: Carbon Steel
Drill bit size: 1/4"
For Treated Lumber: Yes
Head type: Countersunk Head
Manufacturer name: Simpson Strong-Tie
Quantity: 100
Description
The Split-Drive anchor is a one-piece expansion anchor that can be installed in concrete, grout-filled block and stone. As the anchor is driven in, the split-type expansion mechanism on the working end compresses and exerts force against the walls of the hole. The Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block surfaces.
Installation:
  • For Common Rafters:
  • Drill a hole in base material using a 1/4"-diameter carbide-tipped drill. Drill hole to specified embedment depth and blow clean using compressed air. (Overhead installation need not be blown clean.) Alternatively, drill hole deep enough to accommodate embedment depth and dust from drilling. Position fixture and insert split-drive anchor through fixture hole.
  • For CSD, 3/8"-diameter fixture hole is recommended for hard fixtures such as steel. For DSD, 5/16"-diameter fixture hole is recommended.
  • Drive anchor until head is flush against fixture.

    • California Residents: WARNING
